Cottage Plan 036-00175


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,137
Beds 1
Bath 2
1/2 Baths 0
Car 0
Stories 1.5
Width 24'
Depth 36'

Floorplan Drawings

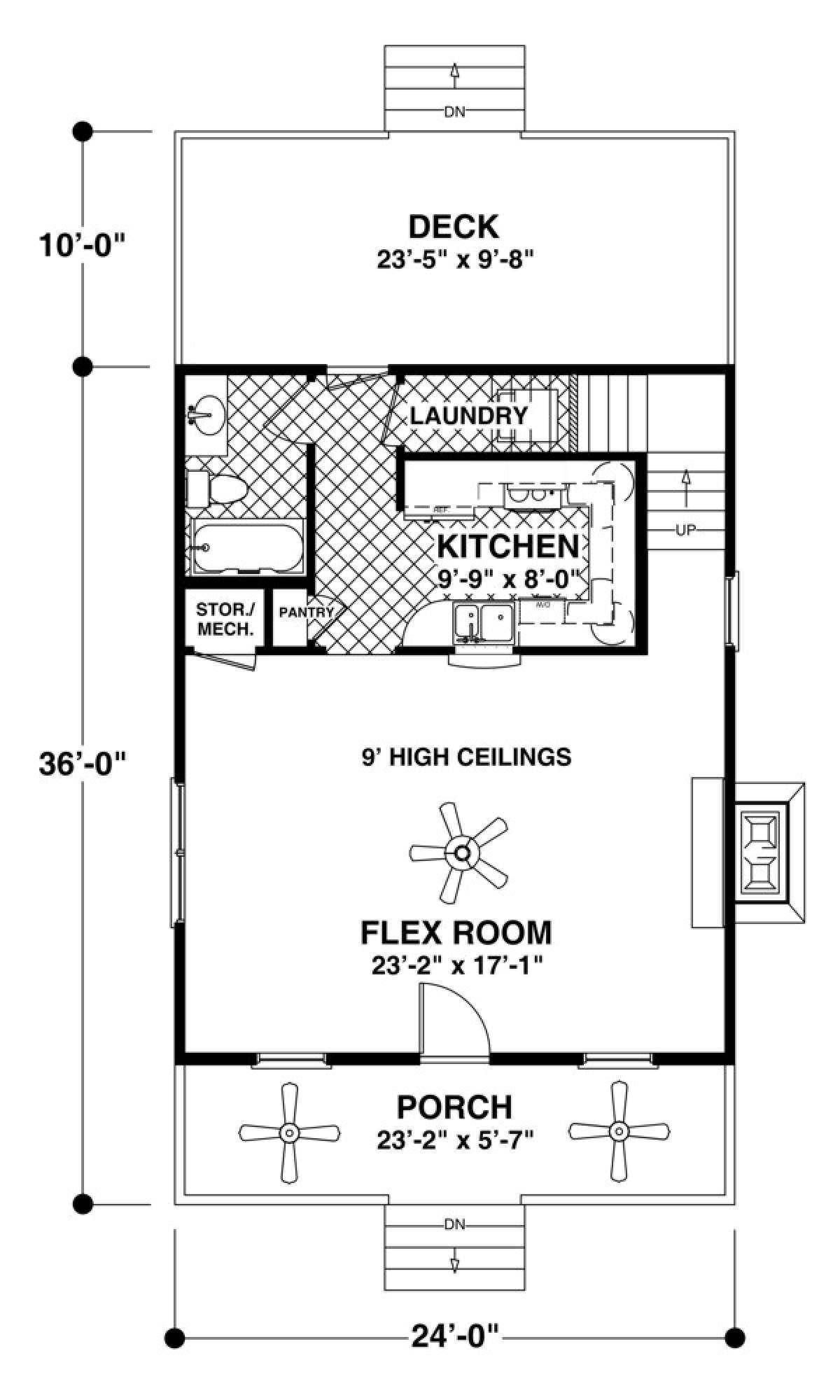

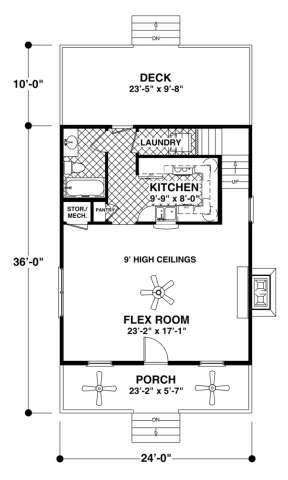

Main Floor Plan
Main Floor Plan for House Plan #036-00175

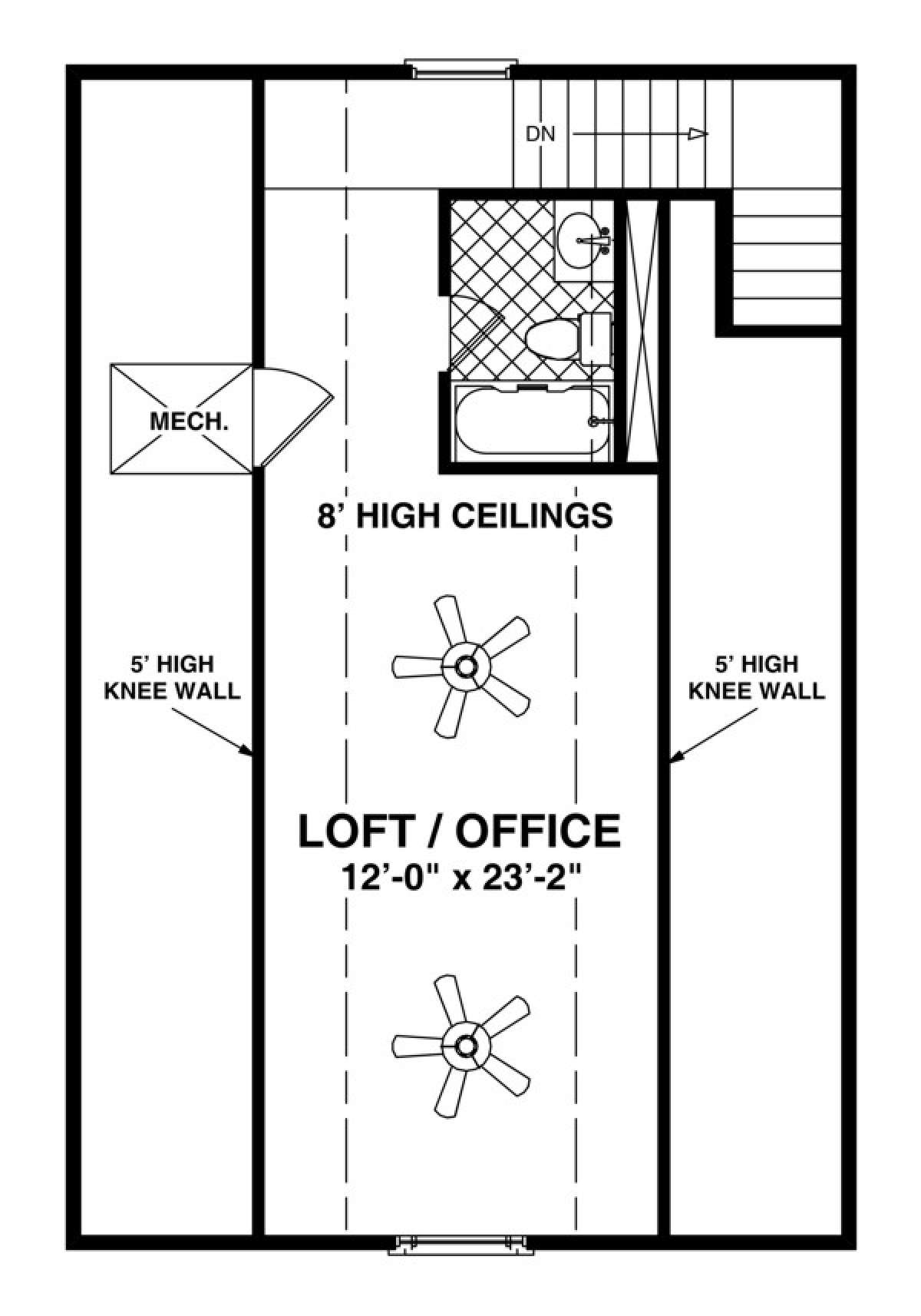

Upper Floor Plan
Upper Floor Plan for House Plan #036-00175

What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Cottage house plan is full of charming and delightful architectural design features and is perfect for a young couple, a single professional artist or writer and/or empty nesters who enjoy their solitude. Ideally designed for in-town/urban living, nestled on a mountain property lot or overlooking a lake or waterfront, this home is highlighted with great outdoor space to take advantage of any and all panoramic views. The respective width and depth of, 24’ and 36’, make this home perfect for narrow and/or small property lots no matter their location. The exterior is highlighted with massive charm that includes aesthetically pleasing features such as a board and batten gable with decorative trim, exposed rafters and wide eaves. The stone chimney features adds balance to the home’s exterior along with the front covered porch which spans the width of the home beautifully and features open railing, substantial beams and a walk-up staircase. The interior floor plan is highlighted with approximately 1,137 square feet of living space on two floors that includes one bedroom and two baths. The open floor plan is generously proportioned for entertaining and family living. The flex space is immediately apparent once you enter the home and offers a good amount of space, a plethora of window views and a warming fireplace. Beyond the flex/living space is the U-shaped kitchen which features plentiful counter and cabinet space, double sinks and a separate pantry. There is a laundry room located behind the kitchen and close to the rear covered porch for convenience and there is a full bath on the main floor for guests and family. The rear covered porch is located off the kitchen and is nearly identical in size as the front but is set a bit deeper for relaxing and entertaining outdoor space. The second floor of the home is an exciting space that could be used as an artist’s loft, writer’s studio or sleeping quarters. The space measures in excess of 12’x23’ with window views at the front and rear of the space and 5’ high knee walls for an eclectic and unique space for creating, living or sleeping. There is a full bath with a vanity space, a toilet area and a tub/shower combination located on the floor as well for the comfort of the homeowner’s or their guests. This small yet, wonderful Cottage has unlimited potential to offer living space, inventive creating space or sleeping space which along with the outdoor space gives it considerable options for many different types of homeowners and their family and friends to enjoy such a comfortable and inviting Cottage.
