Luxury Plan 5445-00122

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 5,084
Beds 3
Bath 4
1/2 Baths 1
Car 3
Stories 2
Width 50'
Depth 125'

Floorplan Drawings

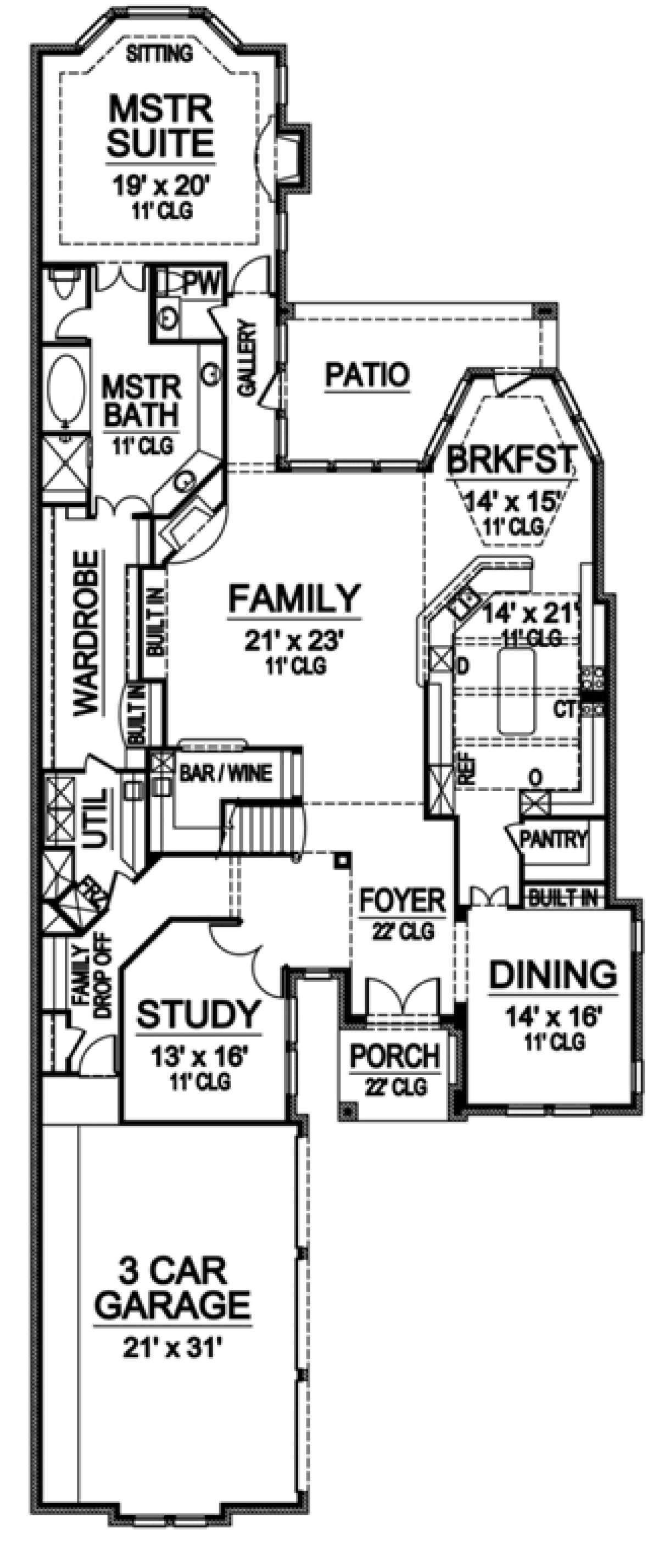

Floorplan 1
Floorplan 1 for House Plan #5445-00122

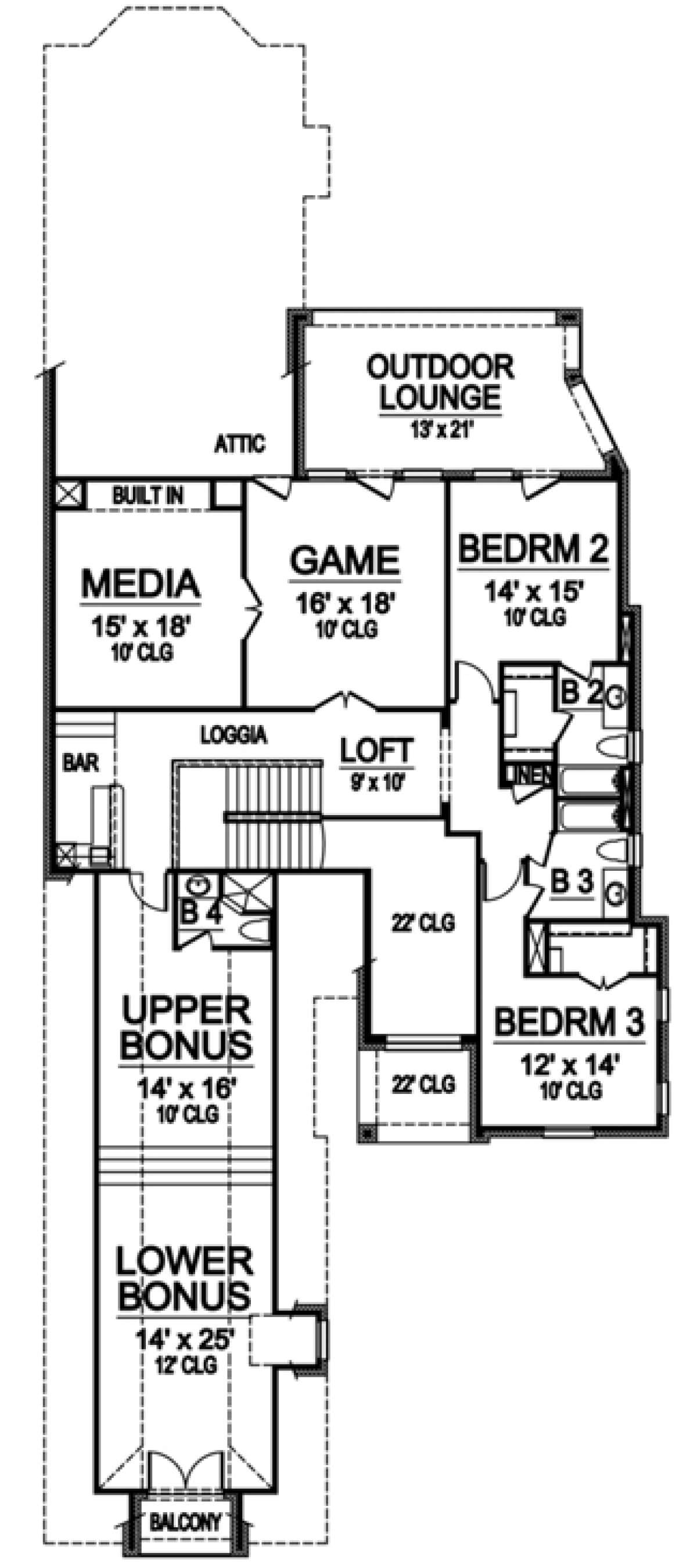

Floorplan 2
Floorplan 2 for House Plan #5445-00122


What's Included in these plans?

  • Cover Page:
    Showing the house plan name, an elevation or rendering of the plan, and the designers contact information.
  • Foundation Plan
  • Floor Plan(s):
    The floor plans provide all dimensions and notes for the first and second floor (If plan has a second floor).
  • Electrical Plan:
    Schematic layout of lights, electrical plugs, phone locations and code items such as smoke detectors.

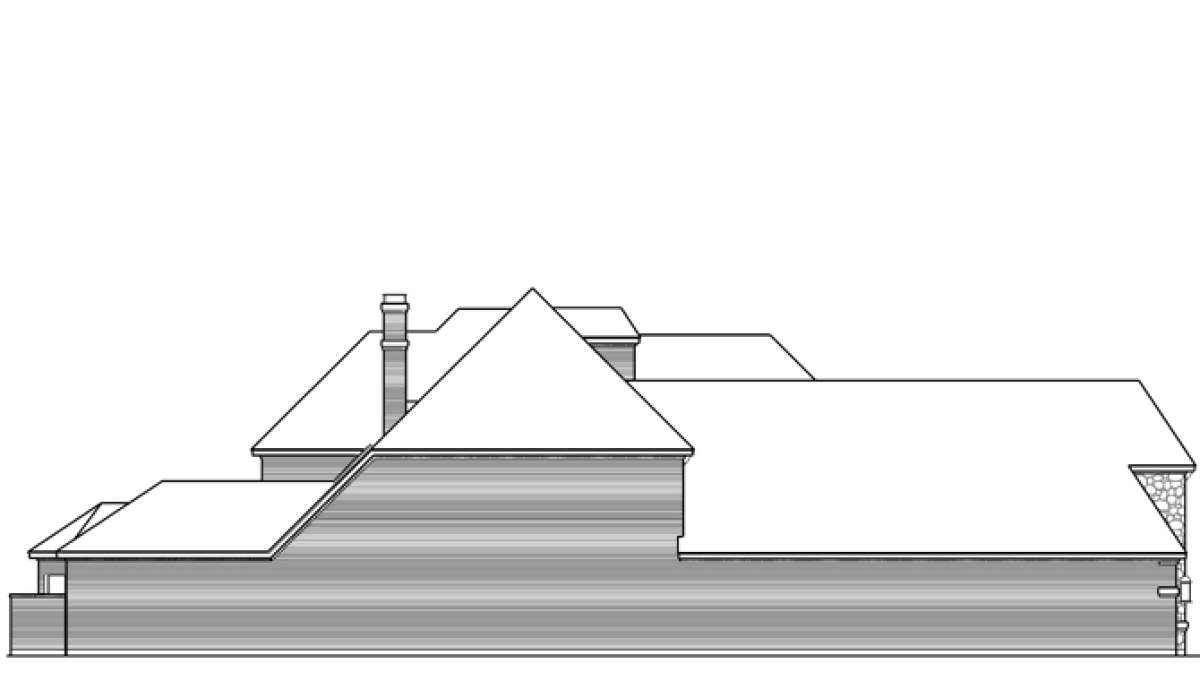

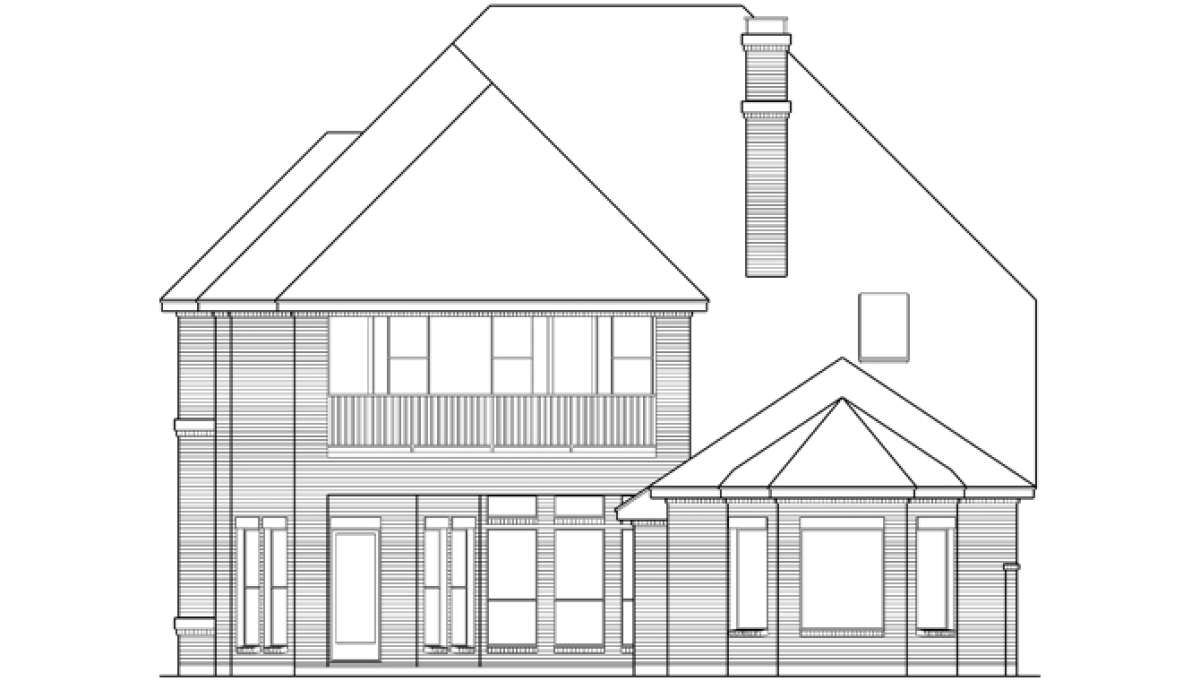

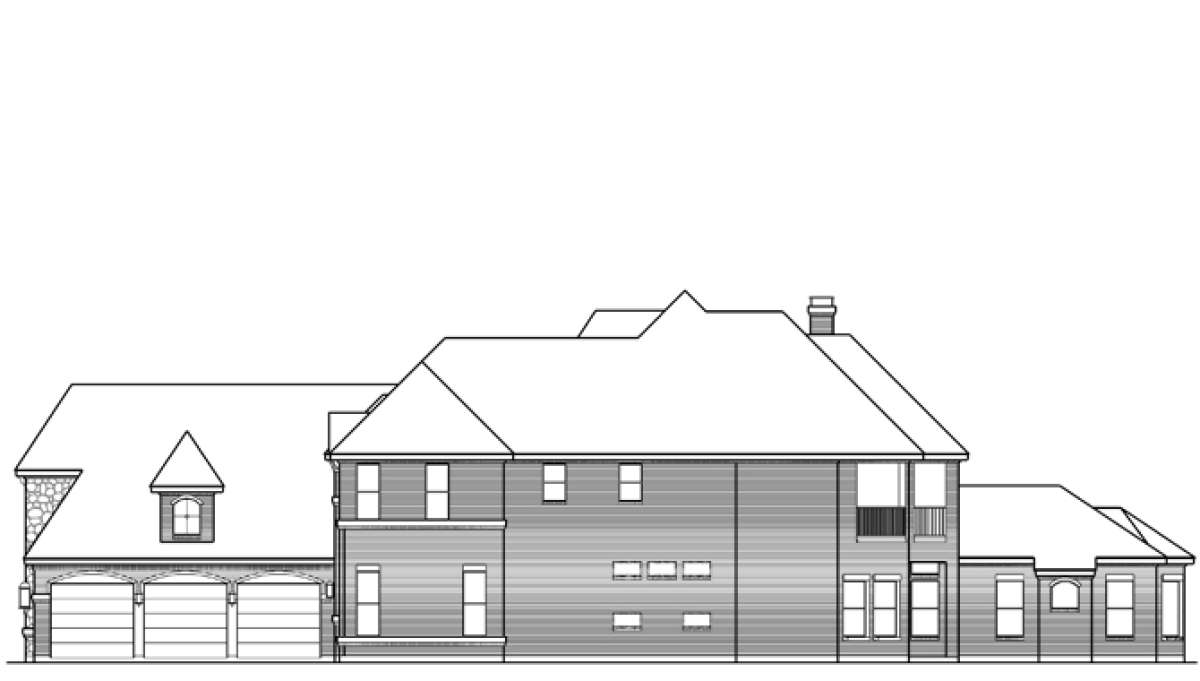

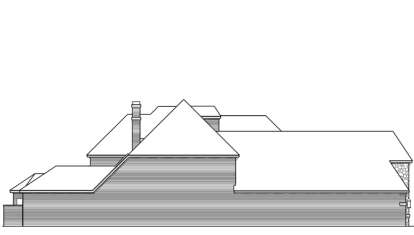

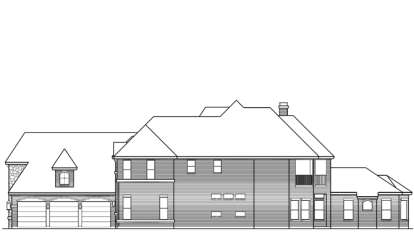

  • Elevations:
    Front, side and rear elevations with notes and exterior dimensions.  All elevations are drawn to 1/4 scale.
  • Roof Plan:
    Drawn to 1/4 scale.
  • Sections Page

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 4 bathroom Luxury house plan features 5,084 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
