Name: House Plan 5678-00008 - Ranch Plan: 1,640 Square Feet, 3 Bedrooms, 2 Bathrooms
Brand: America's Best House Plans
SKU: 5678-00008
Price: 1150.00 USD

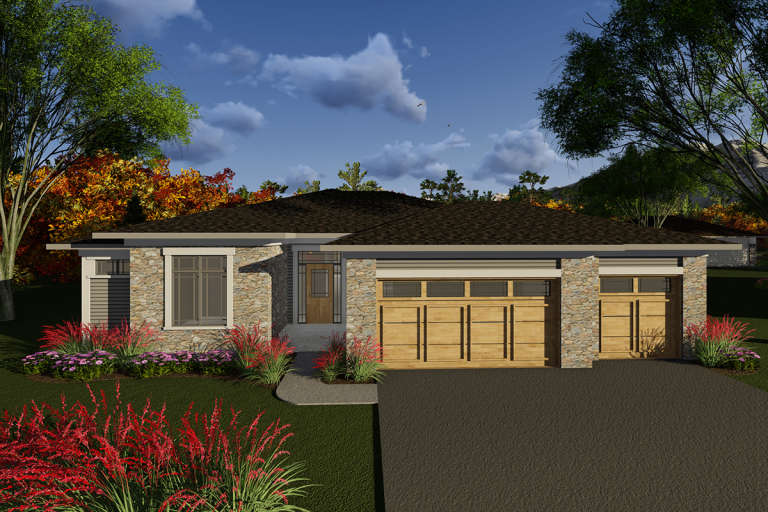

Ranch House Plan #5678-00008 Elevation Photo

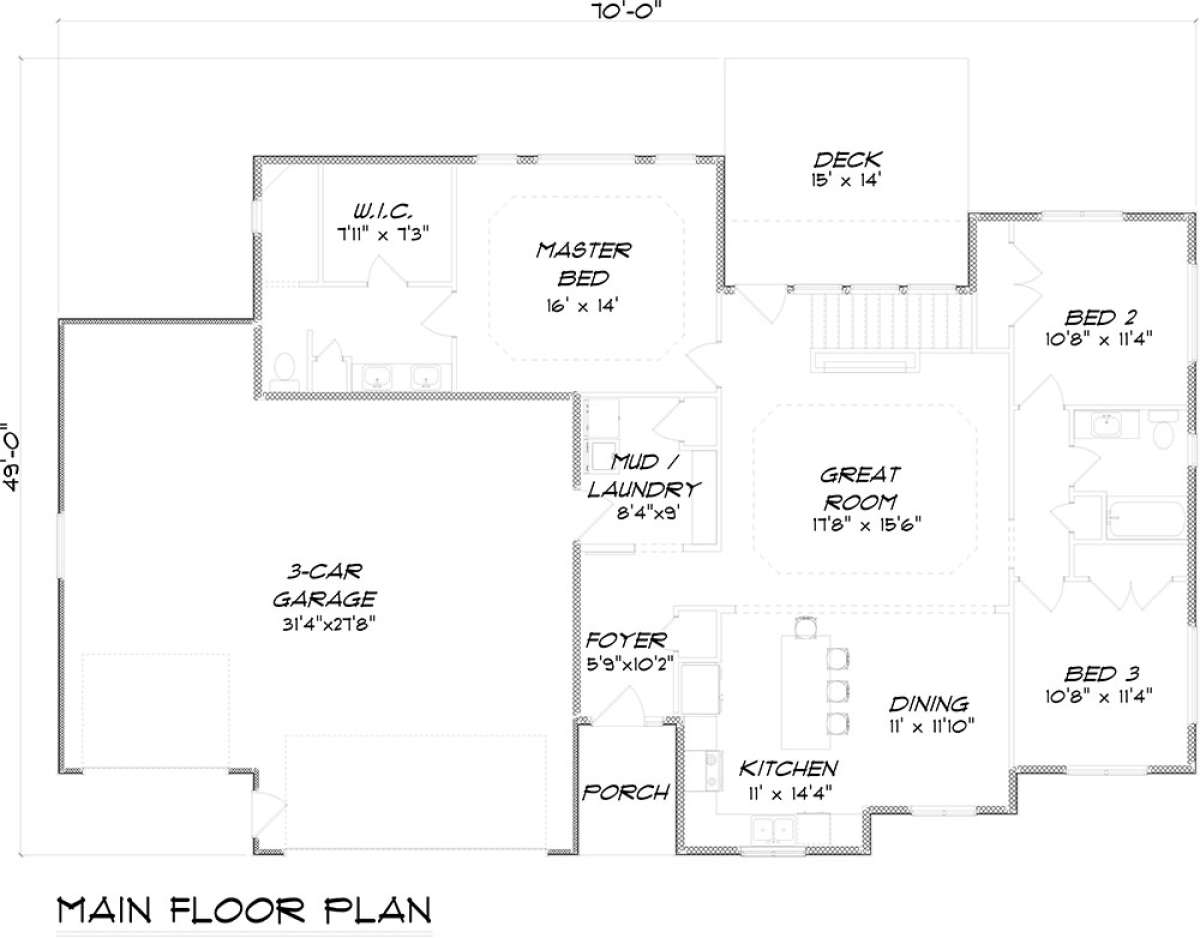

Main Level 1st floor for House Plan #5678-00008

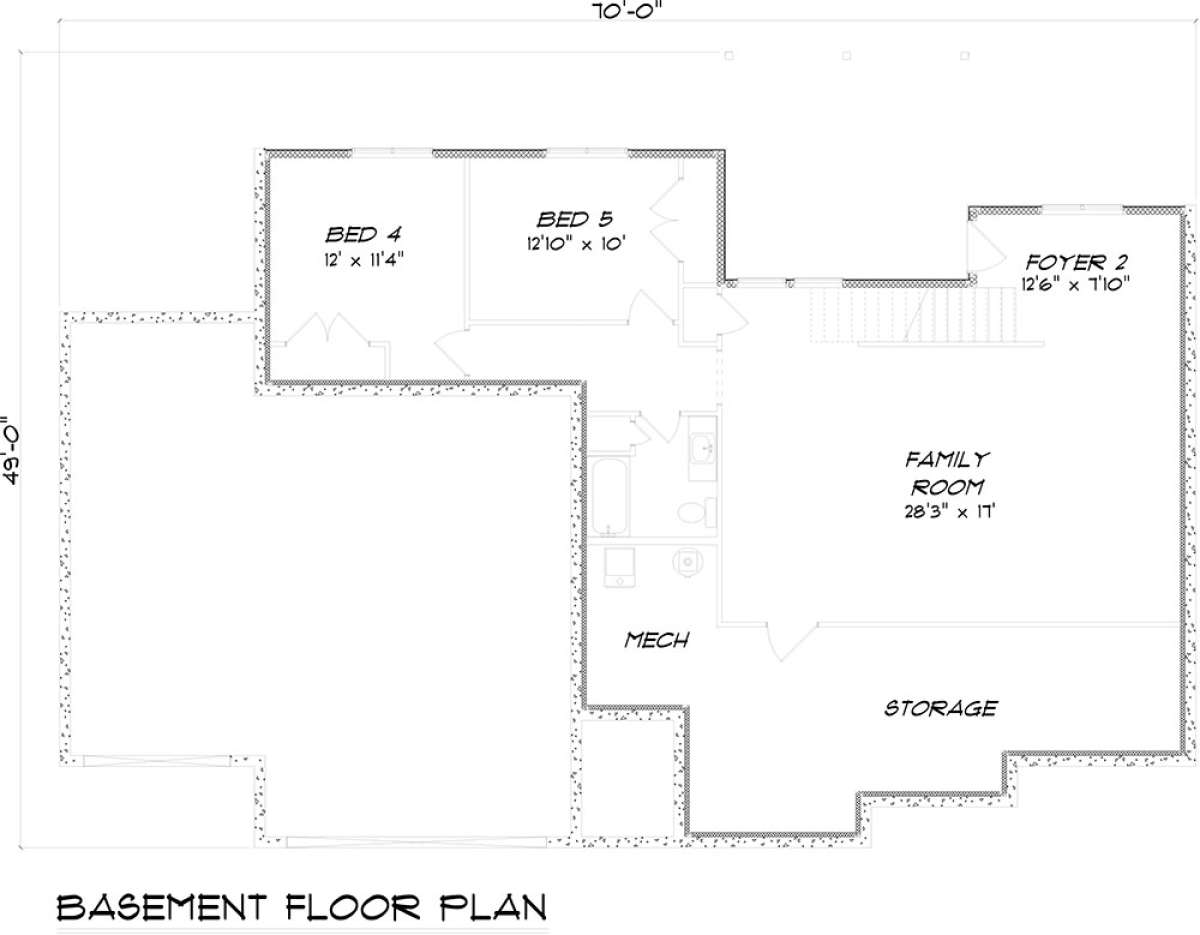

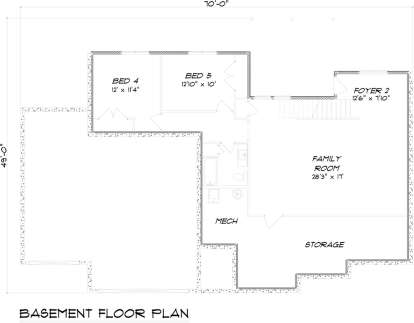

Basement FlootPlan for House Plan #5678-00008

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,640

Beds 3

Bath 2

1/2 Baths 0

Car 3

Stories 1

Width 70'

Depth 49'

See What's Included

Select Package

PDF (Single Build)

$1,150.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$1,750.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Walkout Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Main Level 1st floor

Basement FlootPlan

Images copyrighted by the designer.

What's Included in these plans?

Title sheet: Rendering and Notes

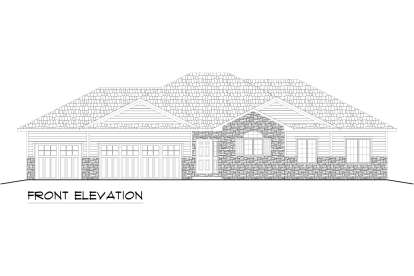

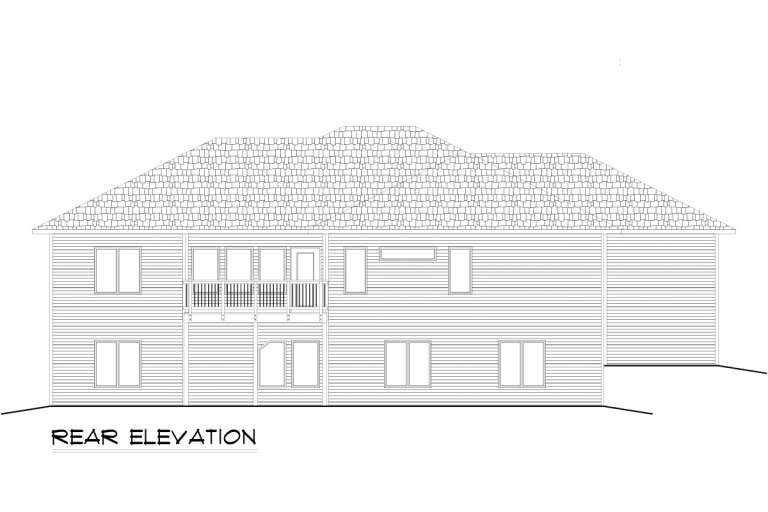

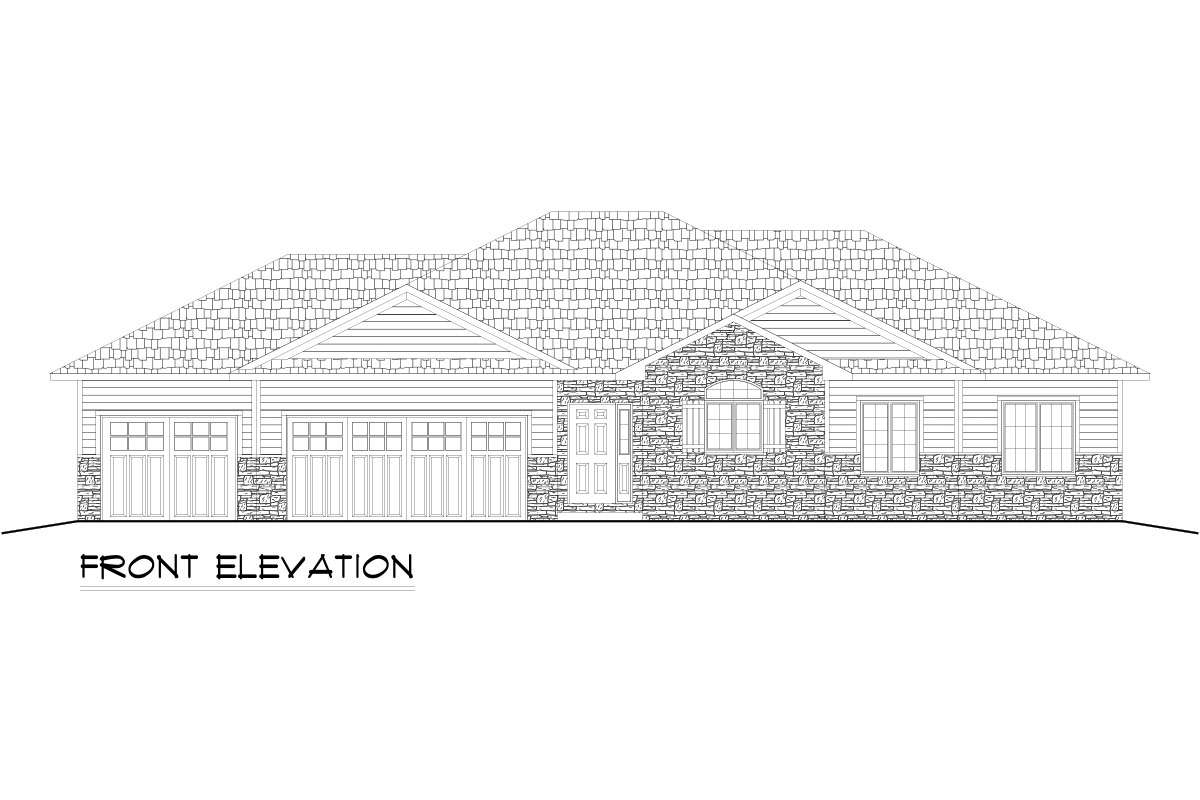

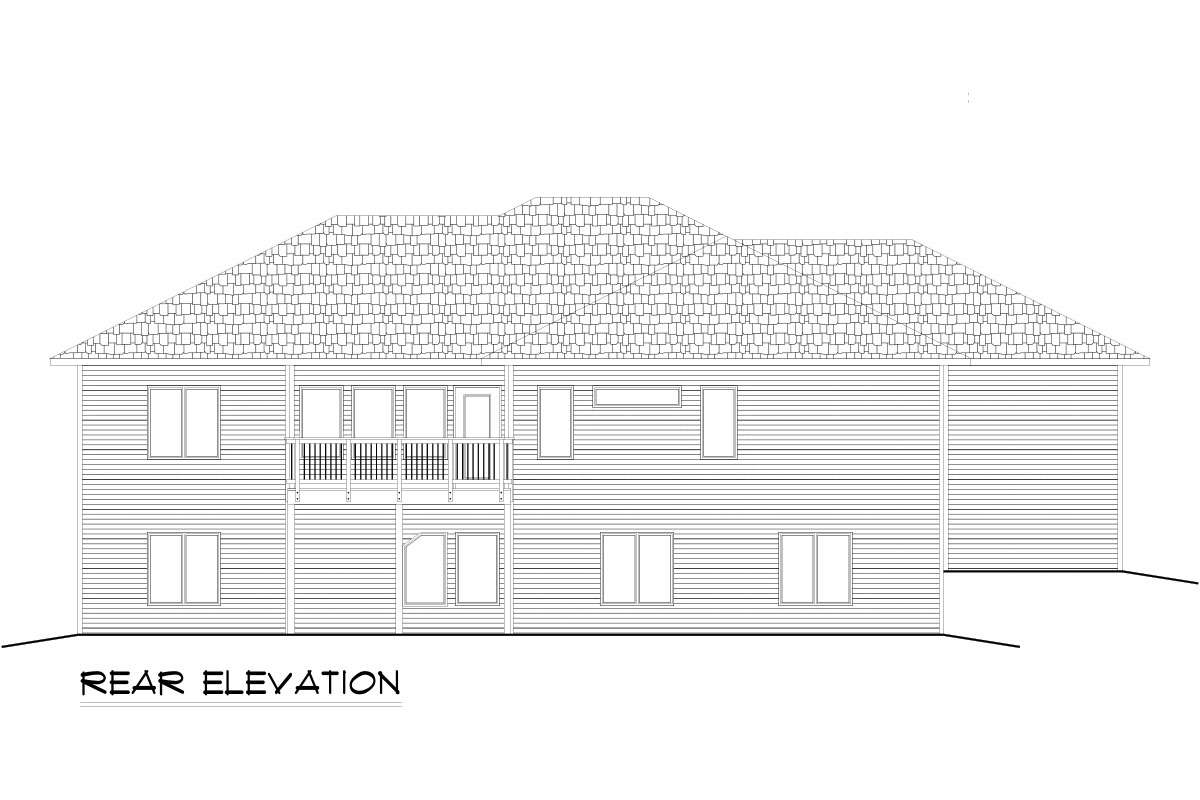

Elevations
Floor Plans
Foundation Plan
Roof Plan: Bird's eye view
First floor structure plan (floor joist layout)
Schematical electrical plan
Wall section

Ask Us A Question

About This Plan

This 3 bedroom, 2 bathroom Ranch house plan features 1,640 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
