Luxury House Plan 5445-00349

Sq Ft5,239
Beds3
Baths3
1/2 Baths1
Stories2
Cars2
Width41' 0"
Depth93' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #5445-00349
Second Floor for House Plan #5445-00349

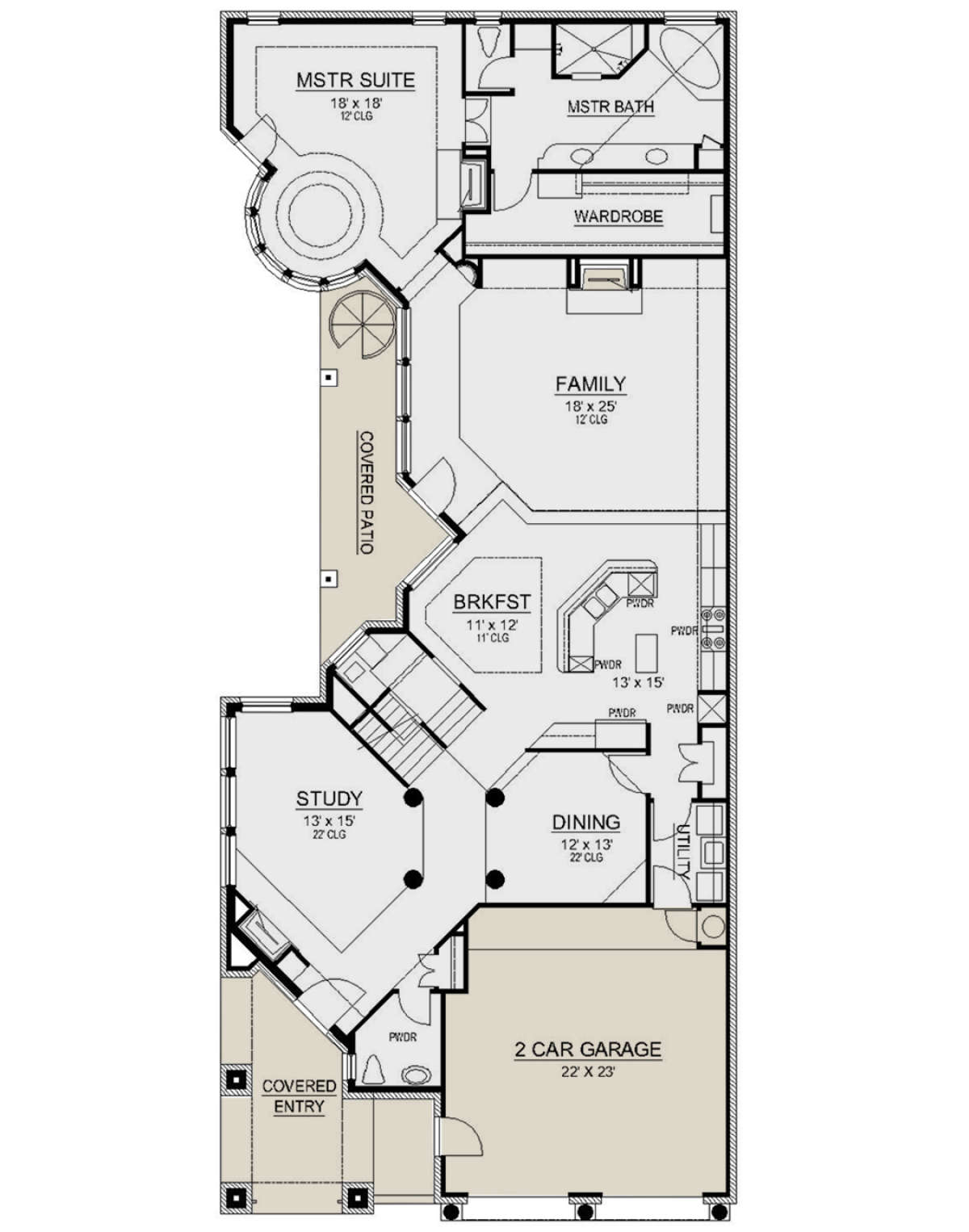

Main Floor
Main Floor for House Plan #5445-00349

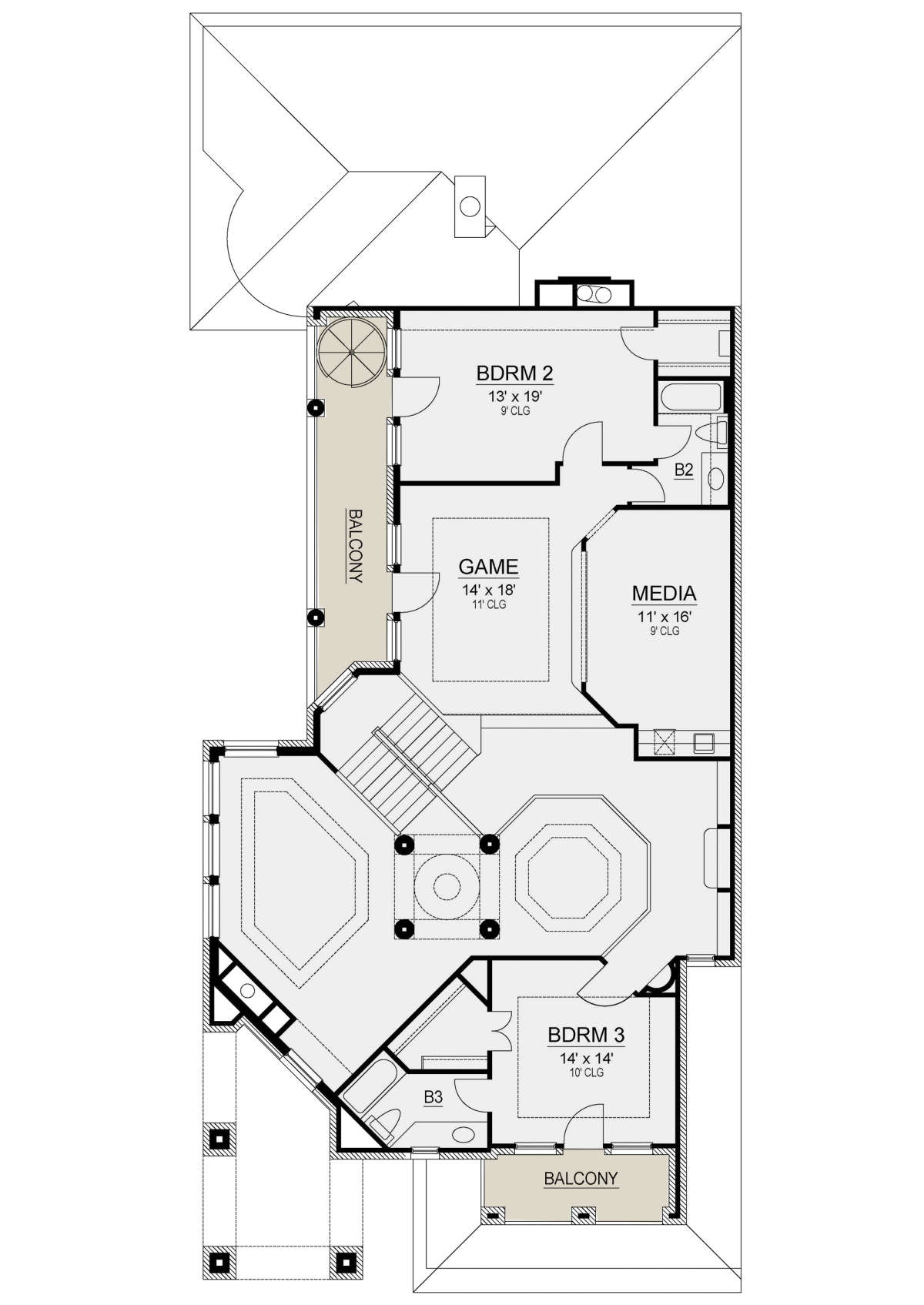

Second Floor
Second Floor for House Plan #5445-00349


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page:
    Showing the house plan name, an elevation or rendering of the plan, and the designers contact information.
  • Foundation Plan
  • Floor Plan(s):
    The floor plans provide all dimensions and notes for the first and second floor (If plan has a second floor).
  • Electrical Plan:
    Schematic layout of lights, electrical plugs, phone locations and code items such as smoke detectors.

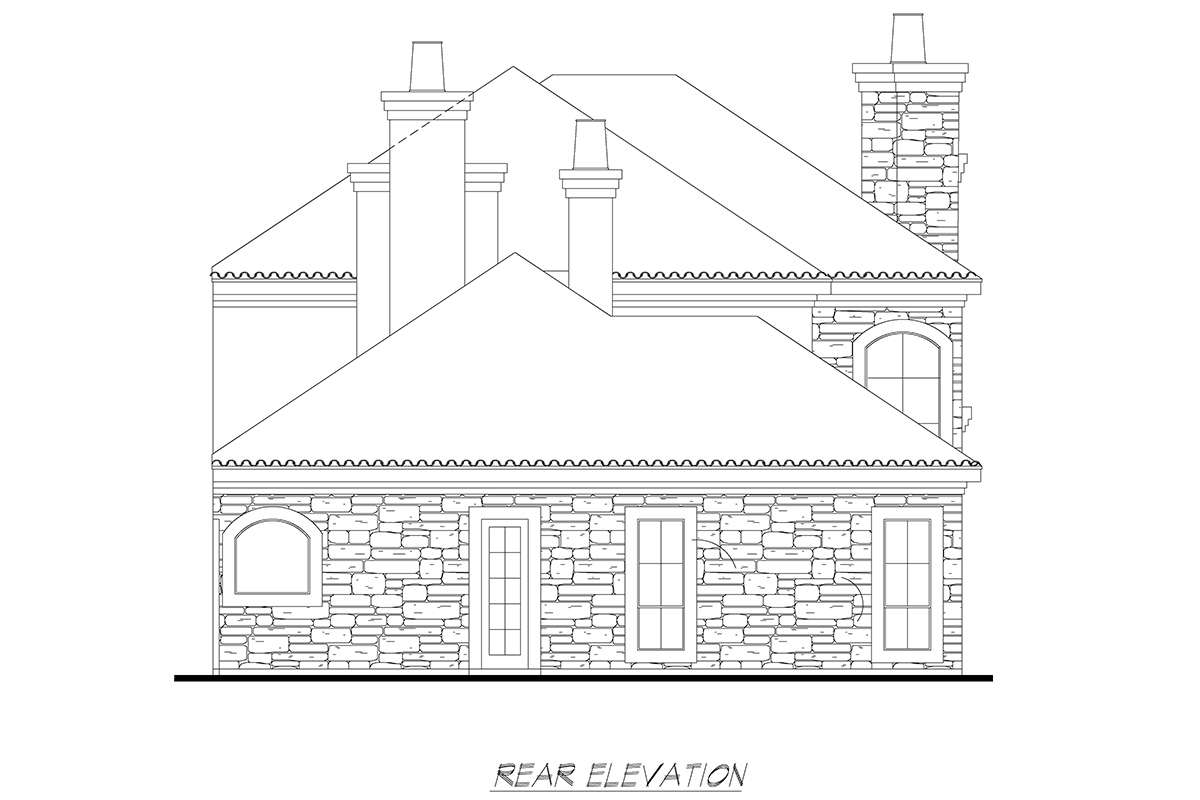

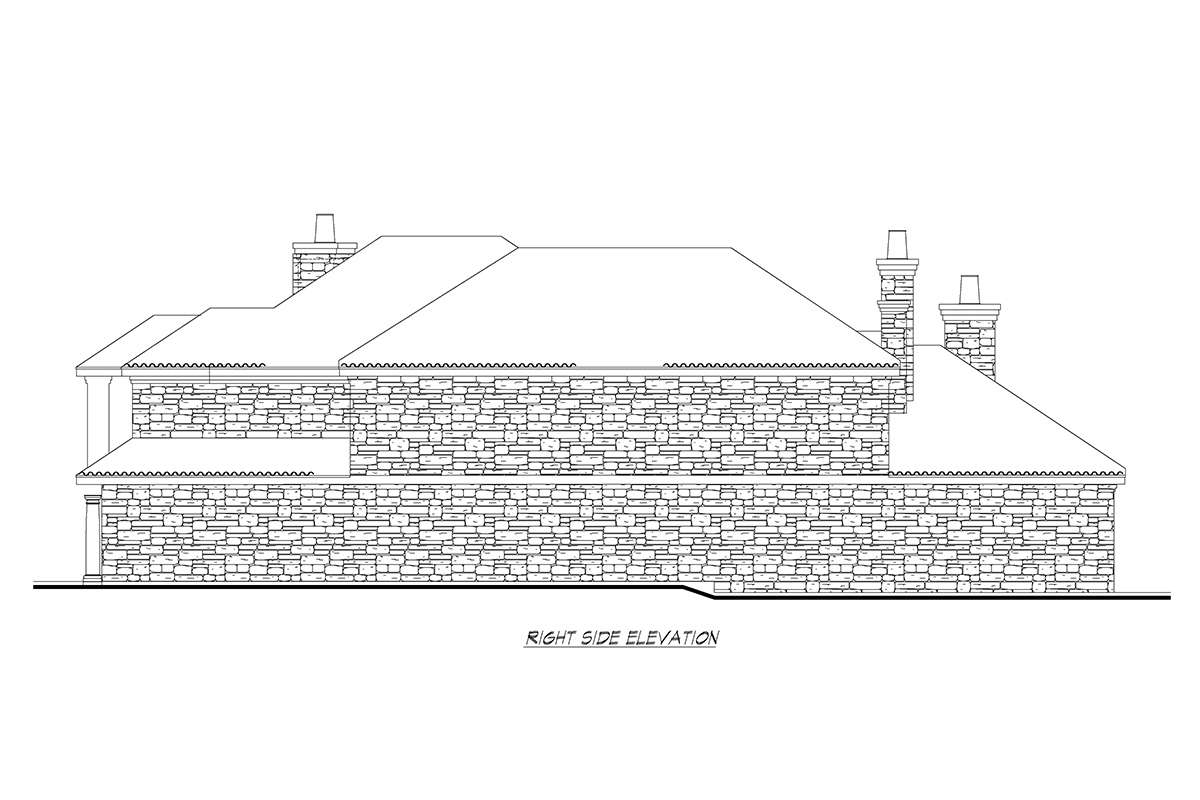

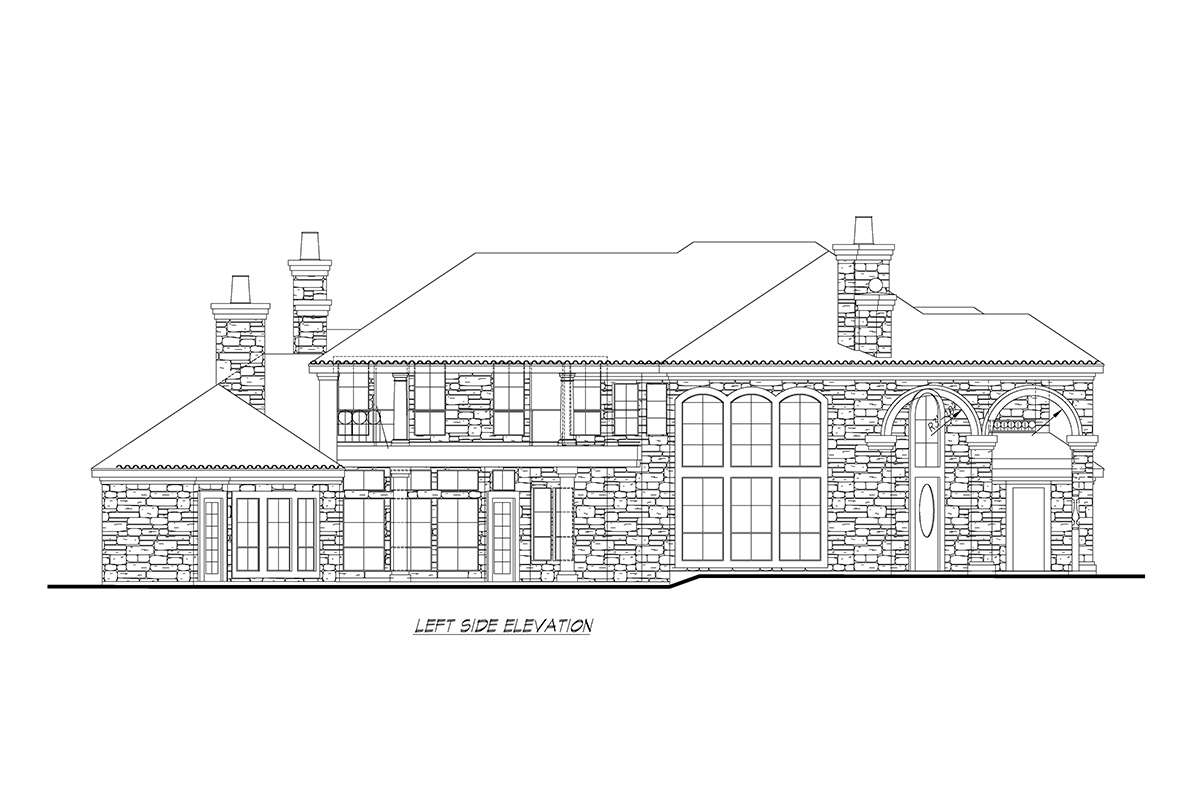

  • Elevations:
    Front, side and rear elevations with notes and exterior dimensions.  All elevations are drawn to 1/4 scale.
  • Roof Plan:
    Drawn to 1/4 scale.
  • Sections Page

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 bedroom, 3 bathroom Luxury house plan features 5,239 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are suitable for all lifestyles and are easily viewed and readily available when you begin the process of building your dream home. All our house designs are easy to read, versatile and affordable with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
