Bungalow Plan 4848-00323

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,420
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 31'
Depth 56'

Floorplan Drawings

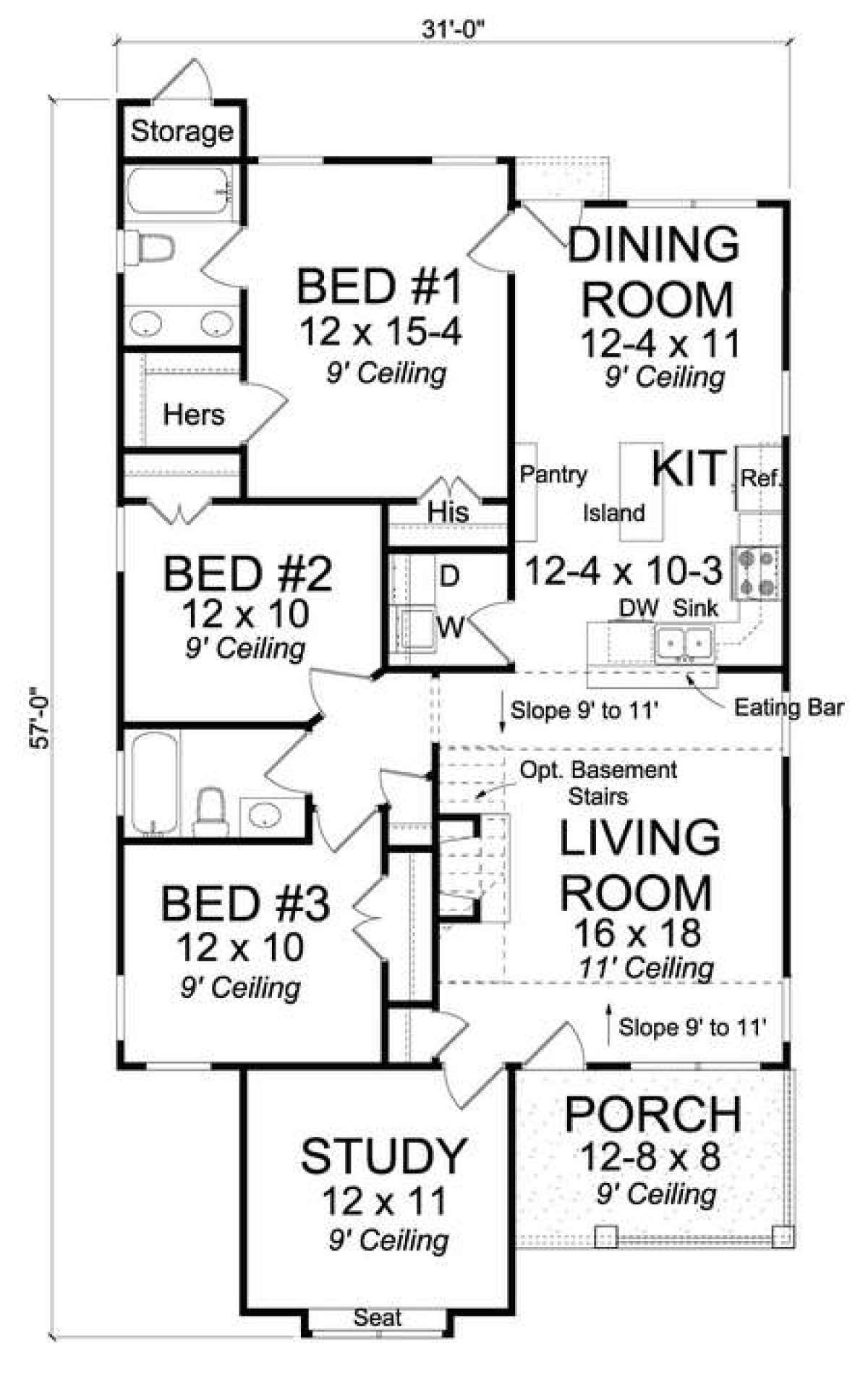

Floorplan 1
Floorplan 1 for House Plan #4848-00323


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

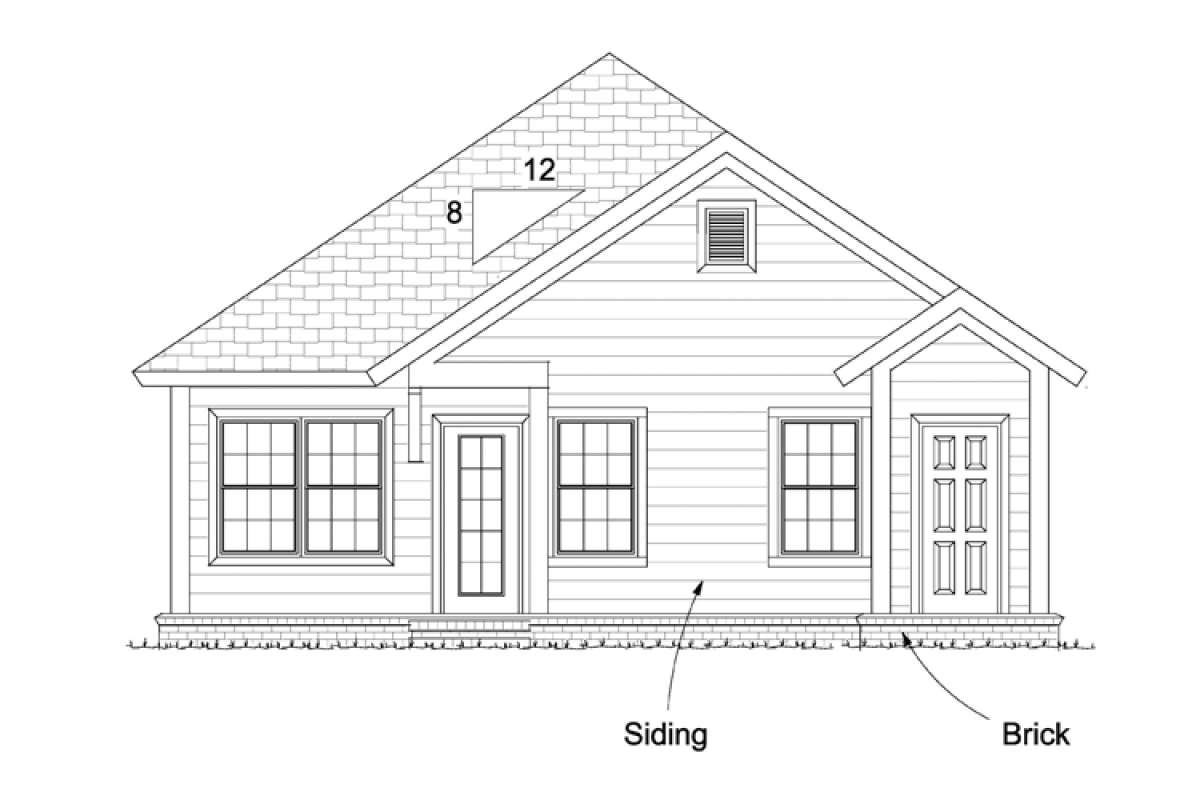

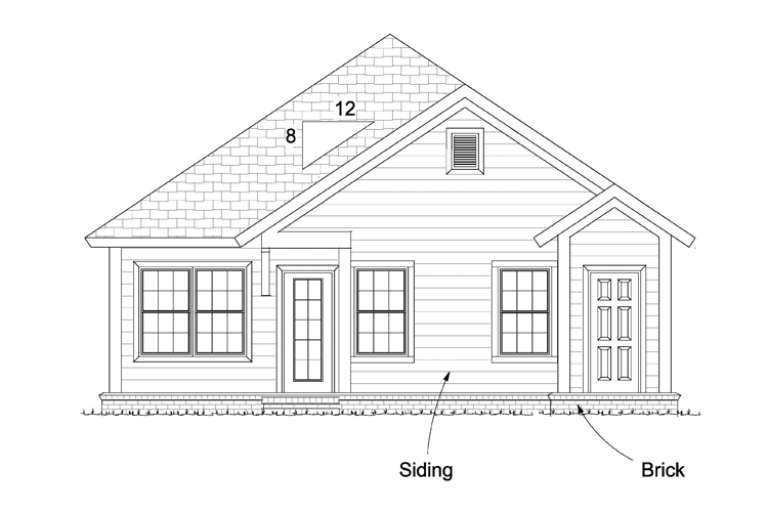

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Bungalow house design is beautifully highlighted with warm exterior elements which evoke a sense of nostalgia that include cedar shakes, gorgeous gables, plentiful window views and a front covered porch. There are approximately 1,420 square feet of usable living space containing three bedrooms and two baths in the single story home. The home’s renderings include a 31’ width dimension which is perfect for a narrow urban lot, a seaside community or a mountaintop property lot. The interior is equipped with 9’ ceiling heights which increase the spacious feel of the home and lend authentic period detailing to the space. Stepping into the home off the front porch, a large living room with handsome fireplace is revealed. Directly accessible from the living room is a coat closet and adjacent study with window seat. Beyond the living room is a grand kitchen with an open peninsula bar for casual dining and snacking along with a center island, separate pantry and laundry nook. There is a rear positioned dining room with wonderful window views and access onto the rear outdoor space that offers an additional storage room.
The minimal hallway houses two equivalent sized bedrooms both of which offer generous closet space and share a hall linen closet and bath. The master suite lies at the rear of the home for privacy and features a large bedroom, a spacious closet for “him” and a walk-in closet for “her.” There is an attached en suite master bath, as well, which is highlighted with dual vanities, a toilet area and a tub/shower combination. This lovely home, while compact, yields an efficient and functional floor plan, perfect for small families or young professionals.
