Cottage House Plan 9401-00004

Sq Ft1,698
1/2 Baths1
Width48' 0"
Depth58' 2"

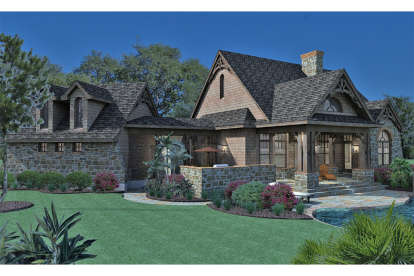

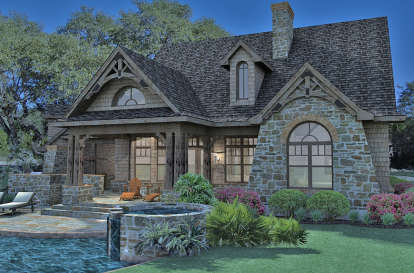

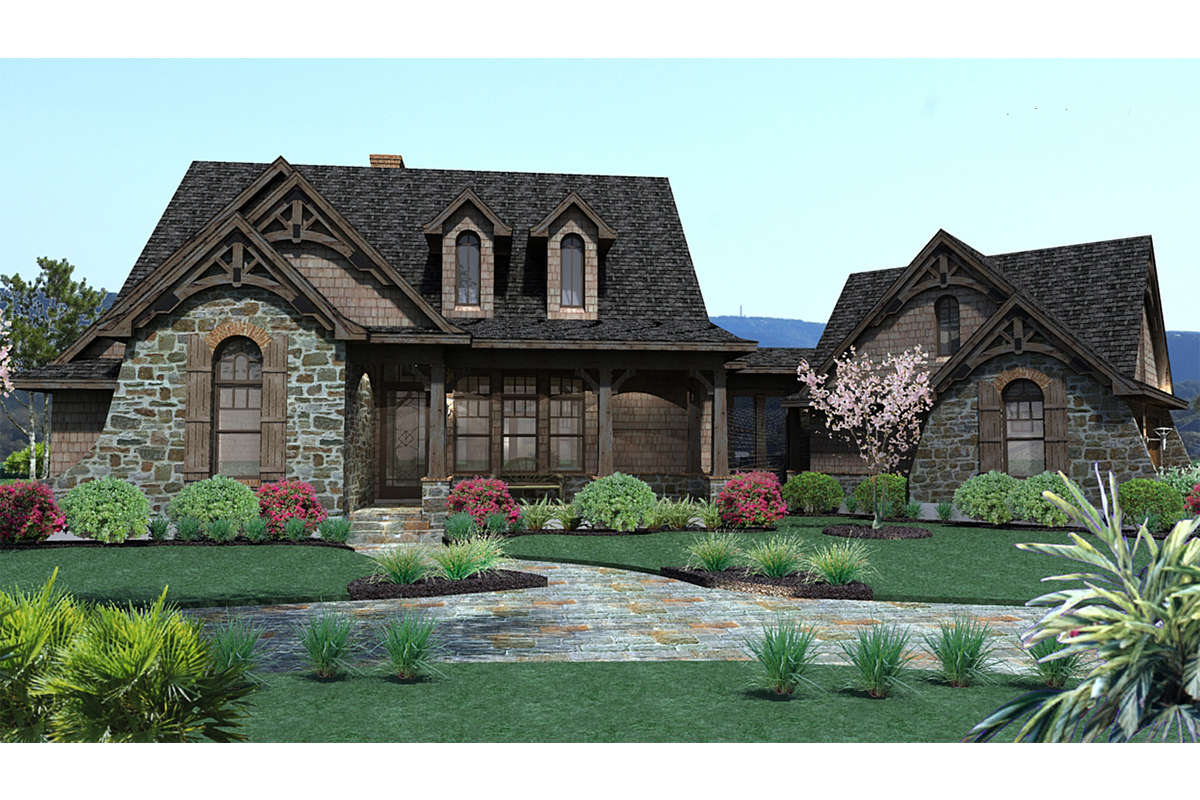

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #9401-00004

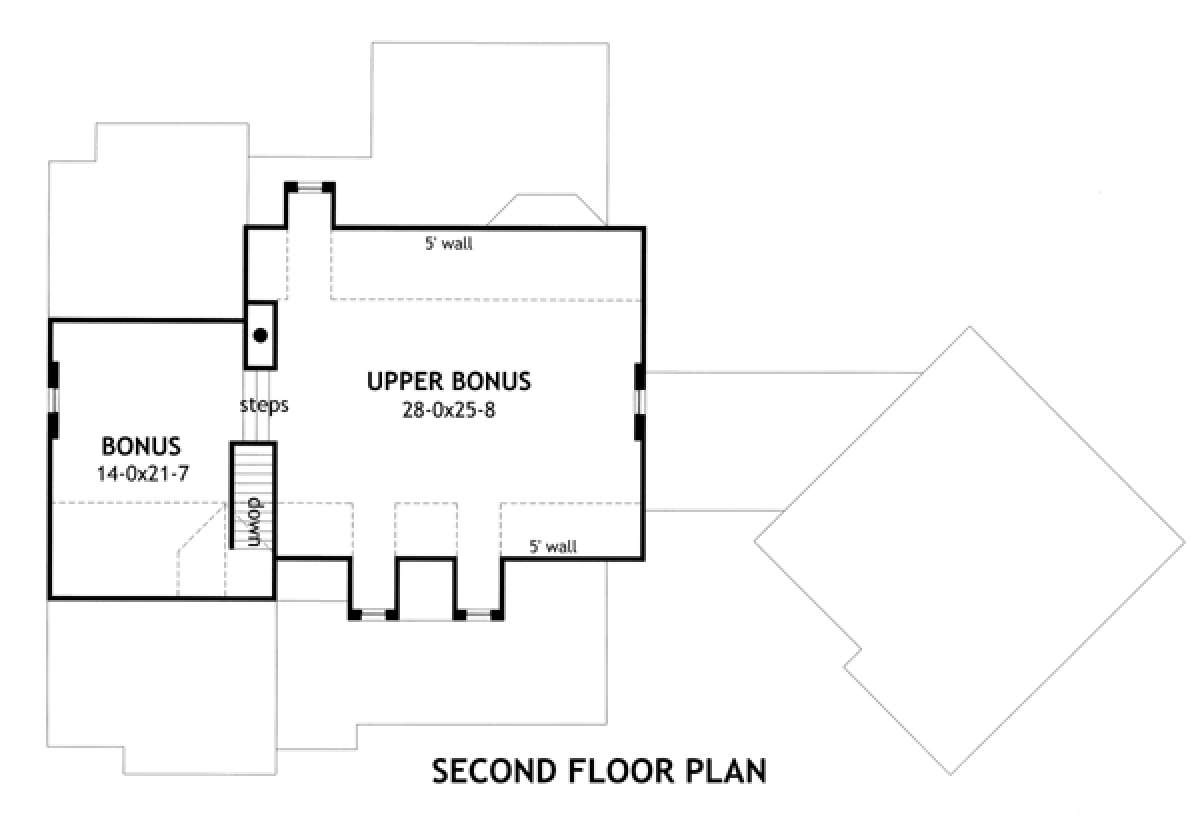

Bonus Room for House Plan #9401-00004

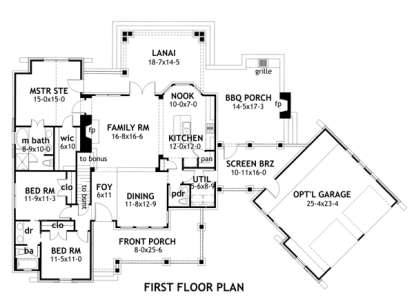

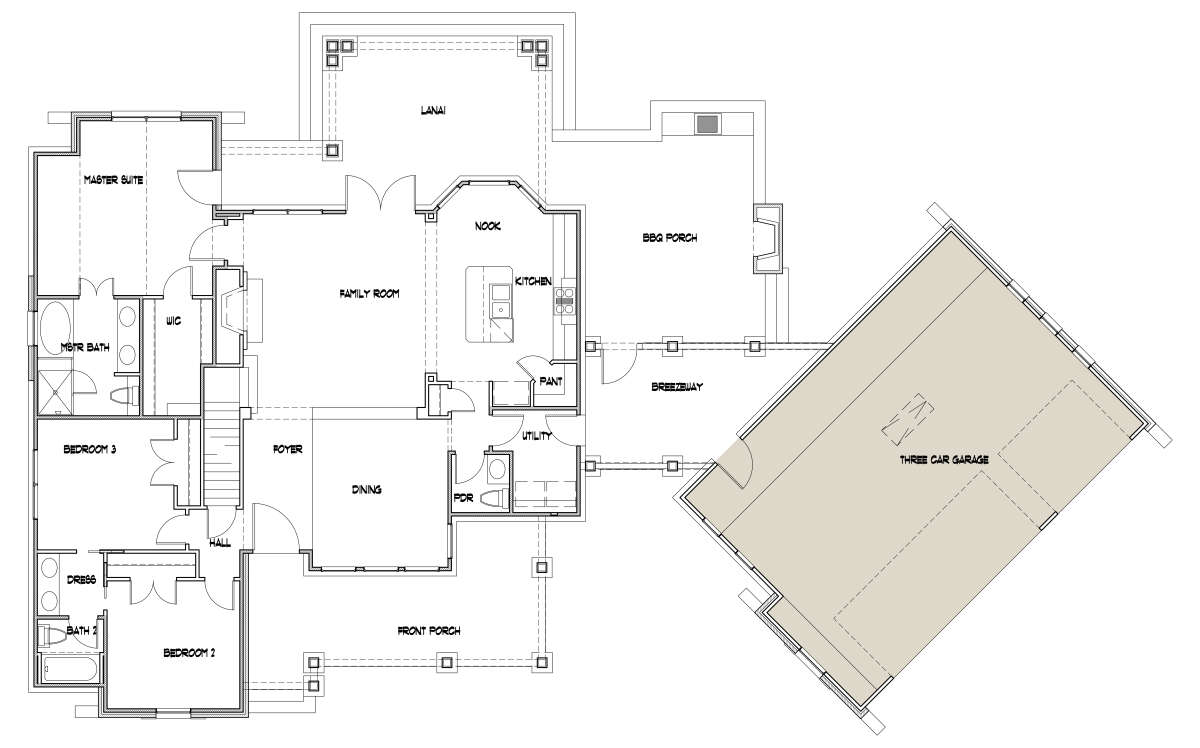

Main Floor
Main Floor for House Plan #9401-00004
Bonus Room
Bonus Room for House Plan #9401-00004

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

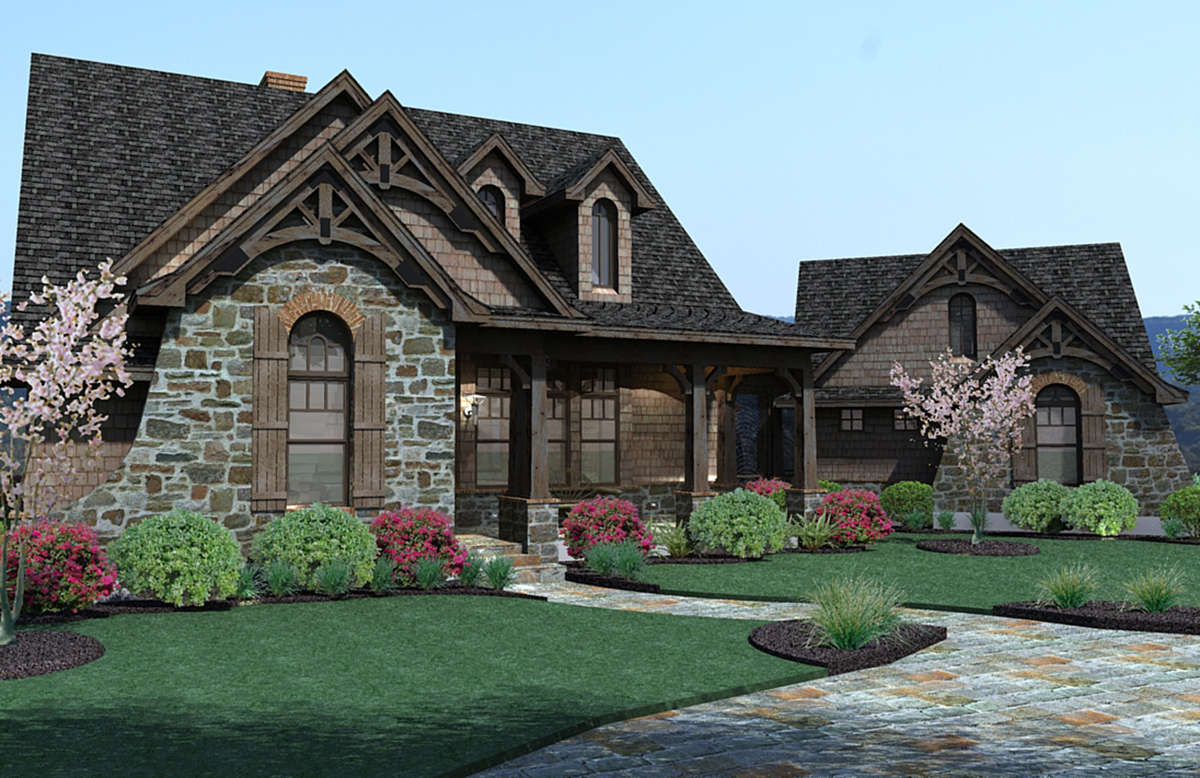

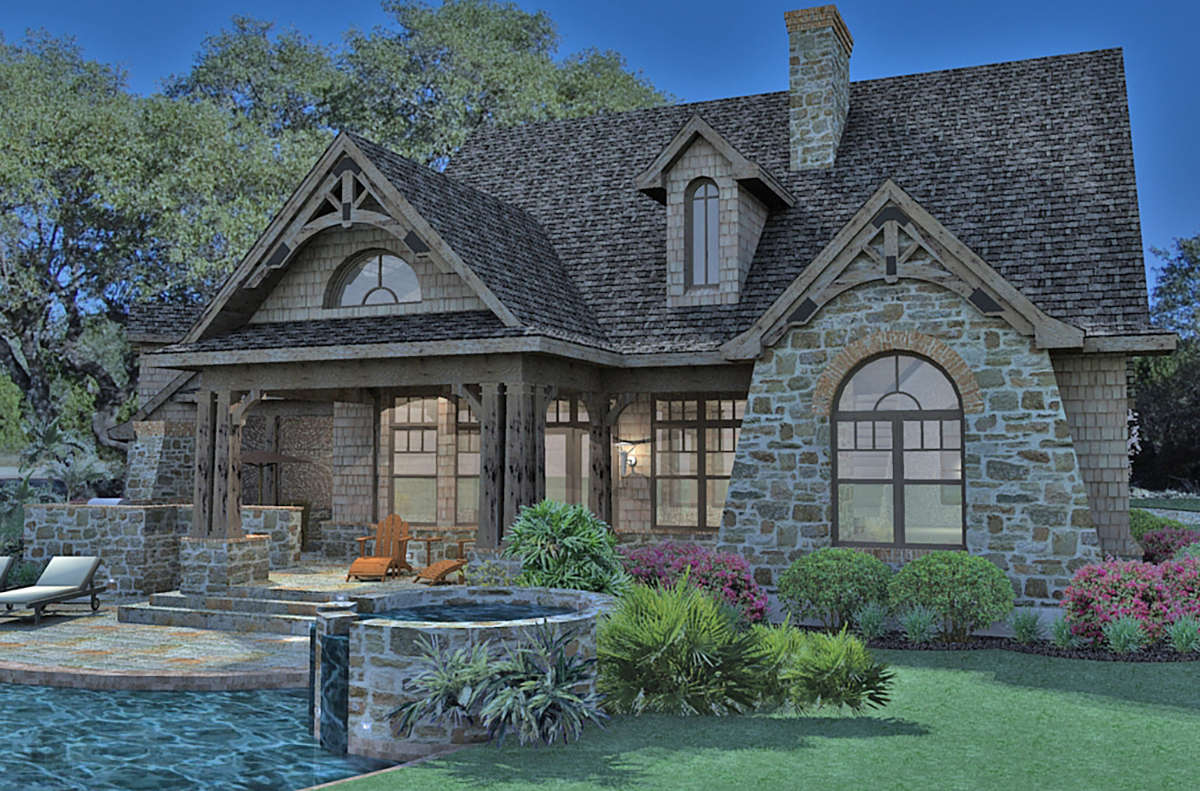

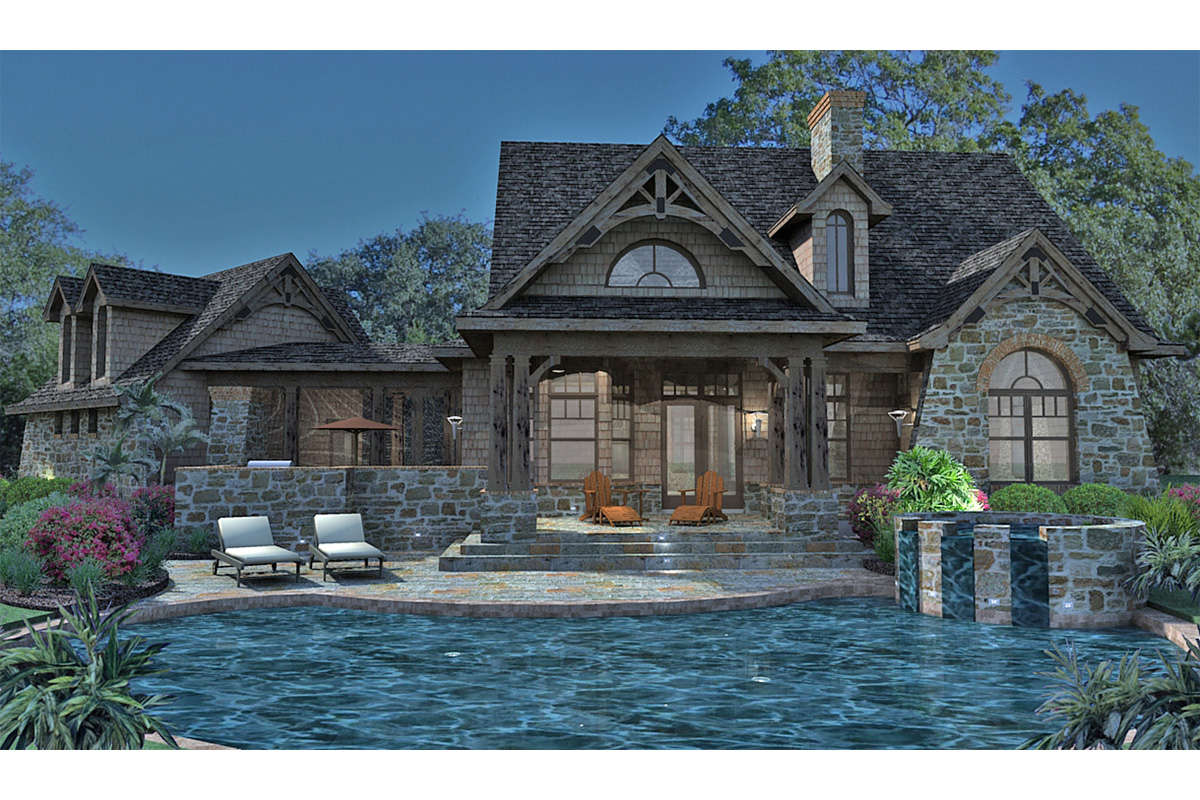

This charismatic Cottage house plan pursues the finest in unique architectural composition by combining stunning stonework, decorative gables, and an inviting front covered porch. Old World charm and modern construction elements blend beautifully to recreate a model layout for comfortable entertaining and family living. There are roughly 1,600 square feet of living space with three bedrooms and two plus bathrooms incorporated into the floor plan. A second level bonus room features a generously proportioned 1,153 square feet of living space. Entrance into the home is through an extended foyer where an open formal dining room is revealed and beyond the foyer is the family room. The family room features a handsome fireplace and French door access to the rear lanai. The outdoor space in this home is fabulous; a large lanai and adjoining grilling porch with an outdoor fireplace create outstanding outdoor entertaining space. The family room is open to the grand kitchen where a center island prep/workspace is available and there is a corner walk-in pantry along with a breakfast nook conveniently tucked into the bay window. There is a powder room for guest and laundry room before accessing the breezeway to the semi-detached two-car garage.

The family’s private sleeping quarters are situated on the opposite side of the home for privacy and include two spacious bedrooms with plentiful closet space. A Jack and Jill bathroom with double vanities is situated between the bedrooms. The owner's retreat reveals a large bedroom with great window views, a large walk-in closet and private access to the rear lanai. The attached bath is highlighted with dual vanities, a separate shower and a gorgeous garden tub with window views. The second level bonus room is an amazing space and is separated into two distinct spaces; these spaces can be used as a multitude of room ideas such as a multi-purpose family room, a gaming and media room or as an artist’s or writer’s studio. This storybook Cottage home has a magical and whimsical feel to the exterior and features an abundance of livable and usage interior space.
