Craftsman House Plan 4848-00325

Sq Ft1,277
Beds3
Baths2
1/2 Baths0
Stories1
Cars0
Width31' 0"
Depth53' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

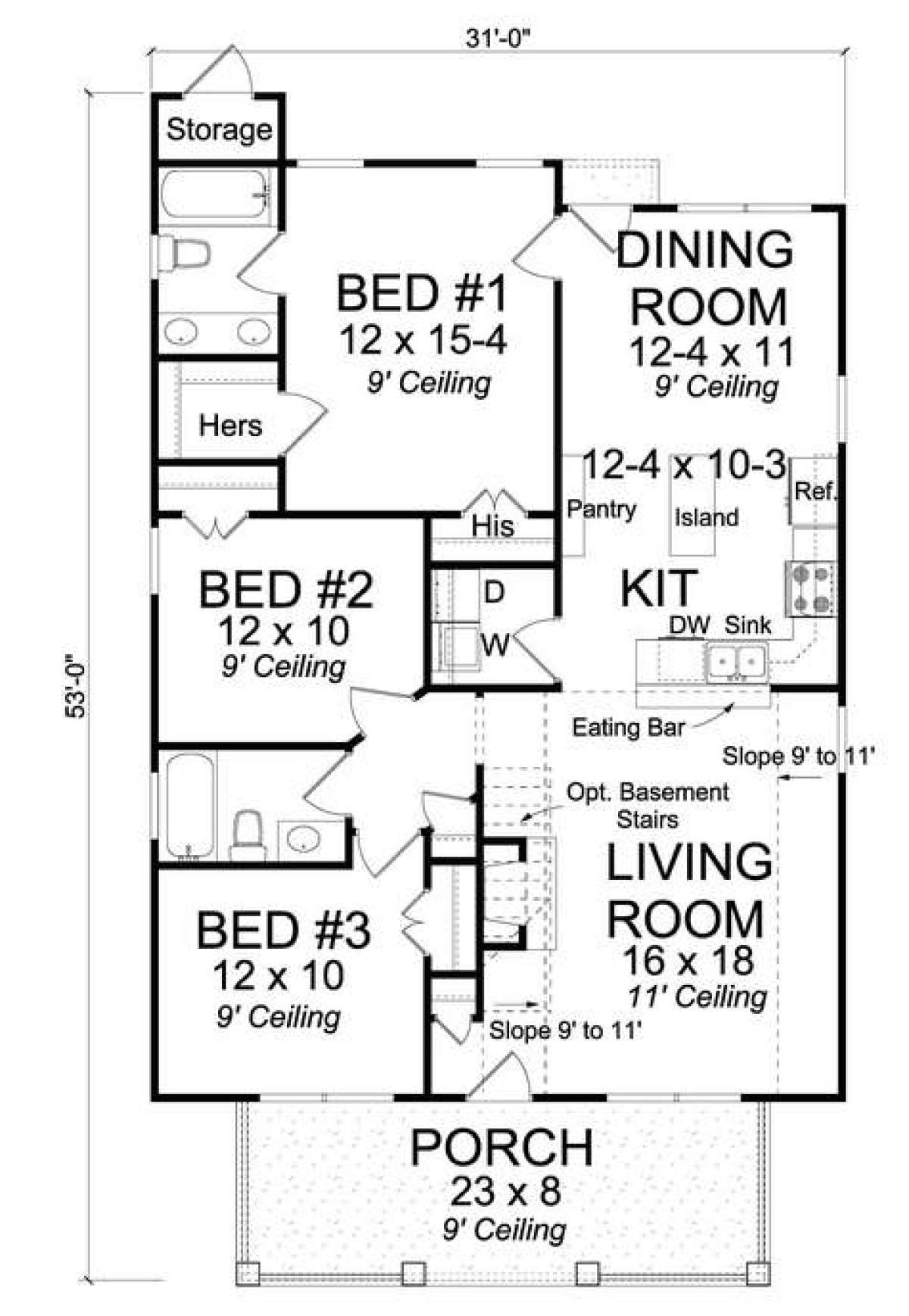

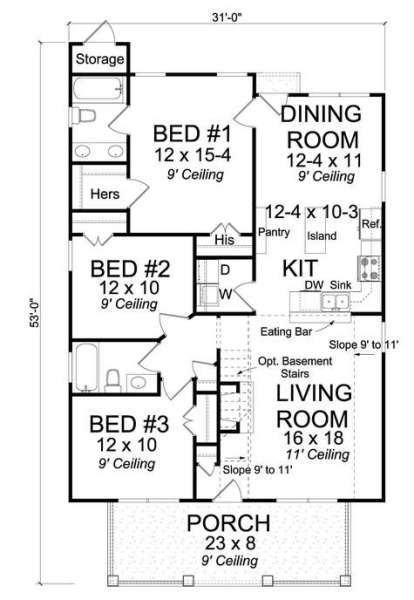

Main Floor for House Plan #4848-00325
Main Floor
Main Floor for House Plan #4848-00325


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations
    Kitchen cabinet elevations are drawn.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

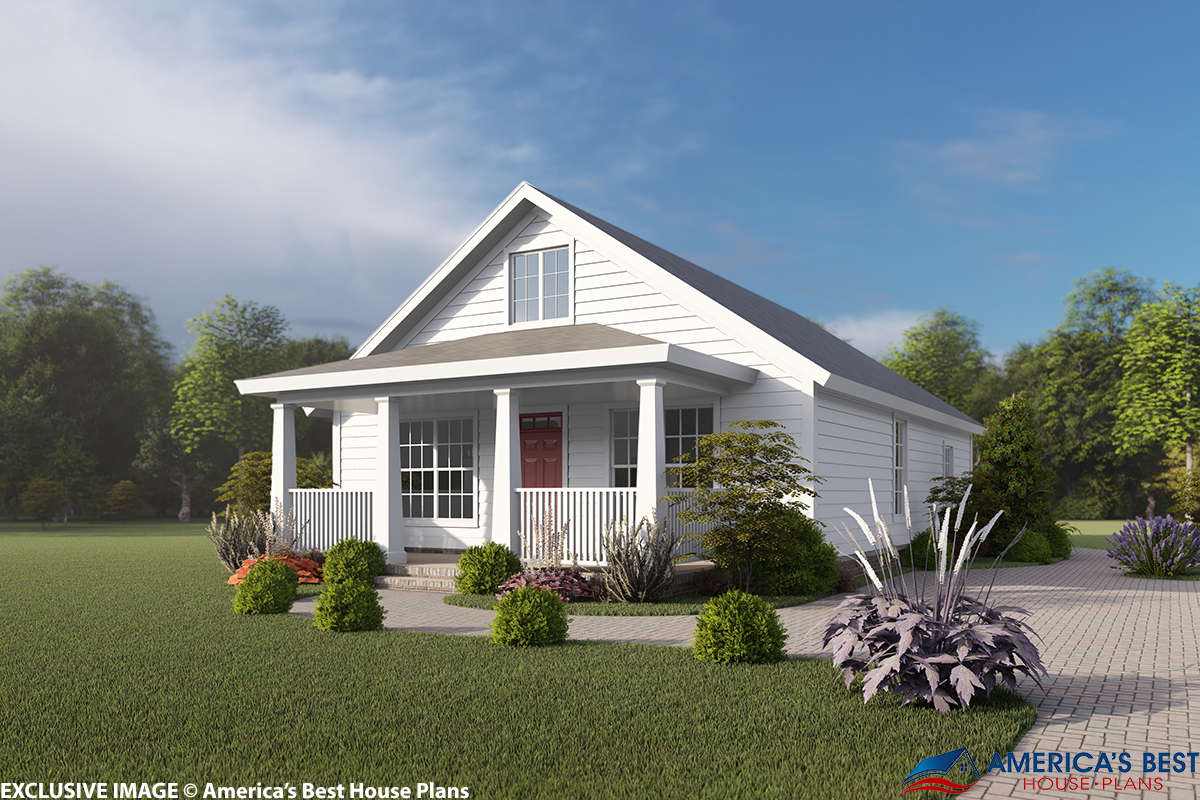

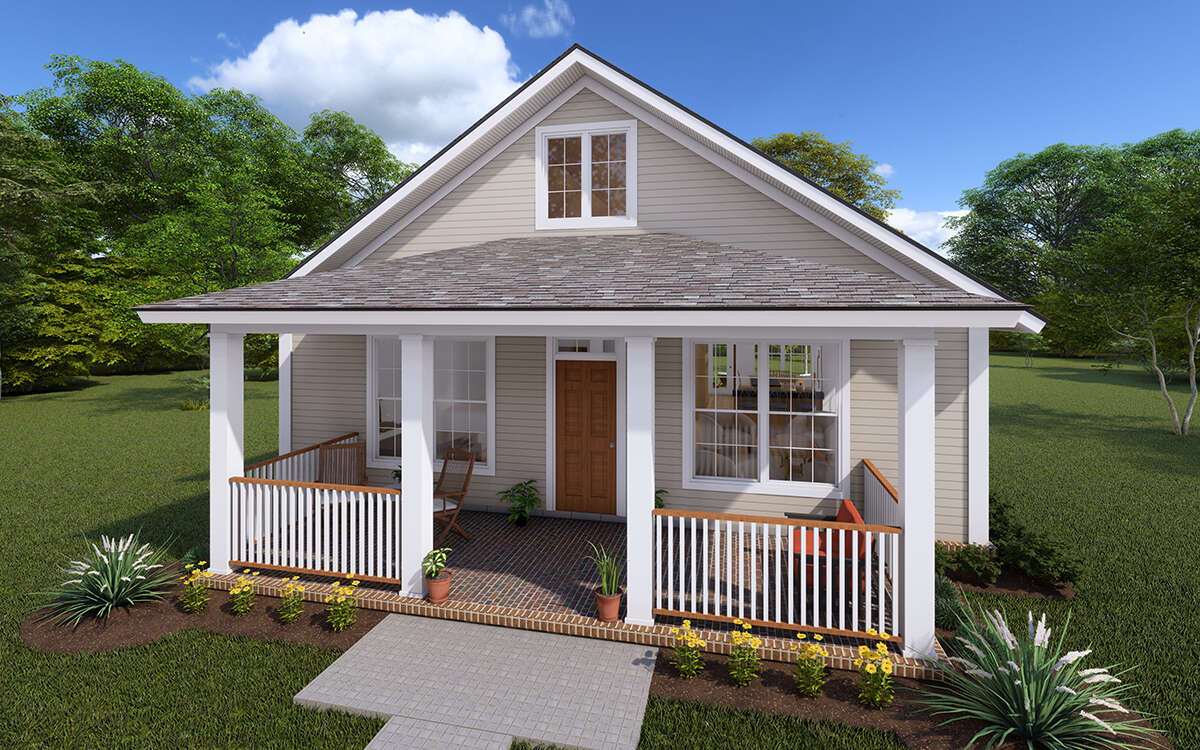

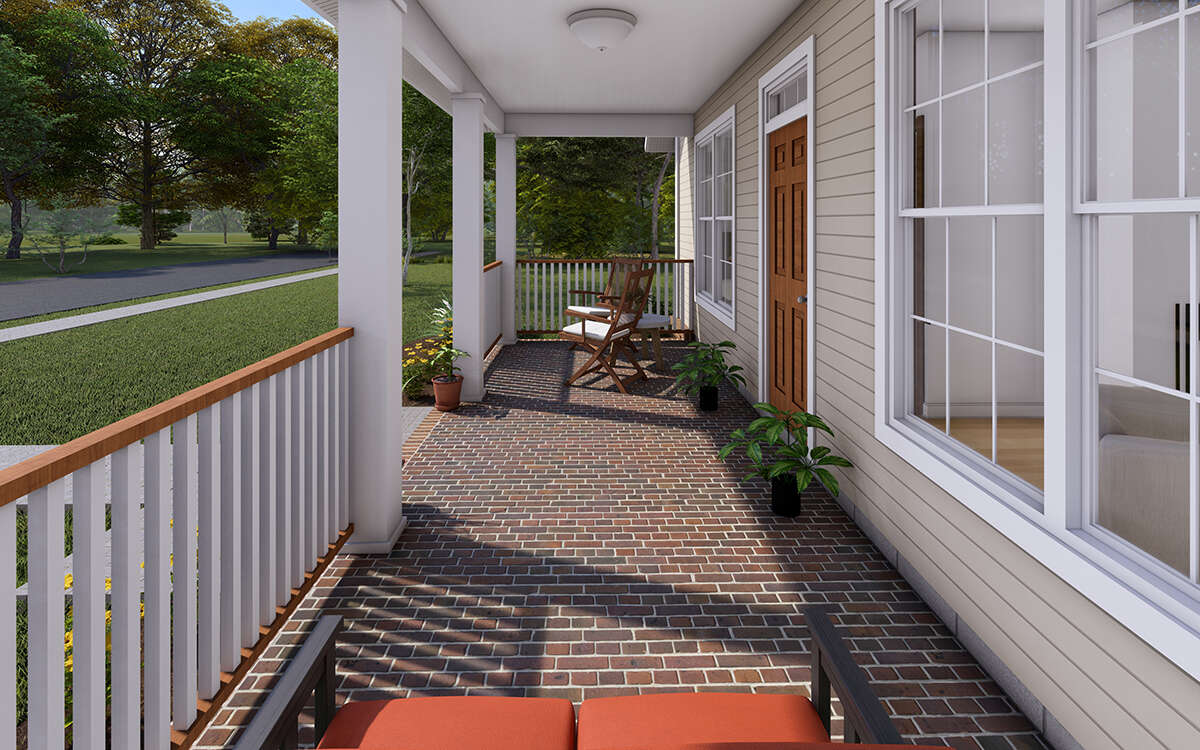

This charming Craftsman bungalow exudes massive amounts of character and warmth on its exterior façade reviving warm memories of days gone by. A golden era of home building is captured in the exterior detailing of the home where front porches were made for visiting with family and neighbors while sipping ice cold sweet tea or lemonade. The artfully constructed gabled roof is highlighted with a double window feature that cascades down to the covered porch featuring open railing and columned beams. Three bedrooms and two baths are incorporated into the home’s interior floor plan which consists of approximately 1,277 square feet of usable living space. A 31’ width make it ideal for a narrow lot and magnifies the structure’s versatility in either an urban or rural site. The greeting foyer houses a coat closet and immediately opens onto the living room where 11’ ceiling heights and a warming fireplace are featured focal points. The kitchen’s peninsula breakfast bar location further opens up the space allowing for casual dining and entertaining. There is a center island work/prep space, a separate pantry and plenty of additional counter and cabinet space, as well. The laundry nook is located adjacent to the kitchen. There is a formal dining room situated at the rear of the space featuring great window views and access to the rear patio where an outdoor storage room is available.
Two family styled bedrooms offer an equivalent amount of floor space, 9’ ceilings and plentiful closet space. There is a hall linen closet and a shared hall bath with vanity space, a toilet area and a tub/shower combination. The master suite is situated at the rear of the home for privacy and consists of a bedroom that enjoys a large footprint, a large closet for him and a walk-in closet for her. The en suite master bath features dual vanities for ease of morning routine, a toilet area and a tub/shower combination. The home, while compact, yields a large impact with its efficient use of space and modern amenities and conveniences.
