Southern Plan 4848-00259


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,191
Beds 4
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 67'
Depth 56'

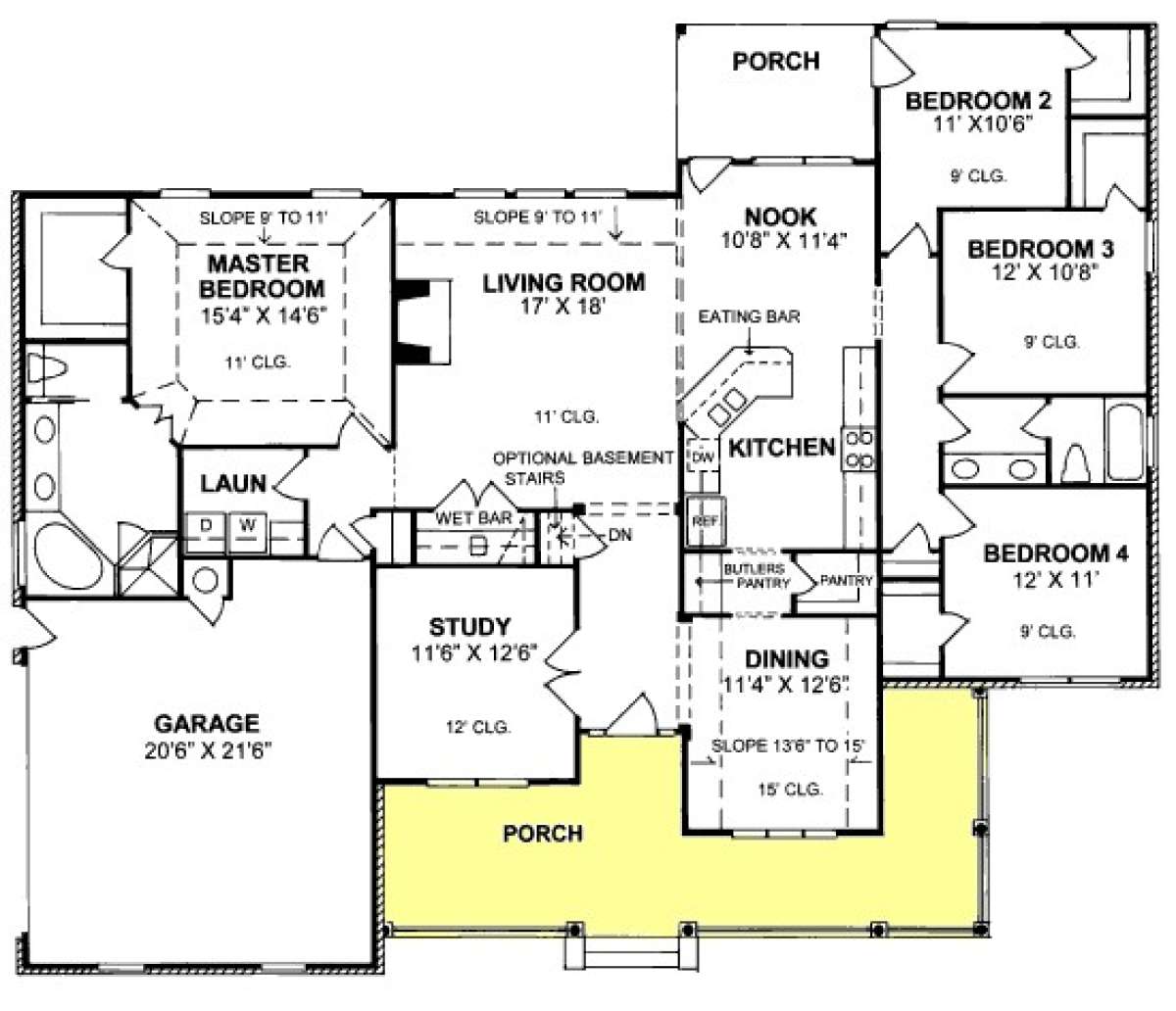

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #4848-00259

What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations

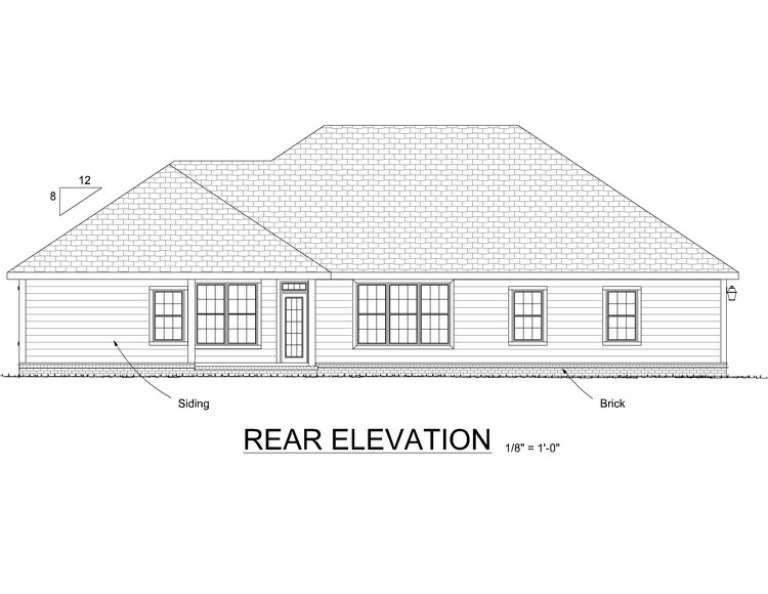

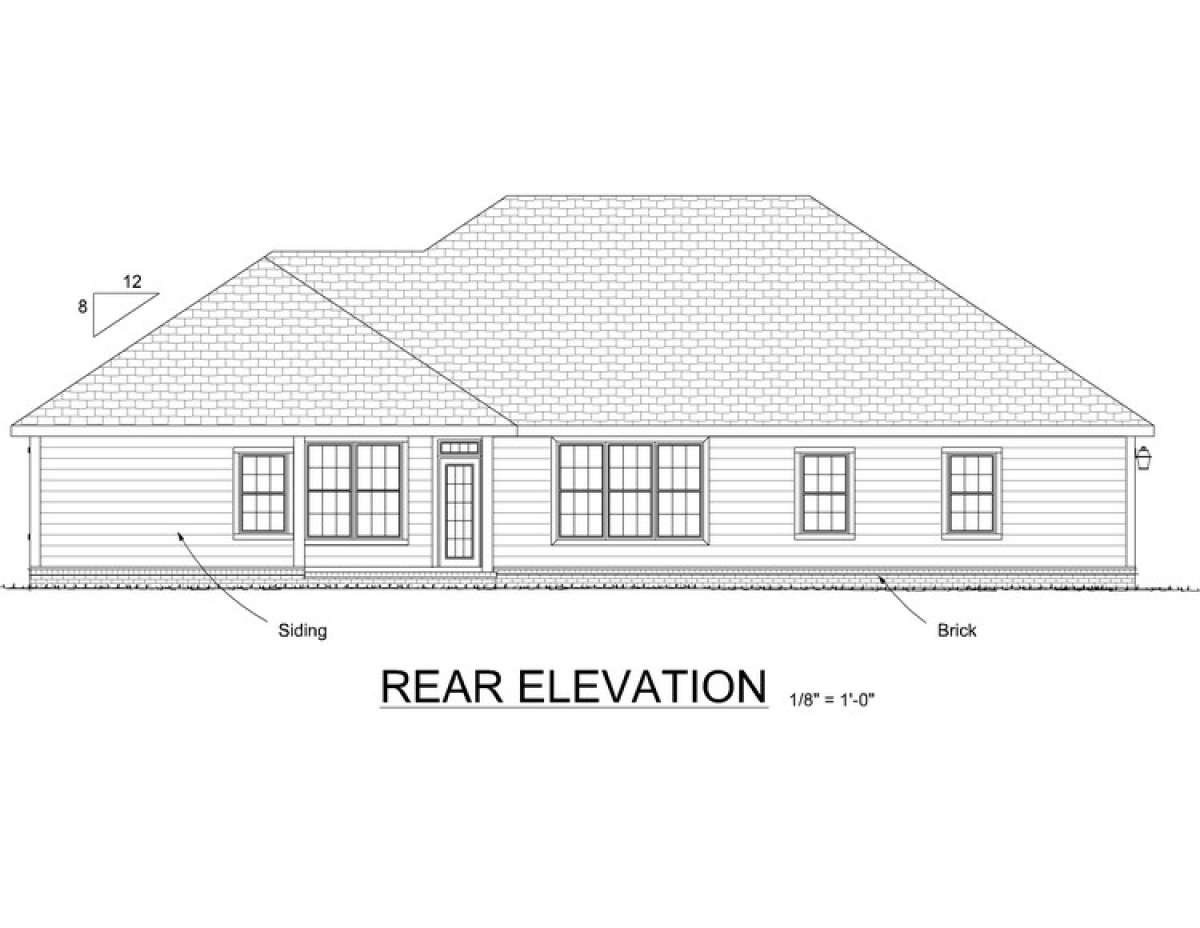

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

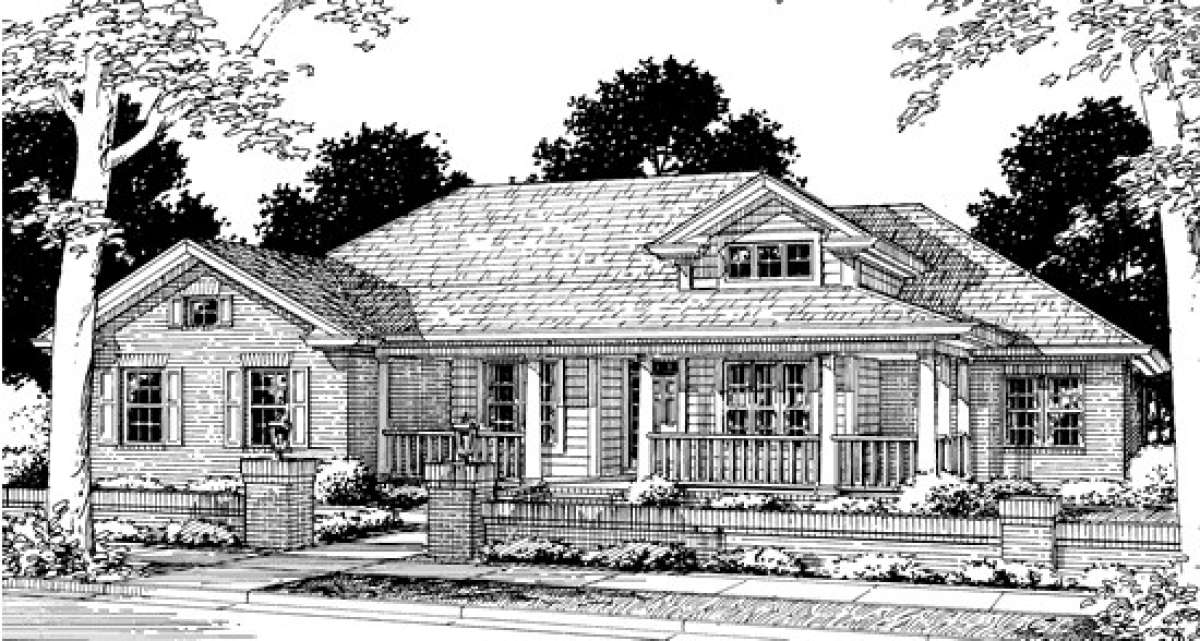

An open floor layout and split bedroom plan highlight the interior of this Southern house design. There are approximately 2,191 square feet of usable living space within the home’s interior that include four bedrooms and two bathrooms in a single story. The ranch styled home features an attractive exterior which features a large amount of outdoor space and beautiful architectural design features. The expansive front covered porch is perfect for relaxing and greeting family and guests. The L-shaped porch is highlighted with open railing, columned beams and a centrally located entrance. An overhead window dormer enhances the charm of the home and the two car side loading garage keeps the sight lines uninterrupted. The front covered porch wraps around the dining room extension which is flooded with sunlight, boasts of 15’ ceiling heights and is directly accessible from the foyer. The opposite side of the foyer has French door access into the study which is highlighted with 12’ ceiling heights. A butler’s pantry and food storage pantry are located in the pass-thru to the kitchen where grand features abound. There is an angled breakfast bar, loads of counter and cabinet space and the room opens onto the breakfast nook. The nook is sun drenched, offers rear porch access and opens onto the large living room. This space features a rear wall of windows, a handsome fireplace, a wet bar and soaring ceiling heights. The laundry room is situated off the two car garage for convenience and there is a separate side entrance leading from the yard into the garage for handy storage access.

The split bedroom plan features three spacious bedrooms on one side of the home where each bedroom is highlighted with a walk-in closet and window views. There is a shared bath with double sinks and a hall linen closet for the bedroom’s use. The master suite is private and features 11’ ceiling heights, a beautiful trey ceiling accent and an attached oversized master walk-in closet. The master bath is elegantly designed, enjoys a large footprint and showcases modern amenities found in today’s home designs. This family friendly home is functional, versatile and features excellent outdoor space and an attractive exterior.
