Cape Cod House Plan 5633-00267

Sq Ft3,782
Beds4
Baths3
1/2 Baths1
Stories2
Cars2
Width76' 8"
Depth50' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor Plan for House Plan #5633-00267
Upper Floor Plan for House Plan #5633-00267
Garage and Basement for House Plan #5633-00267

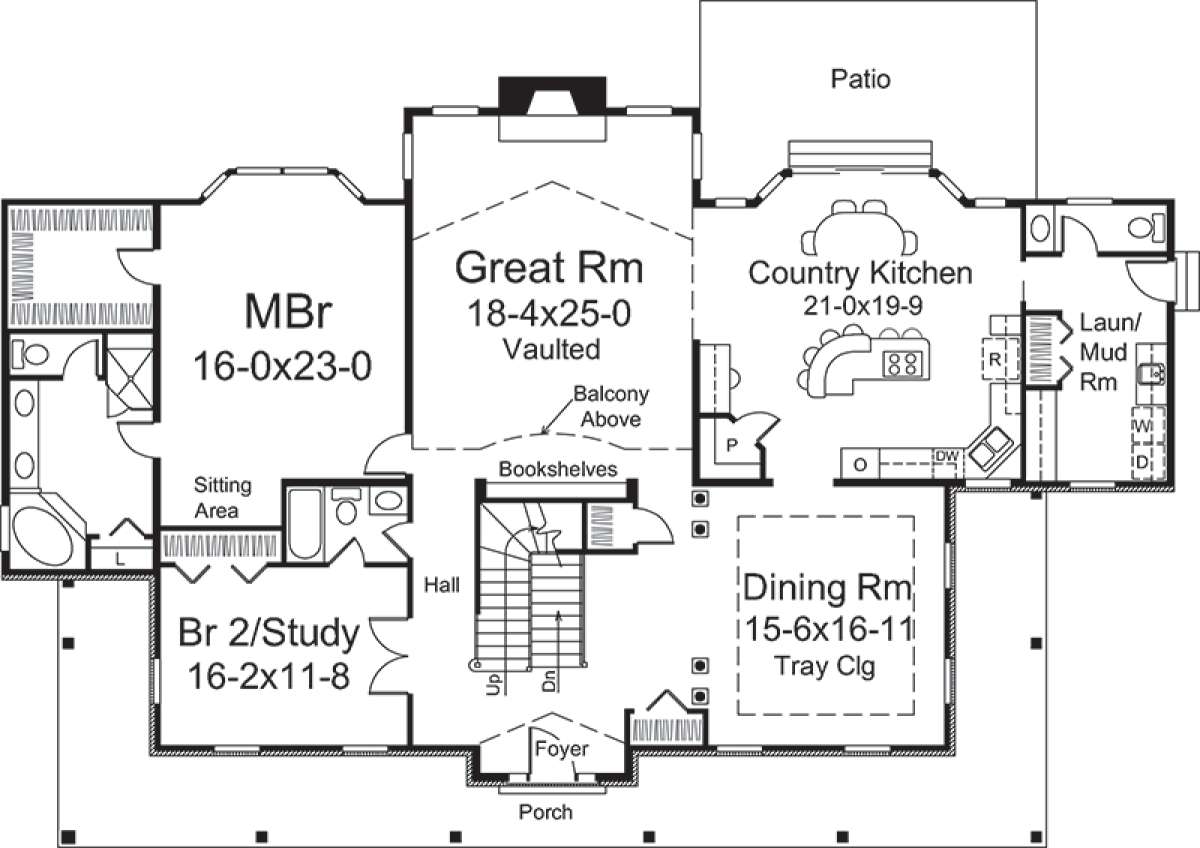

Main Floor Plan
Main Floor Plan for House Plan #5633-00267

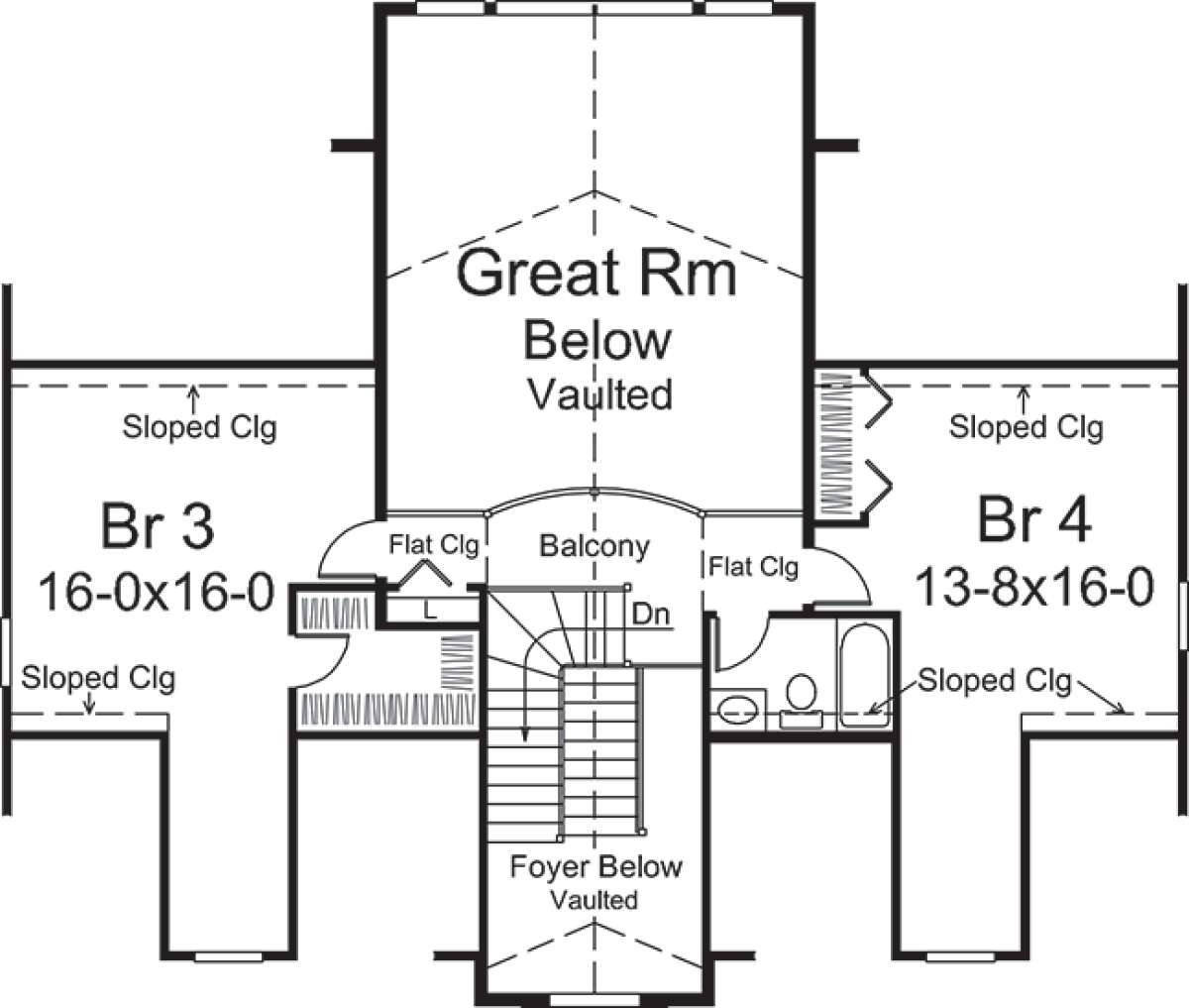

Upper Floor Plan
Upper Floor Plan for House Plan #5633-00267

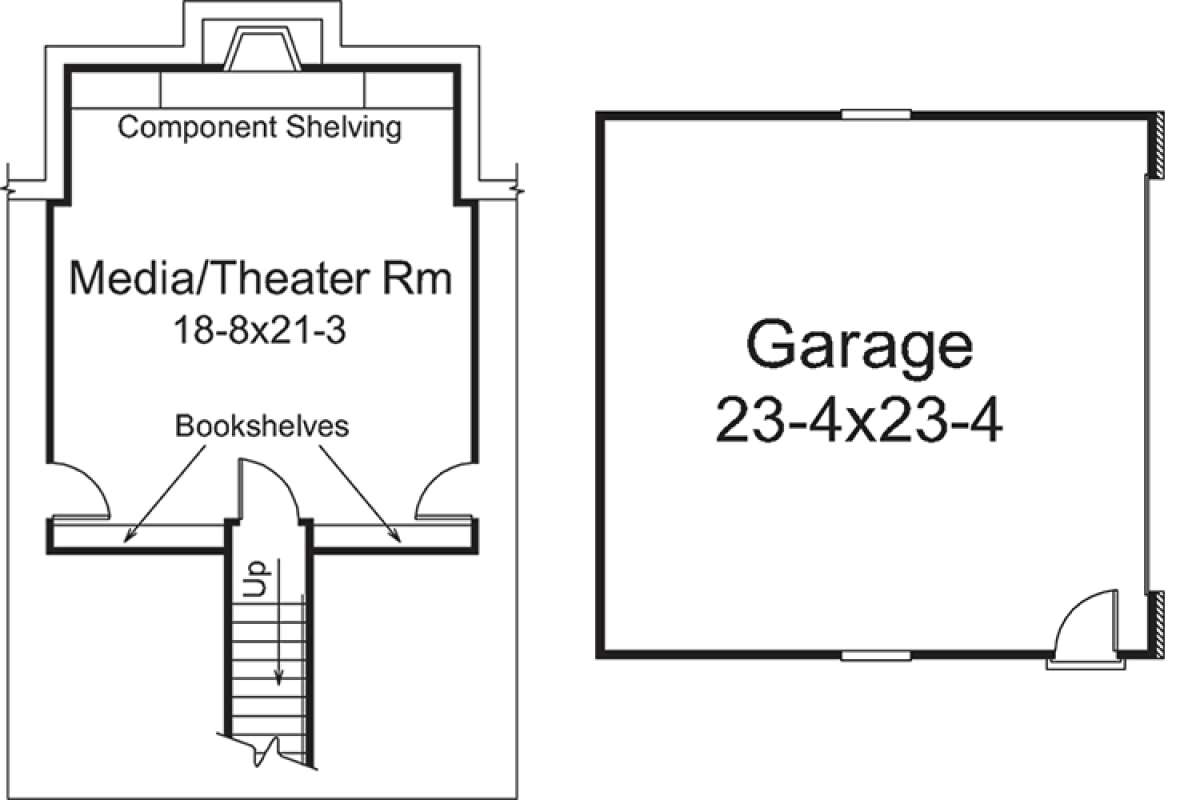

Garage and Basement
Garage and Basement for House Plan #5633-00267


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

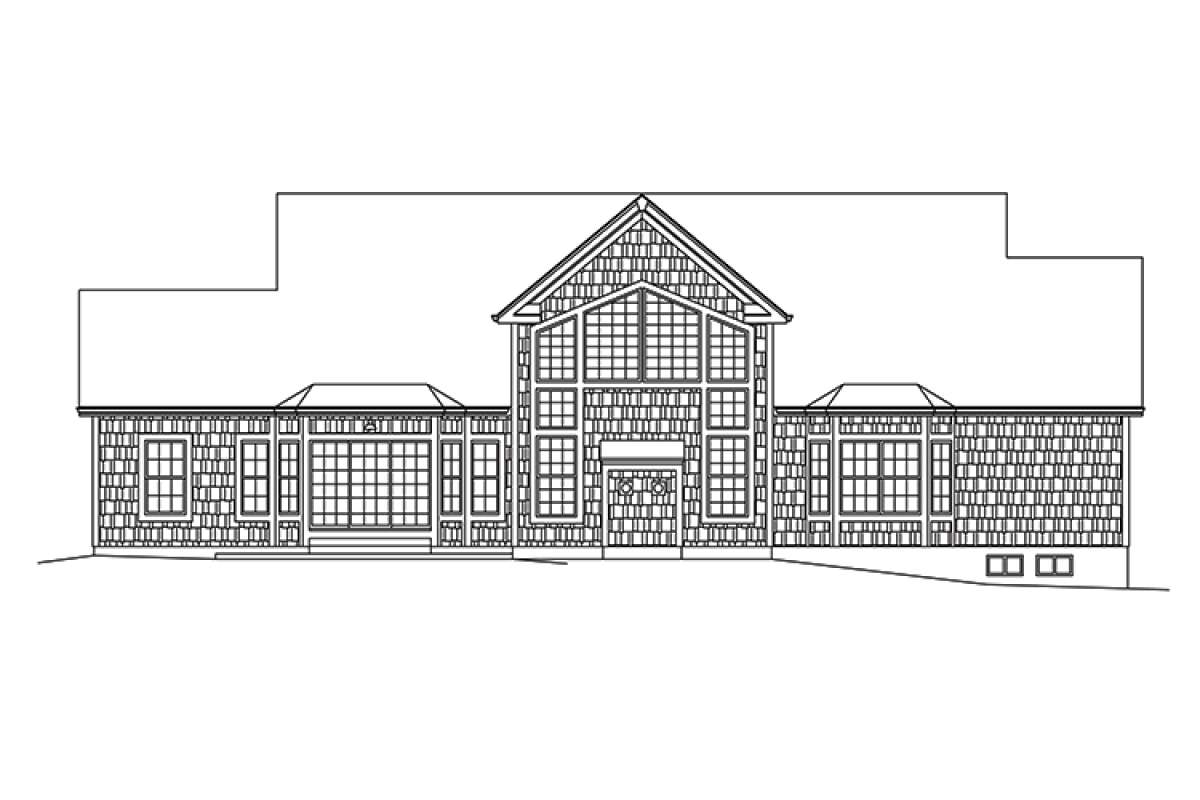

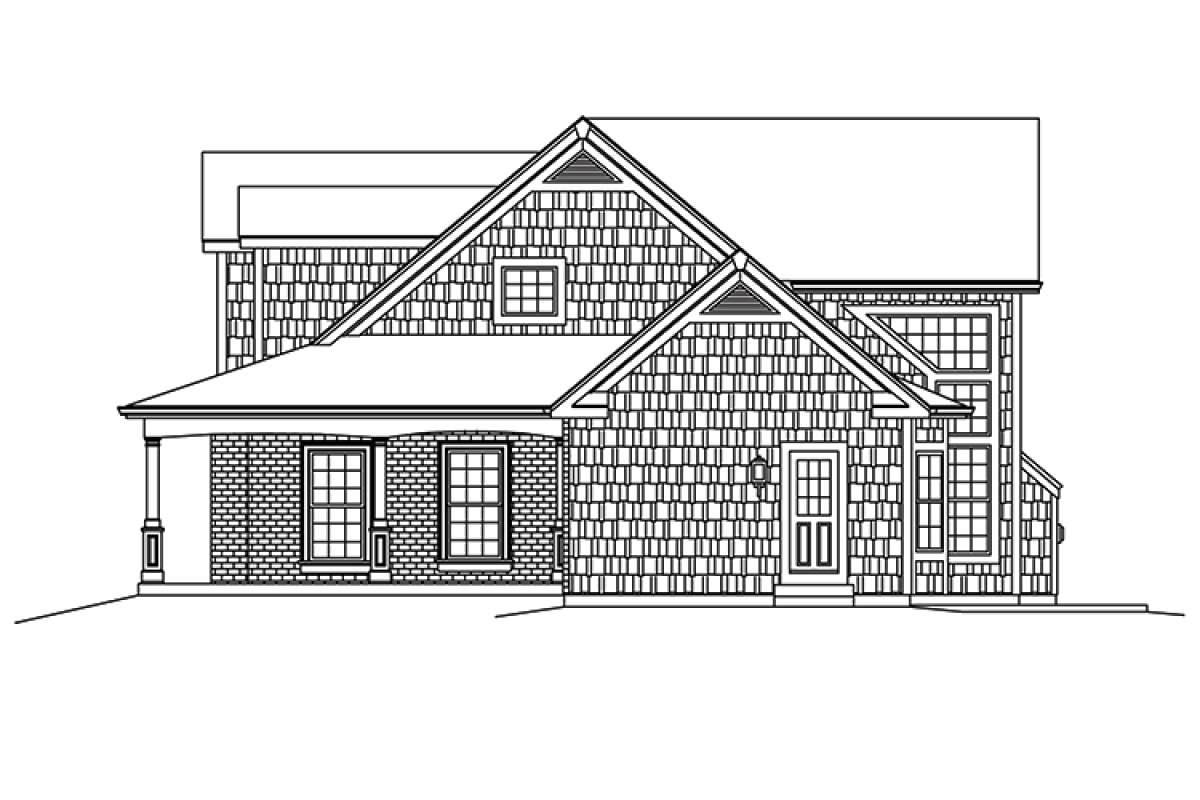

  • SET OF ELEVATIONS

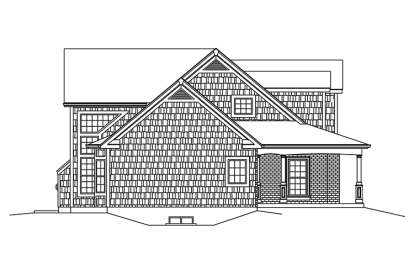

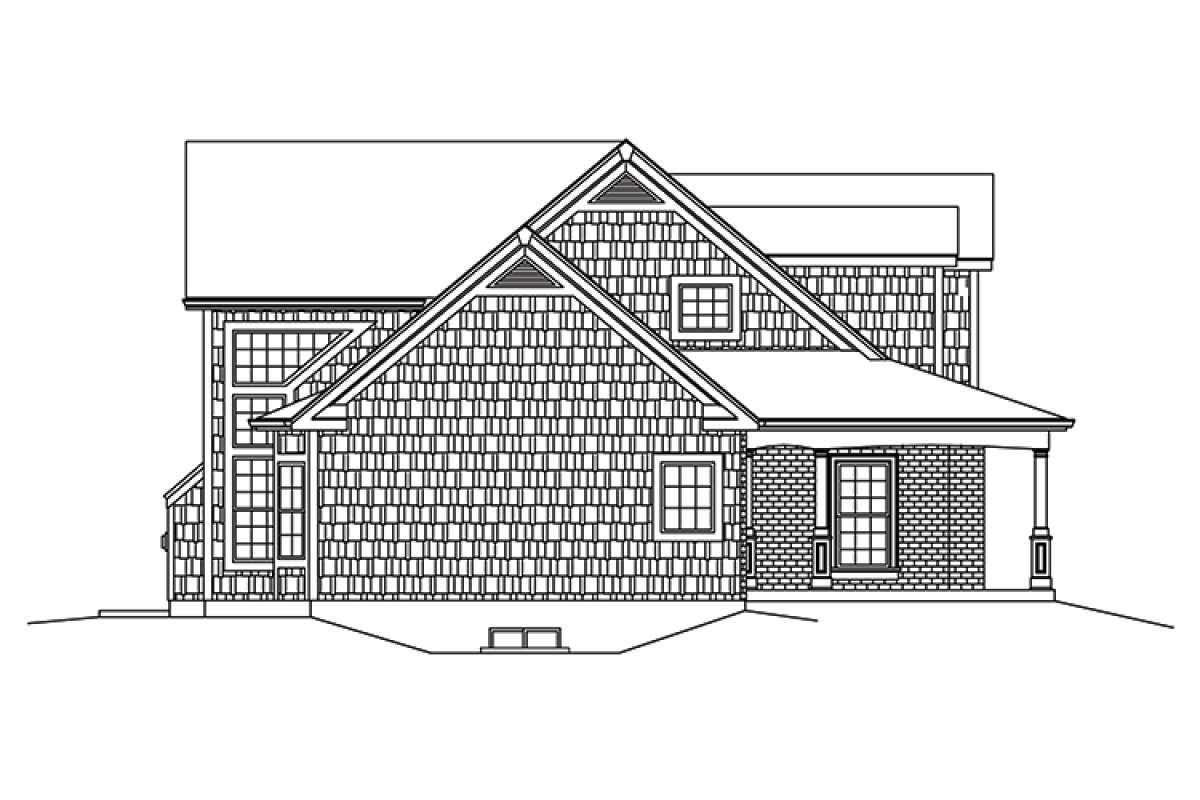

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

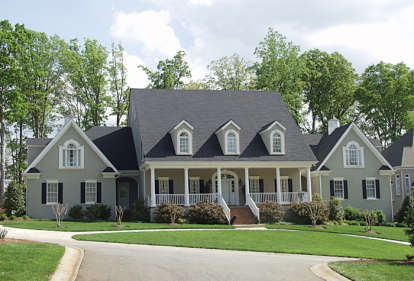

Large, comfy and spacious, this Cape Cod house design features an attractive exterior and interior floor plan that features amazing space. The façade of the home is highlighted with a triple set of overhead dormers, natural design elements and an extensive front covered porch. The covered porch is ideal for relaxing and greeting family and friends and wraps around both sides of the home. Curved overhead archways, substantial tapered beams and generously spaced window designs grace the covered porch. The interior is highlighted with a large amount of space; approximately 3,782 square feet with four bedrooms and three plus baths and there is additional space offered in the basement foundation which could function as a media room or multi-purpose family room. The centrally located entrance into the home features a grand foyer highlighted with great space and double staircases along with a coat closet. Flanking one side of the foyer is the oversized dining room with a trey ceiling, columned beams and beautiful window views overlooking the front and side porch. There is an enormous country kitchen with separate pantry, a center island with cooktop and a large breakfast area encased in a bay window with access to the oversized patio. An oversized laundry/mudroom and half bath is perfect for a drop-off zone and there is an exit/entry point to the outdoors for ease of clean-up. The great room is open to the kitchen area and features excellent space in which to entertain, vaulted ceilings and a rear wall warming fireplace. An office/study is situated on the other side of the foyer or the space could be used as a small child’s room as it has close proximity to the master suite. There is a large closet and private access to the adjacent full bath.

The master suite features expansive floor space, a bay window view and separate sitting area. The elegant en suite master bath is highlighted with all the modern amenities homeowners are looking for and there is an oversized master walk-in closet. The second floor features two large bedrooms suites and a shared hall bath. The two story foyer is highlighted as you ascend the staircase and there is a balcony overlook onto the great room below. The third bedroom suite measures 16’x 16’, has a huge walk-in closet and dormer window view. The fourth bedroom is slightly smaller, features plentiful closet space and also has a dormer window view. There is a shared hall bath with vanity space, a toilet area and a tub/shower combo along with a hall linen closet.
