Southern Plan 041-00049


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,250
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 70' 2"
Depth 67'

Floorplan Drawings

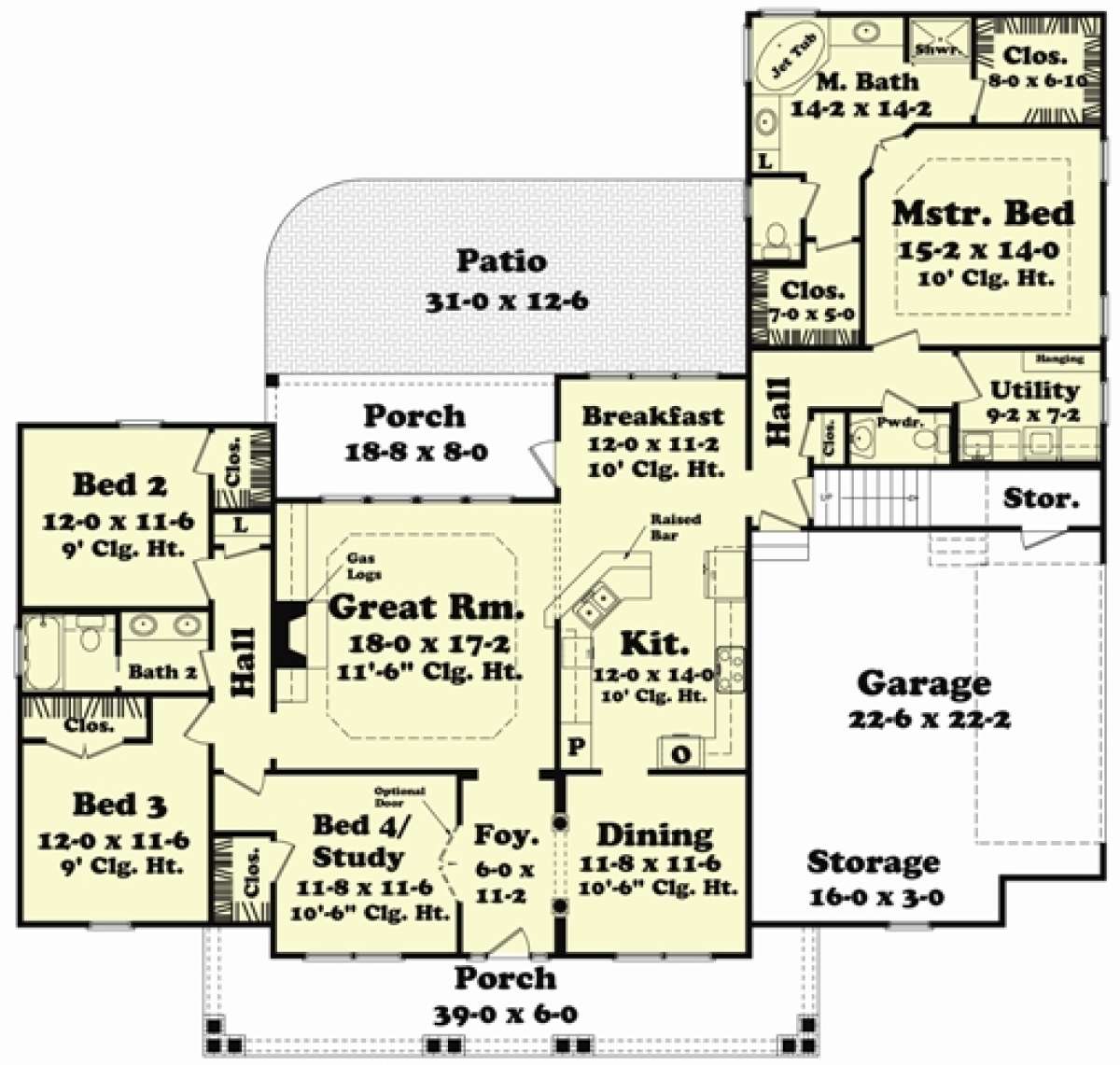

Main Floor
Main Floor for House Plan #041-00049

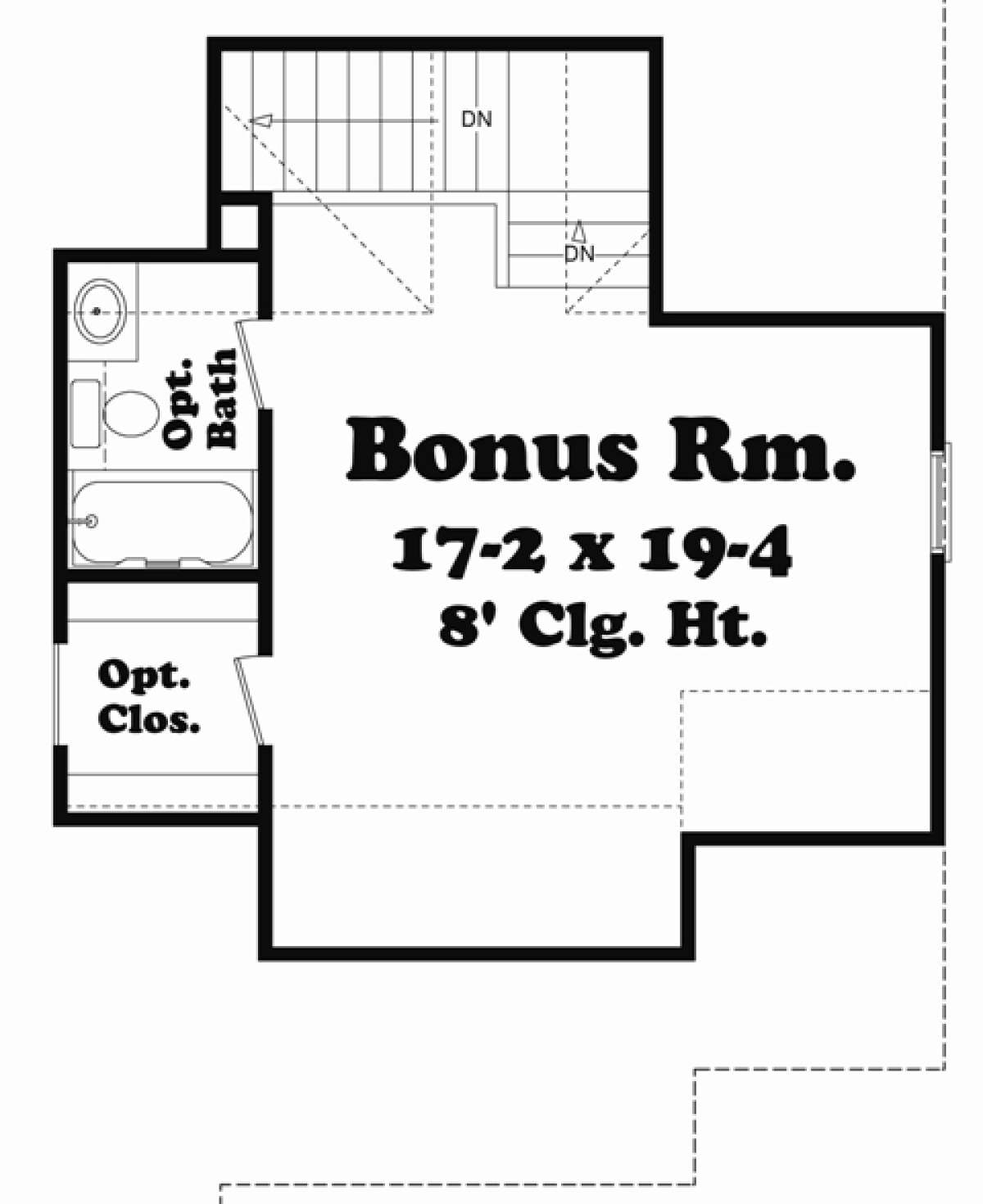

Second Floor
Second Floor for House Plan #041-00049

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations

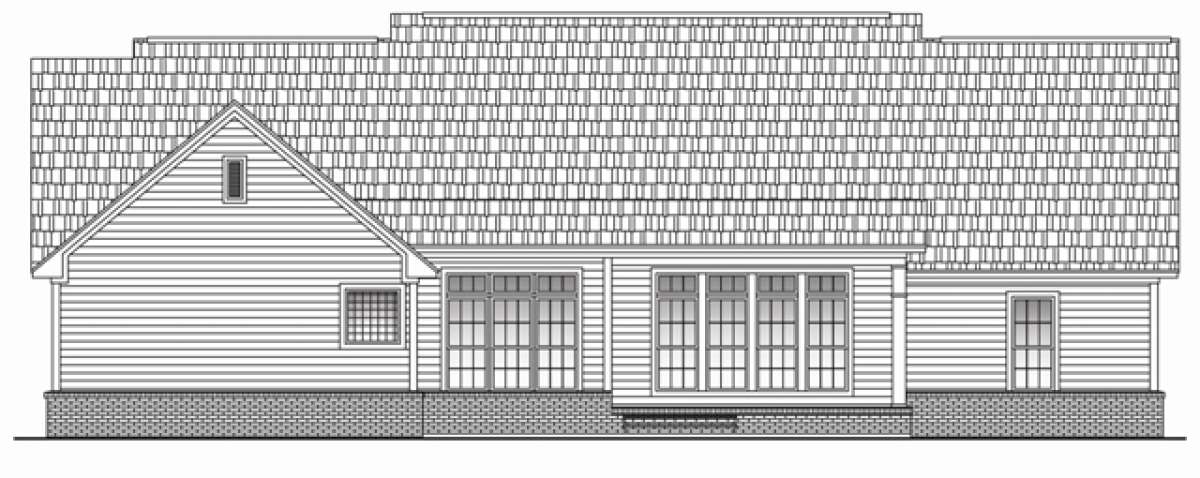

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A breathtaking front covered porch with open rail work, double columned beams atop stacked stone and triple window dormers is front and center in this Southern house design. The symmetrical design is completed with continued interior floor and garage space that extends the floor plan on both sides of the home. Approximately 2,250 square feet of living space is featured offering four bedrooms and two plus baths in the single story home. There is a two car side entry garage with additional storage space and a 442 square foot bonus room which adds value and versatility to the home. The storage space in the garage is ideal for lawn or sporting equipment while the second level bonus room has optional features including a large walk-in closet and full bath. This is a private space which could be utilized as a multi-purpose family room or home office/study. The expansive front porch leads into the front foyer which is flanked by the formal dining room. The great room features soaring ceiling heights, a gas log fireplace and a wall of windows overlooking the rear covered porch and subsequent patio area. This is great entertaining space and is accessible through the casual breakfast room. A gourmet kitchen is highlighted by an angled raised breakfast bar, a separate pantry and loads of additional counter and cabinet space. There is a powder room for guests, coat closet and large laundry room conveniently situated off the garage.
The split bedroom plan offers a private master oasis complete with a large bedroom with trey ceiling enveloped by the master bath and his and her walk-in closets. The master bath enjoys a large footprint with a corner jetted tub ensconced in window views, dual vanities, a separate shower and a compartmentalized toilet. Three additional bedrooms are located on the opposite side of the home; each bedroom is spacious with generous closet space. There is a hall linen closet and shared hall bath with double vanities for the bedroom’s use. This Southern home has a gorgeous exterior façade and an interior floor plan bursting with family friendly features.
