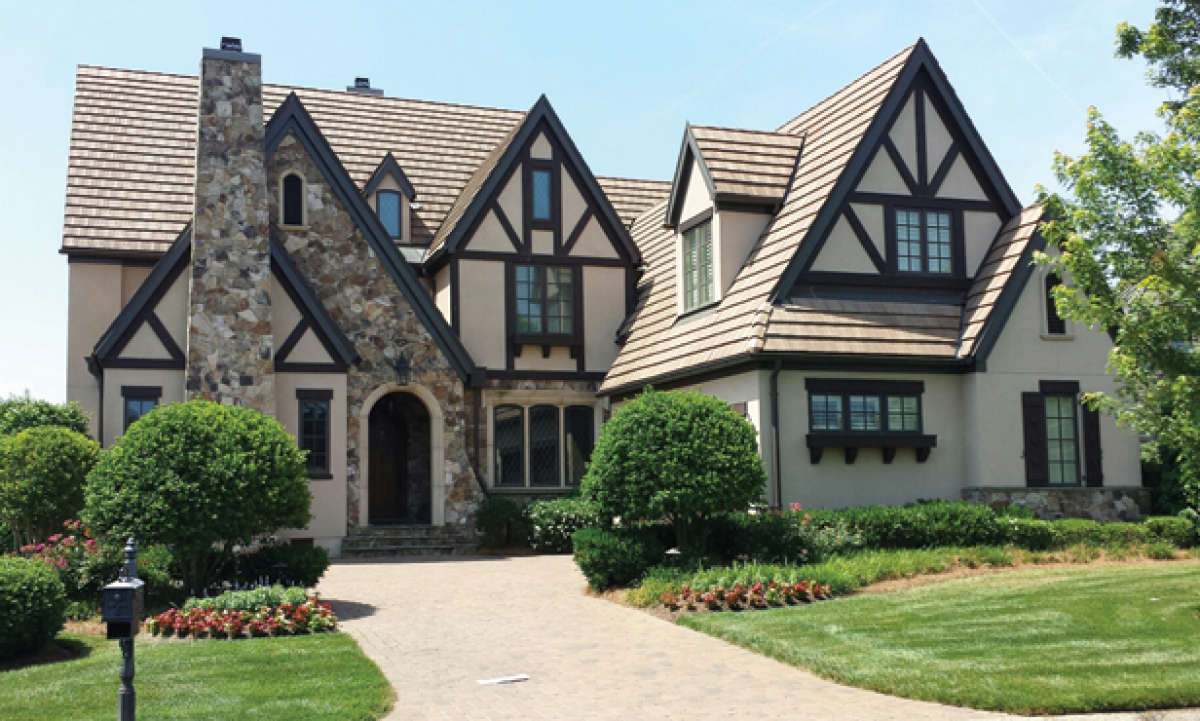

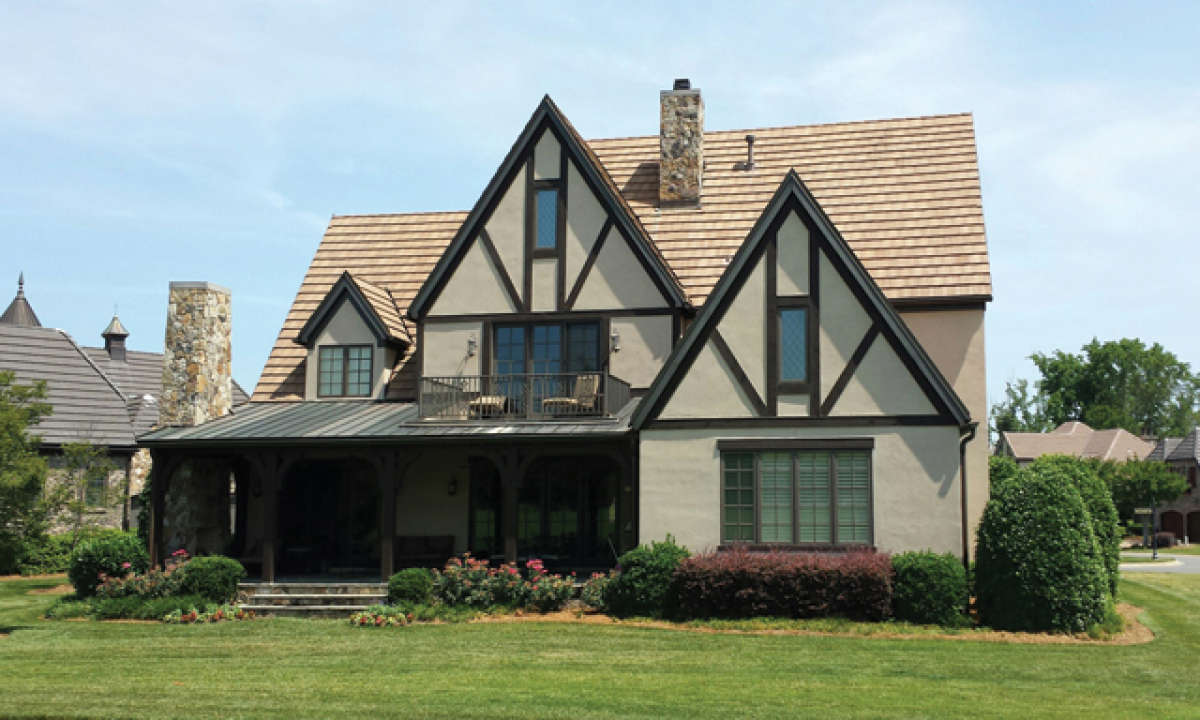

Tudor Plan 3323-00628

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,219
Beds 4
Bath 4
1/2 Baths 1
Car 2
Stories 2
Width 59'
Depth 81'

Floorplan Drawings

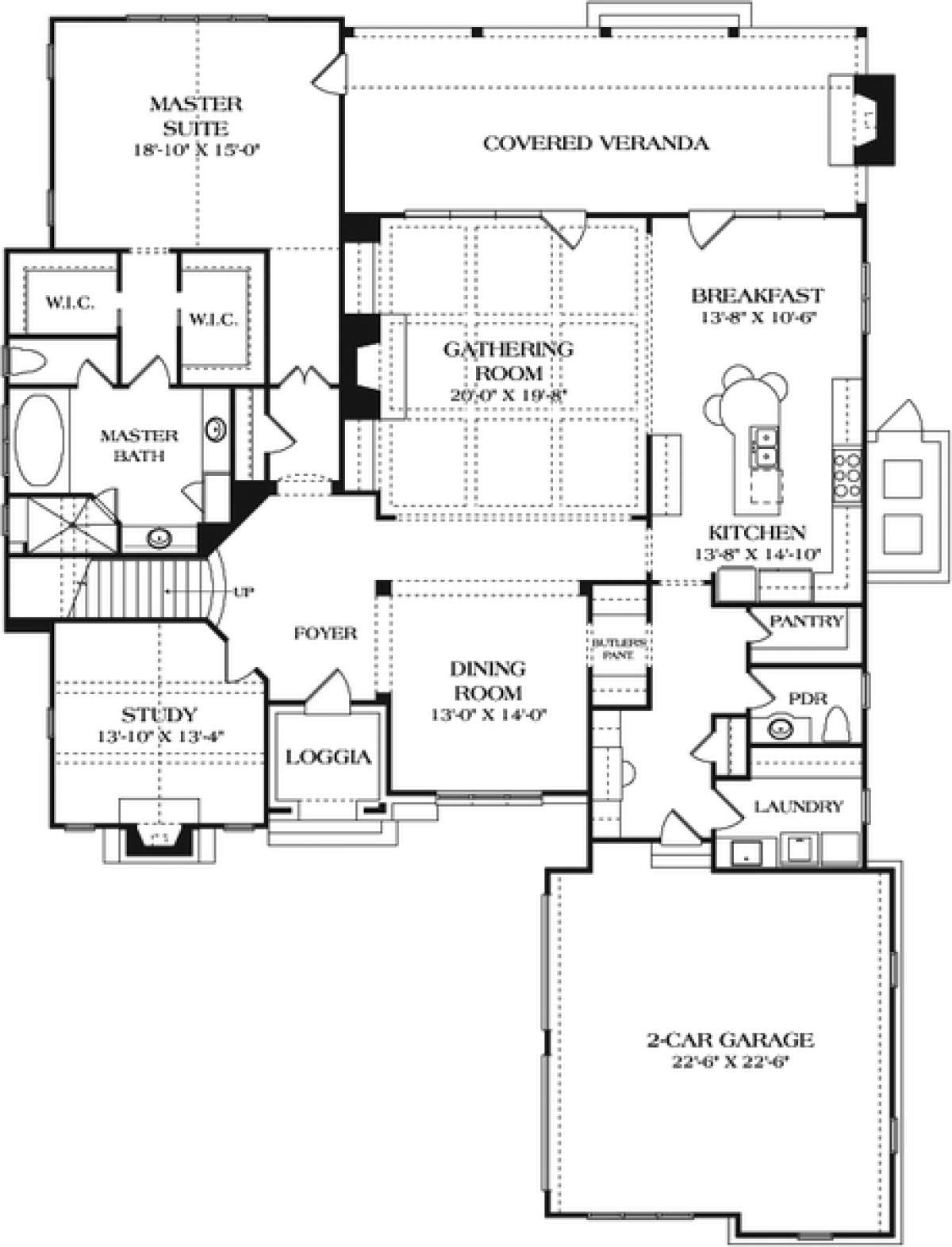

Main Floor Plan
Main Floor Plan for House Plan #3323-00628

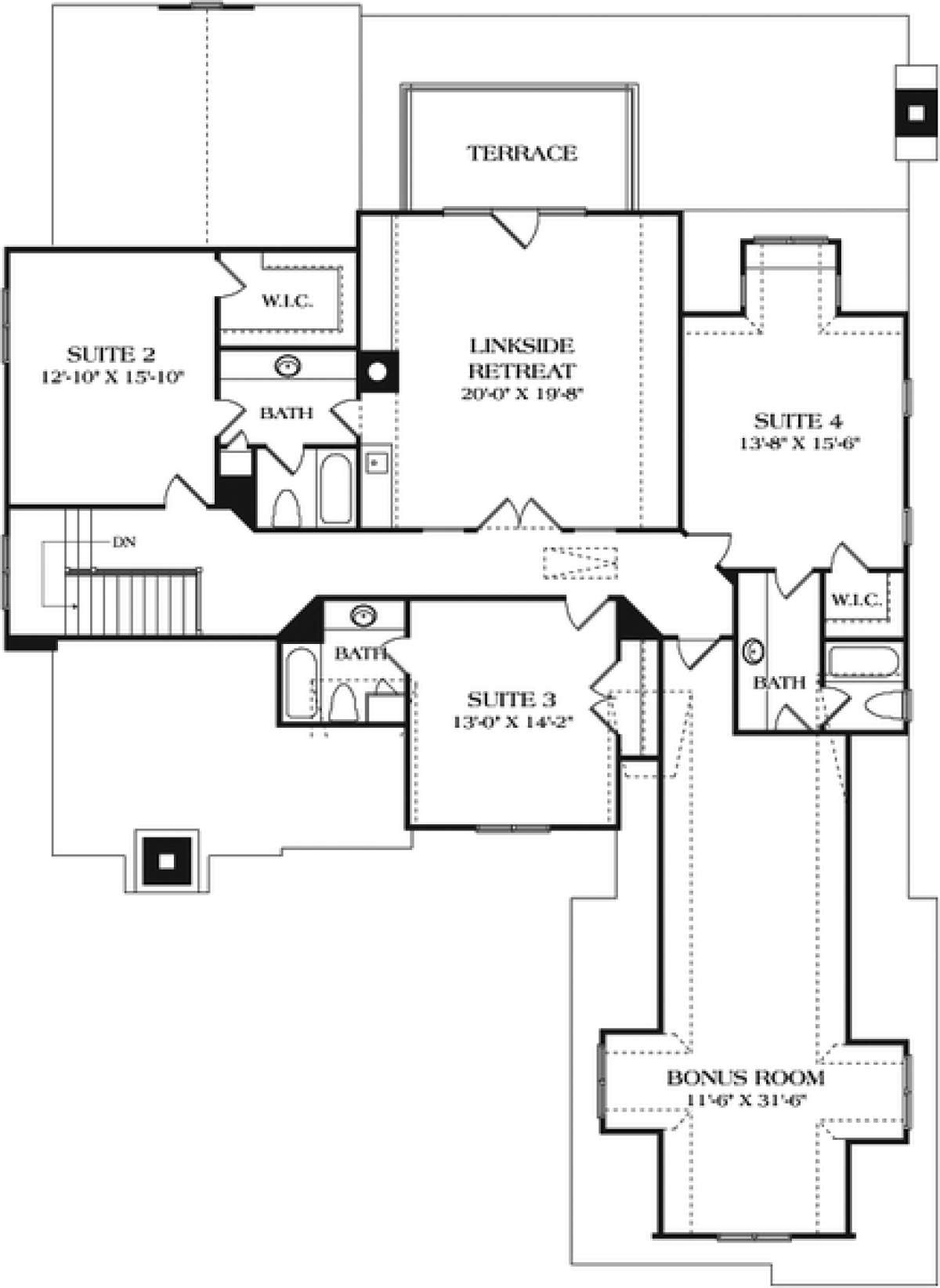

Upper Floor Plan
Upper Floor Plan for House Plan #3323-00628


What's Included in these plans?

  • Foundation plan
  • Dimensioned and detailed floor plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (when available)
  • Typical foundation details, wall sections, and cornice details necessary for construction.
  • Separate electrical plan (may be shown on floor plans in some cases).

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Cannot be built in North Carolina.
