Tudor House Plan 009-00139

Sq Ft4,970
Beds4
Baths4
1/2 Baths1
Stories2
Cars3
Width71' 0"
Depth96' 0"
SALE

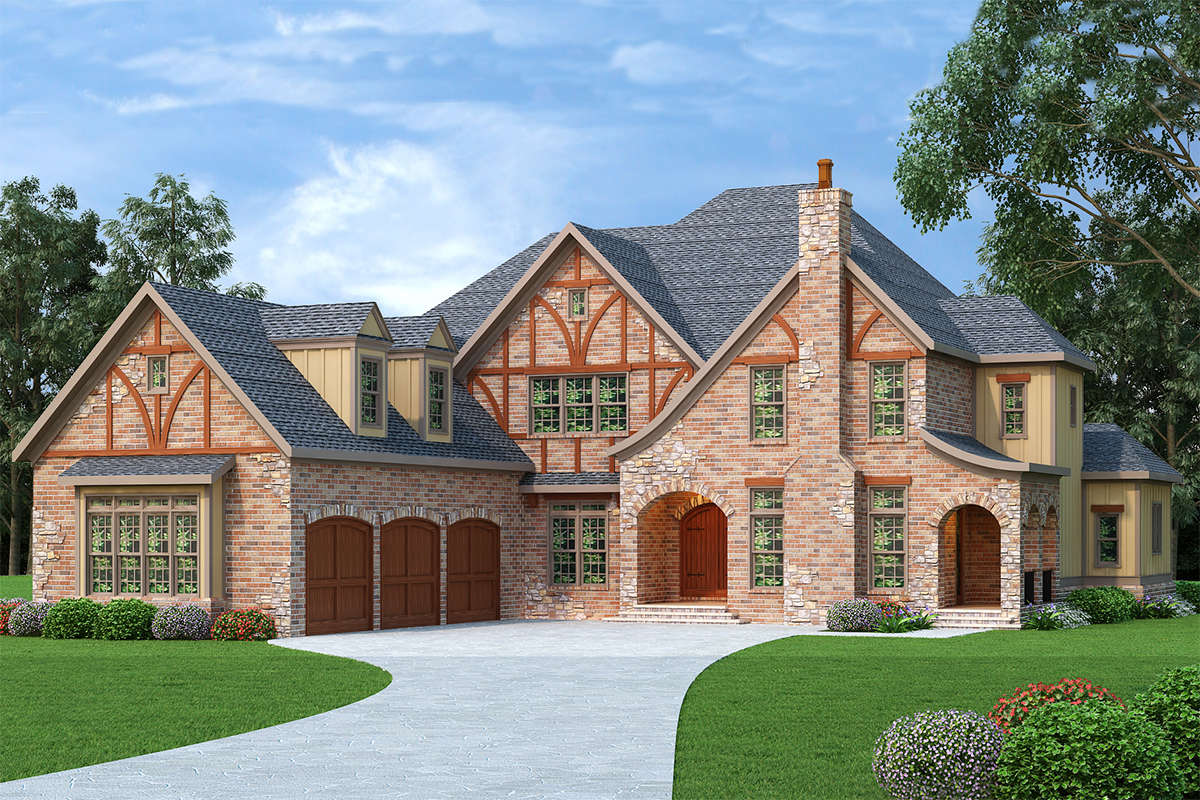

Tudor House Plan #009-00139 Elevation Photo
Tudor House Plan #009-00139 Elevation Photo
Tudor House Plan #009-00139 Elevation Photo
Tudor House Plan #009-00139 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

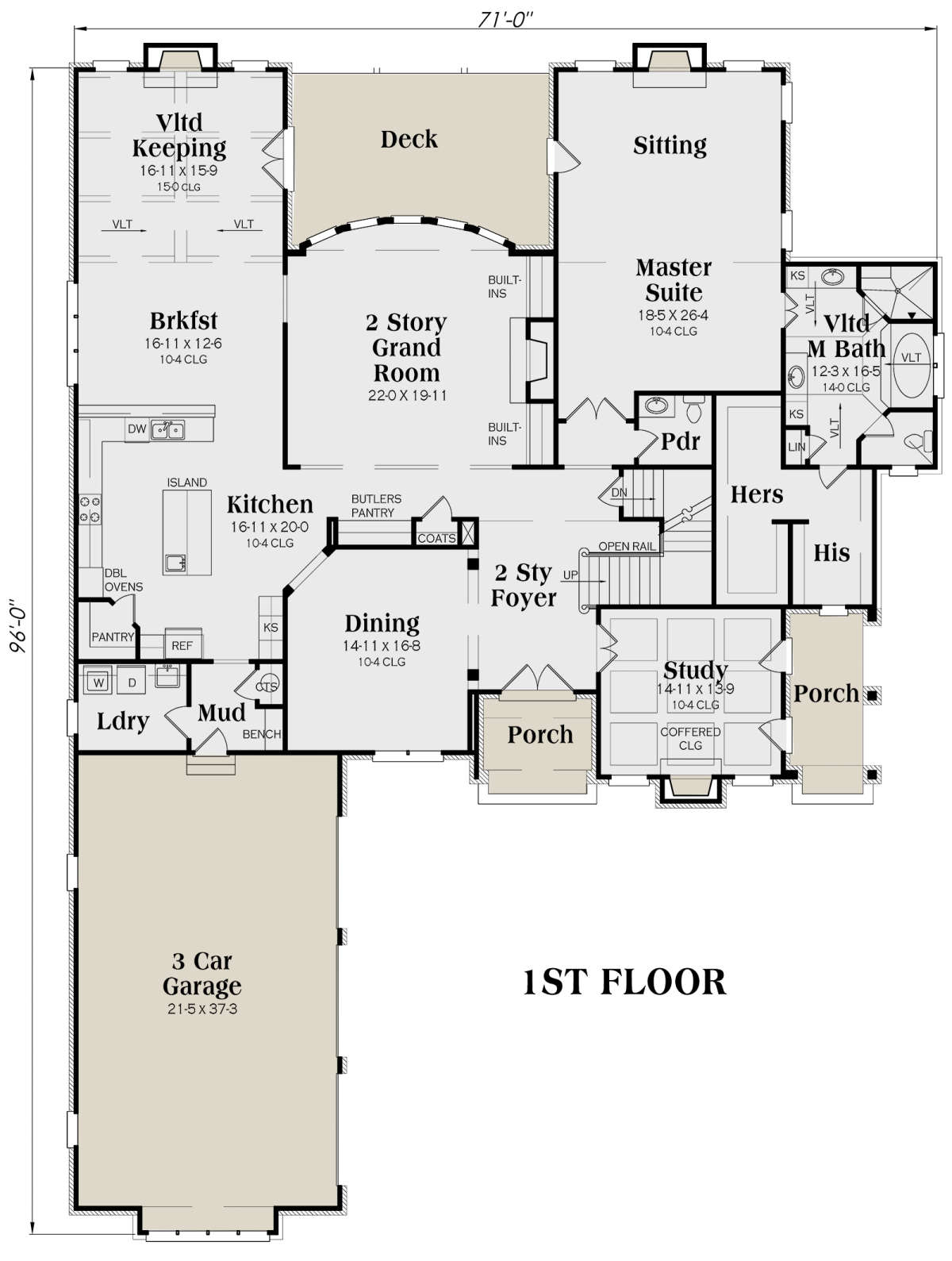

Main Floor for House Plan #009-00139

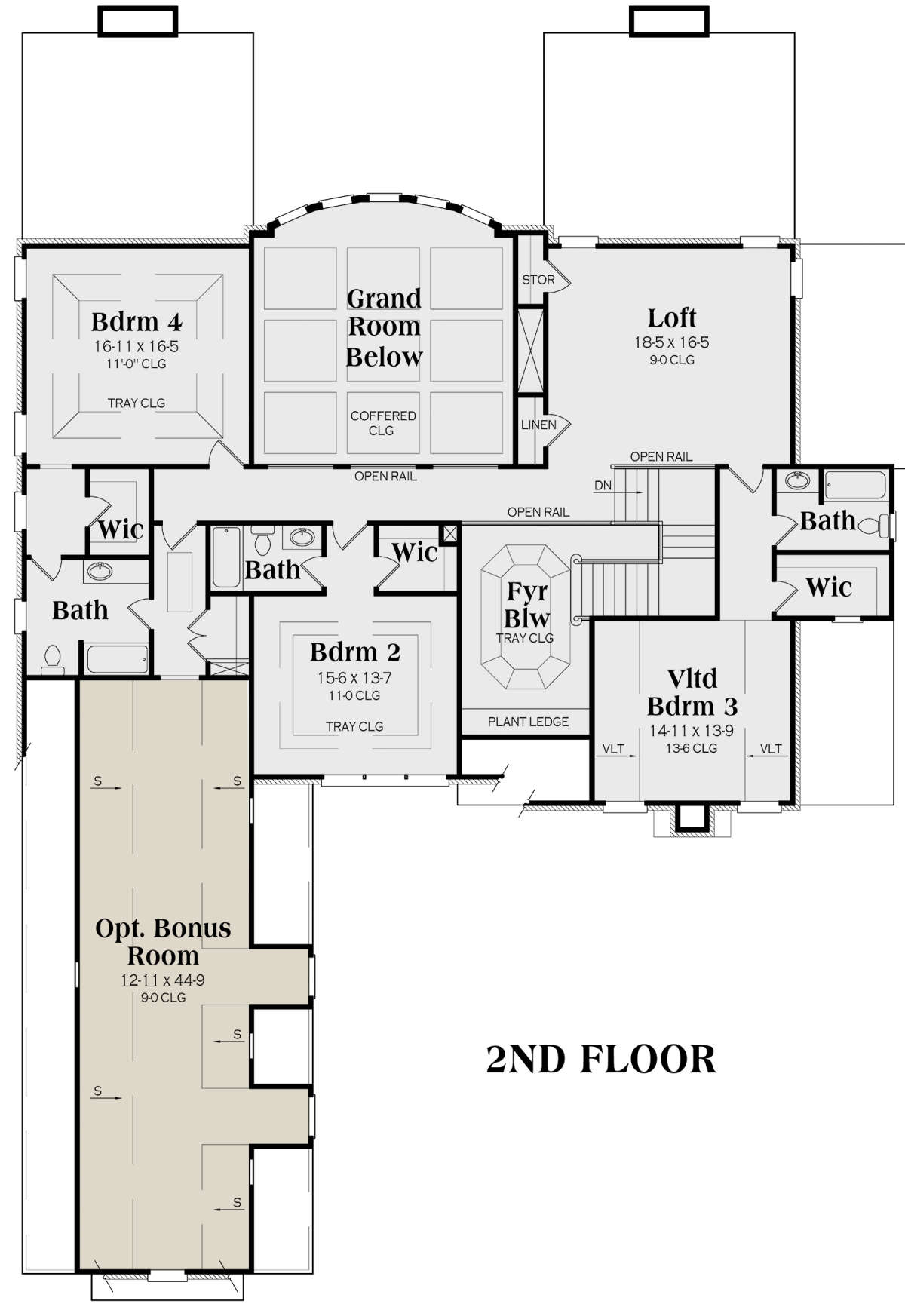

Second Floor for House Plan #009-00139
Main Floor
Main Floor for House Plan #009-00139
Second Floor
Second Floor for House Plan #009-00139


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Old world charm and a modern floor plan blend beautifully in this stately home. The brick and stone exterior is gorgeous and includes a double wooden door entryway and handsome window accents. This spacious home features approximately 5,000 square feet with an additional bonus room adding another 717 square feet. The two storied home offers four bedrooms and four plus bathrooms with a three car garage making it ideal for a large family. The elegant floor plan offers stunning architectural features such as the two story foyer with an open railing staircase. The formal dining room is open to the foyer and provides access to the gourmet kitchen. The kitchen enjoys a large footprint and is perfect for entertaining or family dinners. A large center island and additional breakfast bar is the centerpiece of the kitchen along with a walk-in pantry, double ovens and a plethora of additional counter and cabinet space. The breakfast room anchors the kitchen and keeping room for casual dining. The vaulted keeping room has a rear wall fireplace and is the perfect space for family functions and provides rear deck access. The two story grand room is simply stunning with soaring ceiling heights, a handsome fireplace, built-in cabinetry and a bowed window feature which provides gorgeous deck and yard views. A private den features an elegant coffered ceiling and double side porch access. The three car garage provides interior access to the mudroom and laundry room for convenience. The main level master suite is well appointed with an oversized master bedroom, an additional sitting area and private access to the rear deck. The vaulted master bath is spacious and is highlighted by separate double vanities, a garden tub, separate shower and a compartmentalized toilet. His and her oversized walk-in closets are at the rear of this space for privacy.
The large loft area at the top of the staircase would make an ideal playroom or homework station for the children. Bedrooms two and four are quite large, each has a trey ceiling accent, walk-in closet and private bath. The third bedroom features a vaulted ceiling, walk-in closet and private bath. The optional bonus room is enormous with the potential for a fifth bedroom, home office or an artist’s studio. The living space and amenities in this home are “first in class” and the handsome exterior adds to the luxurious custom feel of the home.
