Tudor Plan 1637-00084

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,790
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 2
Width 90'
Depth 58'

Floorplan Drawings

Main

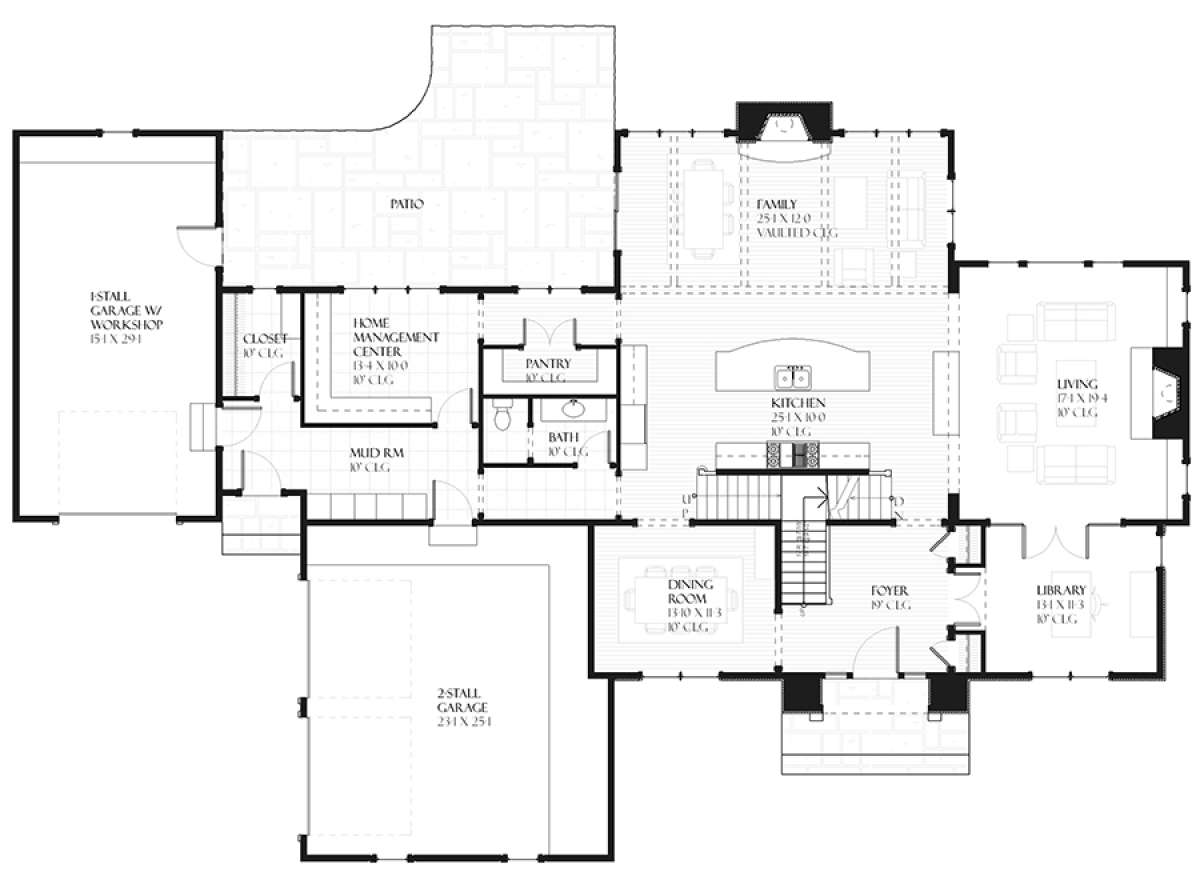

Main for House Plan #1637-00084
Upper

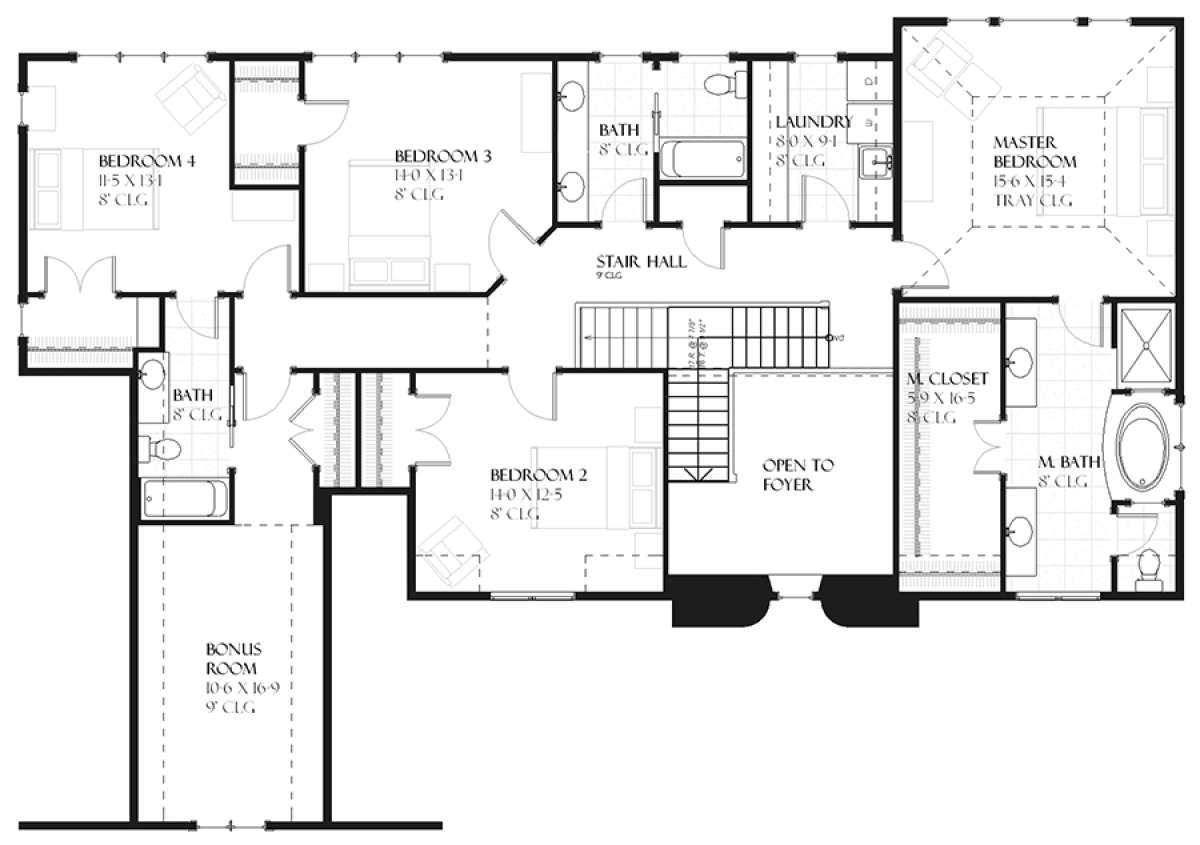

Upper for House Plan #1637-00084


What's Included in these plans?

  • Construction Ready Main Level Floor Plan (1/4"=1-0')
  • Construction Ready Upper Floor Plan (if applicable) (1/4"=1'-0")
  • Lower Level Floor Plans/Foundation (1/4"=1'-0")

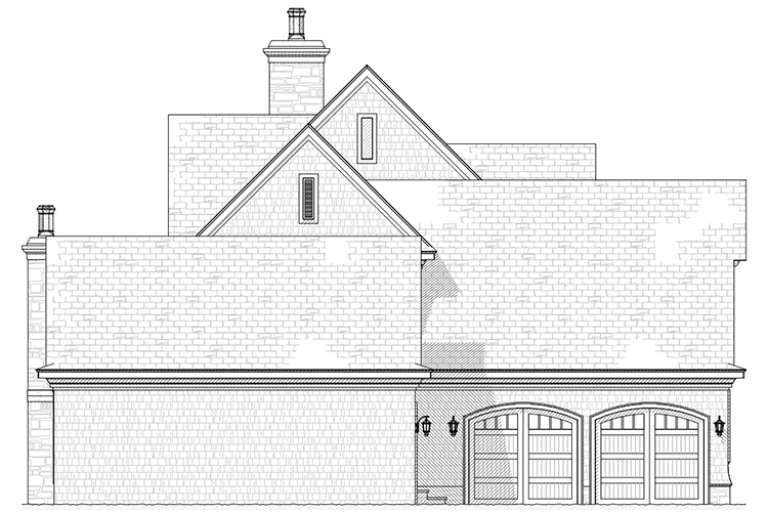

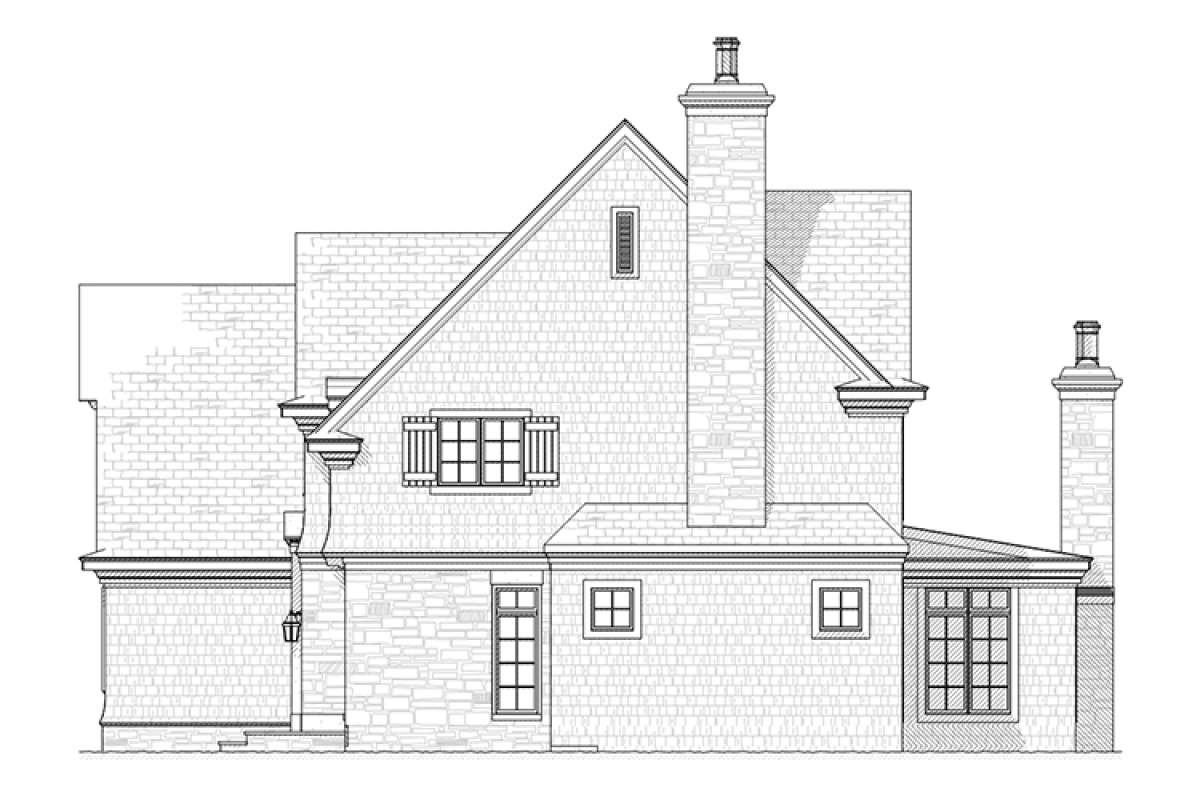

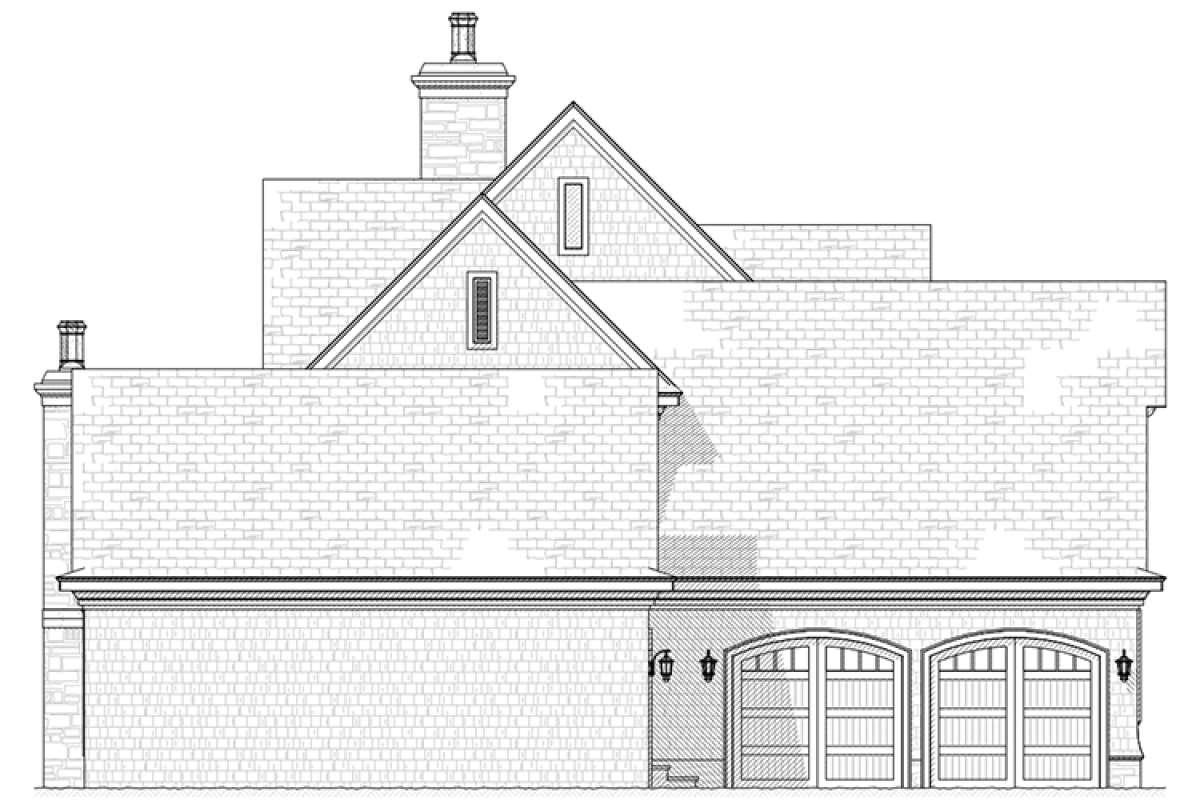

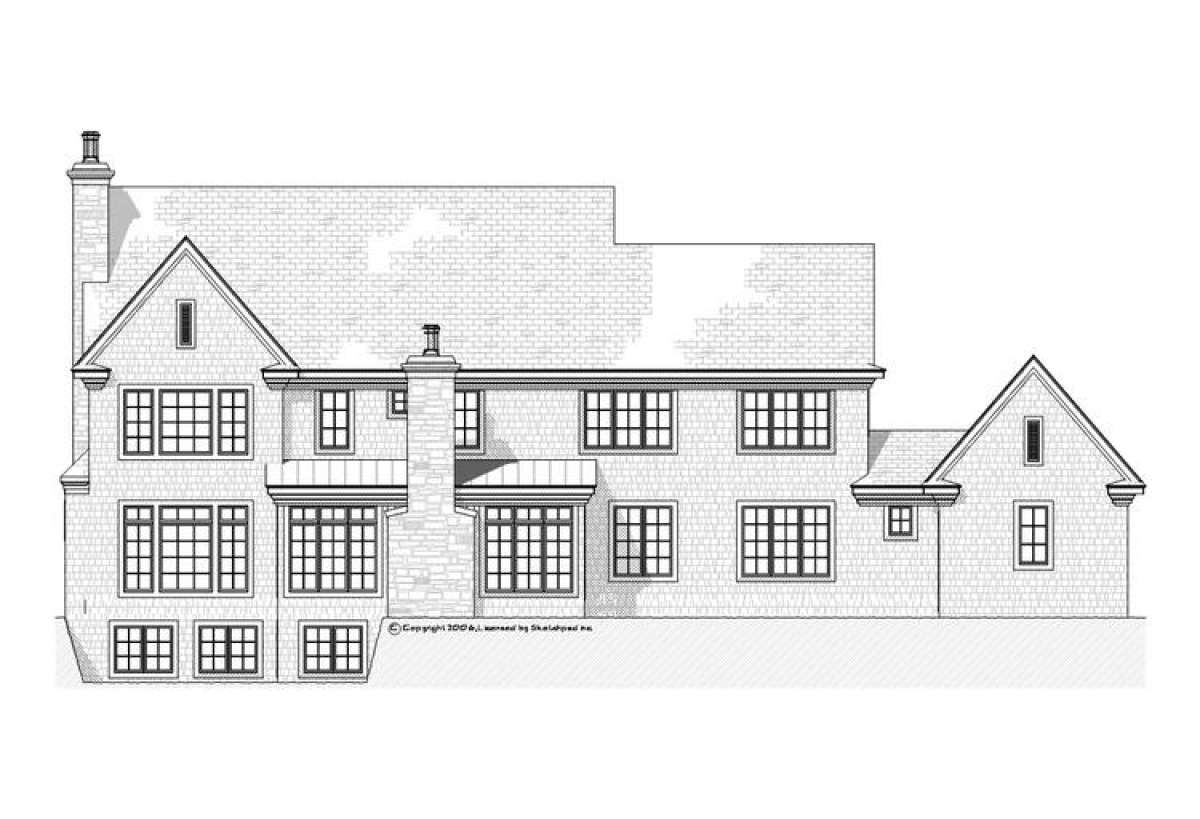

  • Construction Ready Elevations (all four) with Materials, Wall Heights, Details, etc noted (1/4"=1')
  • Building Sections/Wall Sections/Eave Details
  • Exterior Details of Railings, Columns, Shutters, Flowerboxes etc.
  • Roof Overview Plan

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

*Due to the unique custom packaging this designer offers please allow 3-5 business days for the shipment of this home plan, thank you.*
