Craftsman House Plan 286-00105

Sq Ft3,644
1/2 Baths0
Width104' 0"
Depth66' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

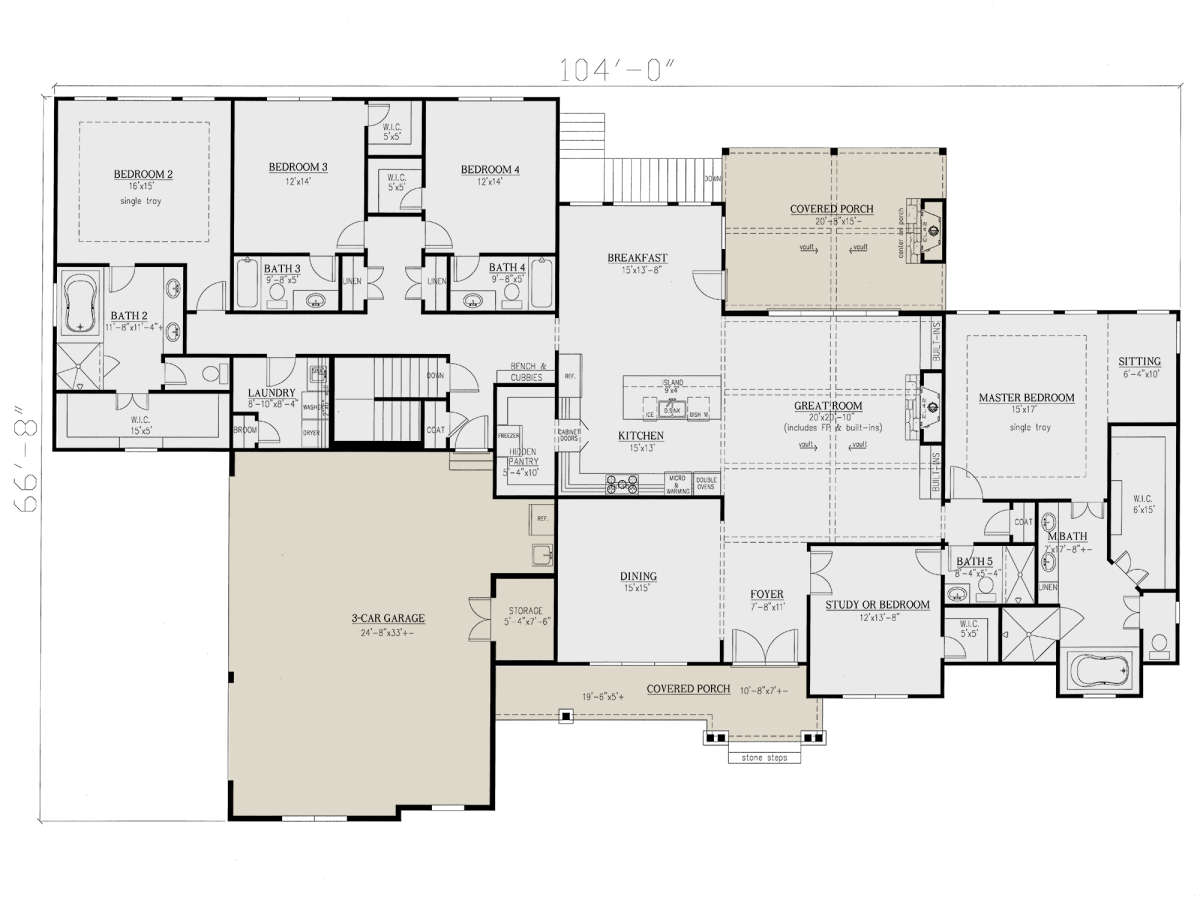

Main Floor for House Plan #286-00105
Main Floor
Main Floor for House Plan #286-00105

Frequently Asked Questions


What's Included in these plans?

-Floor Plans
-Roof Overview
-Foundation Plan
-Typical Electrical Plan
-Typical Details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

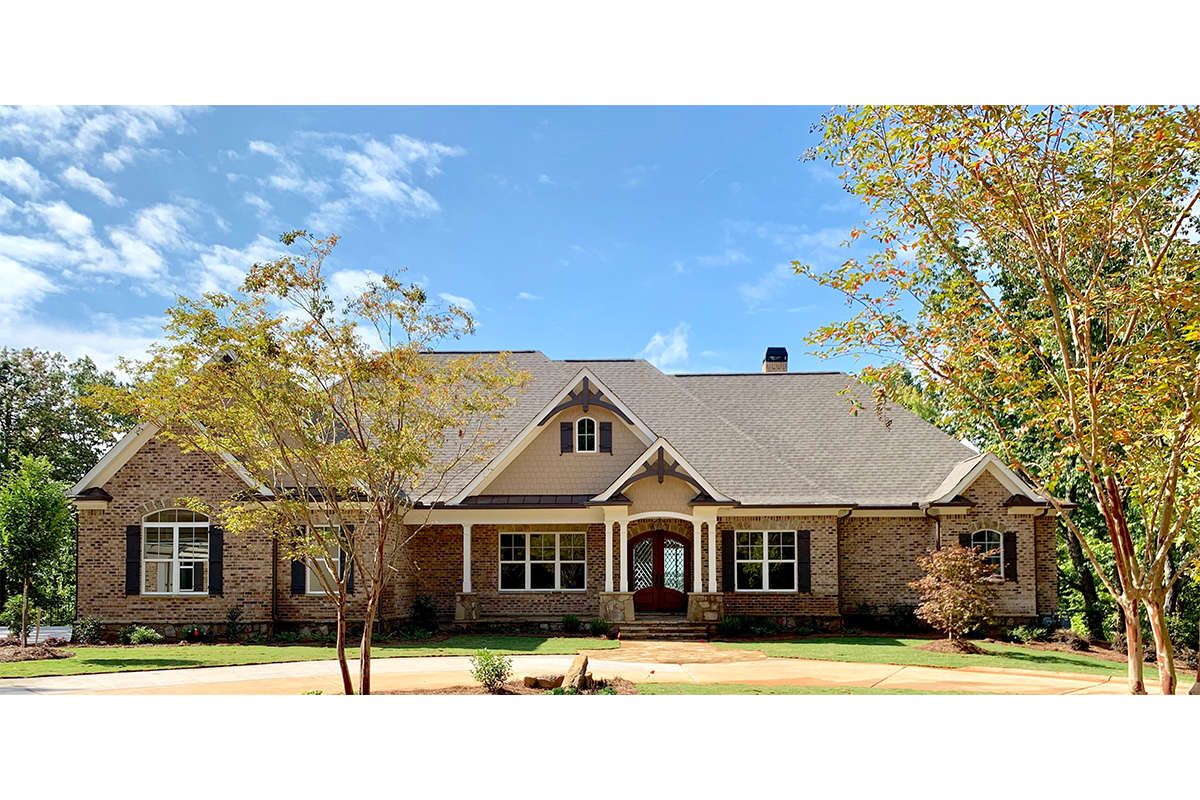

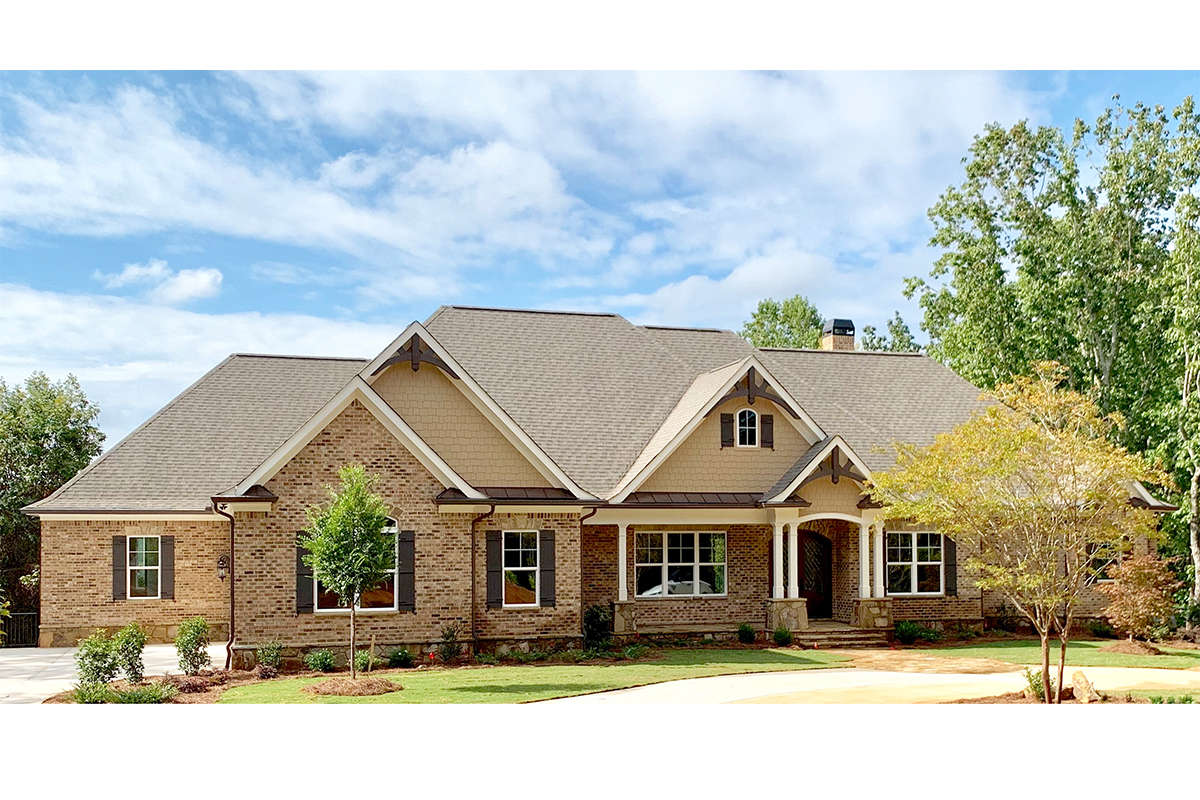

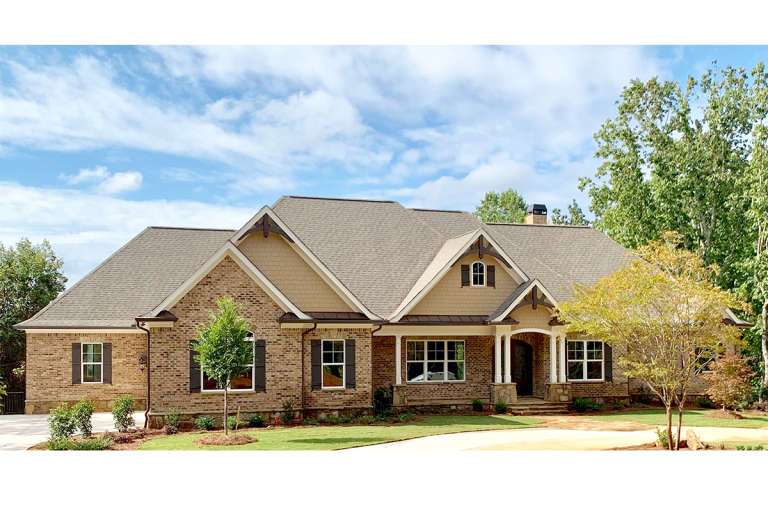

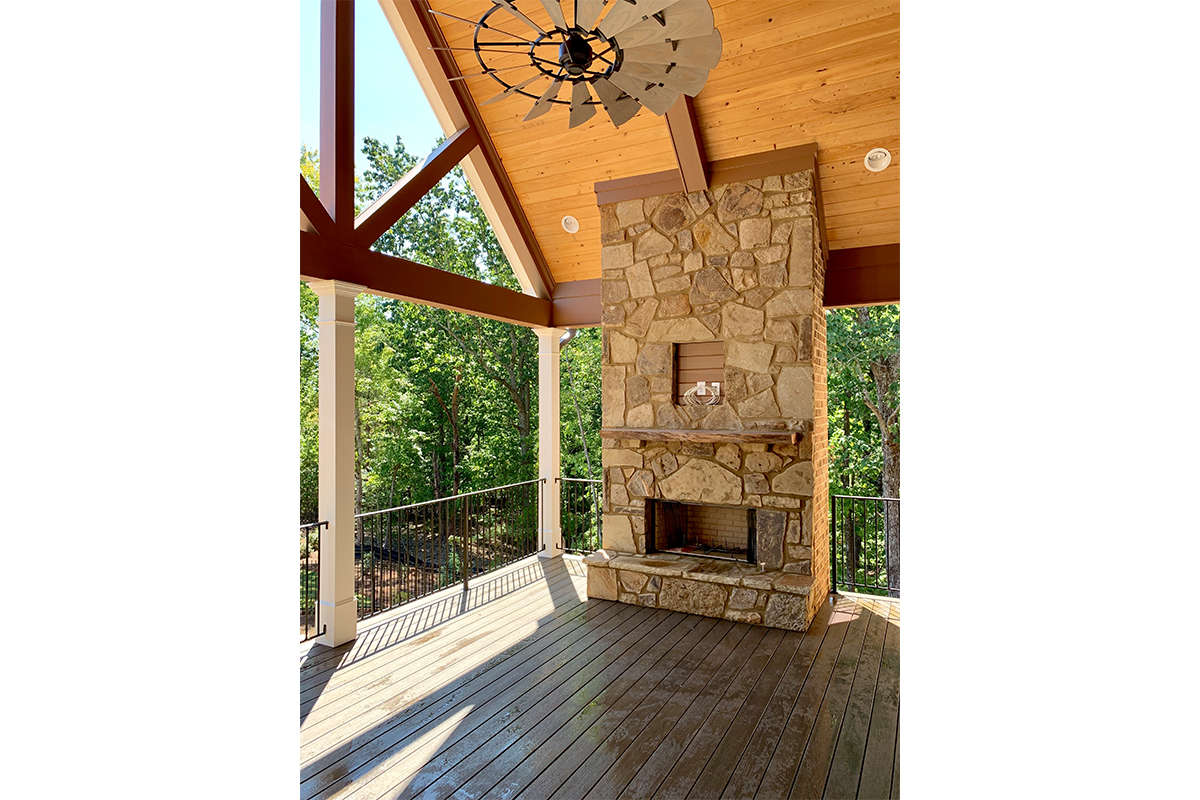

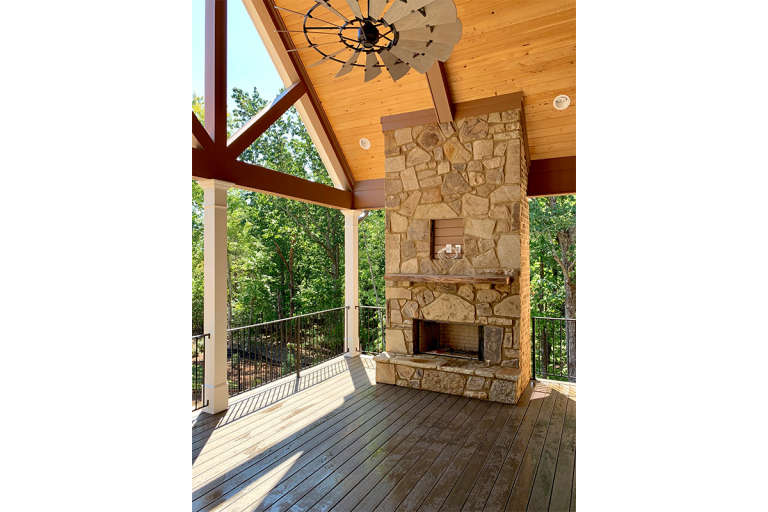

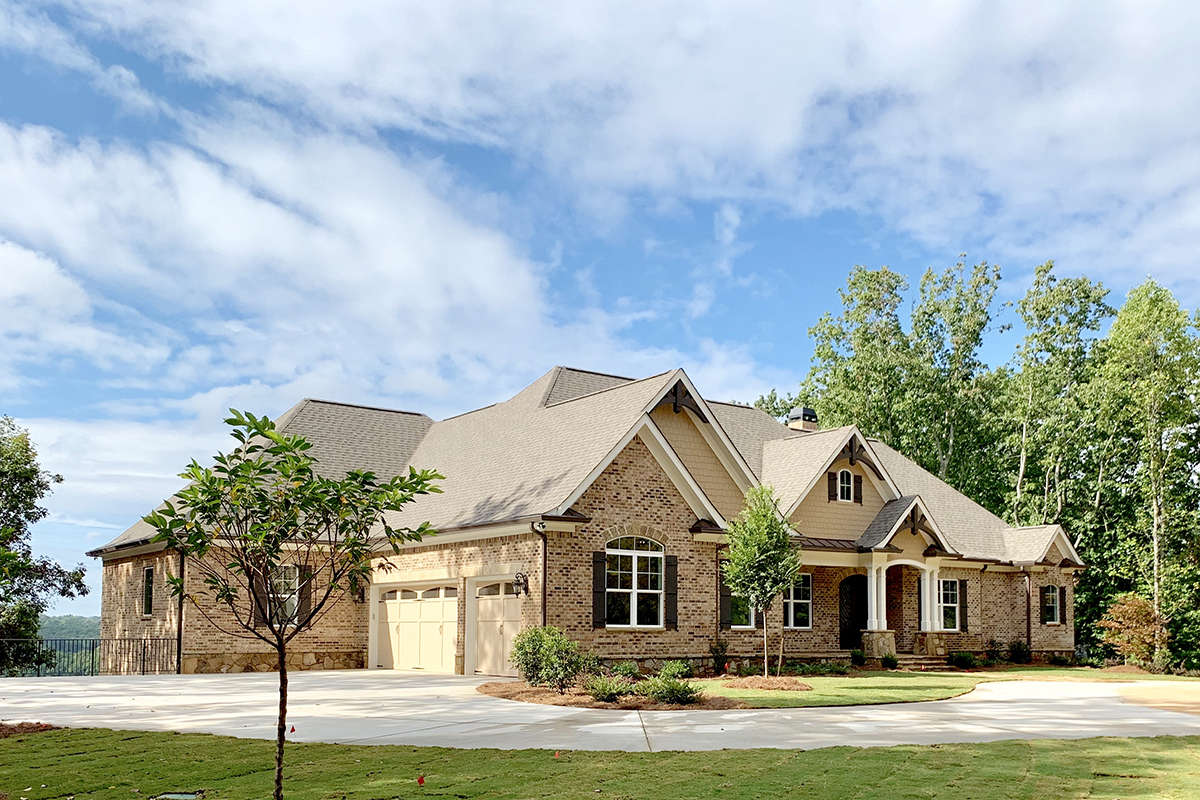

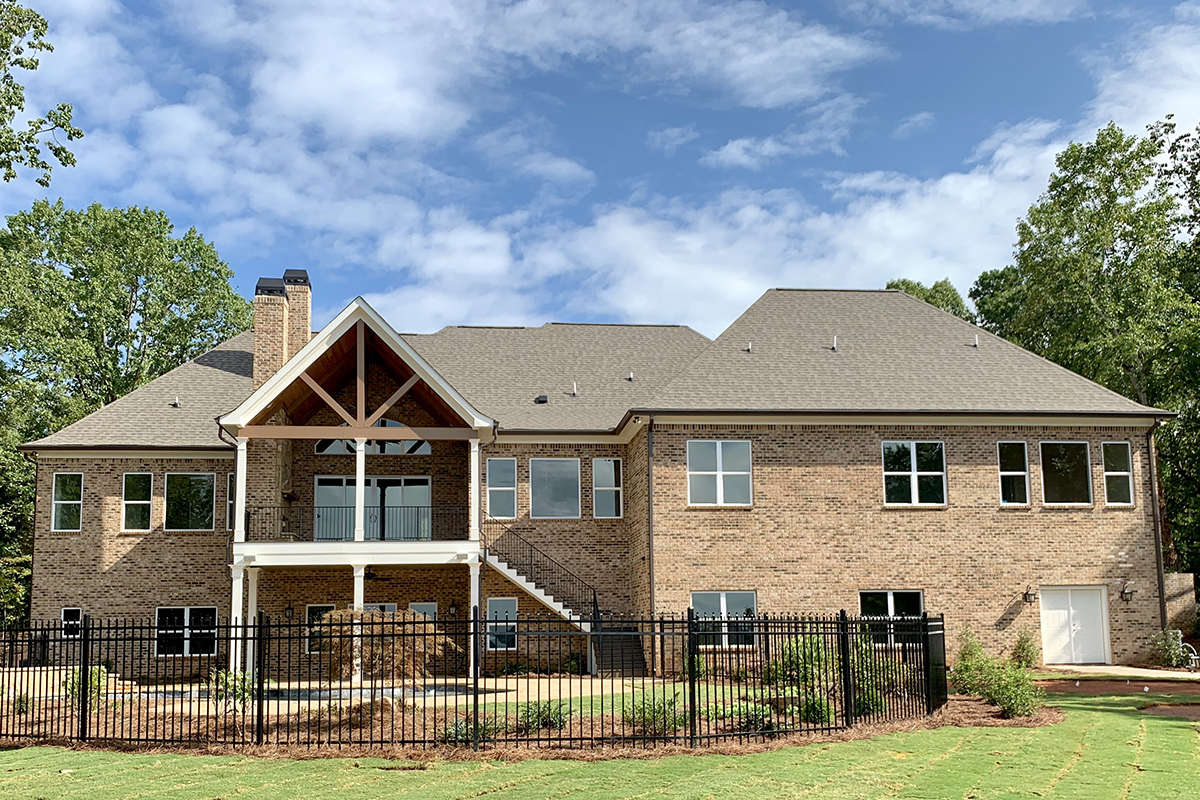

Crafted with impeccable Craftsman details, this house plan showcases an exterior of remarkable brickwork, cedar shakes, and decorative gable trusses. The single-story layout highlights a fabulous 4-bedroom living arrangement with the option of a fifth bedroom and a basement foundation. The 3 car garage hosts tons of space for vehicles, storage, and even an outdoor refrigerator and sink. The rear covered porch features a great outdoor living area with a fireplace and a vaulted ceiling.

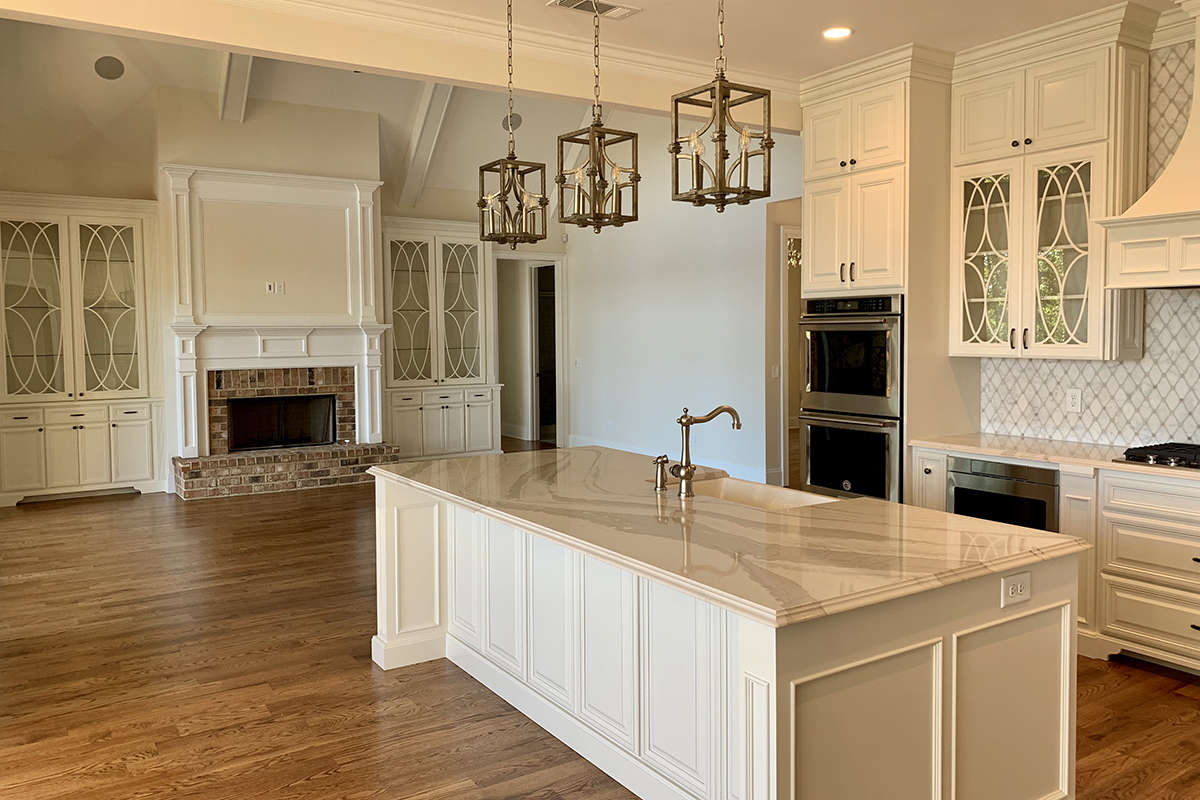

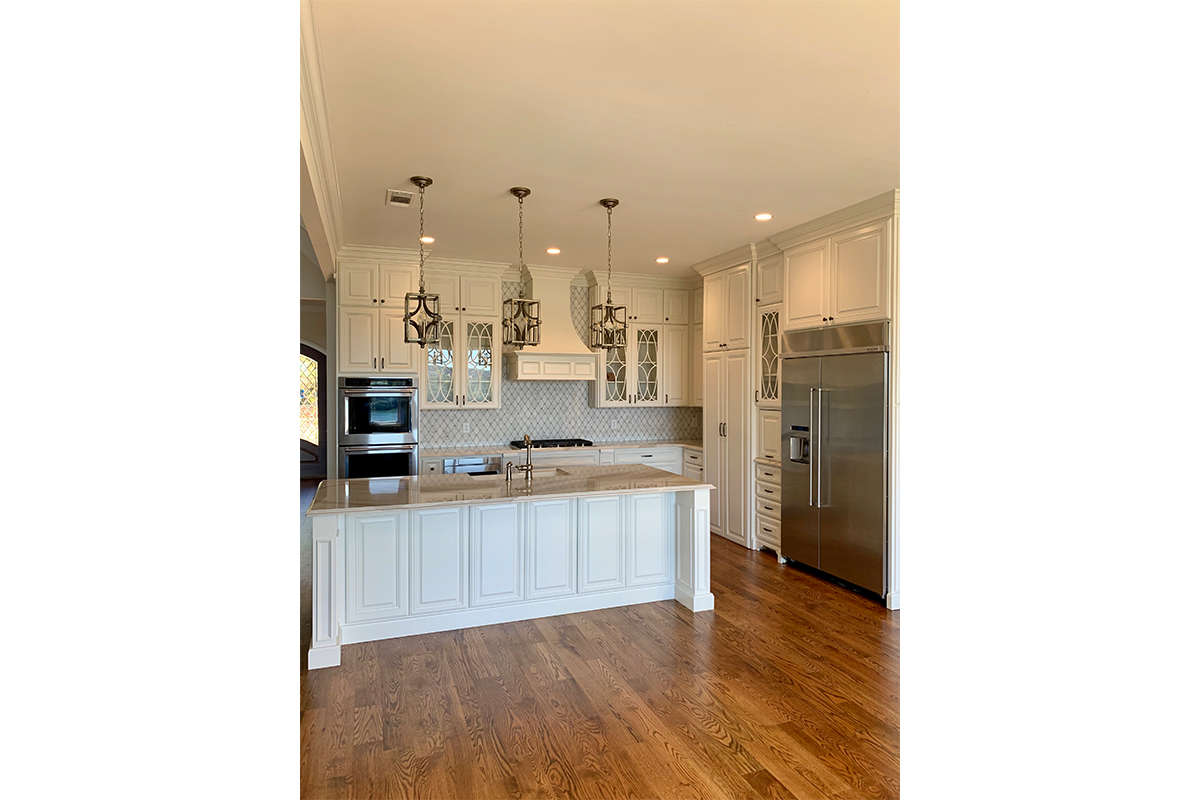

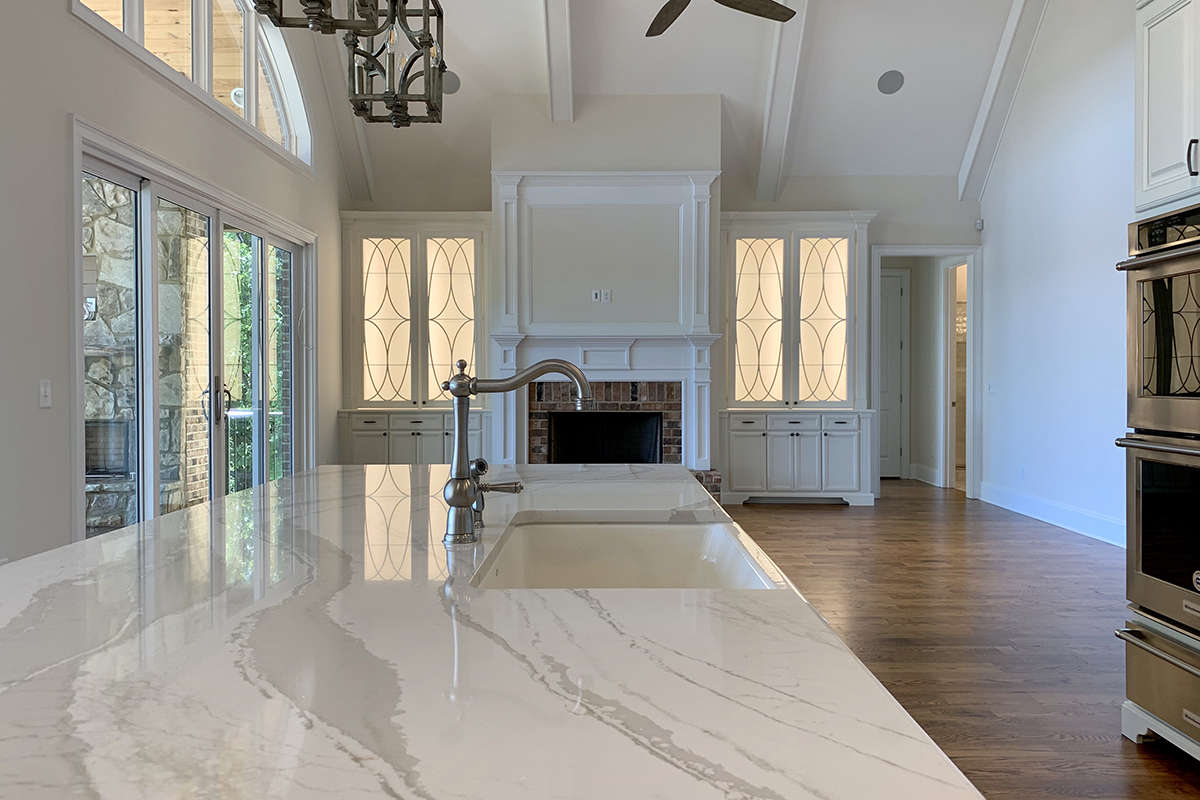

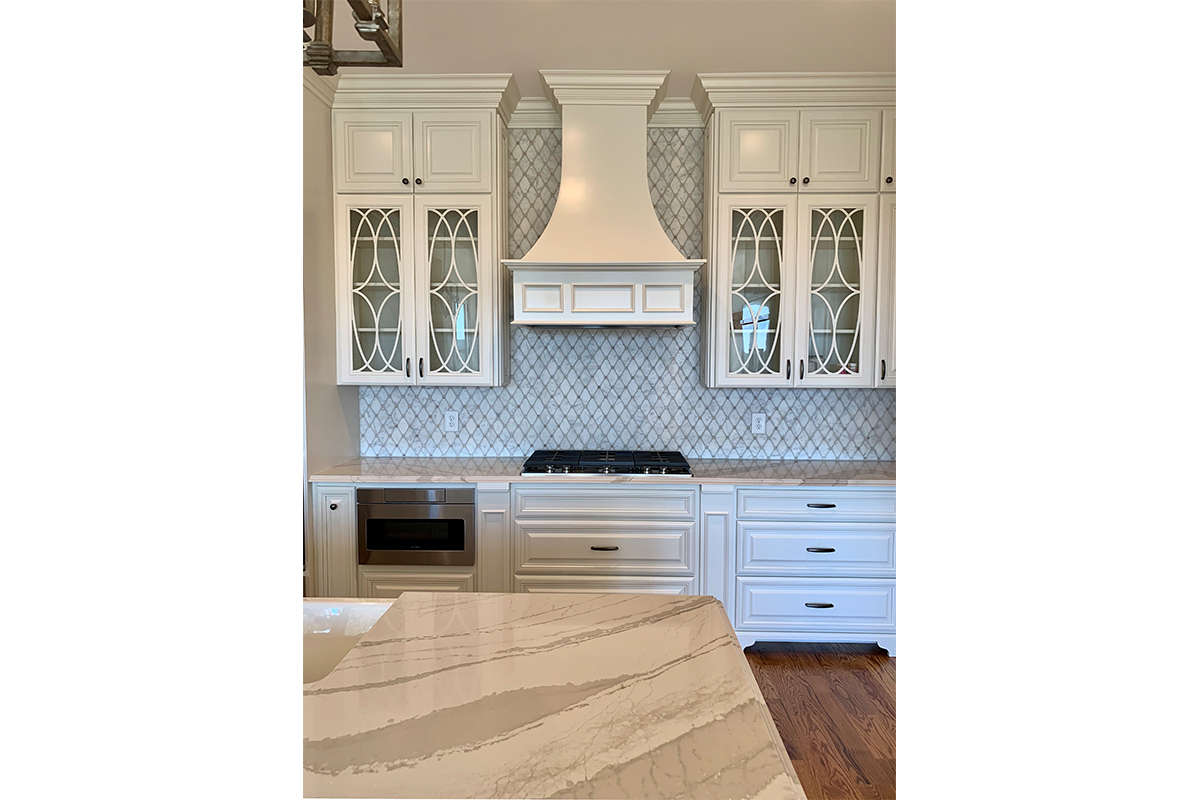

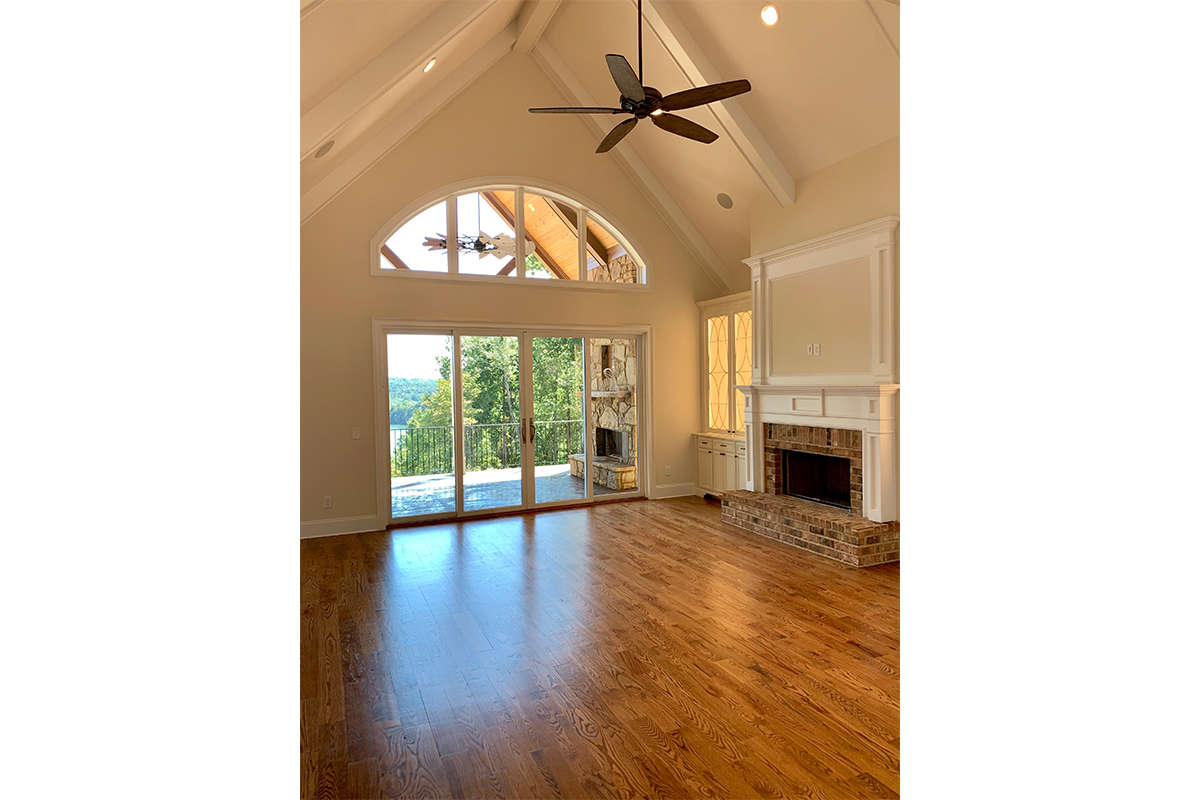

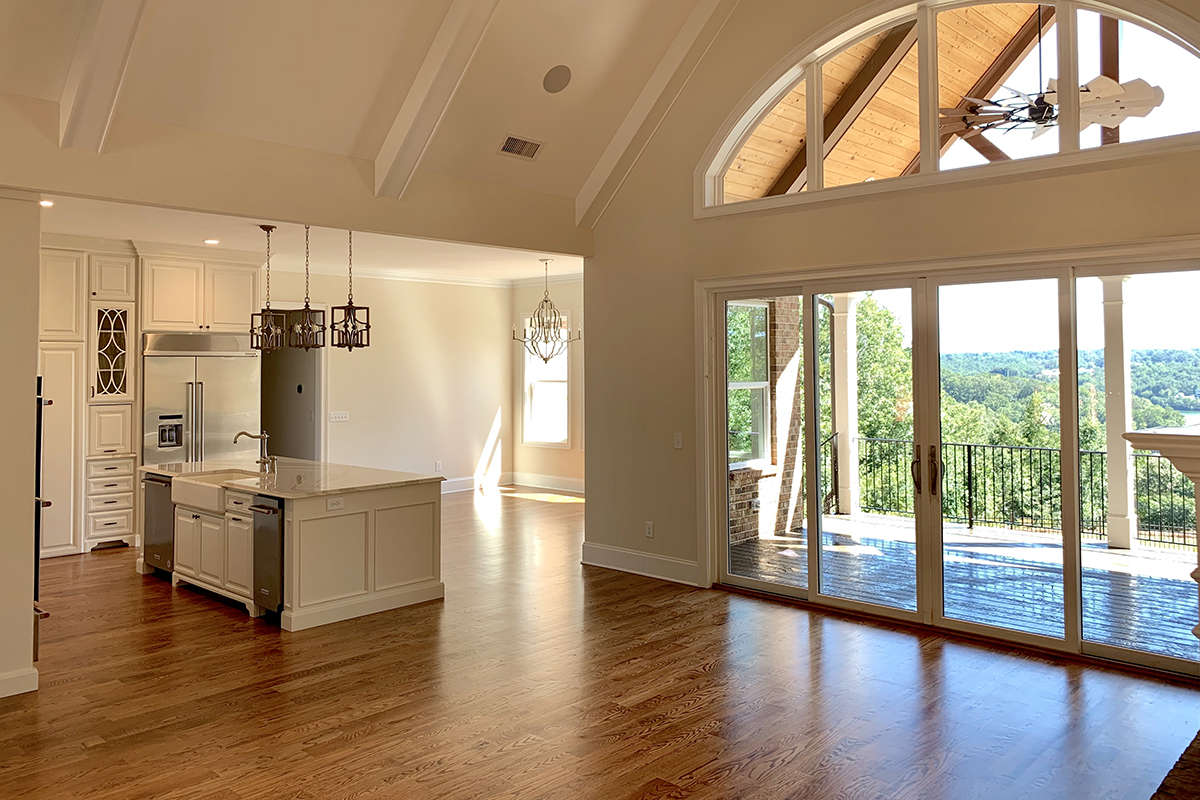

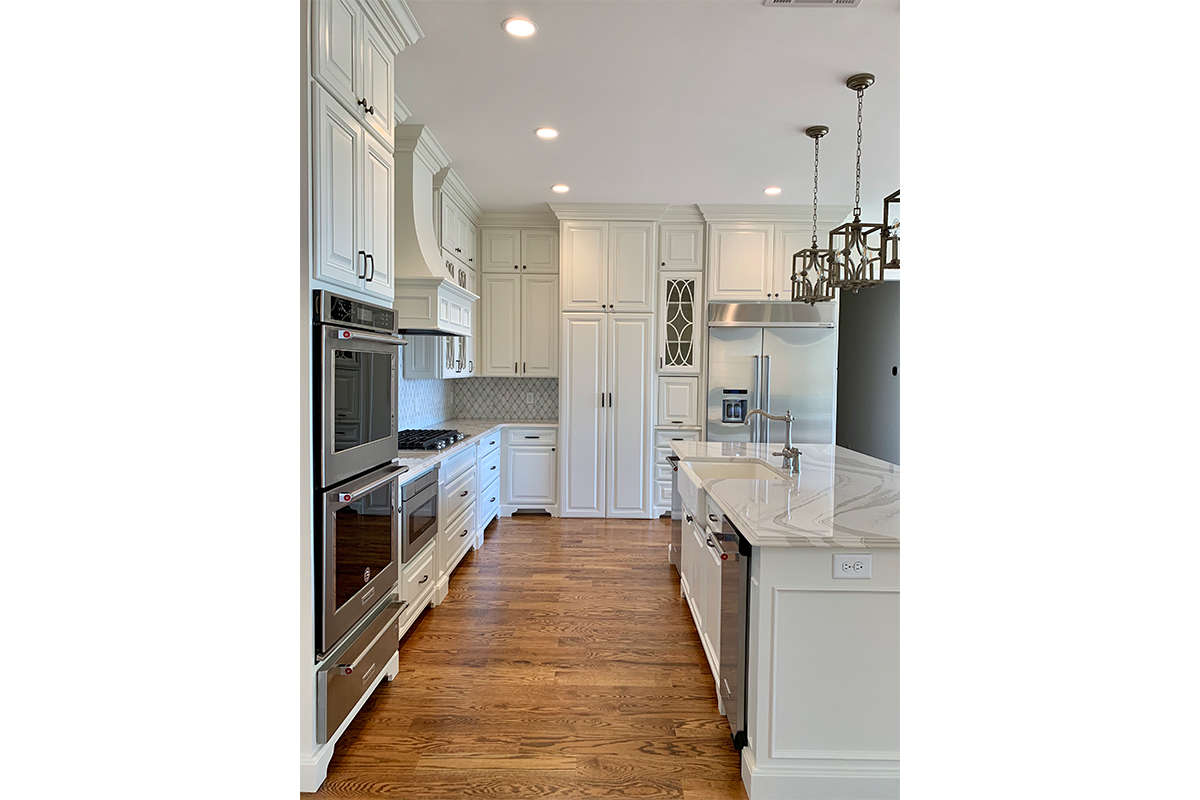

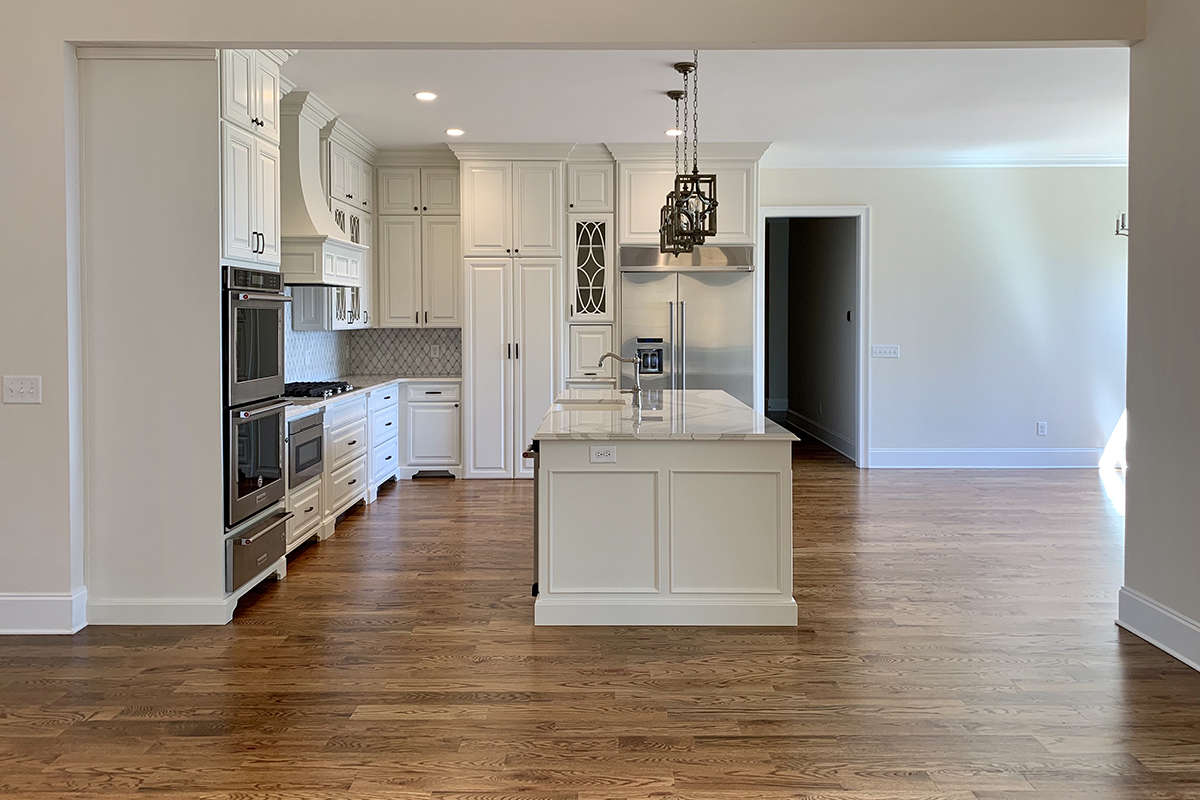

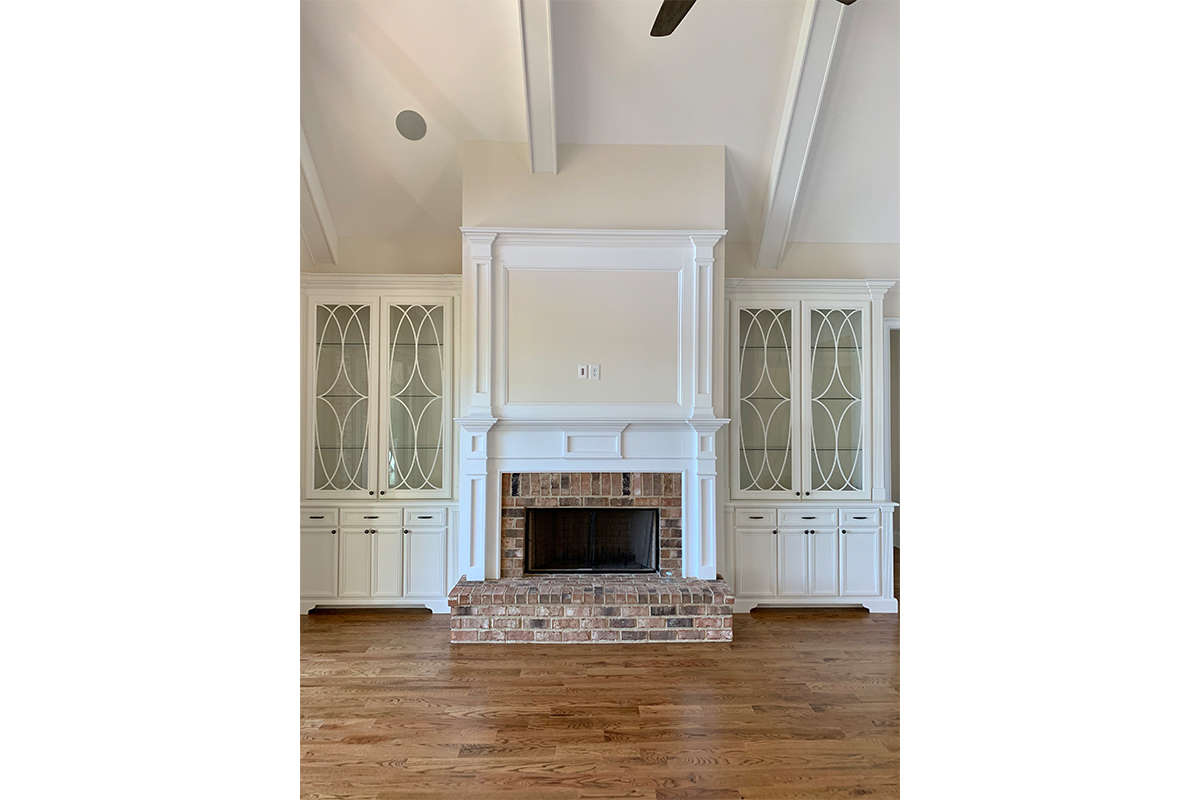

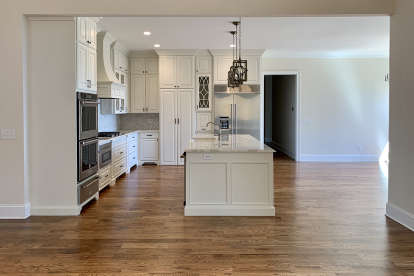

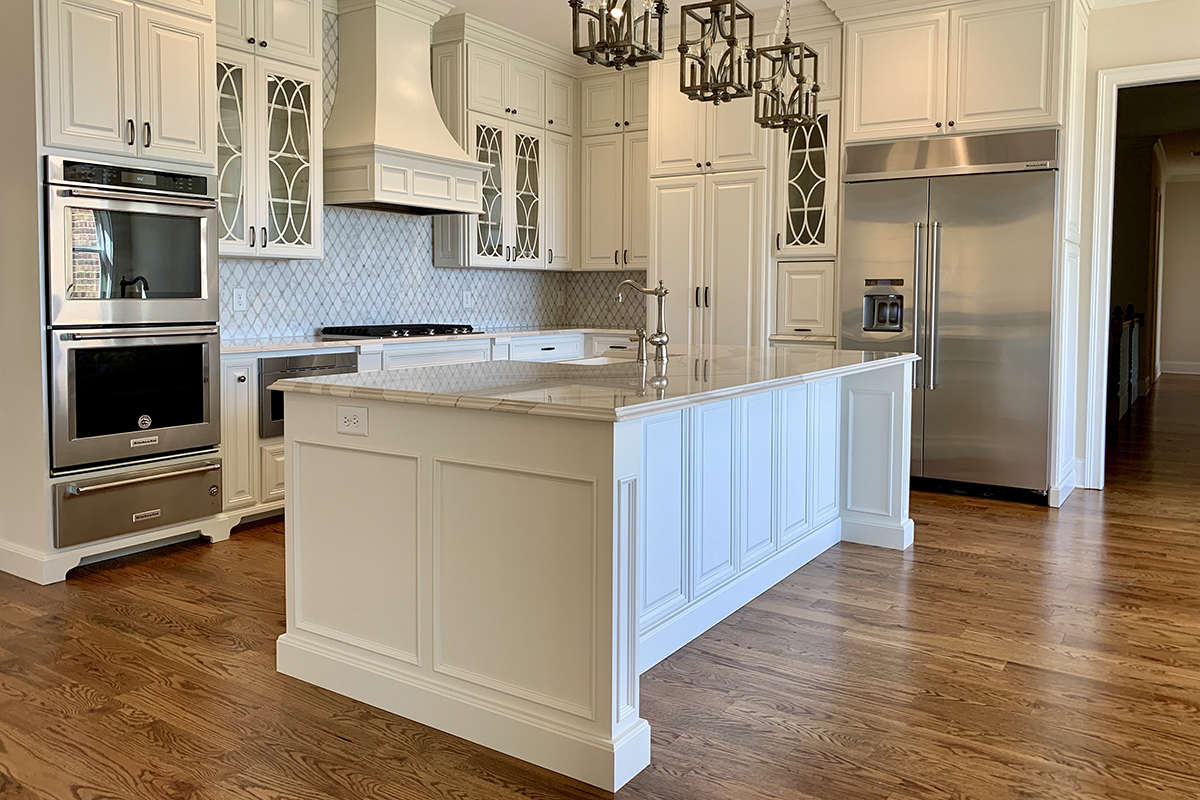

The interior measures approximately 3,644 square feet with highlighted features such as two master bedrooms, a basement foundation, and bedroom suites. The open floor plan is exposed beyond the foyer flanked by the corner dining room and the study or bedroom. What’s great about the study/bedroom is that it is versatile. The en suite bathroom and walk-in closet establish this room as a bedroom, but the front door location makes it function perfectly as a home office. The vaulted great room features a central fireplace with built-in shelving while the L-shaped kitchen features a turned central island and a hidden walk-in pantry with a deep freezer. The breakfast nook provides access to the covered porch and hosts great window views.

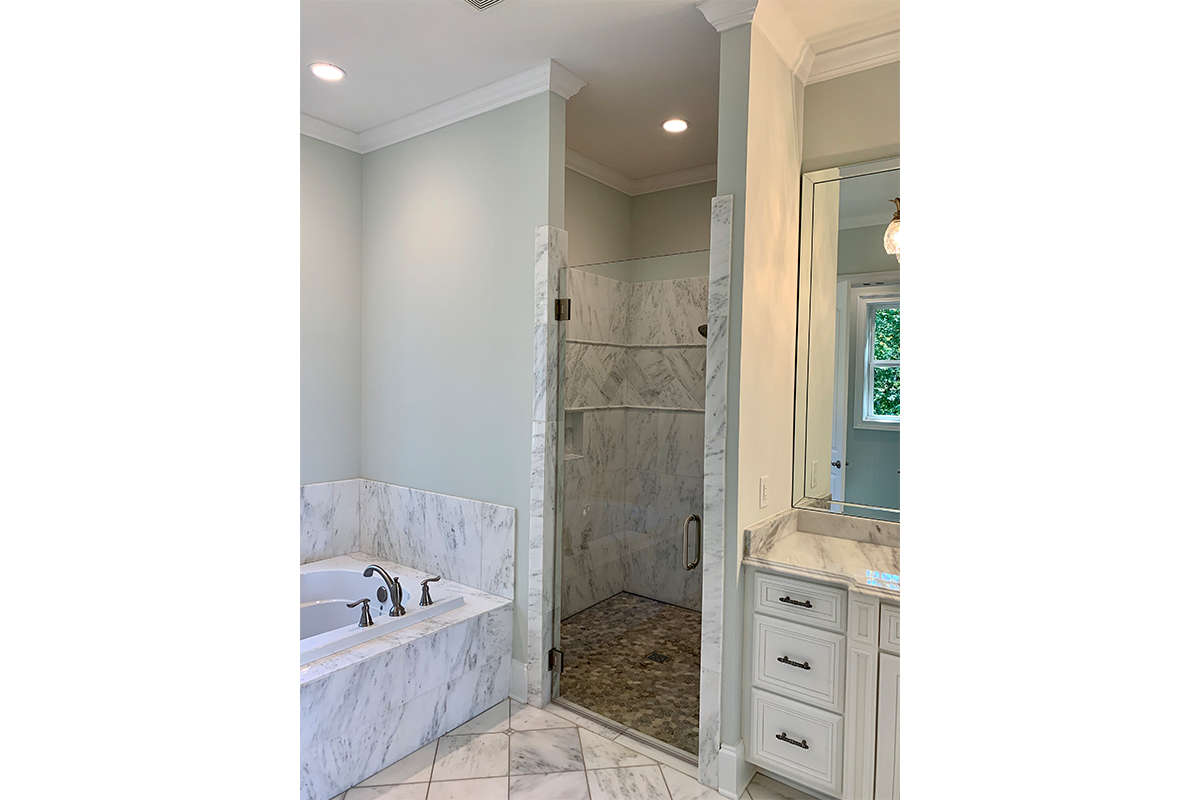

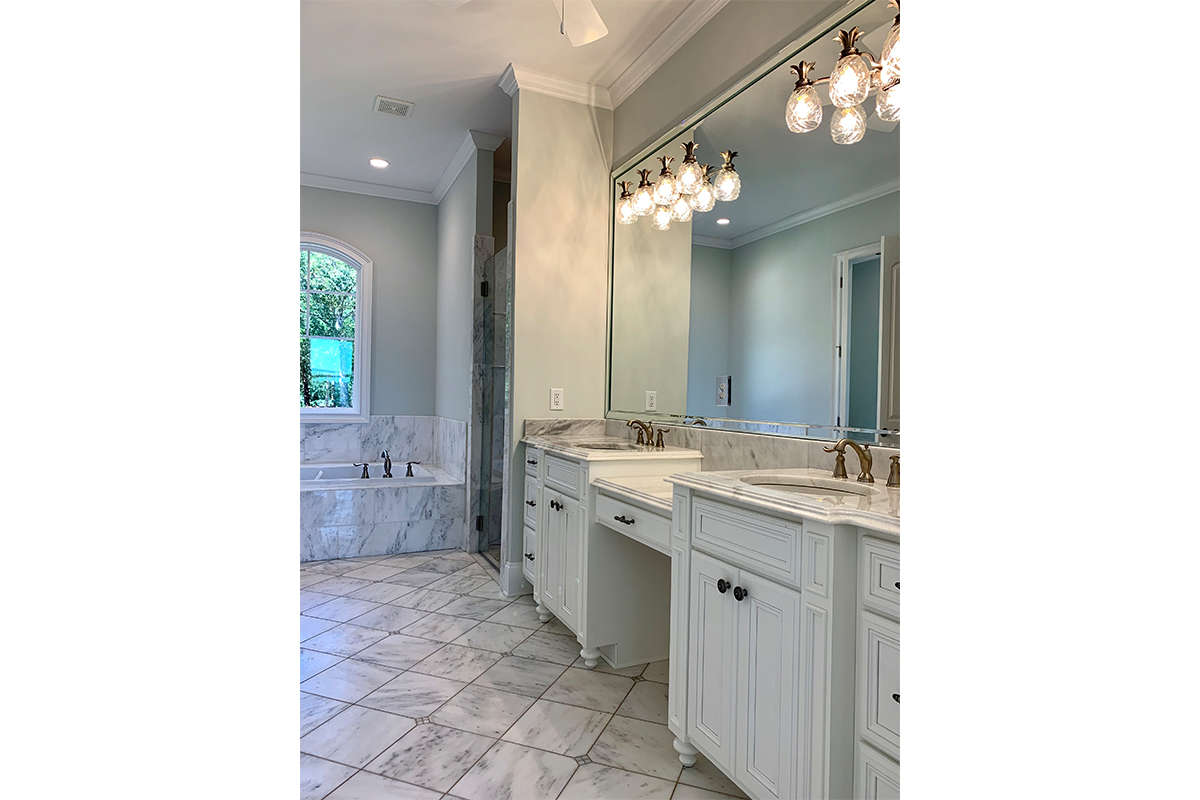

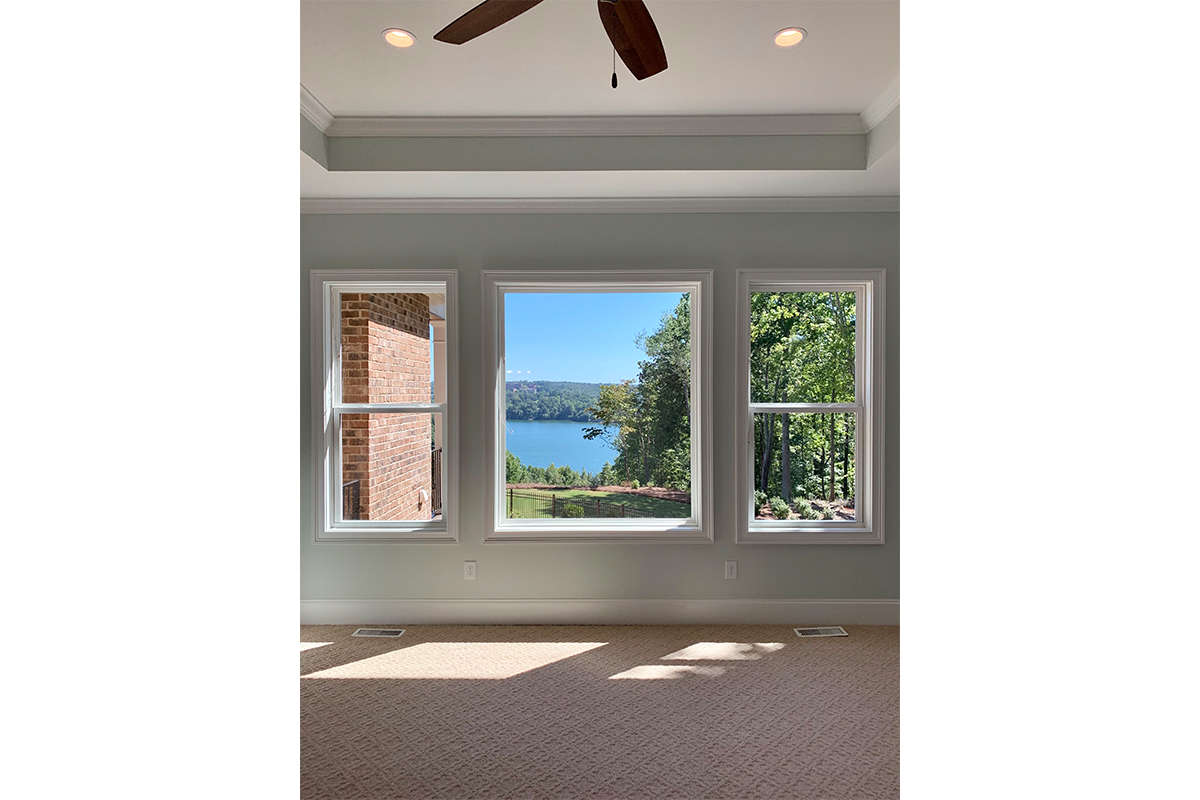

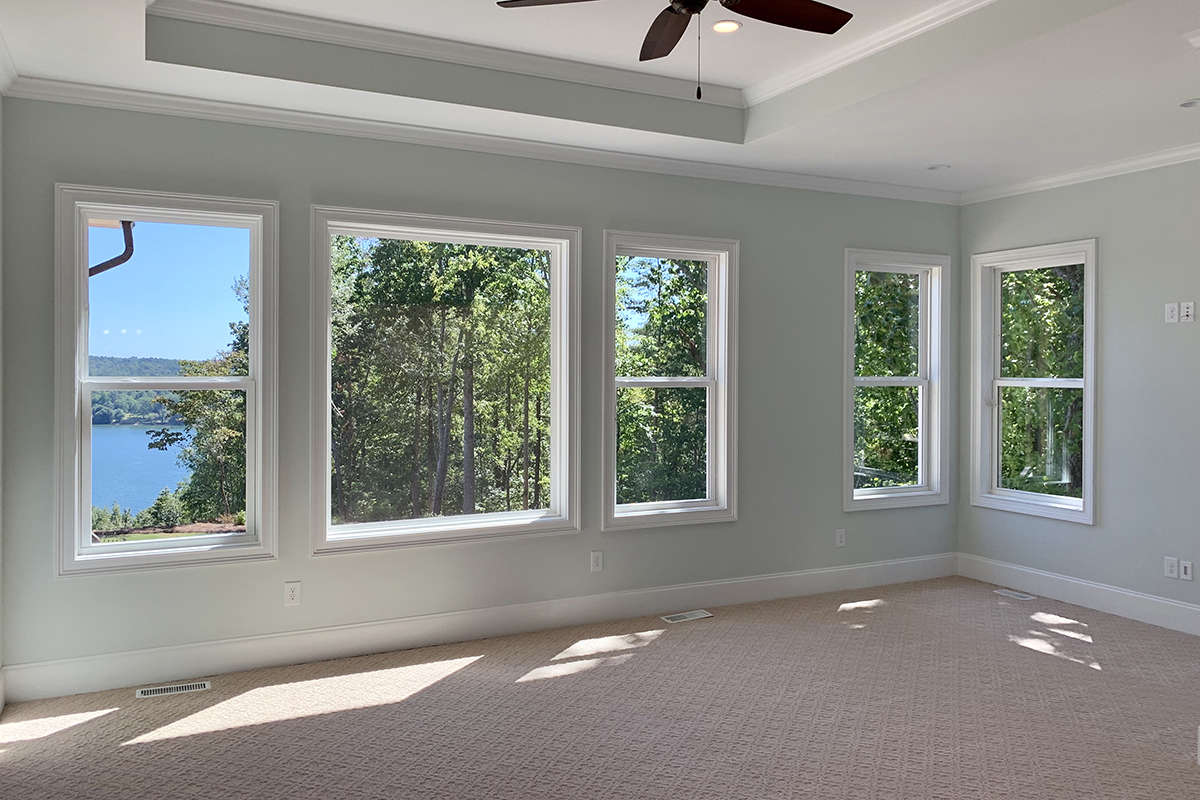

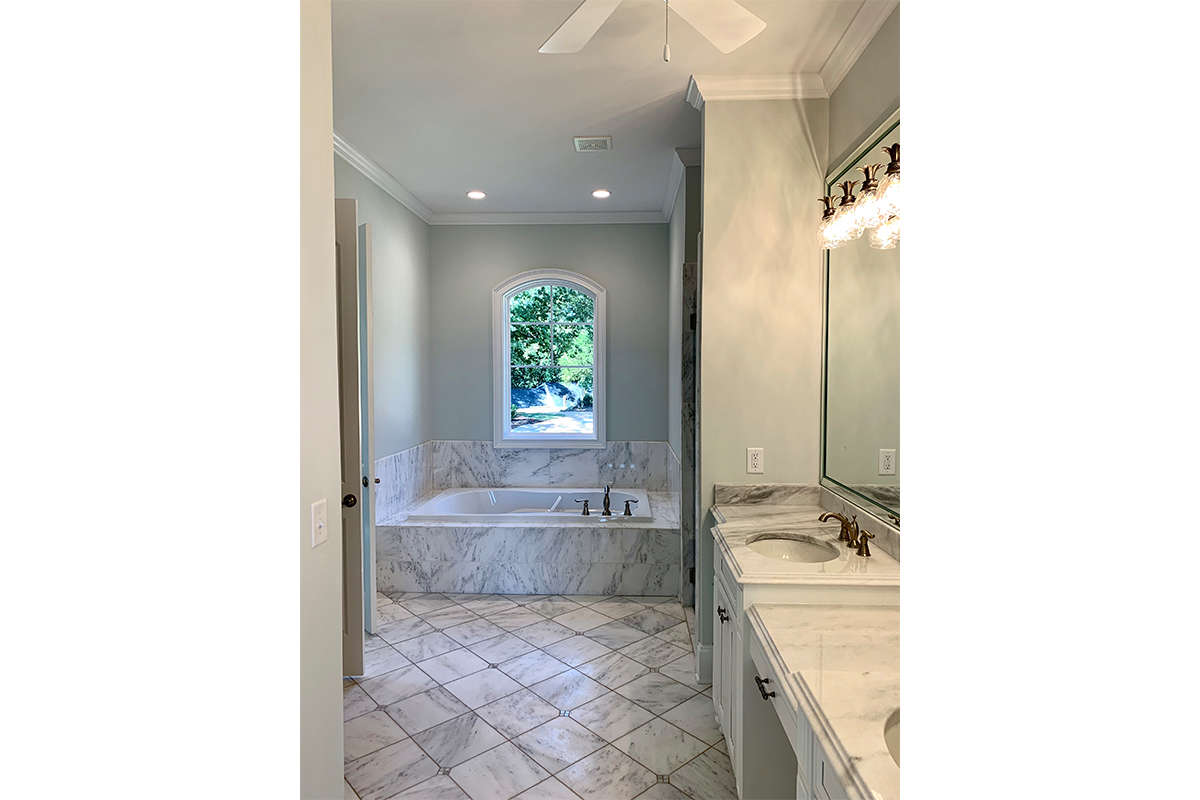

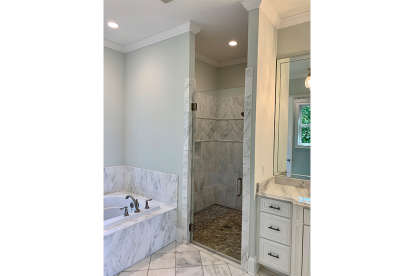

The best feature of this Craftsman house plan is the double master bedrooms. Each one features a tray ceiling, a master en suite with dual vanities, separate tub and shower, private toilet, and huge walk-in closets. The secondary bedrooms are equally sized with walk-in closets, hall linen closets, and an en suite.
