Mediterranean House Plan 168-00027

Sq Ft3,775
Beds4
Baths3
1/2 Baths1
Stories1
Cars3
Width89' 11"
Depth105' 7"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

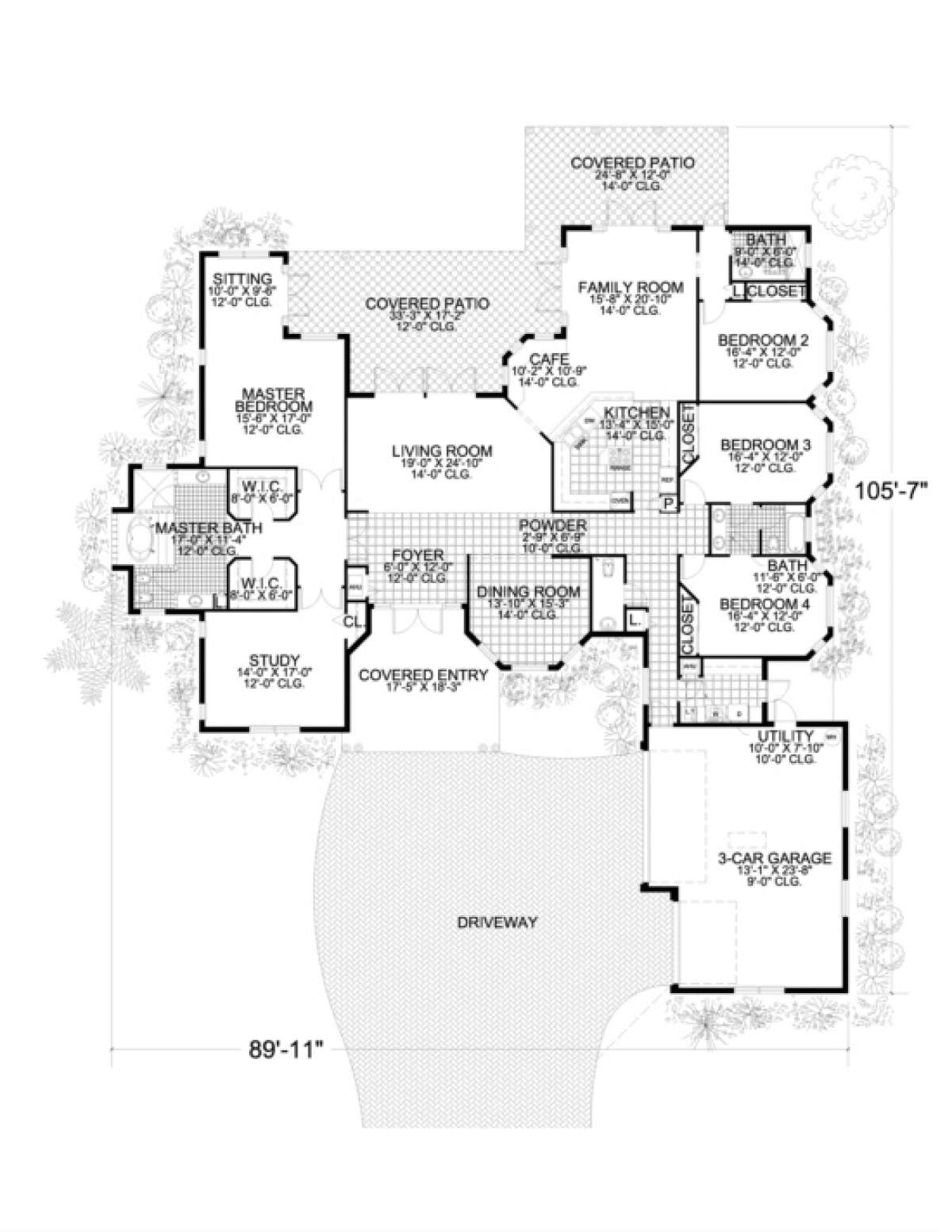

Floorplan 1 for House Plan #168-00027
Floorplan 1
Floorplan 1 for House Plan #168-00027


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional ranch Mediterranean style home offers approximately 3,700 square feet of living space with four bedrooms, three and ½ baths and a three car garage. The architectural style of the home is masterful in its use of stately columns, beautiful and multiple windows and tiled roofing. The majestic covered entryway with double doors is classic and spills into the spacious foyer with 12’ ceilings. A beautifully appointed formal dining room with a triple bay window sits at the front of the home and is directly opposite the formal living room which is traversed across the tile bridge. The living room is massive with 14’ ceilings and provides rear access through French doors to the covered patio. The chef’s kitchen features a cook top island, breakfast bar, separate pantry and a plethora of additional counter and cabinet space. The informal breakfast room offers a triple bay window view of the rear patio and both the kitchen and breakfast room are open to the family room which is highlighted by double access to the rear patio. The split bedroom plan offers privacy as the master retreat is on one side of the home while the other bedrooms are situated across the home. There are three bedrooms, all which measure 16’4”x12’, have generous closet space and each enjoys a triple bay window. Bedroom two features a private bath while bedroom three and four share a jack and jill bath. There is a large utility room and a spacious three car garage located on the same side of the home. The master retreat is stunning and features an abundance of space and the amenities you are seeking in a finely crafted home. The master bedroom is large with 12’ ceilings and a large sitting area at the rear of the bedroom which also offers rear patio access through French doors. The master bath is flanked on either side by oversized his and her walk-in closets and includes a large footprint with 12’ ceilings. Dual vanities, a separate shower, large garden tub, linen closet and a compartmentalized toilet are highlighted in the master bath. Situated at the front of the master retreat is a 14’x17’ study with a closet; making this an inclusive master retreat. This home offers a functional and beautifully designed floor plan with an aesthetically pleasing exterior which will delight your family and guests alike.
