Mediterranean Plan 1018-00098

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,698
Beds 4
Bath 4
1/2 Baths 1
Car 3
Stories 1
Width 93' 9"
Depth 99' 2"

Floorplan Drawings

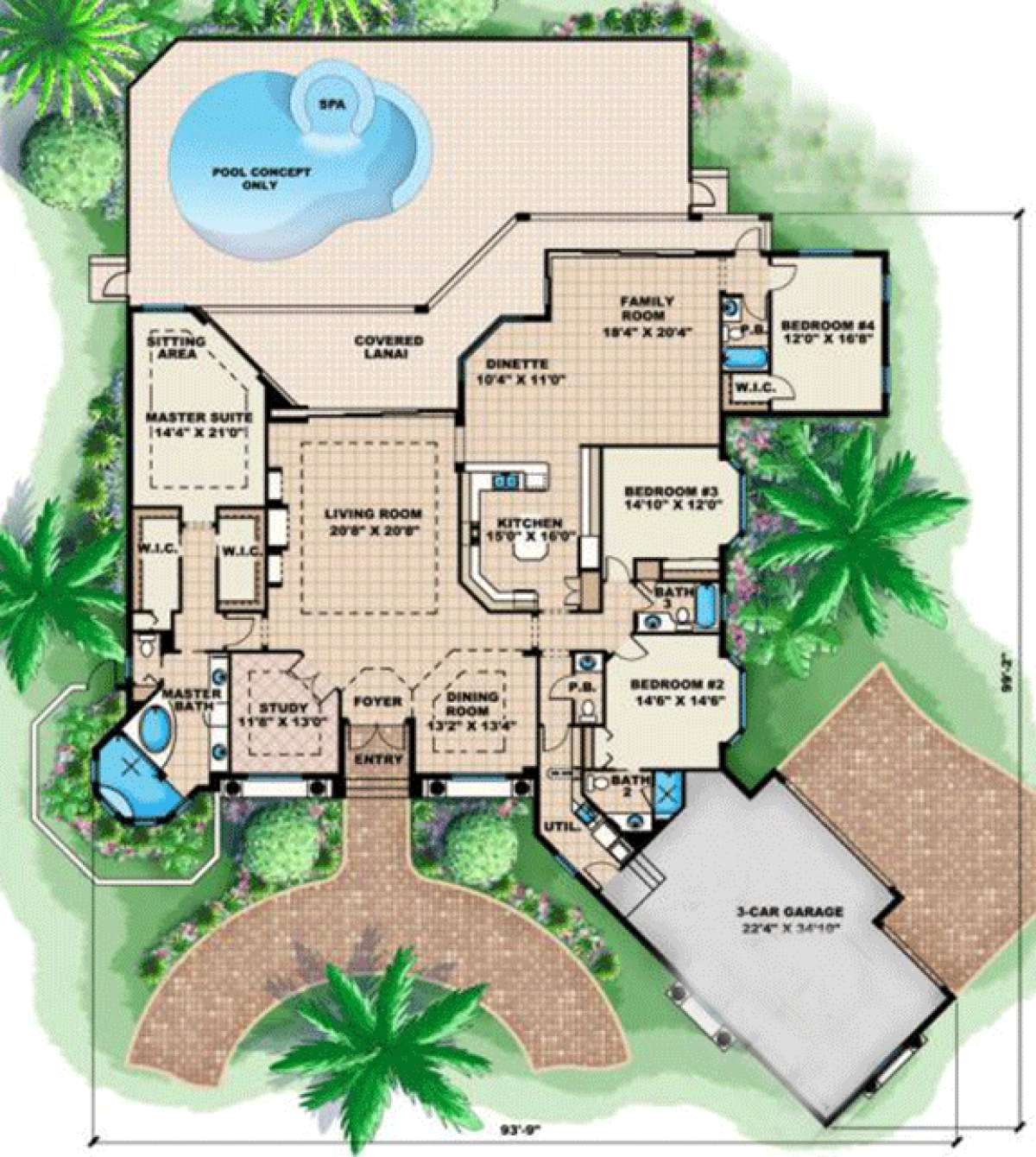

Floorplan 1
Floorplan 1 for House Plan #1018-00098


What's Included in these plans?

  • Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
  • Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
  • Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
  • Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
  • Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
  • Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
  • Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This plan is not for sale for use in the following areas without the written consent of the designer:

Collier County, Florida
Lee County, Florida


Aptly named for the warm region it represents, this Mediterranean house design features smooth stucco, beautifully decorated columns, Palladian style window views and a gorgeous courtyard entry. The exterior façade is warm and inviting and the single story living space features traditional Mediterranean family common rooms as well as the more formal rooms of the home. There are approximately 3,698 square feet of living space that incorporates four-five bedrooms and four plus baths into the home’s floor plan. The sprawling exterior features a three car side loading garage with excellent vehicle and storage space. A beautifully large open floor plan is revealed once you step into the home; there is a welcoming foyer flanked by the formal dining room and intimate study. The study is perfect for entertaining business associates and close friends while the dining room is spacious and designed for special occasion meals. Both rooms are highlighted with double step trey ceilings and gorgeous overviews onto the courtyard. Beyond the foyer is an enormous living room which features a trey ceiling accent, built-in cabinetry, a handsome fireplace and access onto the outdoor space. The covered lanai extends the width of the home and offers a large amount of entertaining and family fun space.

The master suite occupies one wing of the home and features a large master bedroom with a trey ceiling, an adjoining sitting room and private access onto the covered lanai. Double his and hers walk-in closets line the hallway to the en suite bath where an abundance of modern amenities await. There are dual vanities, a toilet area, a corner garden tub and a striking walk-in shower located in the master bath. The remaining bedrooms are situated on the opposite side of home; all three bedrooms are generously proportioned and feature good closet space. Bedrooms two and four have private baths while the third bedroom’s bath is located nearby. There is also a guest powder room and laundry room on this wing of the home. The family common rooms are conveniently located at the rear of the home and consist of the kitchen, breakfast nook and family room. The family room is quite spacious and the nook is open to the kitchen’s peninsula bar. A center island is also available in the kitchen along with plenty of additional counter and cabinet space. This beautifully designed home is highlighted with an elegant exterior, a spacious and well thought-out family floor plan and outdoor space that encourages entertaining.
