Ranch House Plan 168-00025

Name: House Plan 168-00025 - Ranch Plan: 3,485 Square Feet, 3 Bedrooms, 3.5 Bathrooms
Brand: America's Best House Plans
SKU: 168-00025
Price: 1147.50 USD

Sq Ft3,485

Beds3

Baths3

1/2 Baths1

Stories1

Cars2

Width58' 10"

Depth97' 3"

SALE

Ranch House Plan #168-00025 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM ~~$1,350~~ $1,147.50

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

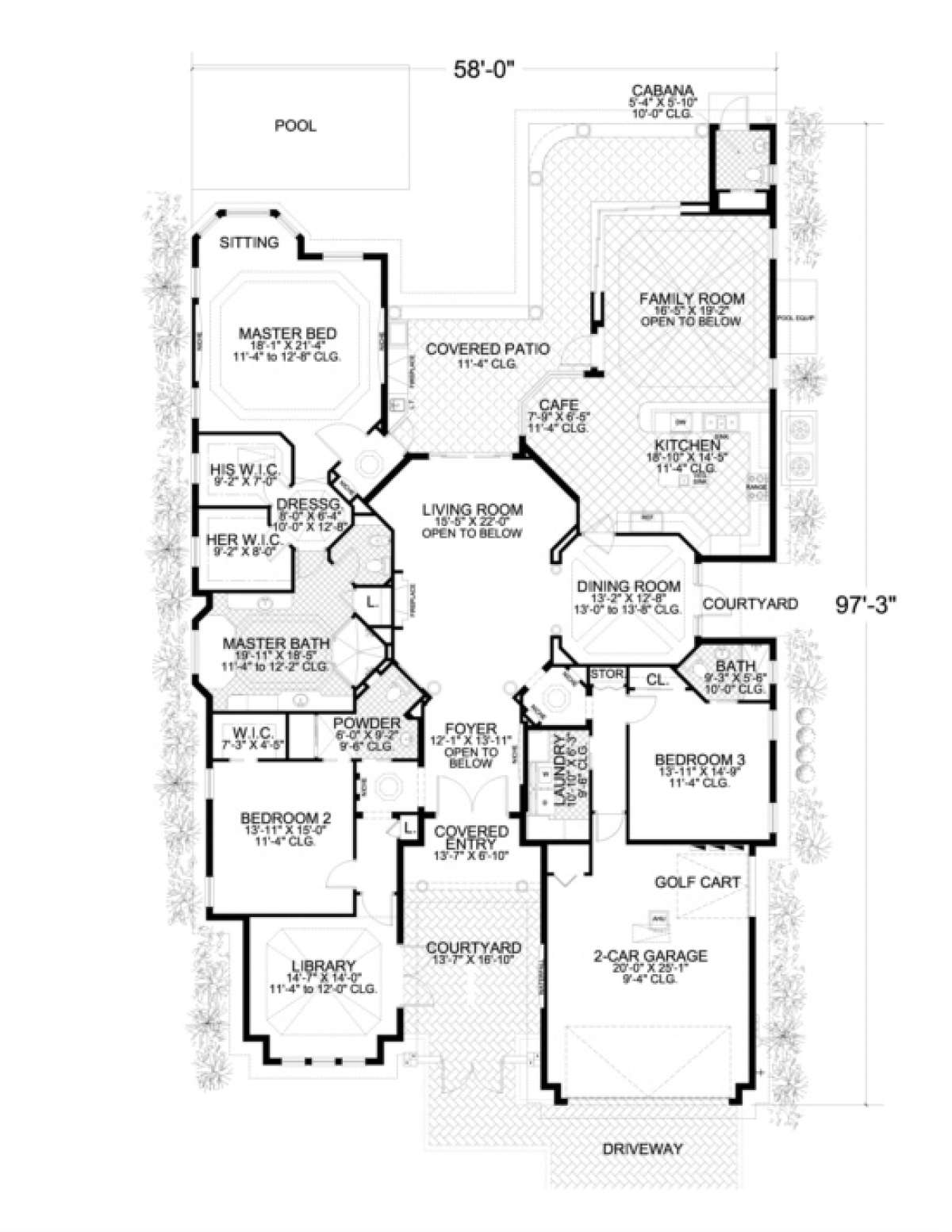

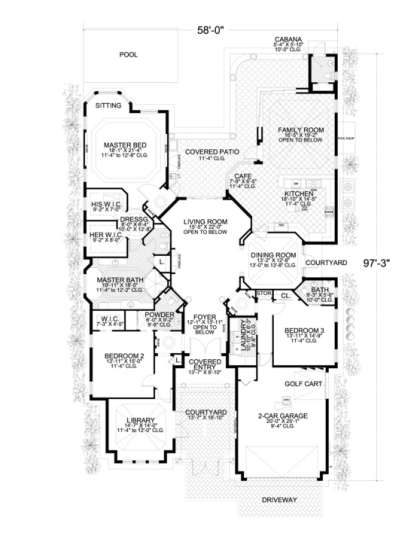

Floorplan 1

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:3,485 sq. ft.

-- First Floor:3,485 sq. ft.

-- Garage:555 sq. ft.

Floors:1

Bedrooms:3

Bathrooms:3

Half Baths:1

Garages:2 car

Width:58ft.-10in.

Depth:97ft.-3in.

Height:24ft.-1in.

Foundation:Slab Foundation

Main Roof Pitch:5:12

Exterior Framing:CMU BLOCK

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:varies feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bath 2:	9-3 x 5-6 x 10
Bedroom 2:	13-11 x 15 x 11-4
Bedroom 3:	13-11 x 14-9 x 11-4
Cabana:	5-4 x 5-10 x 10
Cafe:	7-9 x 6-5 x 11-4
Covered Entry:	13-7 x 6-10 x 21-6
Dining Room:	13-2 x 12-8 x 13-8
Dressing:	8 x 6-4 x 12-8
Familiy Room:	16-5 x 19-2 x 12
Foyer:	12-1 x 13-11
Garage:	20 x 25-1 x 9-4
Hers W.i.c.:	9-2 x 8 x 10
His W.i.c.:	9-2 x 7 x 10
Kitchen:	18-10 x 14-5 x 11-4
Laundry:	10-10 x 6-3 x 9-6
Library:	14-7 x 14 x 12
Living Room:	15-5 x 22 x 20-4
Master Bath:	19-11 x 18-5 x 12-2
Master Bedroom:	18-1 x 21-4 x 12-8
Powder Room:	6 x 9-2 x 9-6

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

About This Plan

This outstanding Mediterranean home plan features architectural design elements sure to please; the handsome ironwork, towering grand entrance and beautiful balcony exudes elegance and grandeur. This home offers an abundance of space with three bedrooms, three plus bathrooms and a two car garage in approximately 3,500 square feet. The double door entry into the dramatic foyer is highlighted by the open formal living room into which it leads. The formal dining room sits off the living room and features beautiful ceiling work and side courtyard access. The kitchen is fabulous with a center island and is open to the octagon shaped café and rear family room. The café enjoys a triple bay window view while the family room has beautiful window views and access to the rear covered patio and cabana bath. A private library sits at the front of the home and is ideal for a cozy space in which to entertain intimate friends or close business associates. Bedroom two features a spacious footprint with a walk-in closet while bedroom three enjoys a large space with ample closet room and a private bath. There is a powder room for guests and a large utility room with counter and sink space.
The master retreat is simply exquisite and features a large bedroom with trey ceiling, a triple bay window sitting area and private access to the rear patio which includes a summer kitchen, perfect for entertaining. There are his and her walk-in closets along with a private dressing area which lead to the master bath. The master bath is stunning and is highlighted by garden tub, separate oversized shower, dual vanities and a compartmentalized toilet. The two car garage has additional storage and space for golf carts or other equipment. This Spanish styled home features a large and functional one story floor plan and an exterior that is bold and exciting.
