Ranch House Plan 168-00024

Sq Ft3,446
Beds3
Baths3
1/2 Baths1
Stories1
Cars2
Width74' 1"
Depth69' 9"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

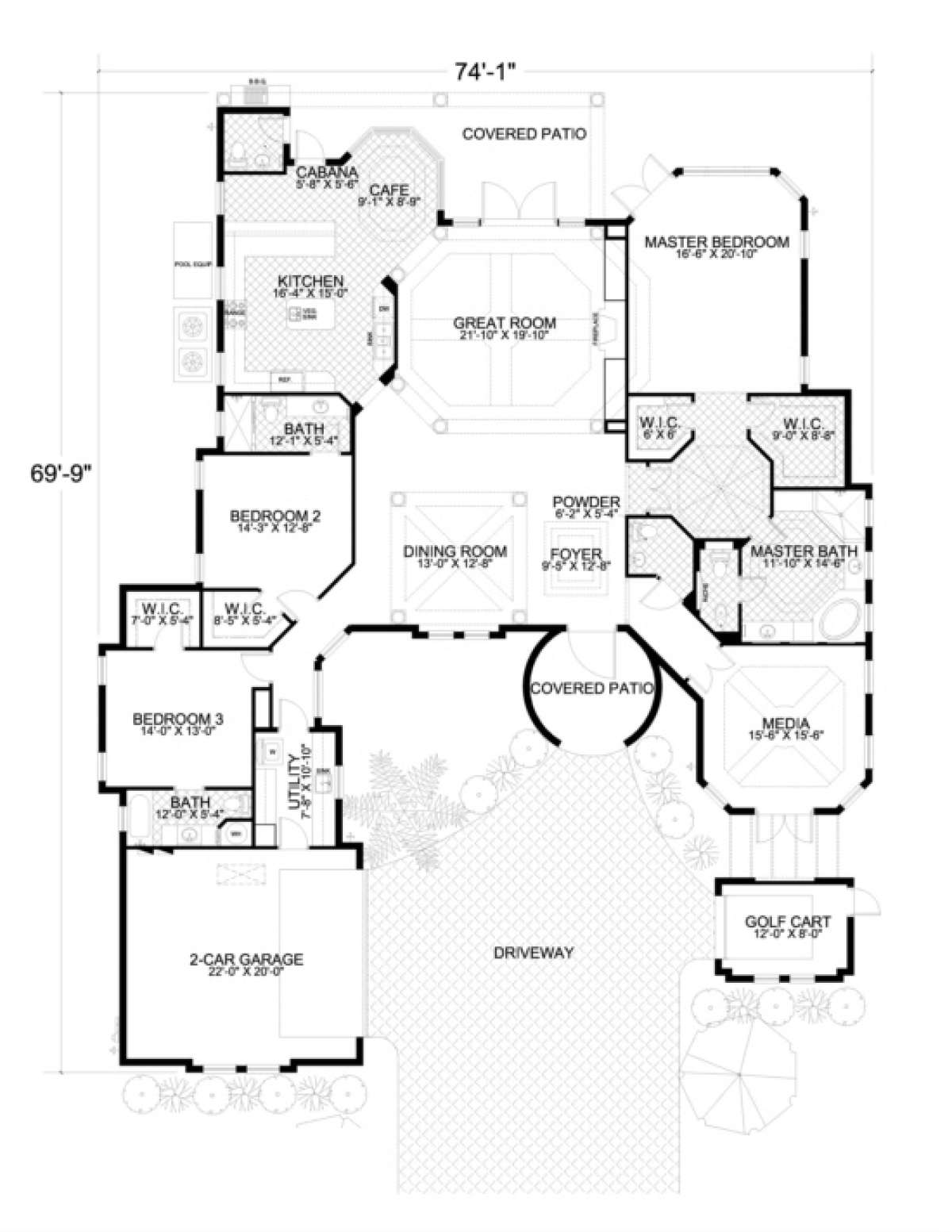

Floorplan 1 for House Plan #168-00024
Floorplan 1
Floorplan 1 for House Plan #168-00024


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

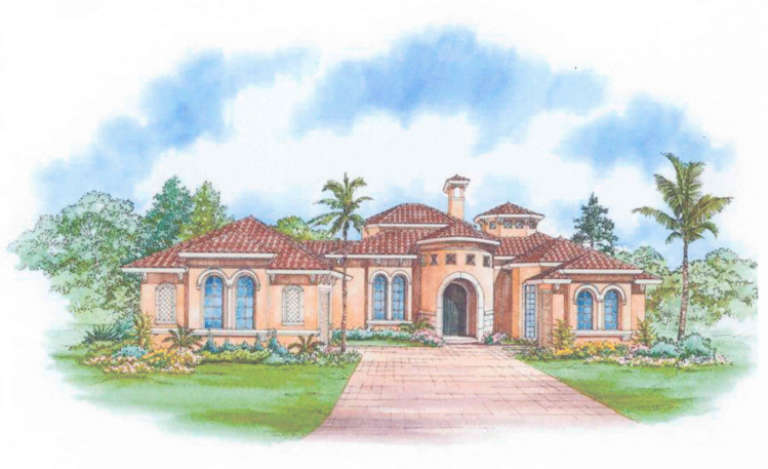

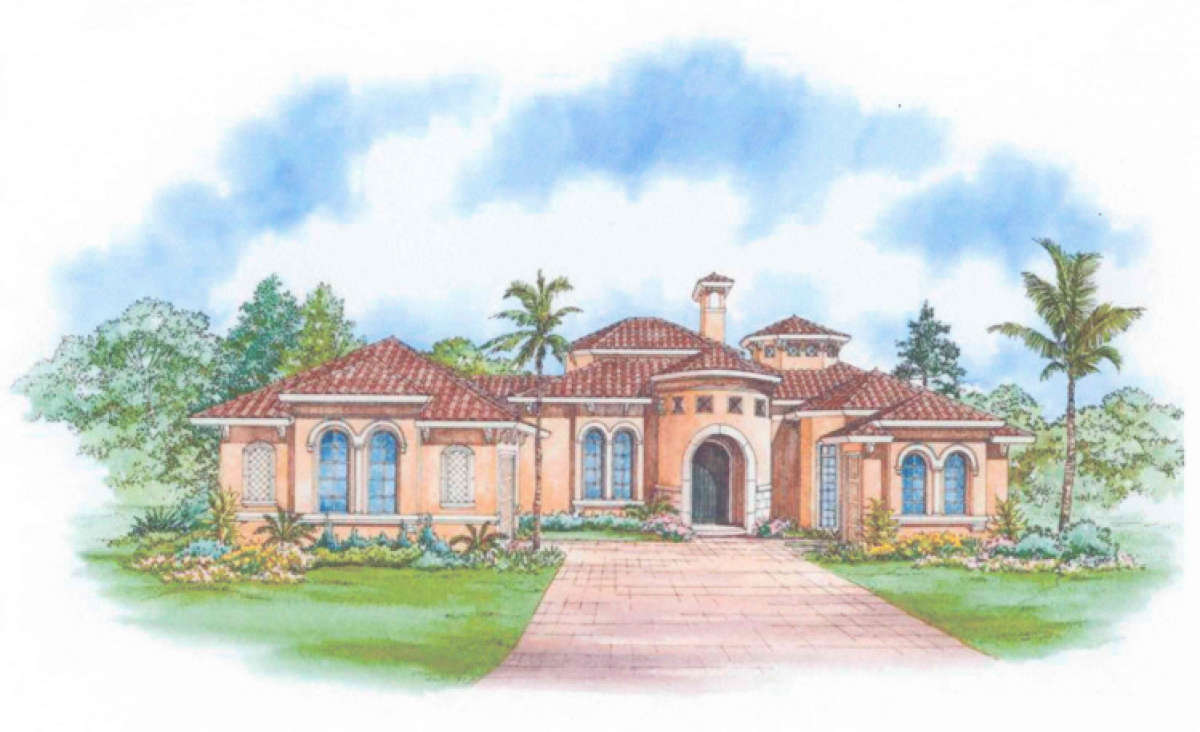

This Mediterranean inspired home boasts of an exterior façade which includes a gorgeous covered entry, tiled roofing and graceful arched window features. The stately exterior blends beautifully with the bold interior floor plan which includes approximately 3,400 square feet and houses three bedrooms, three plus baths and a two car garage. The single story home is entered through the spacious foyer and opens onto the formal living and dining room which are adorned with column detailing and beautiful ceiling work. The rear covered patio is accessed from French doors off the living room and the family café, has access to the rear cabana and is the ideal spot for dining al fresco with family or friends. A large media room is the perfect area to entertain friends or enjoy family time and has French door access to the yard and golf cart storage. The chef’s delight kitchen features a center work top island, an abundance of additional counter and cabinet space and opens onto the café with a triple bay window. A two car, courtyard entry garage sits on one side of the home and leads to the interior utility room while storage for golf carts is situated on the opposite side of the driveway.
The split bedroom plan features two bedrooms, each with a walk-in closet, and private bath on one side of the home while the master retreat occupies the opposite wing of the home. The master retreat is entered through French doors with a rotunda inspired feature and his and her walk-in closets lining the hallway. The master bedroom is quite spacious with a triple bay window and private access to the rear patio. The master bath is luxuriously designed and features a corner garden tub, separate shower, dual vanities and a compartmentalized toilet. This home is highlighted by an exciting exterior façade and a functional interior floor plan designed for you and your family’s comfort.
