Ranch House Plan 168-00023

Sq Ft3,368
Beds3
Baths3
1/2 Baths2
Stories1
Cars2
Width58' 0"
Depth95' 1"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

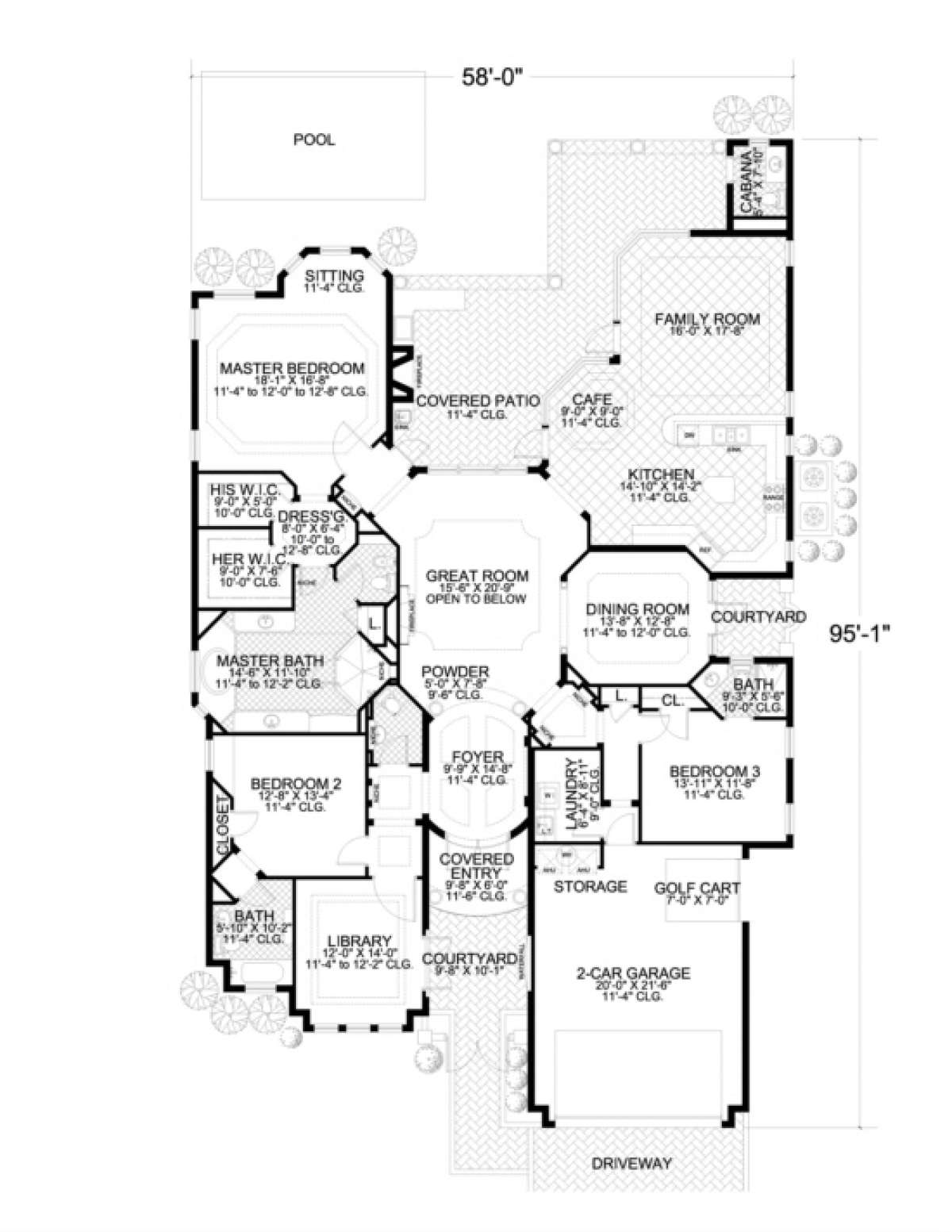

Floorplan 1 for House Plan #168-00023
Floorplan 1
Floorplan 1 for House Plan #168-00023


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

A beautiful wood panel door is the highlight of the exterior façade on this Mediterranean inspired home and combines wonderfully with the classic tile roofing, handsome ironwork and arched window accents. This sprawling Spanish styled home has approximately 3,400 square feet and features three bedrooms, three plus bathrooms and a two car garage in a single story floor plan. The dramatic rotunda foyer has soaring ceiling heights and bridges into the spacious, centrally located great room. The formal dining room has side courtyard access, is open to the great room, and offers great space for entertaining. A front facing library is private and is the ideal space in which to entertain intimate friends and business associates. The gourmet kitchen has a center island, separate breakfast bar, is open to the café and family room, both of which offer rear covered patio access. The rear covered patio is a large space, has an outdoor fireplace and a cabana bath; you can just imagine sitting outside by the fireplace on chilly autumn nights. There is a large utility room off the garage for convenience and the garage has additional space for storage and a golf cart entrance.
There are two additional bedrooms, both of which offer private baths and ample closet space on opposite sides of the foyer for privacy. The exquisite master suite features an oversized bedroom with trey ceiling and separate sitting area with a triple bay window. His and her walk-in closets share a dressing area and lead to the master bath. The master bath enjoys a large footprint and features a garden tub, separate dual vanities, a separate shower, linen closet and a compartmentalized toilet. This Spanish style ranch has a plethora of space for entertaining and private retreats for family comfort.
