Mountain Rustic Plan 110-01027


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,879
Beds 3
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 68' 2"
Depth 100' 9"

Floorplan Drawings

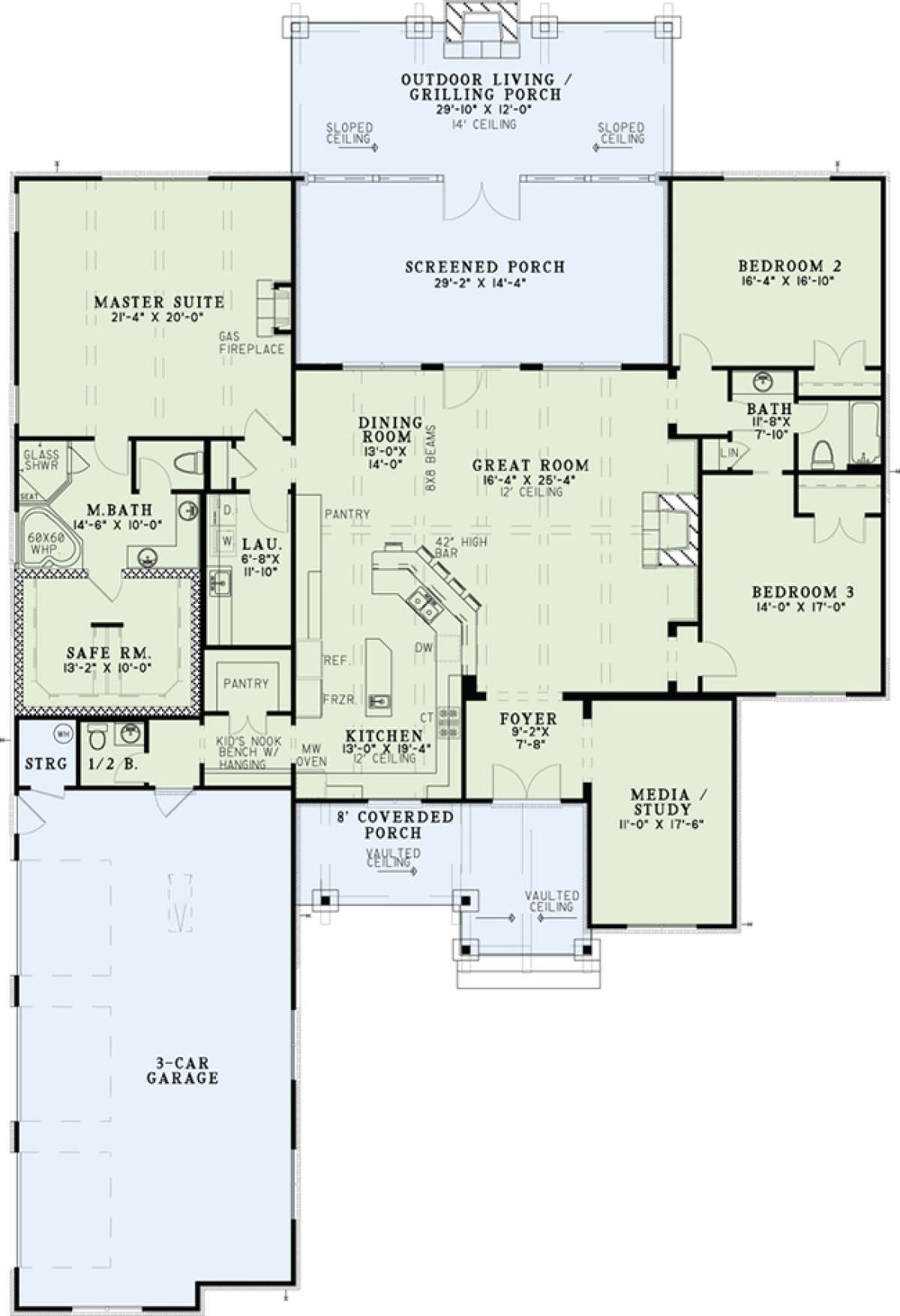

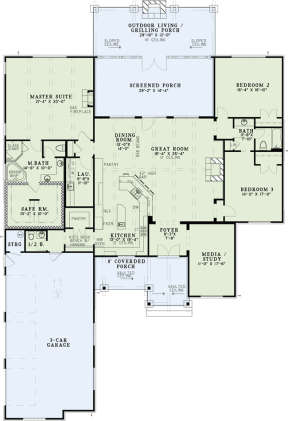

Floorplan 1
Floorplan 1 for House Plan #110-01027

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

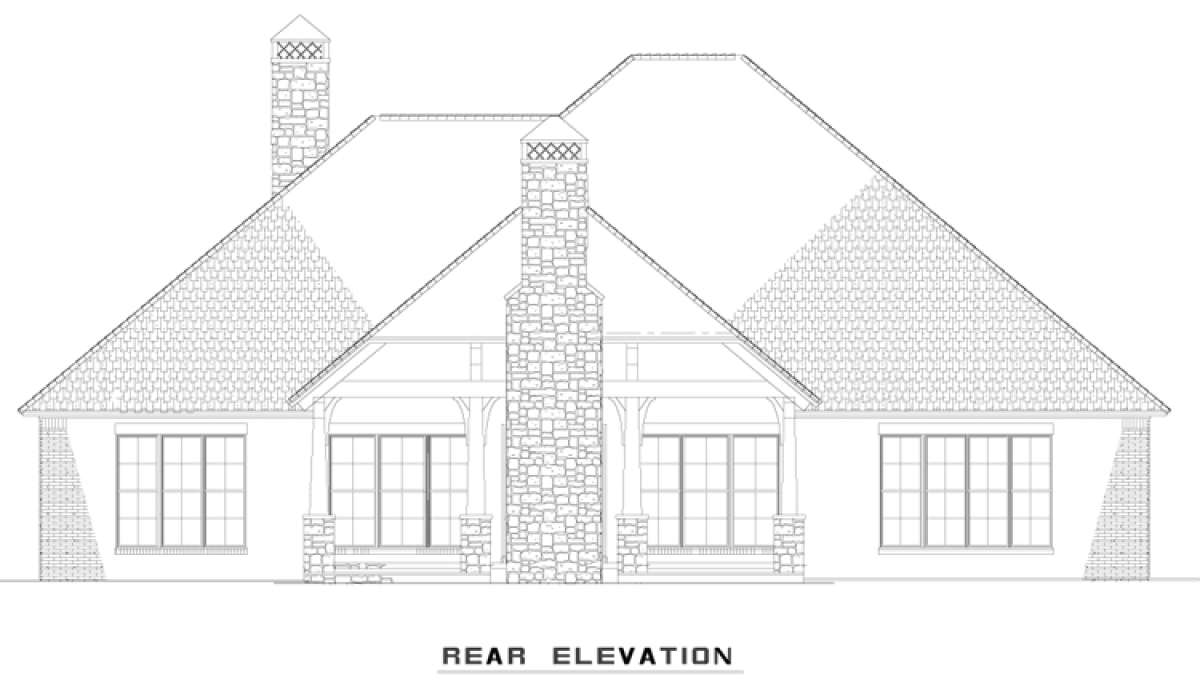

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Mountain Rustic house plan features a warm and inviting exterior façade highlighted with brick, varying roof lines and soaring wood beam double gables atop the front covered porch. The front covered porch features solid brick pillars, a walk-up front entrance and tapered wood beams supporting the gables. The interior floor plan features approximately 2,879 square feet of living space in the single story home which incorporates three bedrooms and two plus baths into the space. There is a substantial three car side entry garage with additional storage space and entrance into the home where a half bath, mudroom and oversized walk-in food storage pantry is located. The double vaulted front covered porch grants access into the home’s interior where there is a spacious foyer situated beyond the double door entrance. A side media room/study area is conveniently located off the foyer and from there the open concept floor plan is revealed. A huge great room features 12’ ceiling heights, a handsome fireplace and access onto the screened porch and subsequent outdoor living area. This area is perfect for entertaining and outdoor living with its massive screened porch and open area with warming fireplace and plenty of room for grilling and family fun. There is a spacious dining room and the open kitchen features a large angled 42” height breakfast bar, a center island and loads of counter/cabinet space. The family laundry room is situated on the back wall of the kitchen; it is quite large with a sink area and plenty of counter space. The split bedroom plan offers two family style bedrooms on one side of the home. Both bedrooms are clearly oversized with generous closet space, great outdoor views and there is a hall bath which features private access from the third bedroom. The bathroom is spacious with an extended vanity, an enclosed linen closet and a tub/shower combination. The master suite lies on the opposite side of the home for privacy and is highlighted with a massive bedroom with a warming fireplace. There is large en suite bath with a whirlpool tub, a glass enclosed shower, dual vanities and a private toilet area. The walk-in master closet/safe room is situated beyond the bath and offers an enormous amount of space for clothing and assorted accessories. This home offers a beautiful interior layout that is both functional and versatile and superior outdoor space for family relaxing and entertaining.
