Craftsman Plan 110-00963

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,379
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 1.5
Width 31' 8"
Depth 38' 4"

Floorplan Drawings

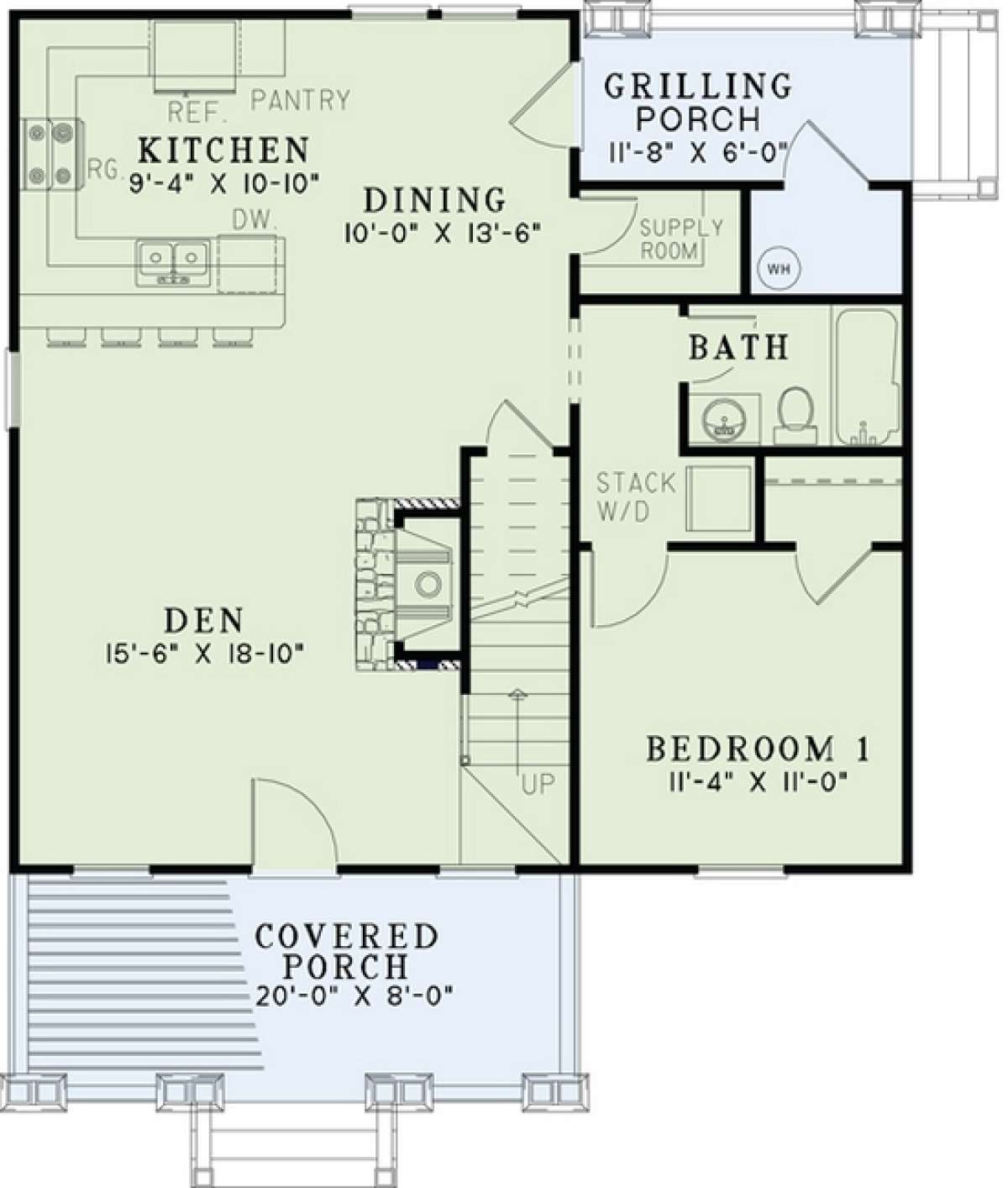

Floorplan 1
Floorplan 1 for House Plan #110-00963

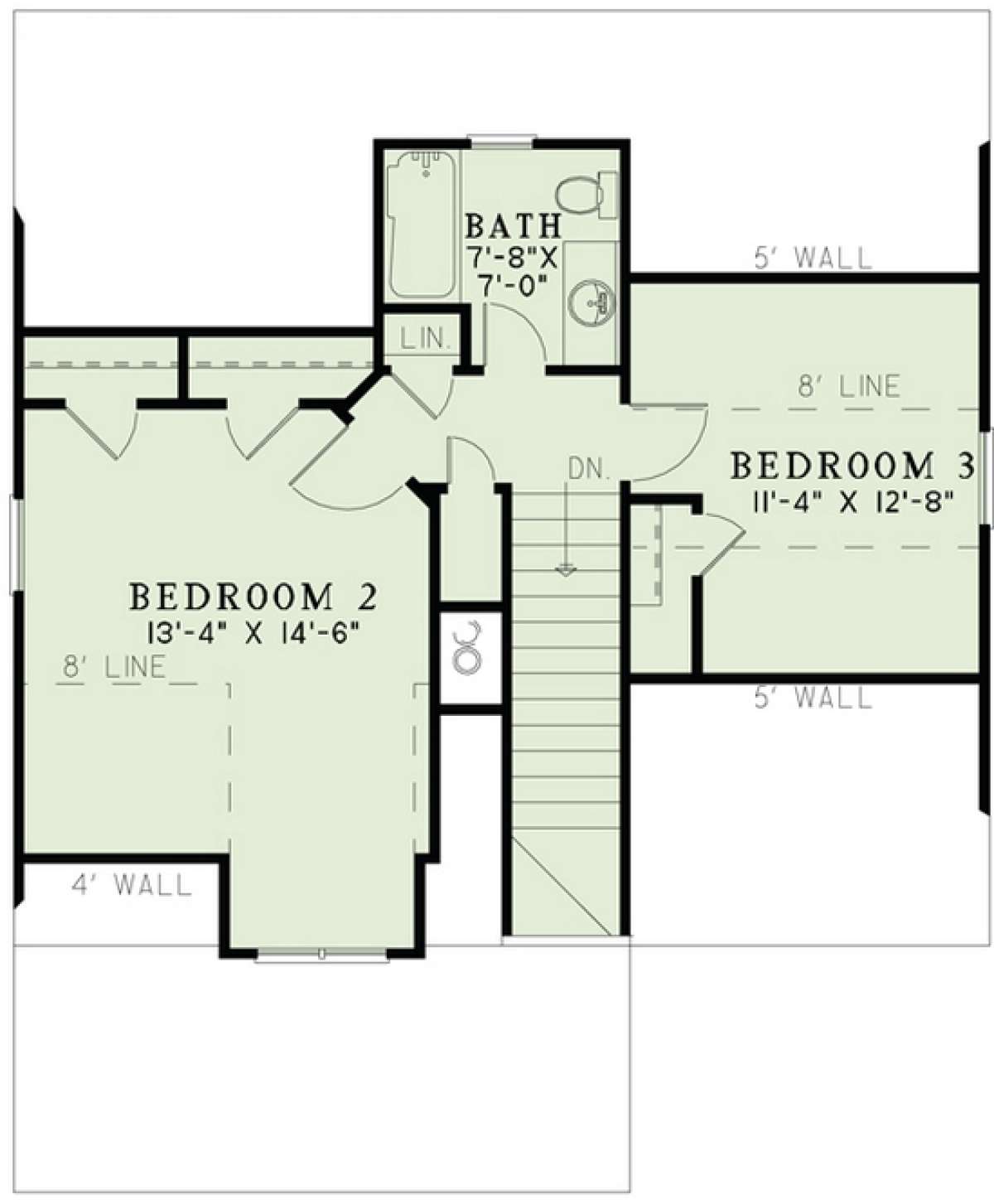

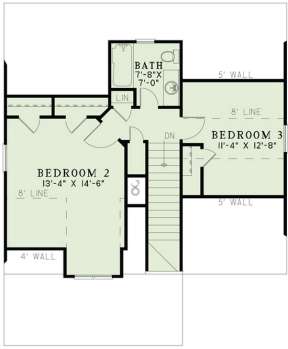

Floorplan 2
Floorplan 2 for House Plan #110-00963


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This versatile Craftsman style home is superbly suited for either rural or urban living with its outstanding exterior façade and width and depth dimensions commissioned for a small or narrow lot. The exterior is comprised of cedar shake along the window gable and top third of the home; board and batten along with stacked stone are accompanying features on the remaining two-thirds of the home. Exposed rafters dot the exterior and there is a beautifully designed front covered porch highlighted with double wooden beams atop stacked stone supports that lend character and charm to the façade. An interior floor plan featuring approximately 1,379 square feet of usable space contains three bedrooms and two bathrooms in the 1.5 storied home. Entrance into the home lies off the front porch and leads to the oversized den or family room that measures in excess of 15’x18’, has a warming fireplace and opens onto the dining room and kitchen. The U-shaped kitchen boasts of a peninsula snack bar, a separate pantry and a plethora of modern conveniences and additional counter and cabinet space. The adjacent dining space is bright and airy and there is a conveniently located supply/storage space off the room. Additionally, there is access to the rear grilling porch from the kitchen/dining space which is convenient for food prep and delivery, not to mention, entertaining large groups of family and friends.
The main level master suite or first bedroom enjoys a spacious footprint that includes a large walk-in closet. There is an adjacent full bath with vanity space, a toilet area and a tub/shower combination. The laundry facilities are also situated along the hallway. The second story of the home features two bedrooms and a bathroom; bedroom two is oversized with double closet spaces while the third bedroom features a comfortable space and generous closet space. The shared hall bath offers a large vanity space, a toilet area and a tub/shower combination along with a hall linen closet. This is a great family home for a small family or empty nesters who value their entertaining and private space.
