Bungalow House Plan 110-00502

Sq Ft1,458
1/2 Baths0
Width38' 0"
Depth41' 6"
Bungalow House Plan #110-00502 Elevation Photo

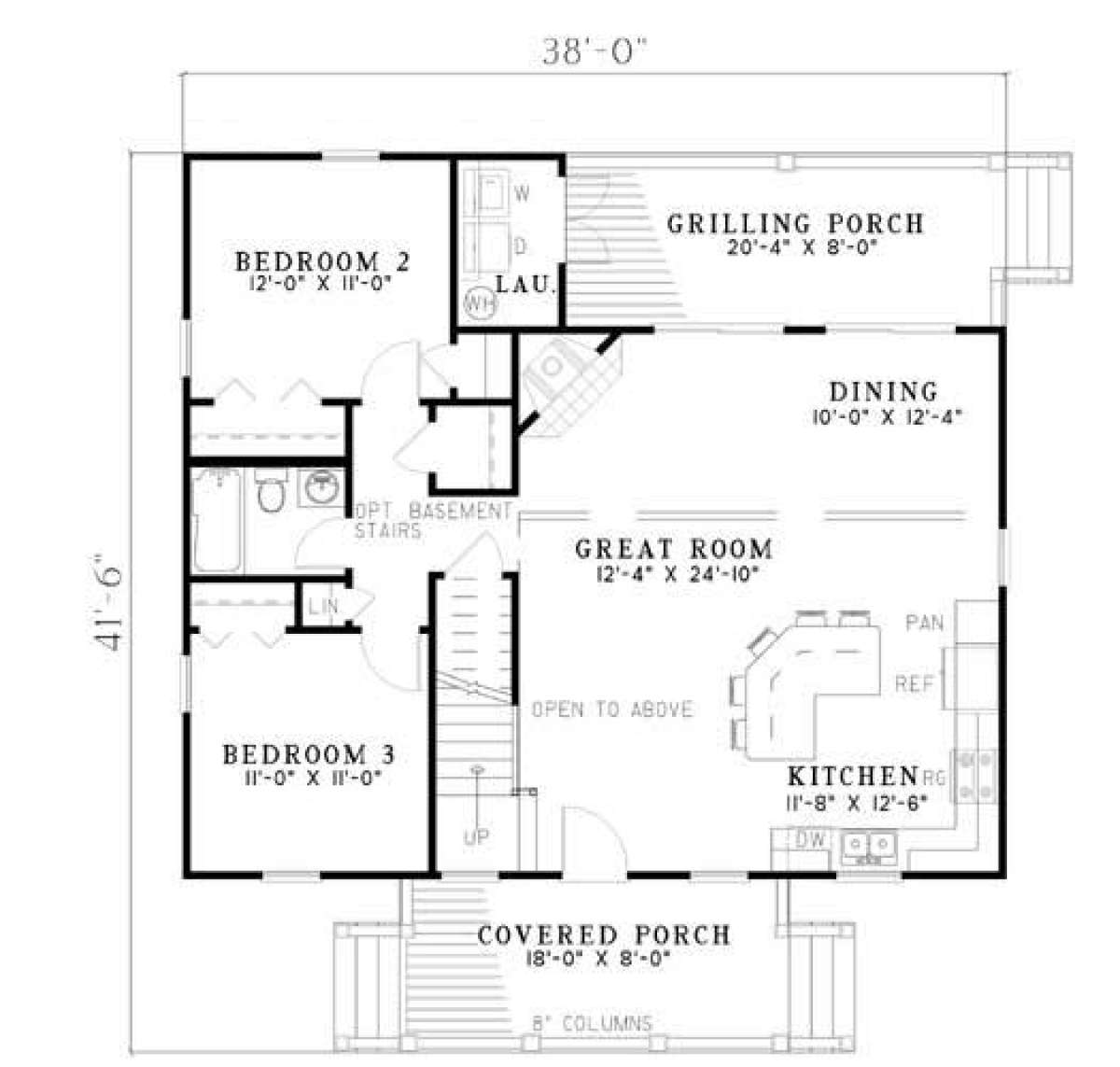

Floorplan 1
Floorplan 1 for House Plan #110-00502

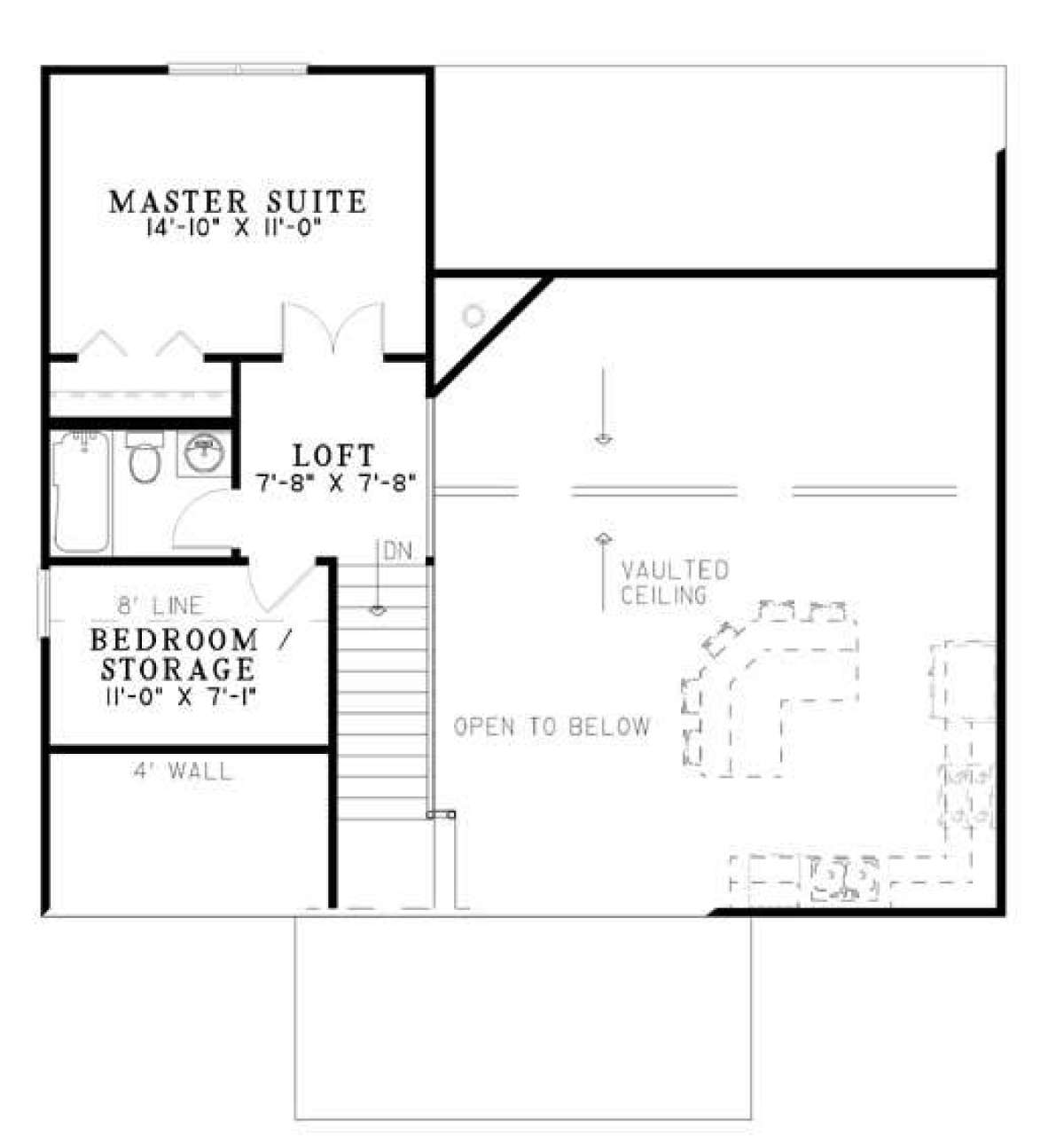

Floorplan 2
Floorplan 2 for House Plan #110-00502
Bungalow House Plan #110-00502 Elevation Photo
Bungalow House Plan #110-00502 Elevation Photo
Floorplan 1 for House Plan #110-00502
Floorplan 2 for House Plan #110-00502
Bungalow House Plan #110-00502 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #110-00502
Floorplan 2 for House Plan #110-00502
Floorplan 1
Floorplan 1 for House Plan #110-00502
Floorplan 2
Floorplan 2 for House Plan #110-00502

Frequently Asked Questions


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

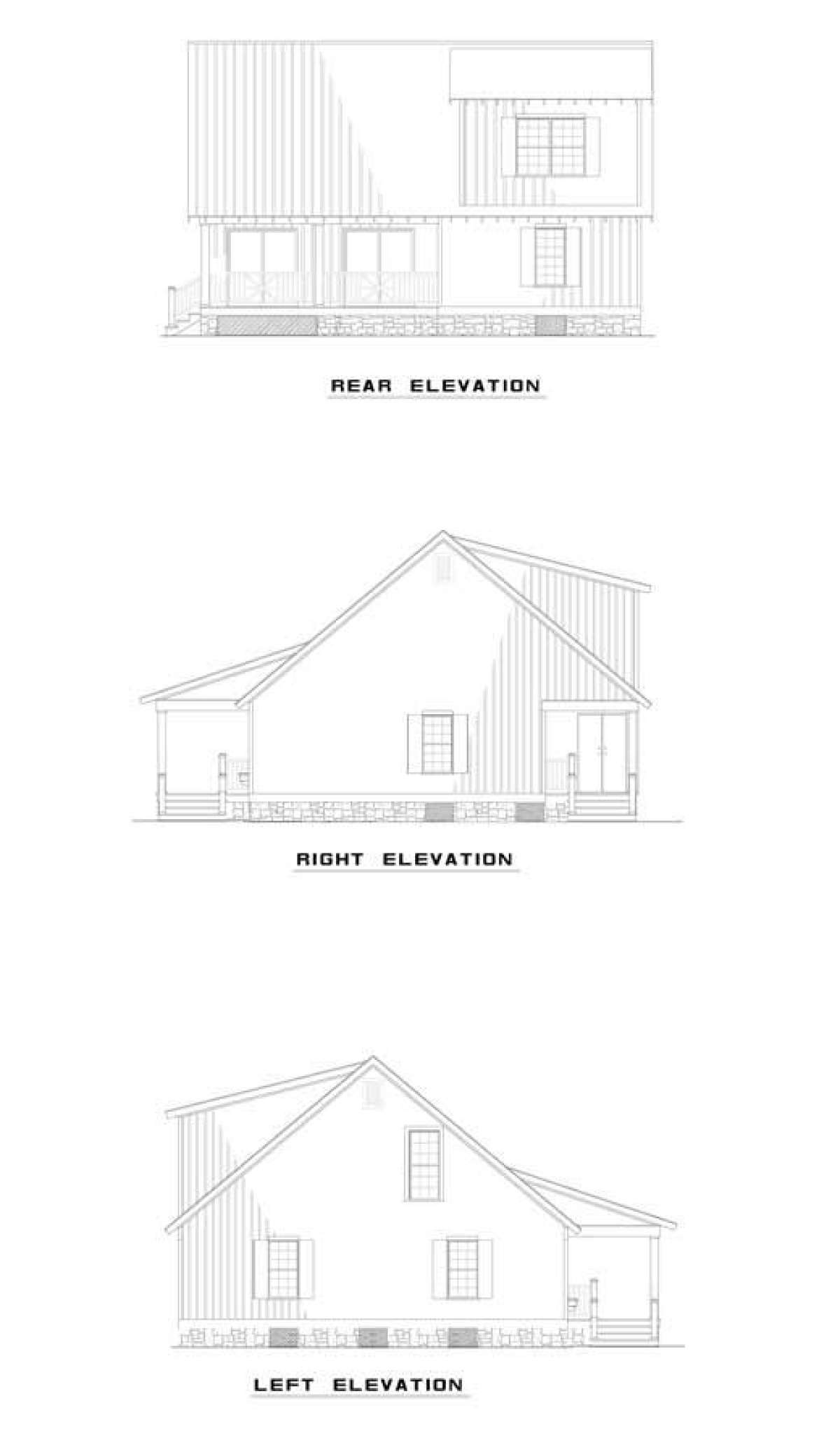

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Bungalow house plan features an array of charming details designed to capture the imagination and offers loads of curb appeal on the exterior façade of the home. There is a double-sided staircase that leads to the front covered porch which is a great gathering spot for family and friends. The porch measures 18’ x 8’, has significant columned beams and open railing designed to welcome all who visit. The interior floor plan offers approximately 1,458 square feet of living space with an open floor plan, four bedrooms and two bathrooms. The 1.5 storied home is ideal for a narrow and/or small property lot with its respective width and depth dimensions of 38’ and 41’6”. The main floor of the home is highlighted with a large open floor plan that is revealed once you step inside; there is also an accompanying second floor staircase. The open layout features a large living space with a corner warming fireplace and easy access onto the outdoor grilling porch. There are also sliders from the dining space onto the rear porch making dining outdoors comfortable and effortless. The grand kitchen features an angled breakfast bar for additional seating options, a double sink window view and good counter and cabinet space. The rear grilling porch is quite large and is perfect for cook-outs, family fun and is a relaxing space to enjoy a novel or a cold glass of tea or lemonade. Bedrooms two and three are located on the main floor of the home and could be utilized as a study, home office or hobby room. Both bedrooms are similar in size with window views and plentiful closet space; bedroom two also contains an additional closet/storage area. The connecting hallway to the bedrooms feature a shared bath, a linen closet and a large storage closet. The bathroom features a vanity space, a toilet area and a tub/shower combination. The second story staircase is highlighted with overviews onto the living space below and culminates onto the second floor loft. This is good space for a playroom for small children or a teen-age lounge for older children. Conversely, the entire second floor could be used as a master suite converting the loft into a sitting room. There is good closet space in the existing master bedroom and a second bedroom available either as sleeping quarters or to be used as a closet or storage space. The adjacent bathroom features a vanity, a toilet area and a tub/shower combination. This Bungalow house plan is highlighted with a charming exterior, great outdoor space and a functional, versatile floor plan.
