Bungalow Plan 1070-00255

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,253
Beds 4
Bath 3
1/2 Baths 1
Car 0
Stories 2
Width 35' 10"
Depth 60' 4"

Floorplan Drawings

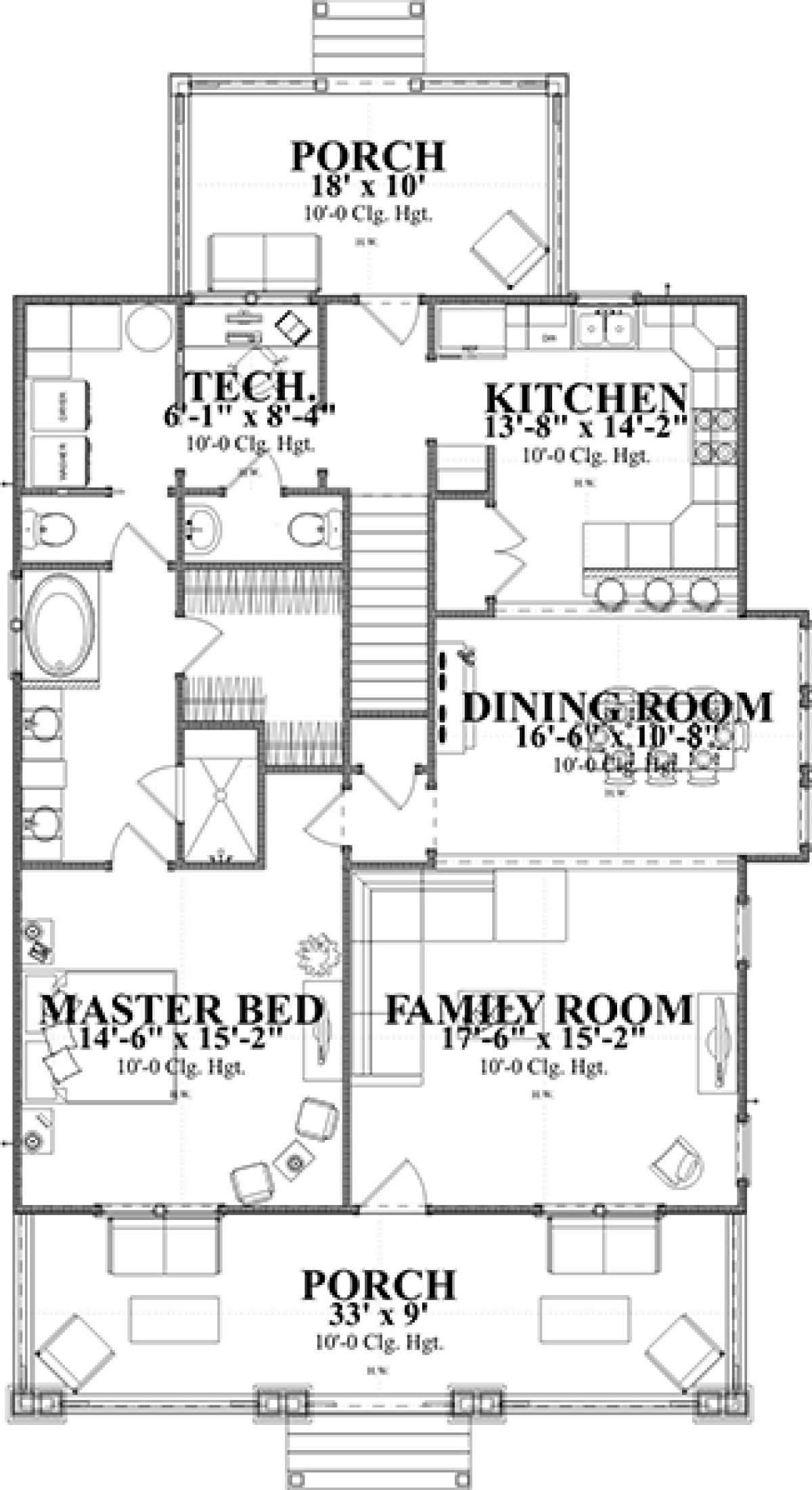

Floorplan 1
Floorplan 1 for House Plan #1070-00255

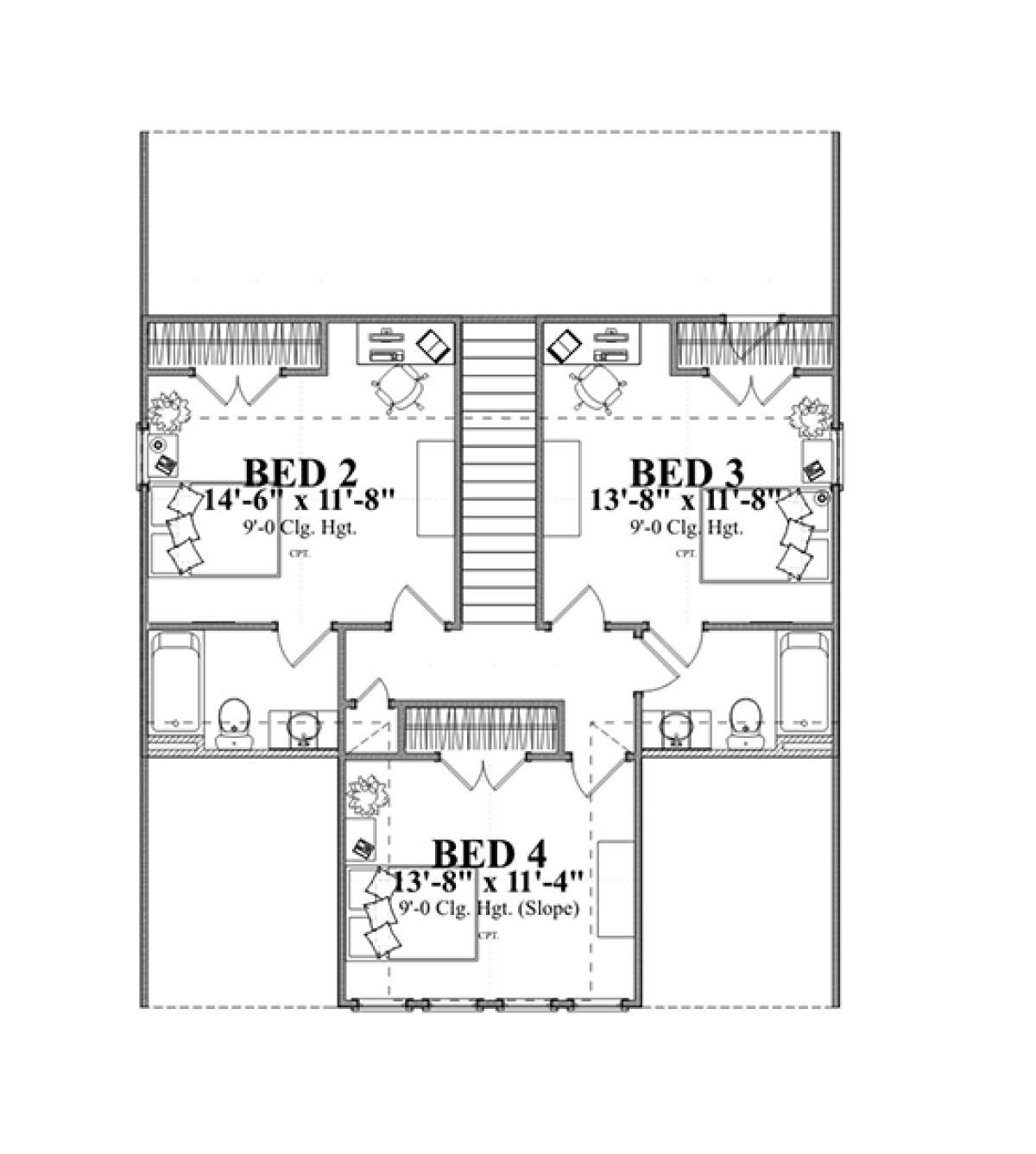

Floorplan 2
Floorplan 2 for House Plan #1070-00255


What's Included in these plans?

  • Cover
    Sheet:  Including 3-D perspectives of the
    exterior of the house. Also protects the rest of the documents within the
    project set.
  • Foundation:  Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations:  Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s):  Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan:  Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter Plan:  Complete with rafter lengths and separate rafter cut list.for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details:  Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations:   Including applicable cabinets, electrical, and special construction notes.
  • Floor Joist:  Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist:  Complete with spans, sizes and direction
  • Sections:  Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

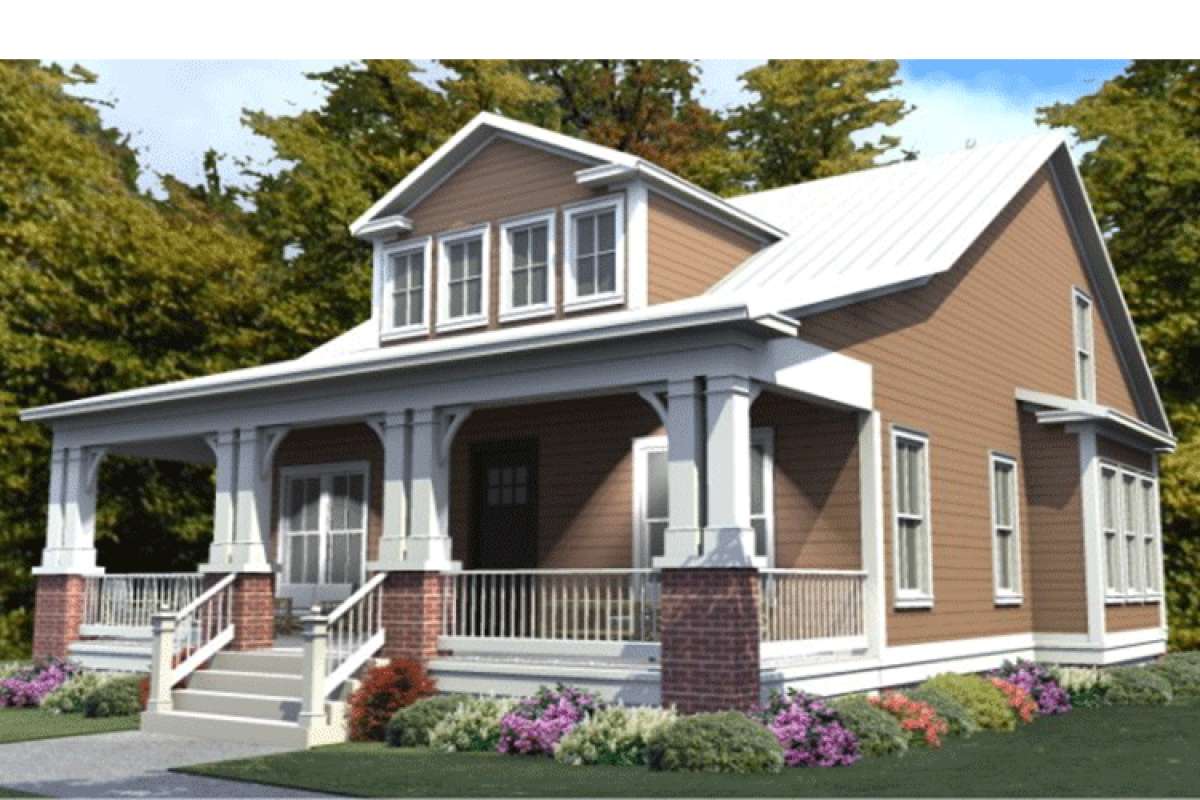

This historically inspired Bungalow house plan shares period detailing and modern touches to create an exciting house plan. The exterior of the home features a widely proportioned and deep set front covered porch recreating a time in history where a slower pace of life and enjoying “visiting” with neighbors and family took place. Brick pillars, double stacked columned beams and open railing highlight the beauty of the front porch and the overhead dormer shed enhance the home’s façade. There are approximately 2,253 square feet of living space within the home’s interior where four bedrooms and three plus baths are incorporated into the floor plan. This home is perfect for an urban/city property lot with its 35’ plus width dimension and would ideally blend into a restoration or new neighborhood. The expansive front porch is highlighted with 10’ ceiling heights which continue into the home’s first floor, measures 33’x9’ and features a centrally located entryway into the family room where there is great space, beautiful window views and an opening to the dining room. The dining room is a tremendous size, just perfect for special occasion family or holiday meals as well as entertaining a large gathering of friends. There is a peninsula bar in the grand kitchen which opens onto the dining space for additional seating, a large separate pantry and wraparound counter and cabinet space. The rear covered porch is accessible off the kitchen and is ideal for family cook-outs and outdoor fun. A powder room for guests and tech space for a home office or study center, as well as the laundry room, is situated at the rear of the home. The main level master suite occupies one wing of the first floor and offers a large master bedroom with overviews onto the front covered porch. There is a huge master walk-in closet and the master bath features double vanities, a separate shower and a garden tub.

The centrally located staircase provides access to the second story where there are three additional bedrooms and two full baths. All three bedrooms enjoy good floor space, with the smallest being in excess of 13’x 11’, and include 9’ ceiling heights and generous closet space. There are two full baths, one of which is private and self-contained within the second bedroom while the second bathroom provides private access from the third bedroom and the fourth bedroom is adjacent to the second bath. This historically inspired home features a comfortable and inviting exterior, plenty of interior space and a functional and versatile floor plan.
