Bungalow House Plan #5633-00165 Elevation Photo

Bungalow House Plan #5633-00165 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,599

Beds 4

Bath 2

1/2 Baths 1

Car 2

Stories 1

Width 65' 4"

Depth 46' 4"

See What's Included

Select Package

PDF (Single Build)

$1,049.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,449.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,049.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,149.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,649.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$2,049.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Basement Foundation $0.00

Slab Foundation $250.00

Crawlspace Foundation $250.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $150.00

Convert the exterior framing to 2x6 walls.

Material List $125.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

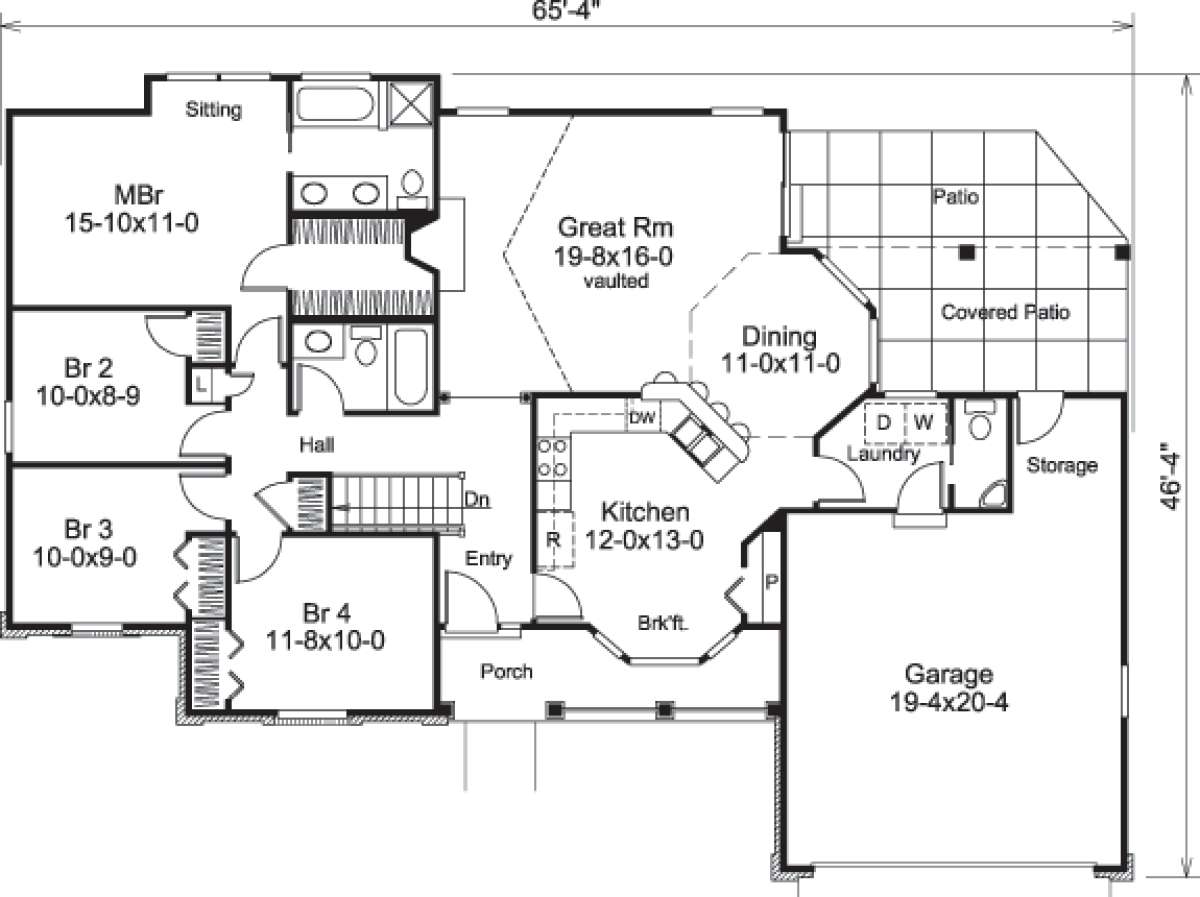

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Floorplan 1

Images copyrighted by the designer.

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')
Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

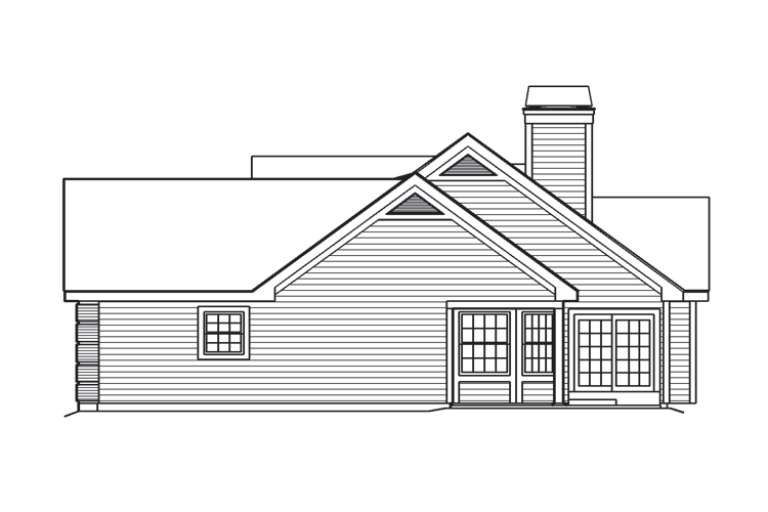

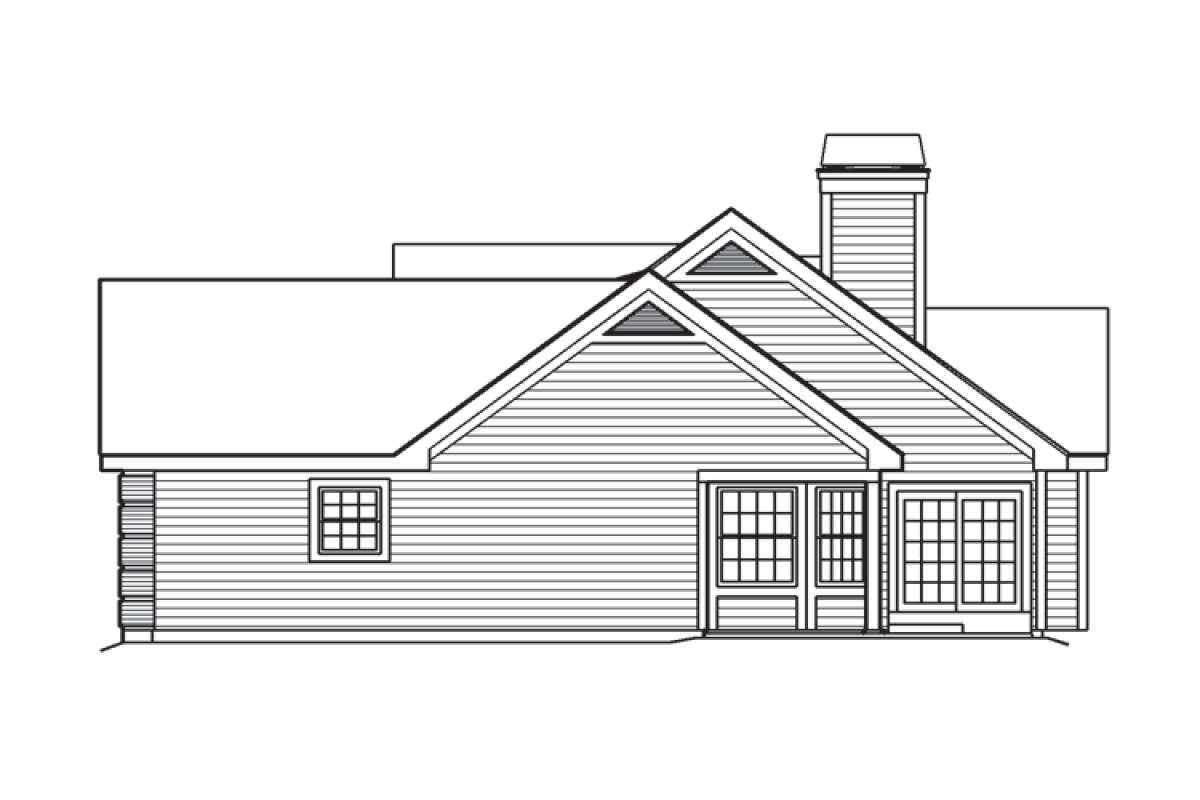

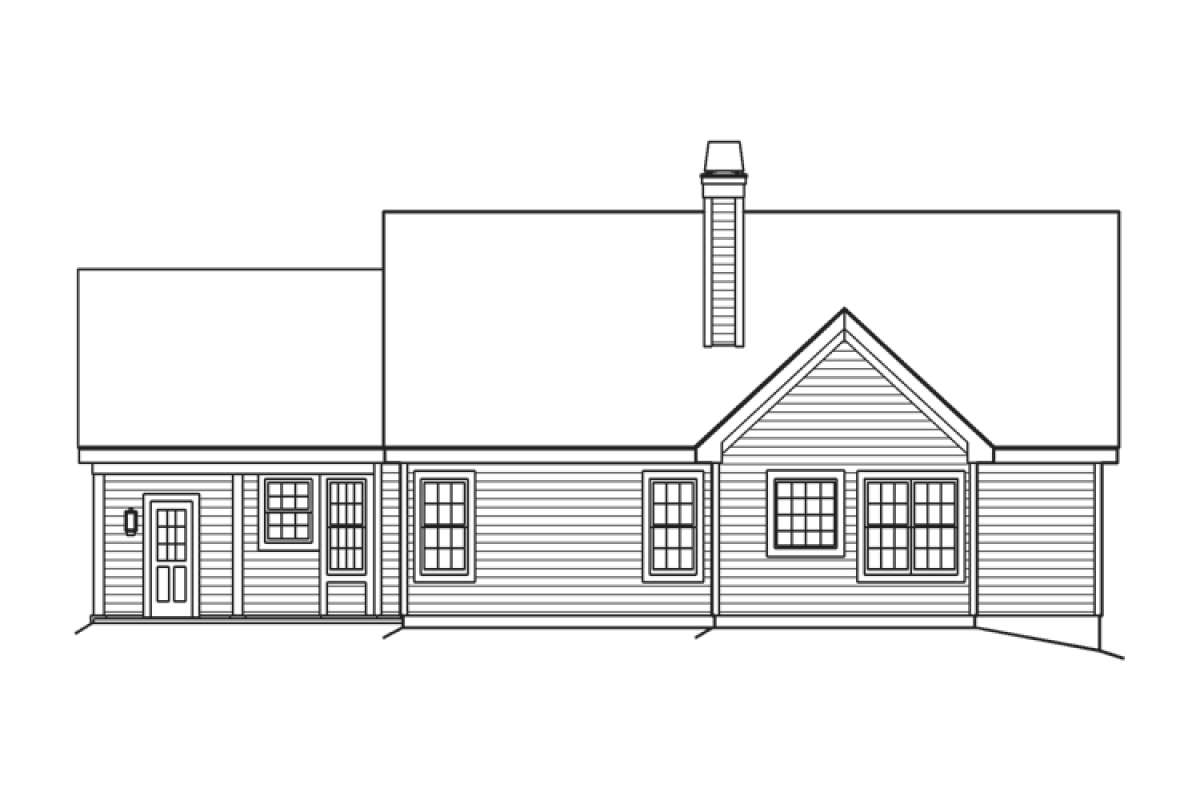

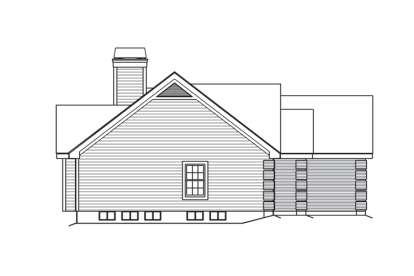

SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

About This Plan

This attractive single story home has massive curb appeal with its triple window dormer, front covered porch and brick front exterior. There are approximately 1,599 square feet of living space in the four bedroom, two plus bath floor plan. The home’s drawings are on a basement foundation which features an additional 1,565 square feet of space; a great option for future expansion possibilities. The two car, front loading garage has another 433 square feet of space and additional storage room. Entrance into the home is off the front covered porch into the spacious foyer which houses the lower level staircase and opens onto the main living areas. There is an enormous vaulted great room which has a lovely fireplace, plenty of window views and rear patio accessibility. The octagonal shaped dining room anchors the great room and kitchen allowing for an open flow to the floor plan. The gourmet kitchen features an angled breakfast bar, separate pantry, plenty of additional counter and cabinet space and a breakfast nook nestled in the triple bay window. This combination of open space and the patio, part of which is covered, provides a multitude of entertaining and family relaxing space. There is a powder room for guests and the interior laundry room is located off the garage for ease and convenience.
The home’s bedrooms and bathrooms are situated off the main hallway along with a shared linen closet. Bedrooms two and three are almost equal in size and both contain wonderful window views and plentiful closet space. The fourth bedroom is slightly larger with generous closet space and a window view. The master suite is graciously designed and features a large bedroom with an additional sitting room highlighted by double window views overlooking the rear yard. There is an oversized master walk-in closet and the master bath is highlighted by dual vanities, a toilet area, separate shower and a garden tub. This is a beautiful family home with a comfortable and functional floor plan and great expansion options.
