Traditional Plan 110-00050

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,783
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1.5
Width 60' 2"
Depth 39' 10"

Floorplan Drawings

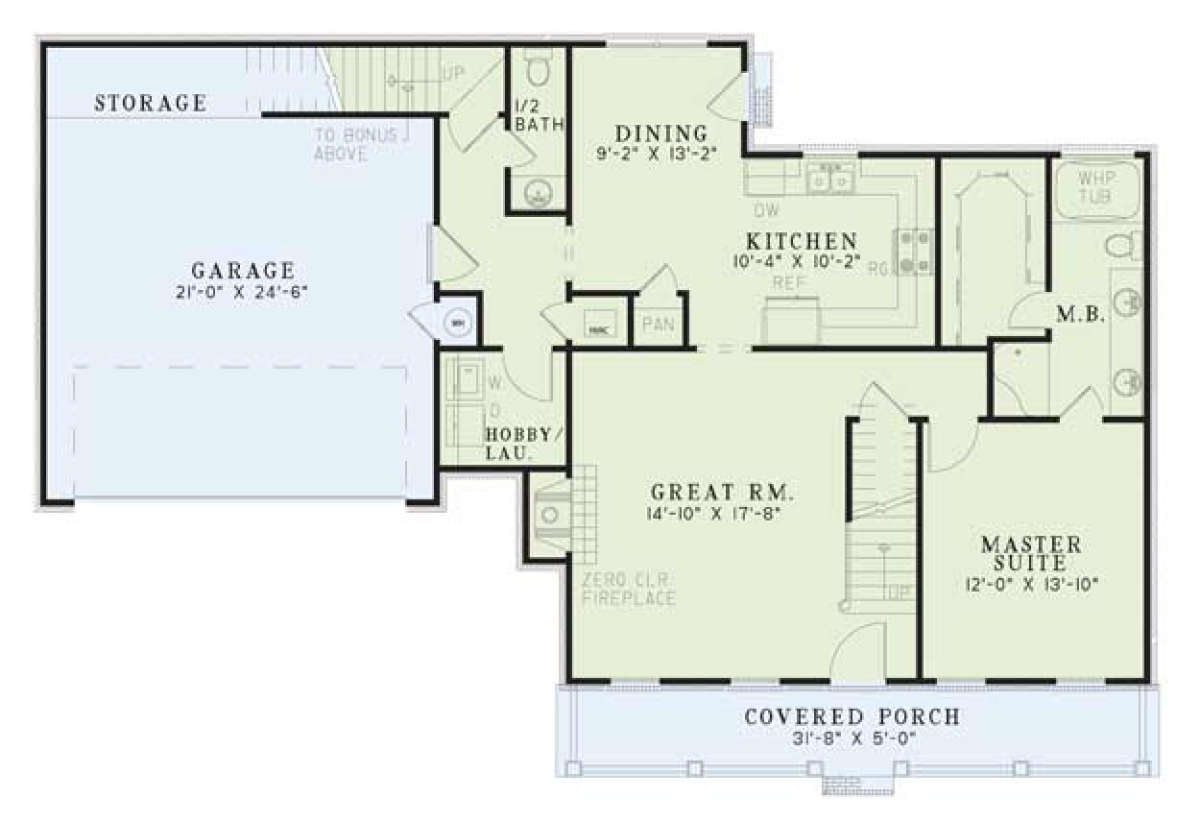

Floorplan 1
Floorplan 1 for House Plan #110-00050

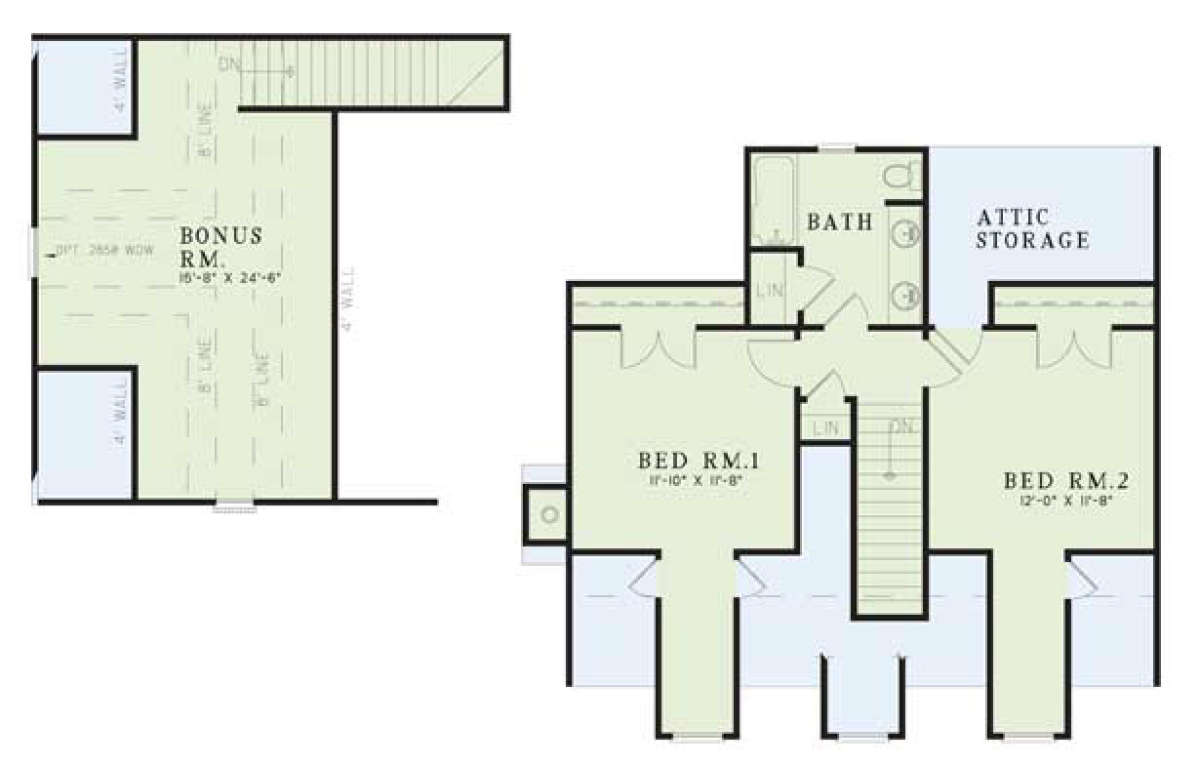

Floorplan 2
Floorplan 2 for House Plan #110-00050


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

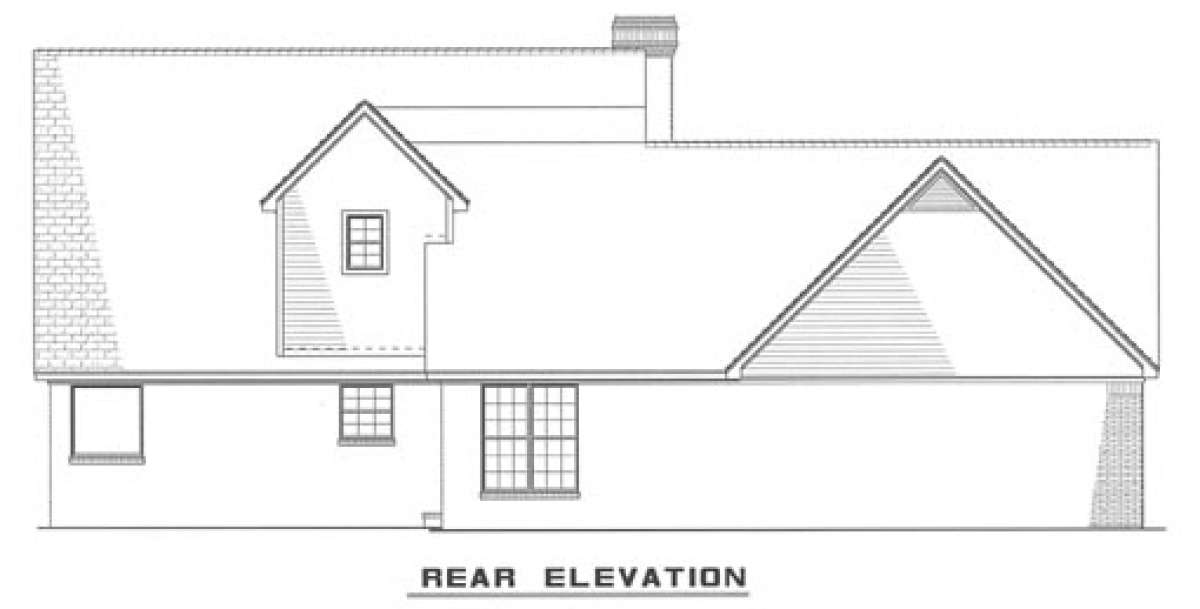

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

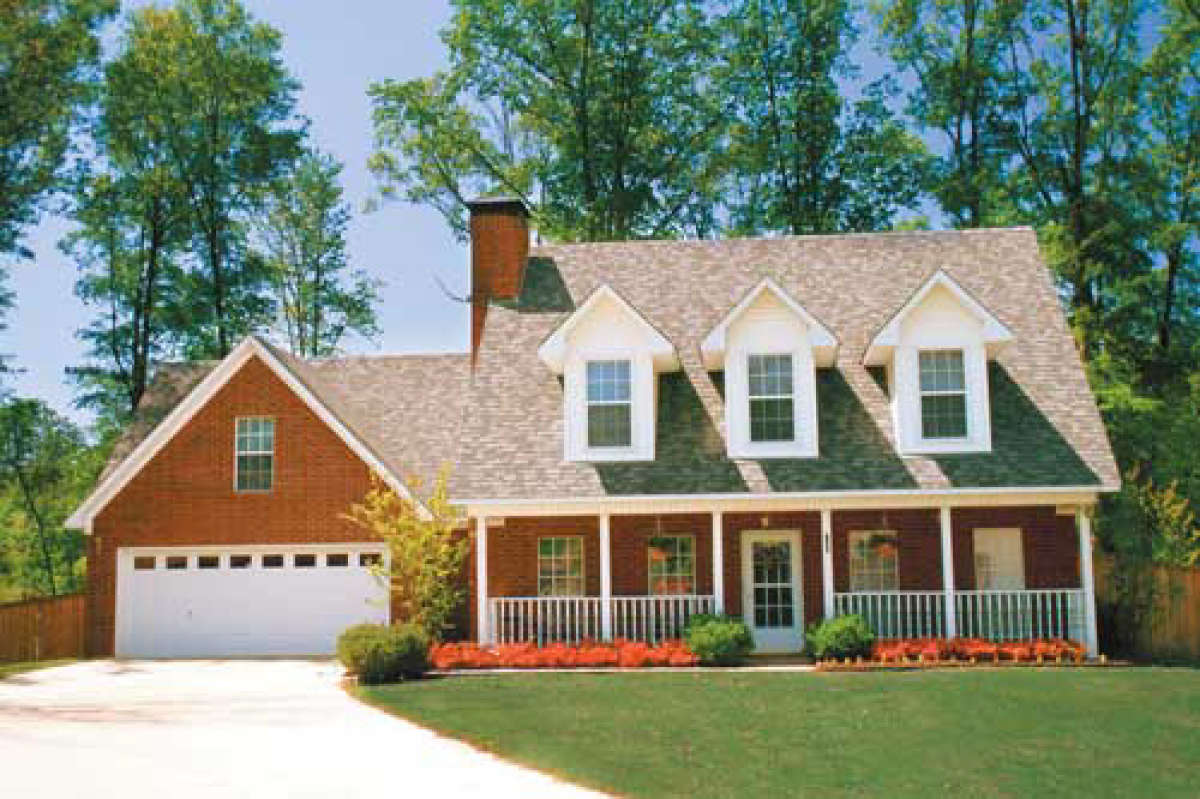

This traditional Southern style house plan boasts of a striking, comfortable exterior composed of a triple set of window dormers, a split country front covered porch and a brick and horizontal siding facade. The 1.5 storied home features an interior floor plan that is highlighted with three bedrooms, two plus baths and an upper level bonus. The approximate 1,783 square feet offers excellent entertaining space, a main level master suite and there are an additional 324 square feet of bonus space. The home’s renderings provide a crawl space, slab or unfinished basement foundation; the latter being the obvious choice for future expansion possibilities. The expansive front porch provides entrance into the home’s great room which houses the upper level staircase, a warming fireplace and access to the family friendly kitchen and dining room. The U-shaped kitchen features plenty of counter and cabinet space and a separate pantry while the dining space is cozy and sun lit. There is a two car front loading garage with additional storage space and access into the family laundry room, the half bath and a rear staircase to the bonus room. The master retreat is highlighted with excellent floor space that includes a large bedroom, a master bath with whirlpool tub, separate shower and a rear positioned walk-in closet.
Two upper level bedrooms flank the staircase landing; each is spacious with extended space lining the dormer window views and plentiful closet space. There is a hall linen closet and shared bath with double sinks, a second enclosed linen closet and a tub/shower combination. Attic space is available as well and features great storage space for seasonal items and the bonus room is situated over the garage for privacy and could be utilized as a family media room, a home office or an artist’s studio.
