Cape Cod Plan 110-00960

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,544
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 2
Width 34' 4"
Depth 48' 4"

Floorplan Drawings

Floorplan 1

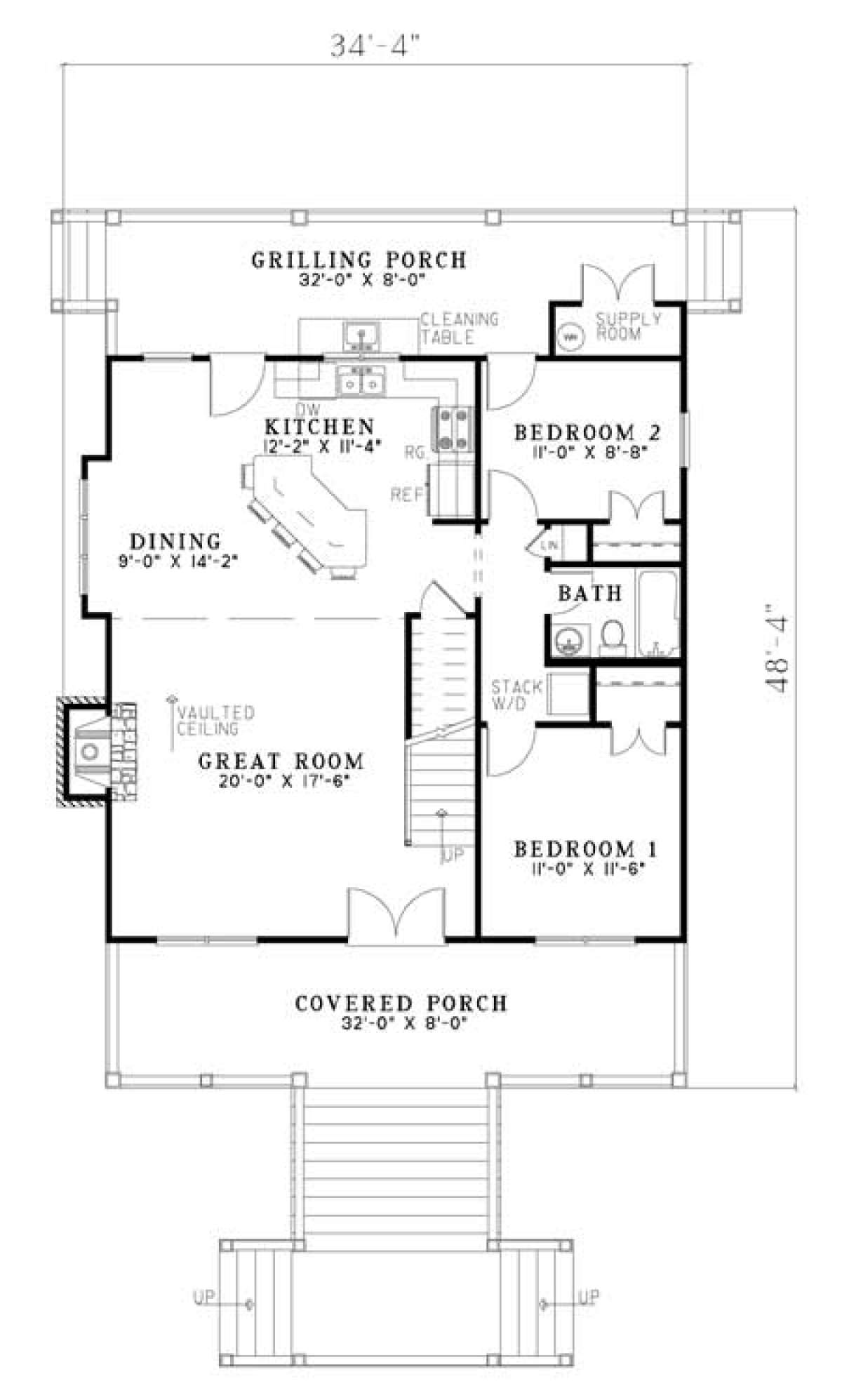

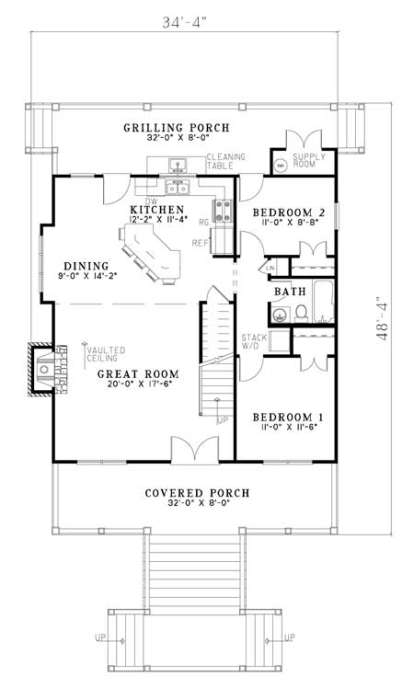

Floorplan 1 for House Plan #110-00960
Floorplan 2

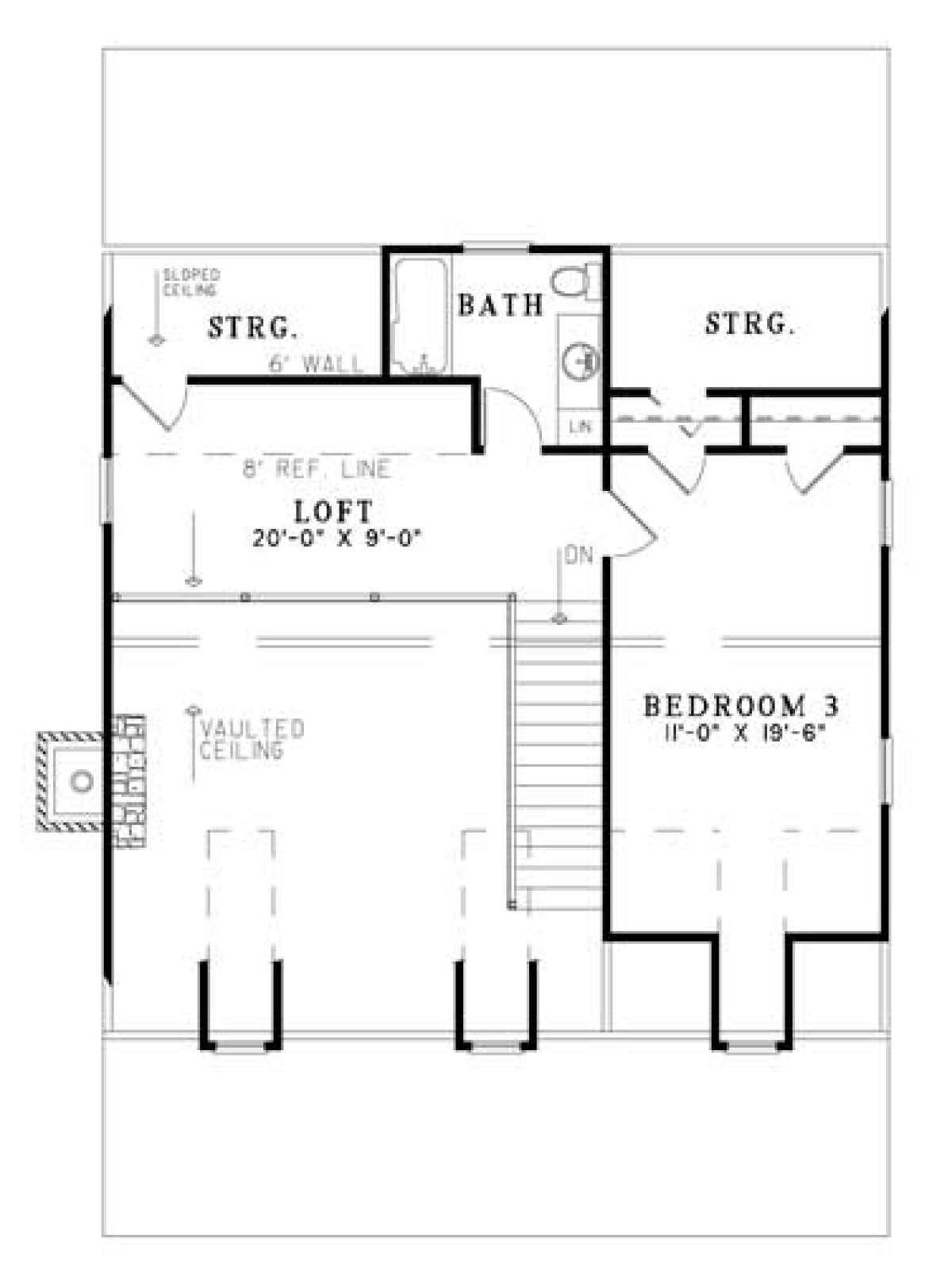

Floorplan 2 for House Plan #110-00960


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Great visual texture and outstanding curb appeal are found in this rustic Cape Cod house design. There are three foundation options; crawl space, pier and slab making this home a versatile choice. The exterior is composed of a double staircase entrance, triple overhead window dormers, a double entryway and a side-to-side covered porch. The front covered porch is deeply set, measures 32’ x 8’ and offers great space for relaxing or for greeting guests’ into the home. The interior is spacious, spans two stories and offers approximately 1,544 square feet of usable living space. Three bedrooms, two baths and a functional floor plan are highlighted within the home’s interior and the 34’ plus width and 48’ plus depth dimensions are ideal for a narrow and/or small property lot. Entering from the home’s front porch, the double door entrance reveals a large great room with stone fireplace and vaulted ceiling heights. Beyond the great room is the dining room and kitchen where great space for family and friends will be enjoyed. The dining room is light and airy with a three window wall “bump out” and the adjoining kitchen is highlighted with a large angled breakfast bar. There is a rear grilling porch that mirrors exactly the front porch dimensions and includes an outdoor cleaning table, a bonus supply room and double side staircases. This is the perfect space for bringing home the day’s catch and relaxing with a cold beverage while “hanging out” with family and friends. Two bedrooms and a bath are located on this floor as well; the first bedroom is spacious, has generous closet space and double window views overlooking the front porch. Bedroom two is slightly smaller with private rear porch access and a large closet. There is a shared hall bath featuring vanity space and a tub/shower combination as well as a nearby linen closet.

Travelling the second story staircase are overviews onto the great room below with overhead dormer windows naturally lighting the space. A huge loft space is located at the top of the staircase and also features overviews onto the great room. This is a great complementary space to the only bedroom and bath on this floor and easily converts the entire space into a wonderful master suite. The bedroom is oversized, features dormer and side window views and his and her closet space. Beyond one of the closets is a huge storage room, perfect for seasonal clothing and assorted other items. The loft also offers an amazing amount of storage room to the rear of the space. There is a bath with an enclosed linen closet, a large vanity and a tub/shower combination as well. This Cape Cod house design features a versatile floor plan, a large amount of storage space and an attractive exterior.
