Traditional House Plan 5633-00052

Sq Ft1,619
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width48' 8"
Depth53' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00052
Floorplan 2 for House Plan #5633-00052

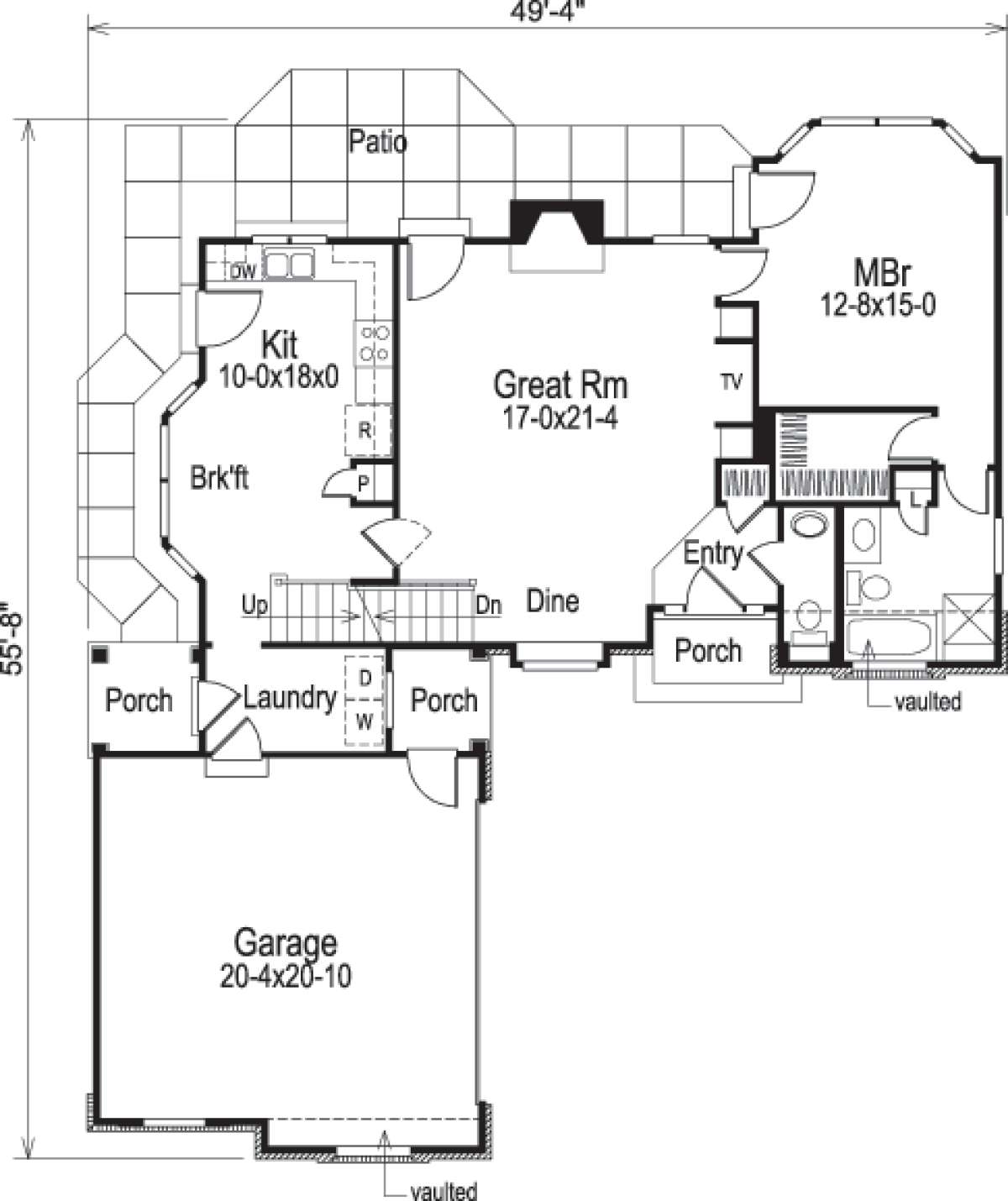

Floorplan 1
Floorplan 1 for House Plan #5633-00052

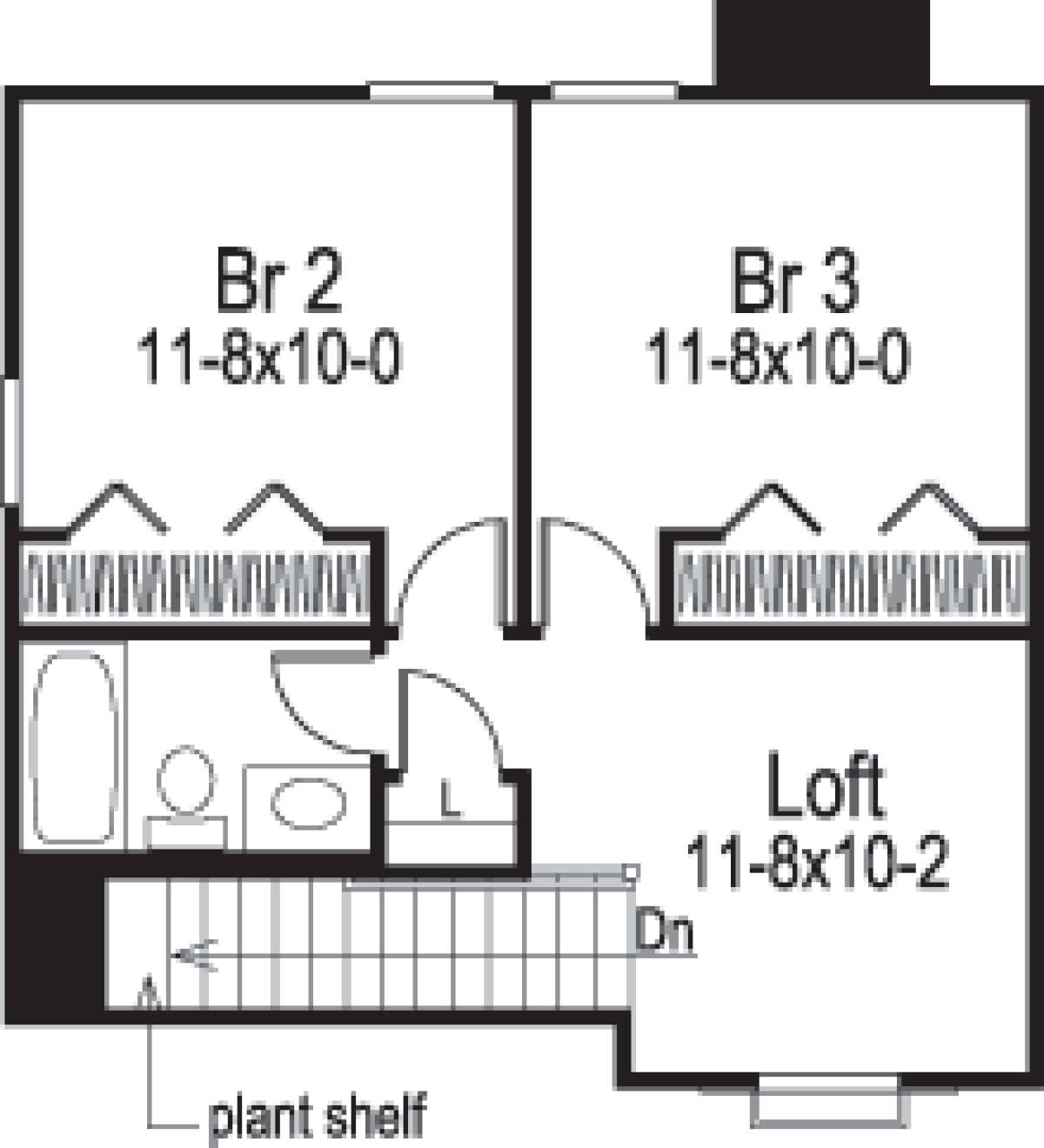

Floorplan 2
Floorplan 2 for House Plan #5633-00052


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

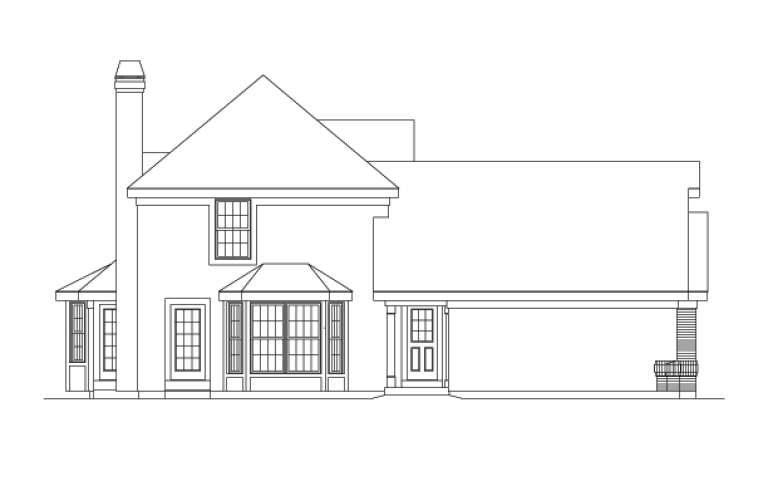

  • SET OF ELEVATIONS

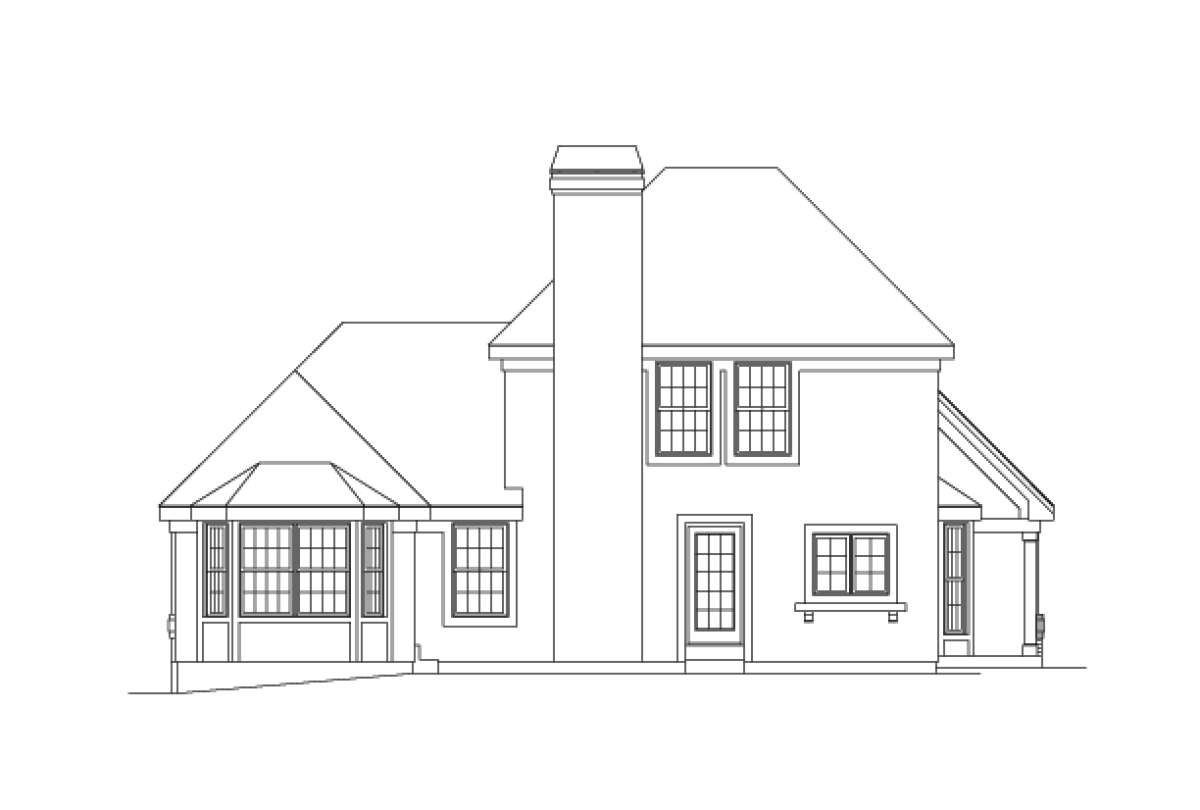

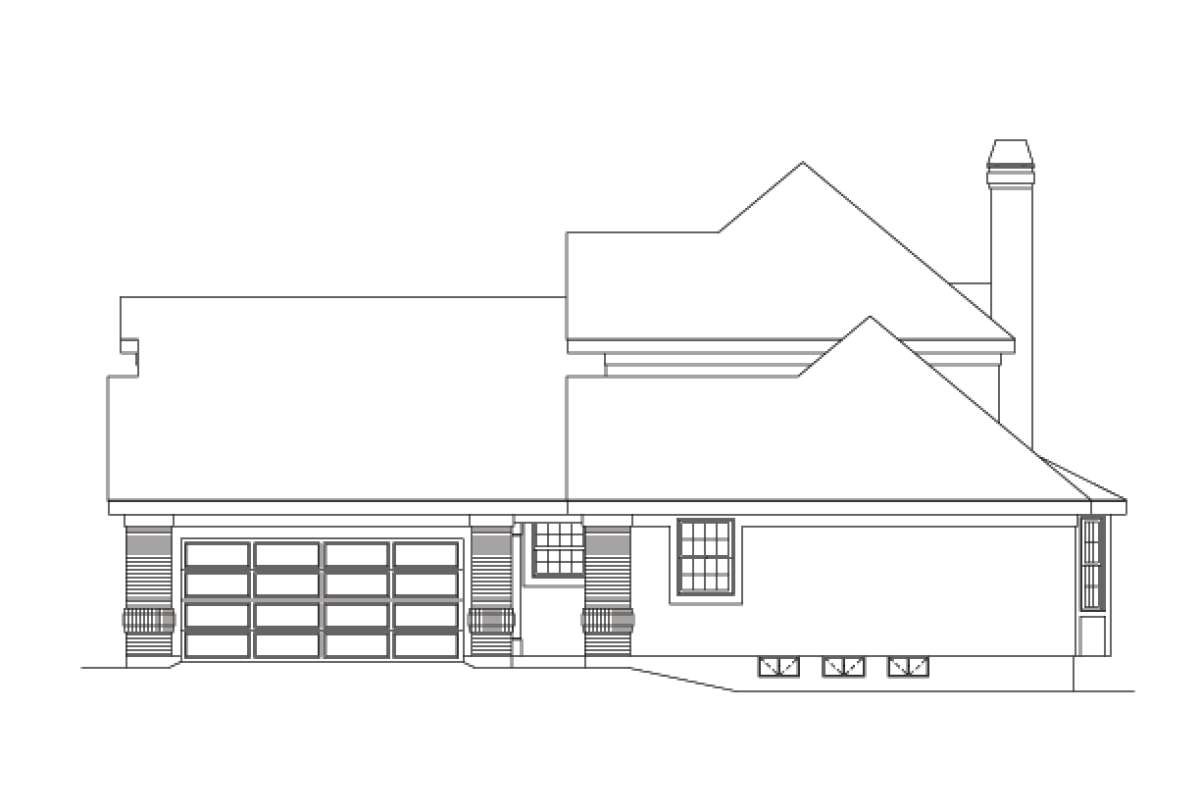

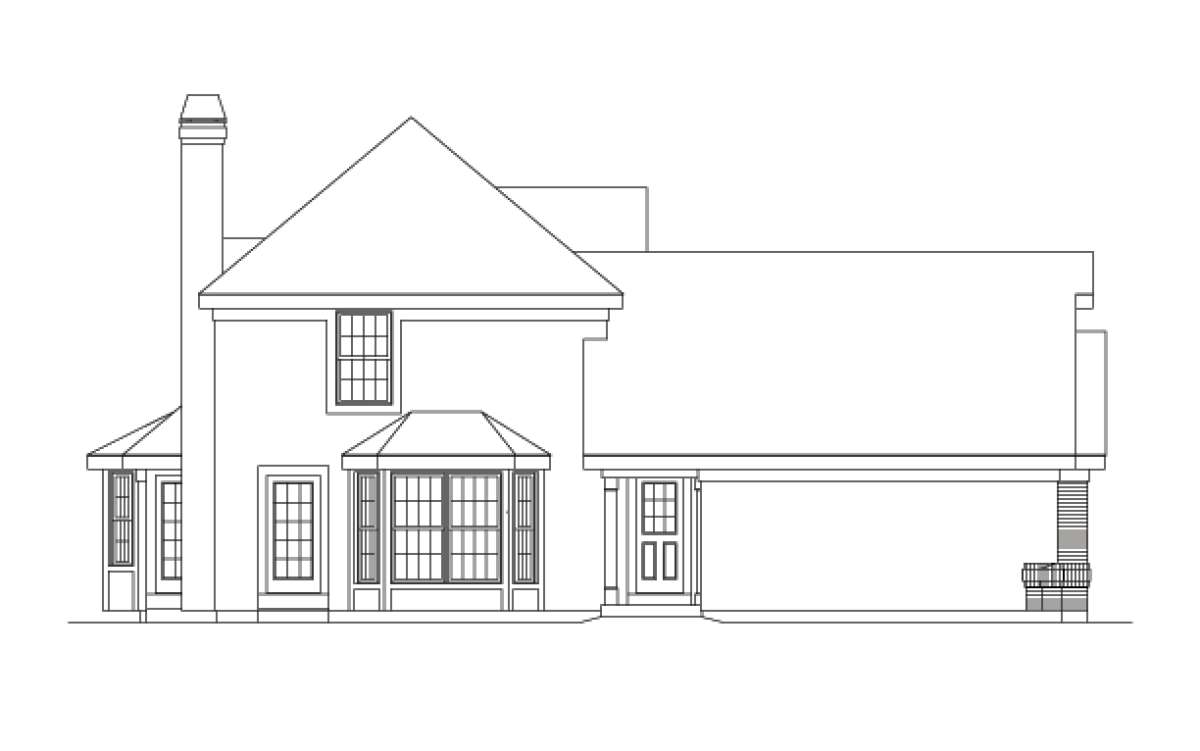

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

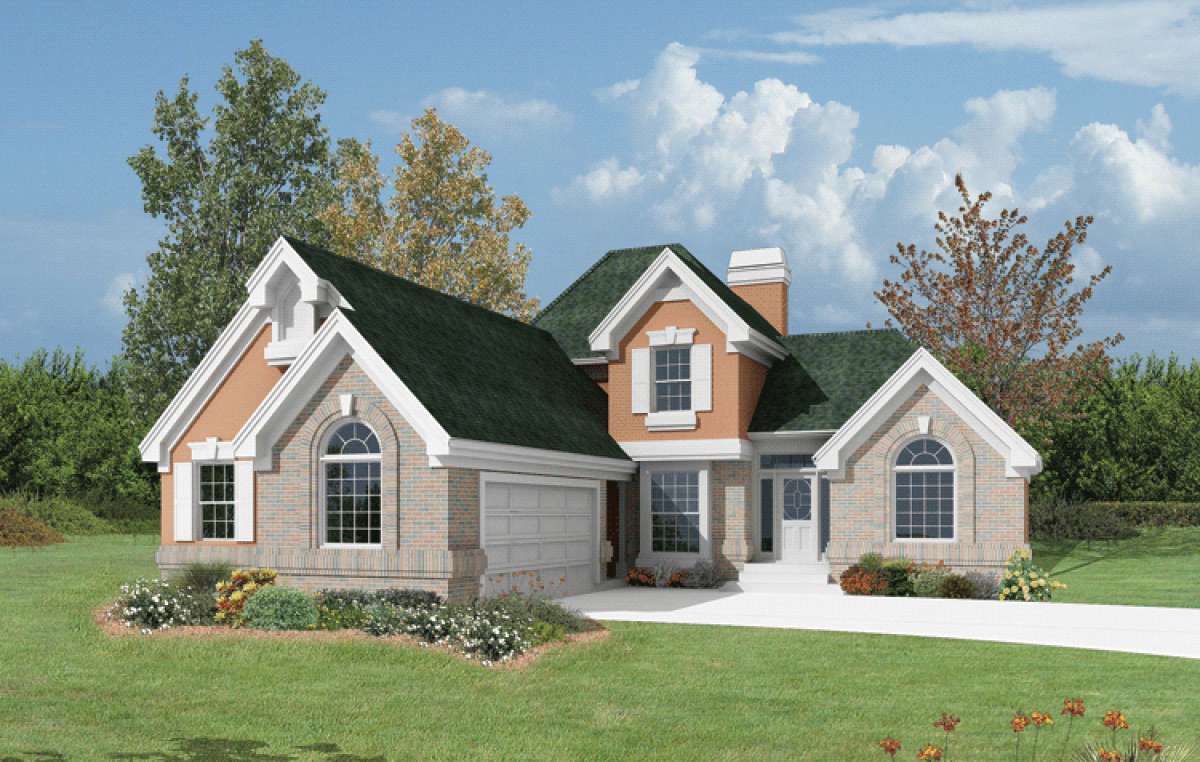

This traditional floor plan and exterior façade is accentuated with striking architectural design features which add value and versatility to the home. The exterior façade features multiple gables, Palladian styled windows, brick and stucco work and an appealing front covered entrance. The home has outstanding outdoor space which includes three quaint porches and an expansive rear patio. The interior floor design features approximately 1,619 square feet of living space that incorporates three bedrooms and two plus bathrooms in the 1.5 storied home. The home has a basement foundation which offers an additional 1,059 square feet of space; thereby, increasing the home’s value, versatility and square footage. The appealing front entrance includes a courtyard and a two car garage with 423 square feet of vehicle and other gear storage space. The front entry provides a greeting foyer before opening onto the massive great room which measures in excess of 17’x21’. The great room features a handsome fireplace, rear patio access, built-in cabinetry and front dining space. There is an outstanding kitchen and casual breakfast room which provides an abundance of style and space. The gourmet kitchen features a separate pantry, plenty of counter and cabinet space and side patio access. The breakfast room is highlighted by a substantial bayed window allowing for a sun drenched space. The interior laundry room is spacious and conveniently located off the garage and there is a powder room for guests. The main level master suite features an elegant design highlighted by the master bedroom’s large footprint and enormous bayed window accent. There is private patio access off the bedroom and an oversized master walk-in closet. The master bath features a vanity space, toilet area, separate shower and a vaulted garden tub space.
Travelling the second story staircase is a feature plant shelf and the landing contains a large loft area. This multi-purpose family space would function perfectly as a playroom, homework station for the children or a home office/study. The shared hall bath features a vanity space, toilet area and a tub/shower combination along with a hall linen closet. There are two family styled bedrooms on the second floor as well; both are equally sized, provide generous closet space and contain wonderful window views. This spacious and attractive home is family friendly and the basement foundation adds expansion possibilities for the future.
