Mediterranean Plan 1018-00067

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,309
Beds 3
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 64' 10"
Depth 59' 8"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #1018-00067
Floorplan 2
Floorplan 2 for House Plan #1018-00067


What's Included in these plans?

  • Elevations: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
  • Floor Plans: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
  • Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
  • Slab Plan: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Design Plan: Drawn at 1/8" to 1/4" = 1?-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
  • Building Sections: Drawn at 1/8" to 1/4" = 1?-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
  • Typical Wall Sections: Drawn at 1/8" to 1/2" = 1?-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
  • Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Spacious living and exceptional outdoor entertaining take center stage in this Mediterranean house plan; highlighted by approximately 3,309 square feet and three bedrooms and three plus bathrooms wrapped up in a two-story floor plan. The exterior of the home has a Key West inspiration with its decorative columns, window shutters, and covered porch. Its varying roof-lines, Bahama shutters, and flower boxes are some of the embellishments that complement the stucco and Hardie board siding exterior to capture the essence of a Mediterranean style. There are two large walls of pocketing glass doors that open the main living areas up seamlessly to the covered lanai and pool area, which offers a space for outdoor dining all year long with an outdoor kitchen. There is even a pool bathroom, to prevent tracking water into the house!

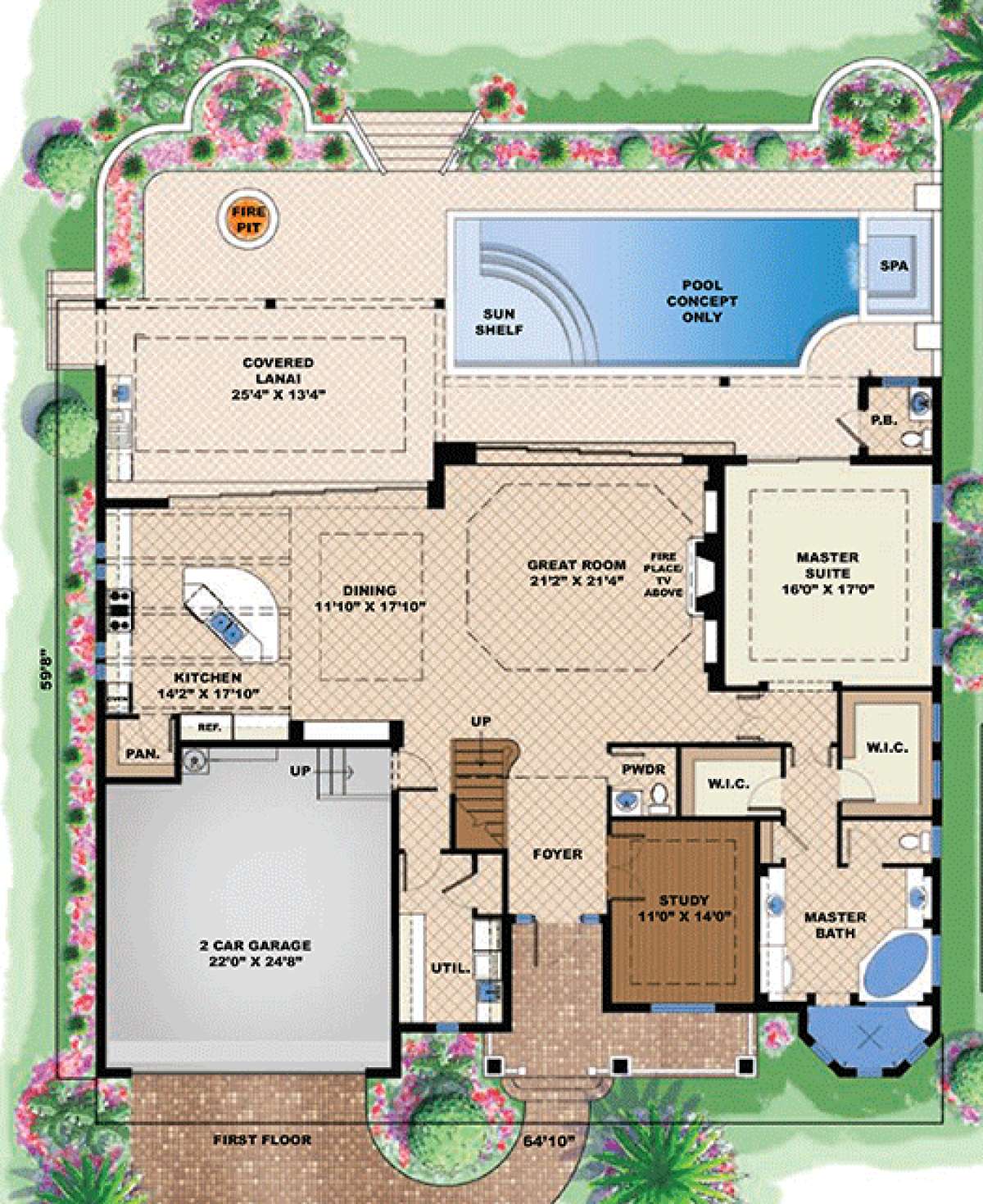

The inside layout details a powder bathroom and a generously sized study right off the foyer. From there, the floor plan opens graciously to the great room with a fireplace, dining room, and island kitchen combination with a walk-in pantry. Each of these rooms is differentiated by its own ceiling design to add extra character. The master suite completes the first floor and excels with his and her walk-in closets and a luxurious bathroom complete with a bump-out shower, separate tub, and separate dual vanities.

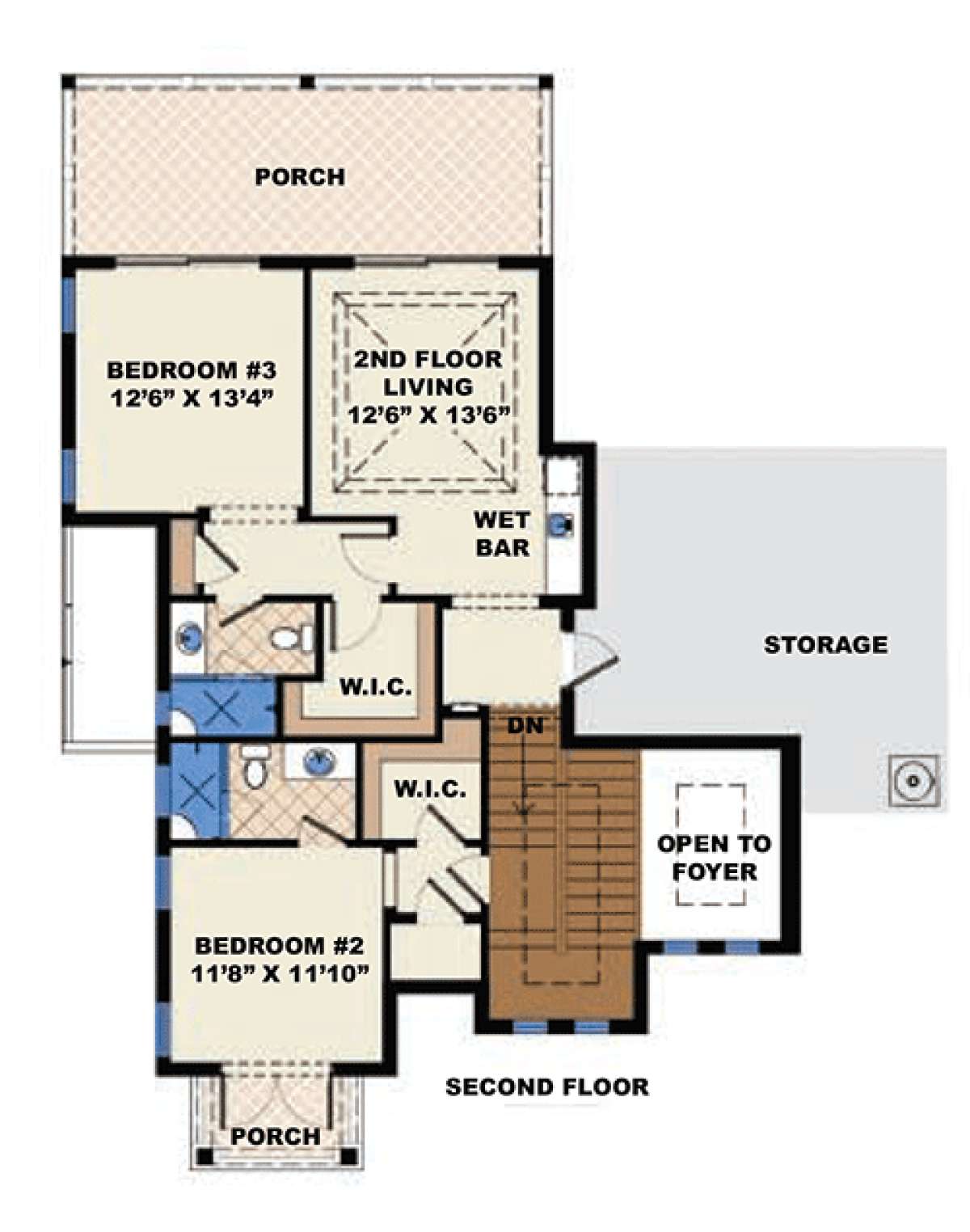

Upstairs contains another living room with wet bar, two porches, the secondary bedrooms, and a large storage area. Both bedrooms have their own private full bathroom and walk-in closet. Bedroom #2 is accessed from the stairwell.
