Craftsman Plan 041-00308

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,106
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 1
Width 82'
Depth 68' 4"

Floorplan Drawings

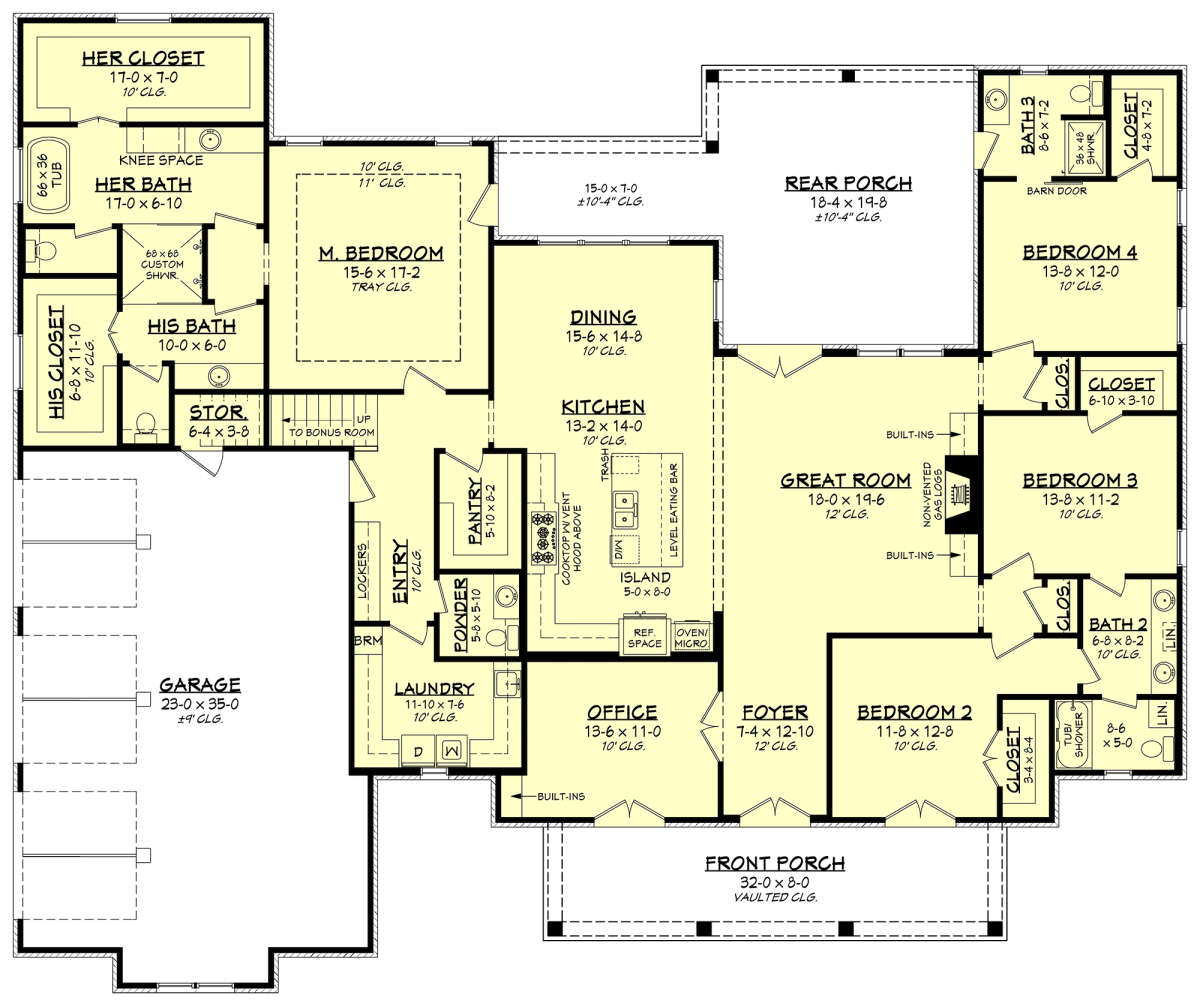

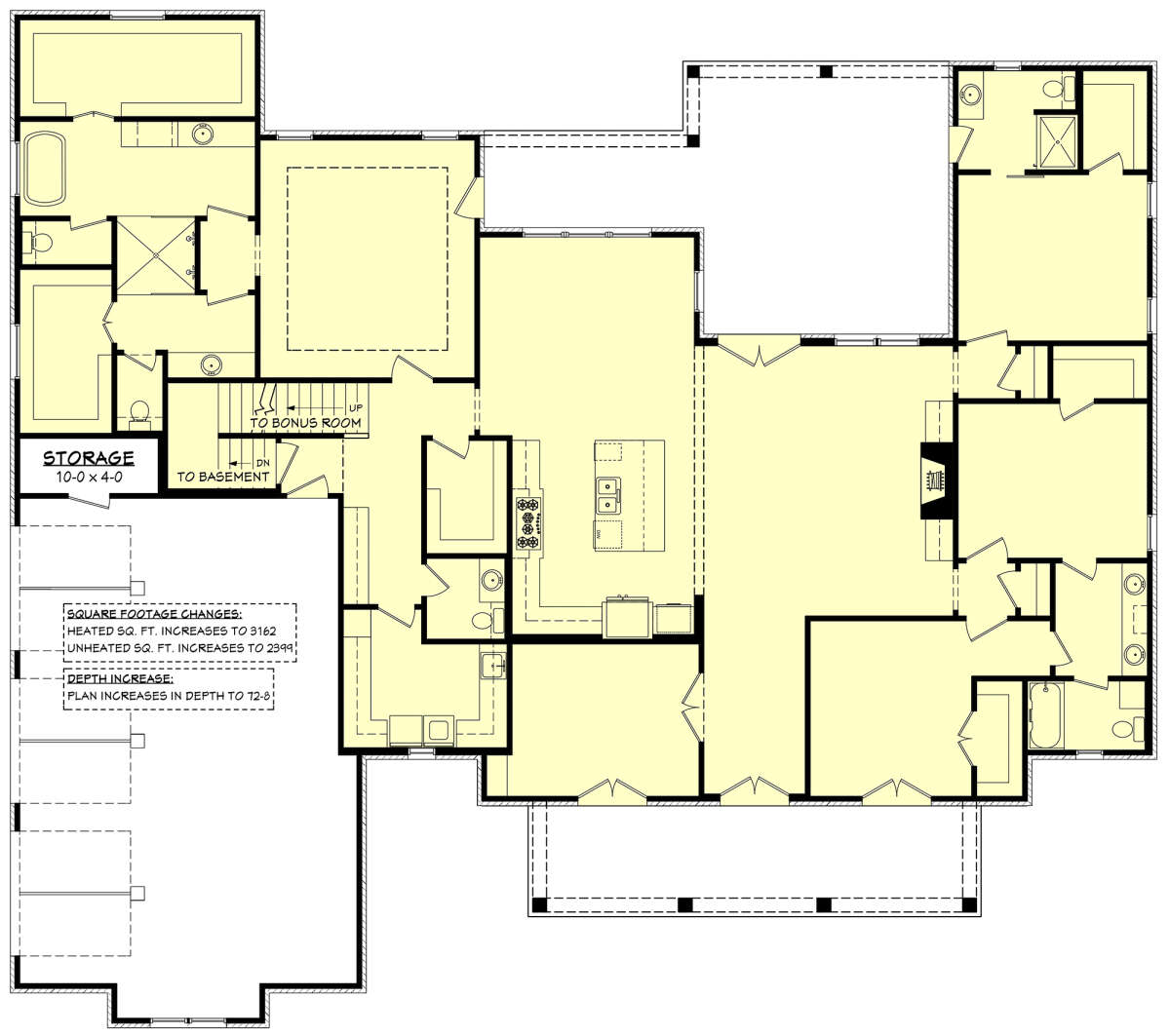

Main Floor
Main Floor  for House Plan #041-00308

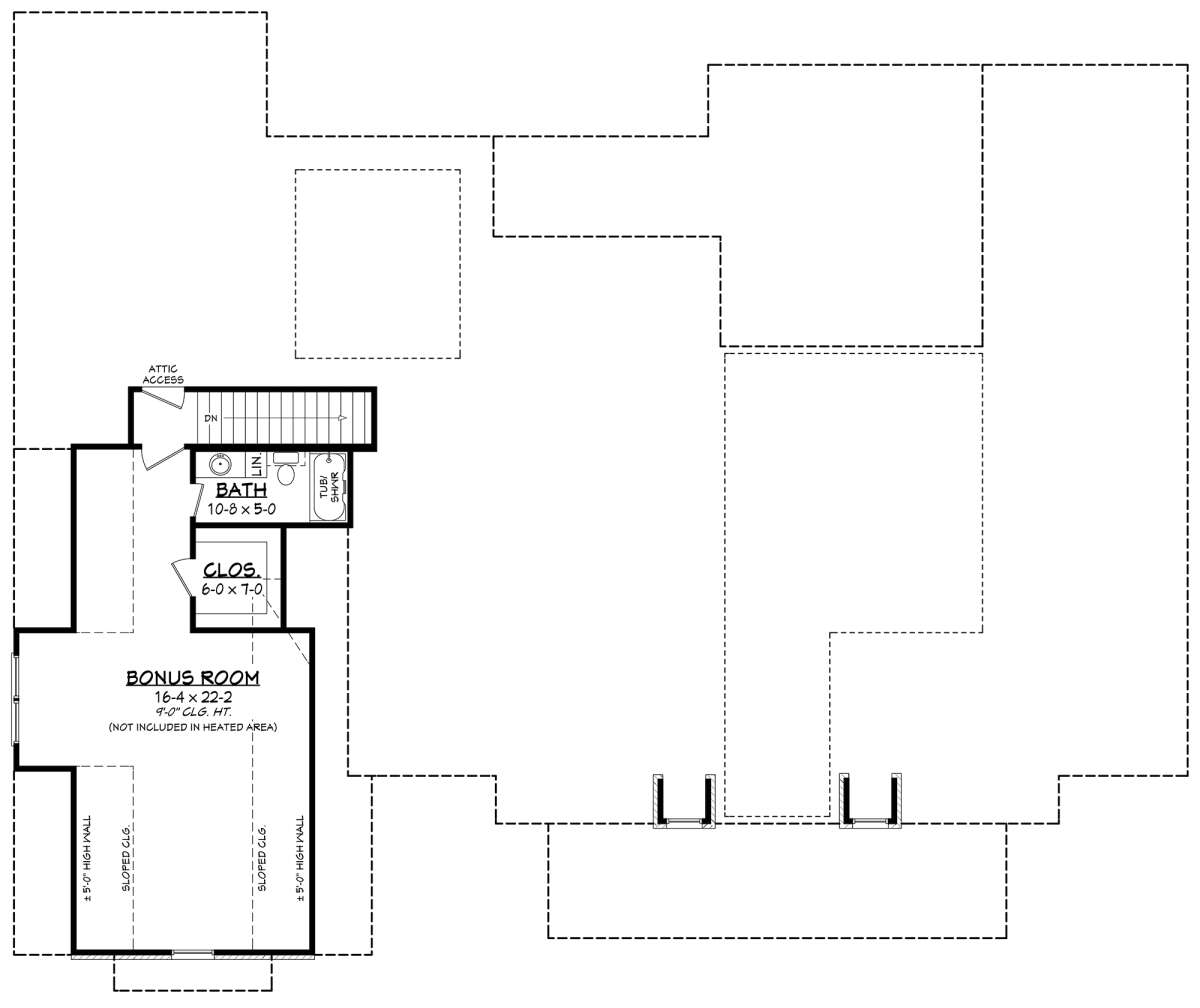

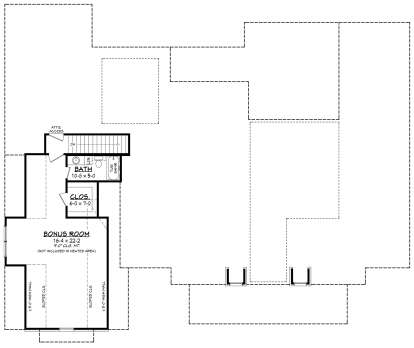

Bonus Room
Bonus Room for House Plan #041-00308
Main Floor w/ Basement Stair Location
Main Floor w/ Basement Stair Location for House Plan #041-00308


What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.

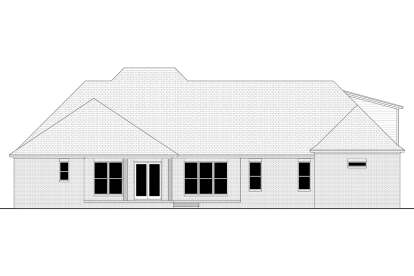

  • Exterior Elevations

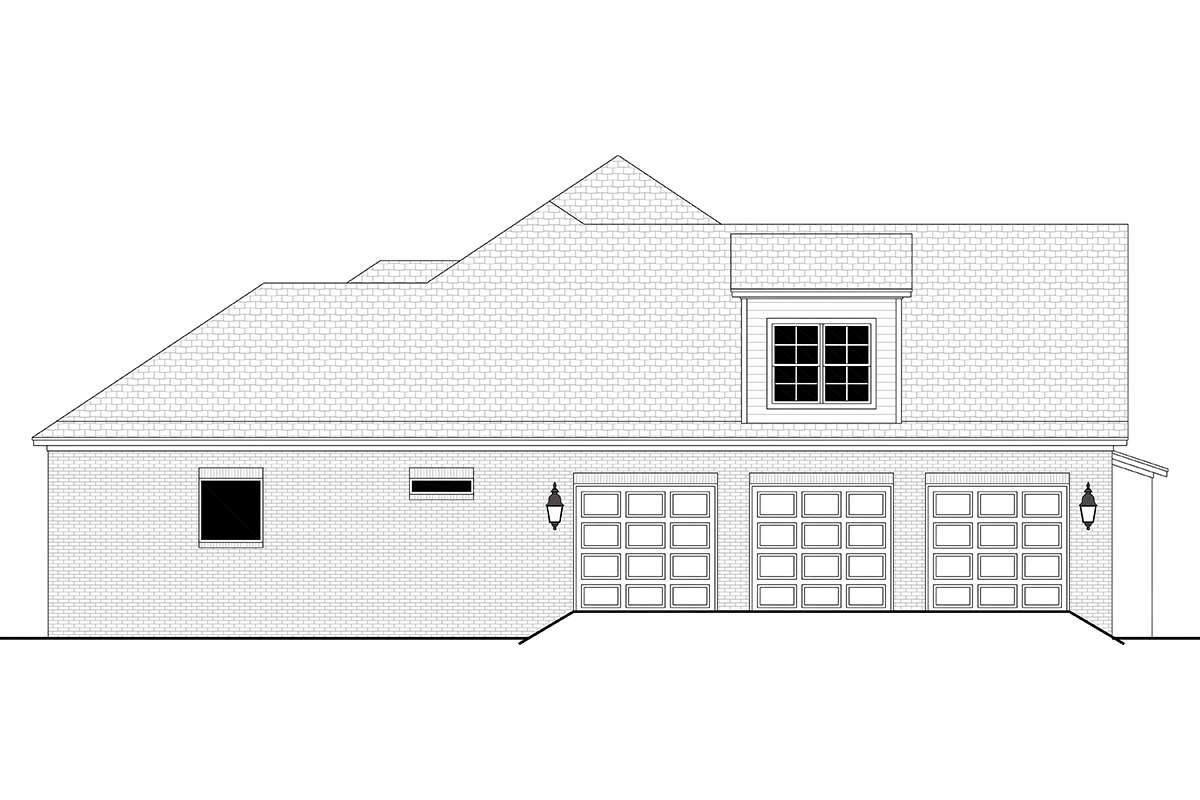

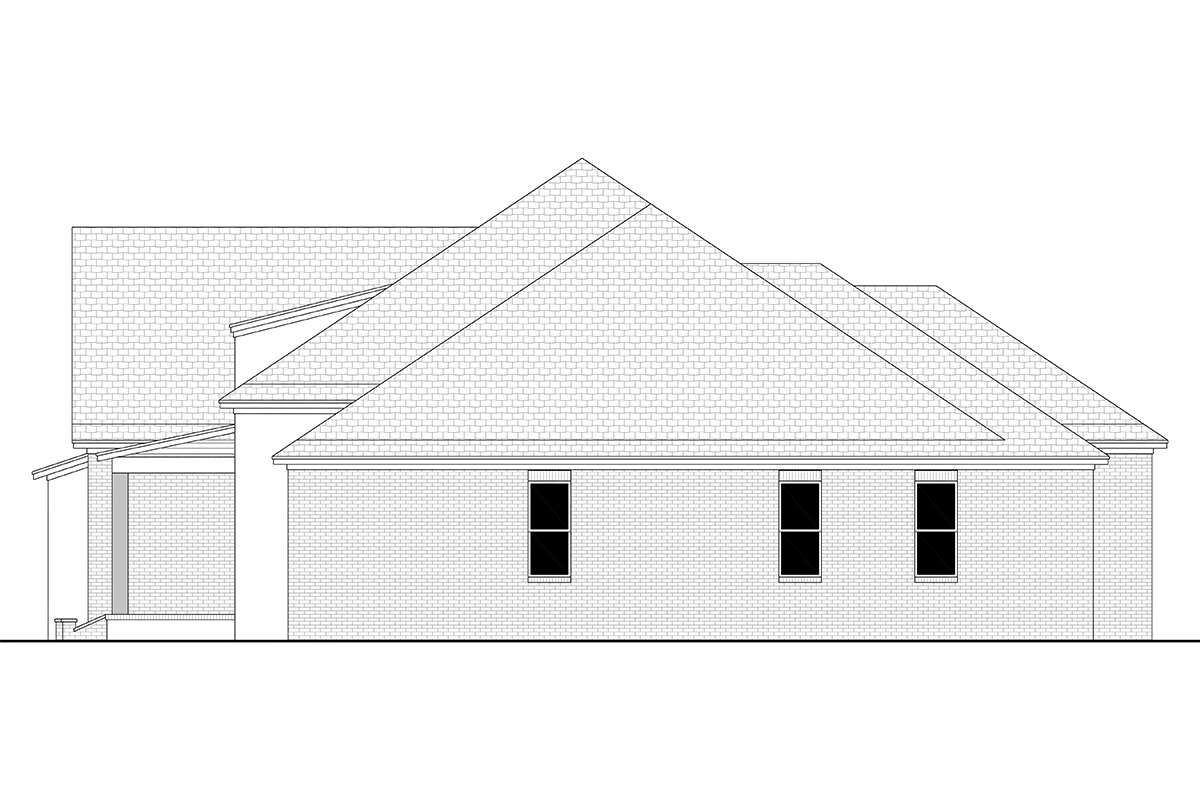

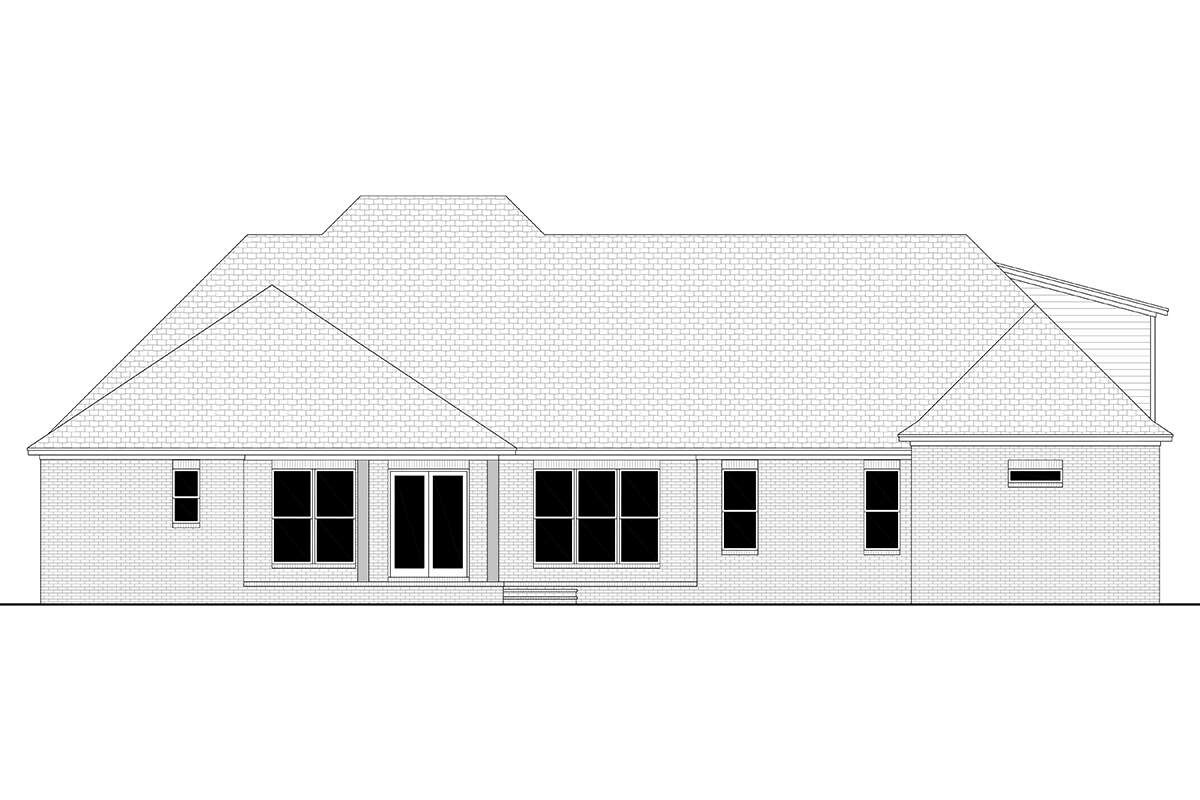

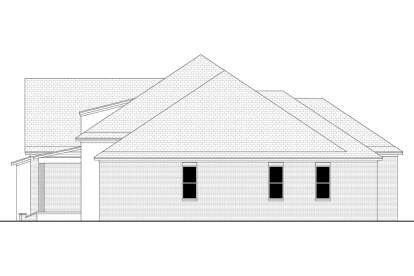

    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This inspiring Craftsman house plan boasts of a strongly defined exterior featuring traditional brick siding components, exposed rafters, metal overhangs and awnings along with a brick paved porch entrance. The addition of warm beams and three two paneled French doors soften and beautifully tie together the exterior design elements. The large rear porch anchors the spaces and provides the perfect backdrop to the home’s exterior. The spacious open floor plan consists of four bedrooms and three plus baths with an office in approximately 3,106 square feet of living space. An attached three car side entry garage offers a lot of space for vehicles and storage. The entry off the garage into the home offers a mudroom with lockers, a powder room for guests, and a spacious utility room. The front foyer leads to the office where there are 10’ ceiling heights, built-ins, and an entry/exit point onto the front porch. Further down the foyer is the great room which lives up to its name with a large living space, soaring ceiling heights, a gas log fireplace, built-in shelving, and access to the rear porch. The open plan features a chef’s kitchen with a large center prep and eating island, a nearby pantry and all the modern conveniences today’s homeowner wants. The dining space is located off the kitchen and is surrounded by beautiful window views overlooking the rear porch.


The three secondary bedrooms are located on one side of the home where bedrooms two and three share a Jack and jill bathroom and each has great closet space. The fourth bedroom sits at the rear of the home and boasts of a walk-in closet and private bath which is also accessible from the porch. The primary suite occupies the other side of the home’s interior and offers a large bedroom with a tray ceiling, private access to the rear porch and his and her private walk-in closets. The luxurious bath shares a custom, centrally located shower and there is a separate tub for her along with a private vanity and toilet room. There is also a vanity and private toilet room for him. A large open floor plan, efficient layout and strong exterior design elements combine to create a beautiful family home.
