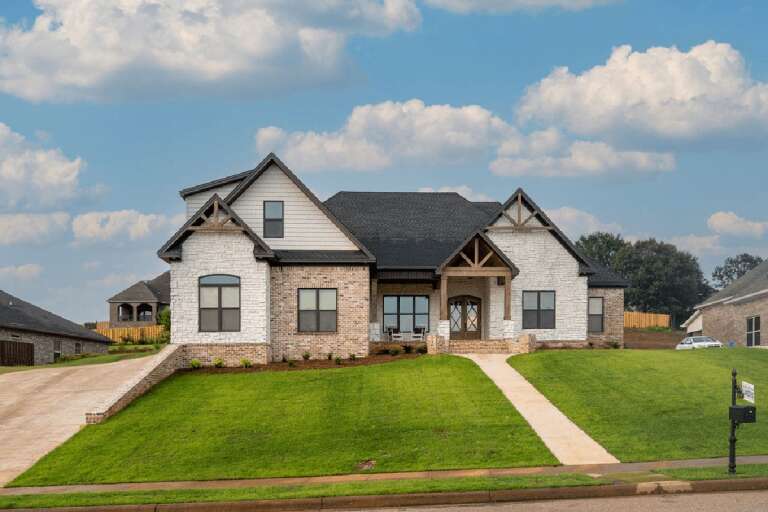

Craftsman House Plan #041-00303 Elevation Photo

Craftsman House Plan #041-00303 Additional Photo

Main Floor w/ Basement Stair Location for House Plan #041-00303

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,961

Beds 4

Bath 3

1/2 Baths 1

Car 3

Stories 1

Width 76'

Depth 79' 8"

See What's Included

Return Policy, Building Code & Copyright Info

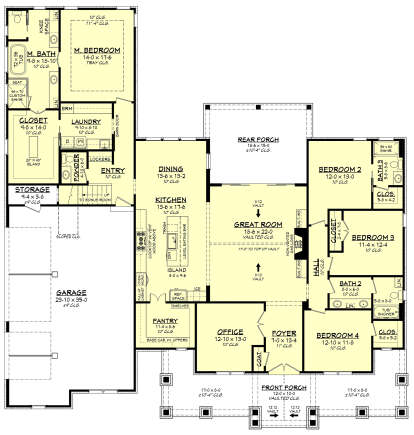

Floorplan Drawings

REVERSE PRINT DOWNLOAD

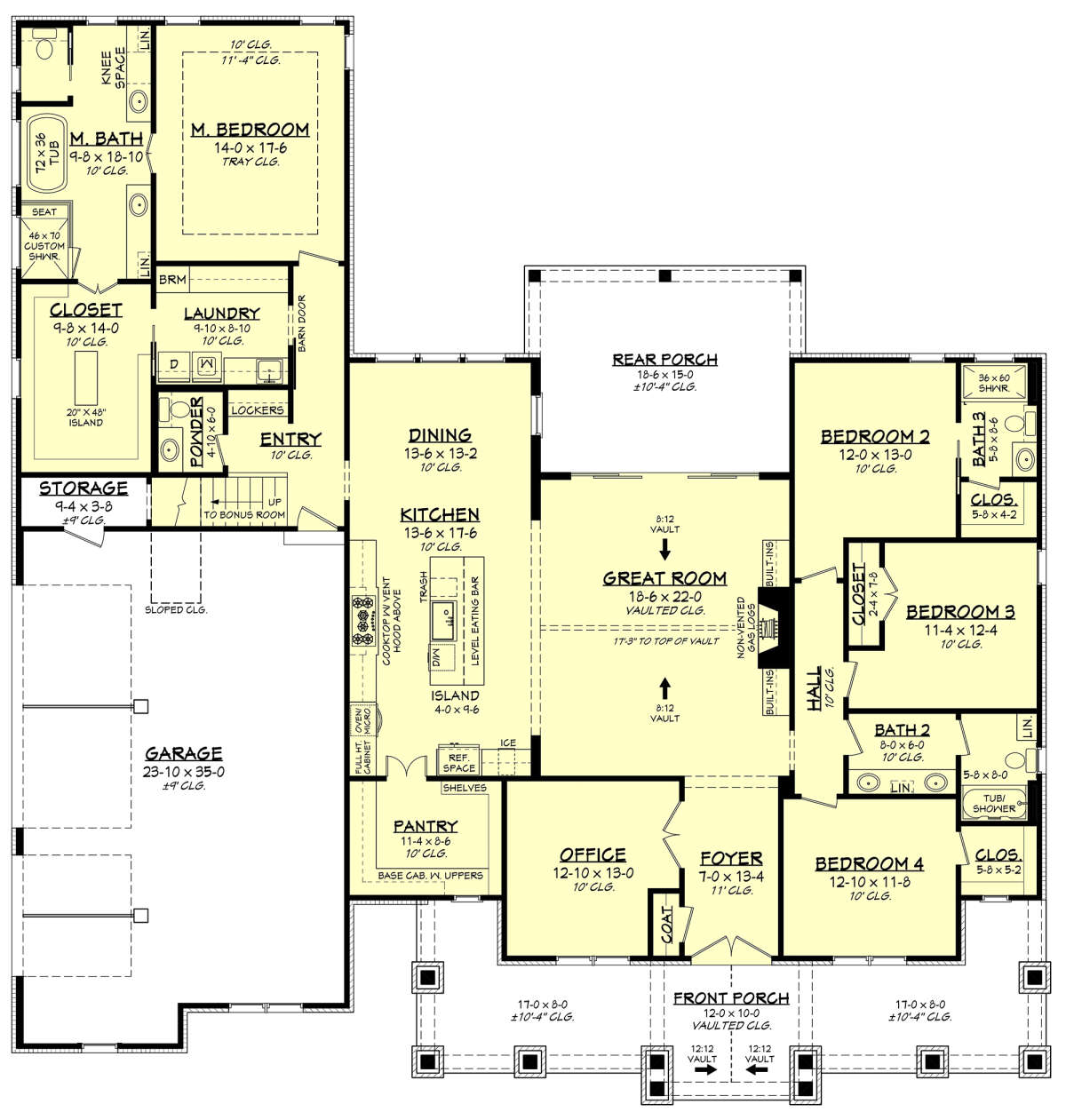

Main Floor

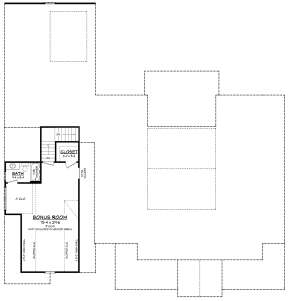

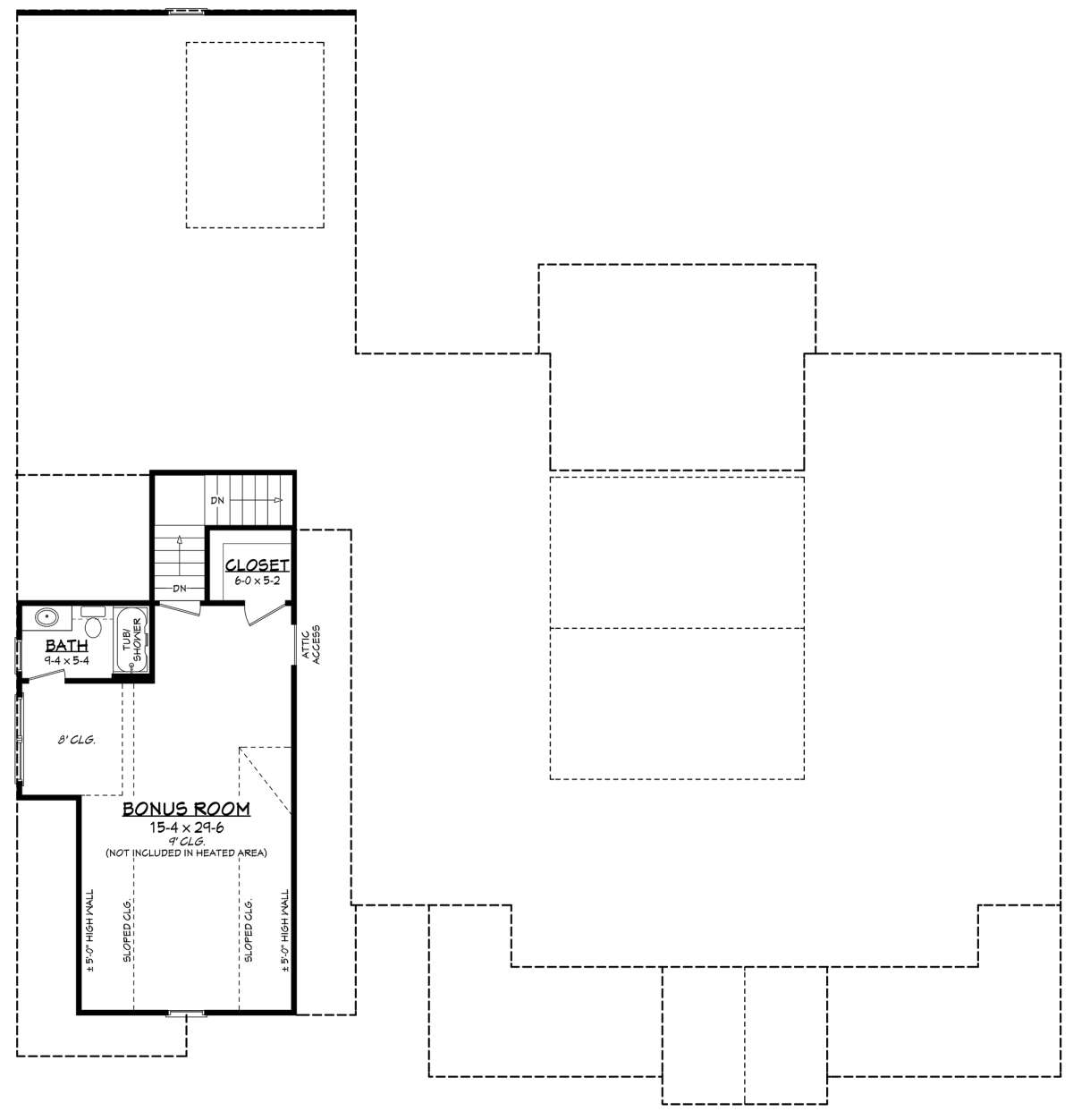

Bonus Room

Main Floor w/ Basement Stair Location

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet
Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
Foundation Plan & Details
Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
Floor Plans
The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
Exterior Elevations

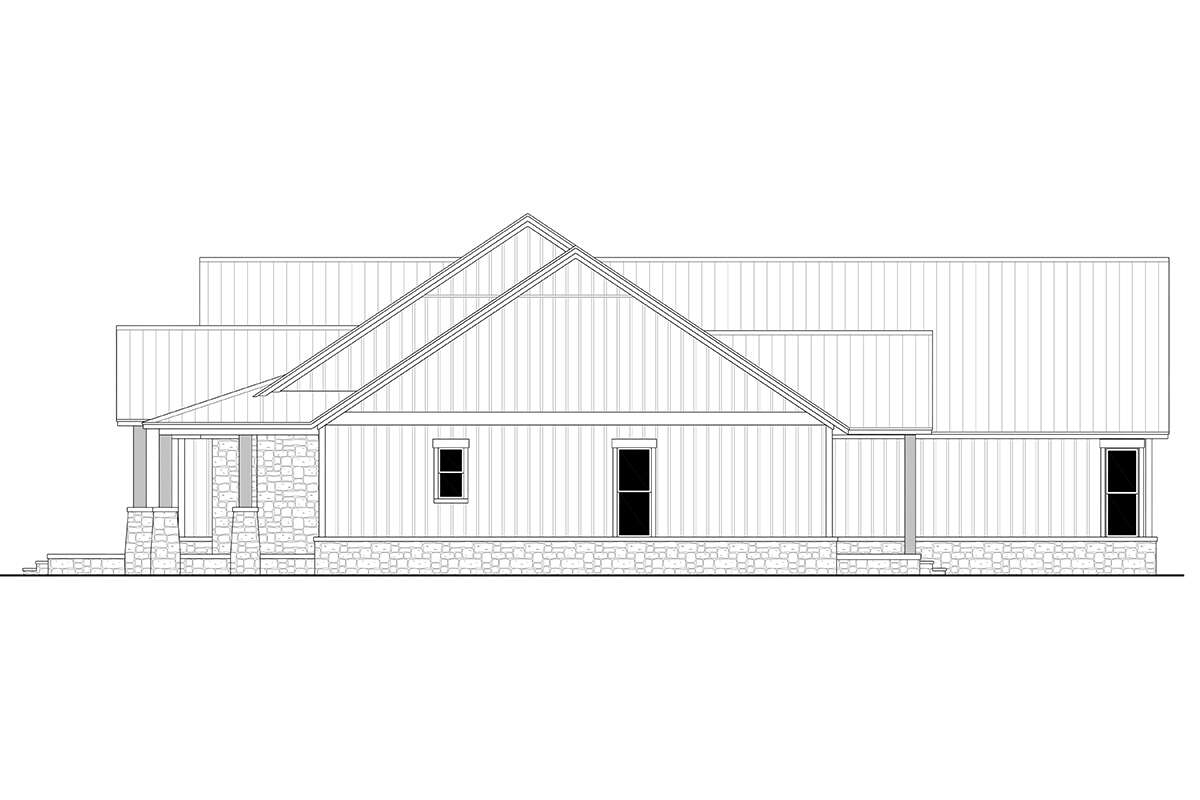

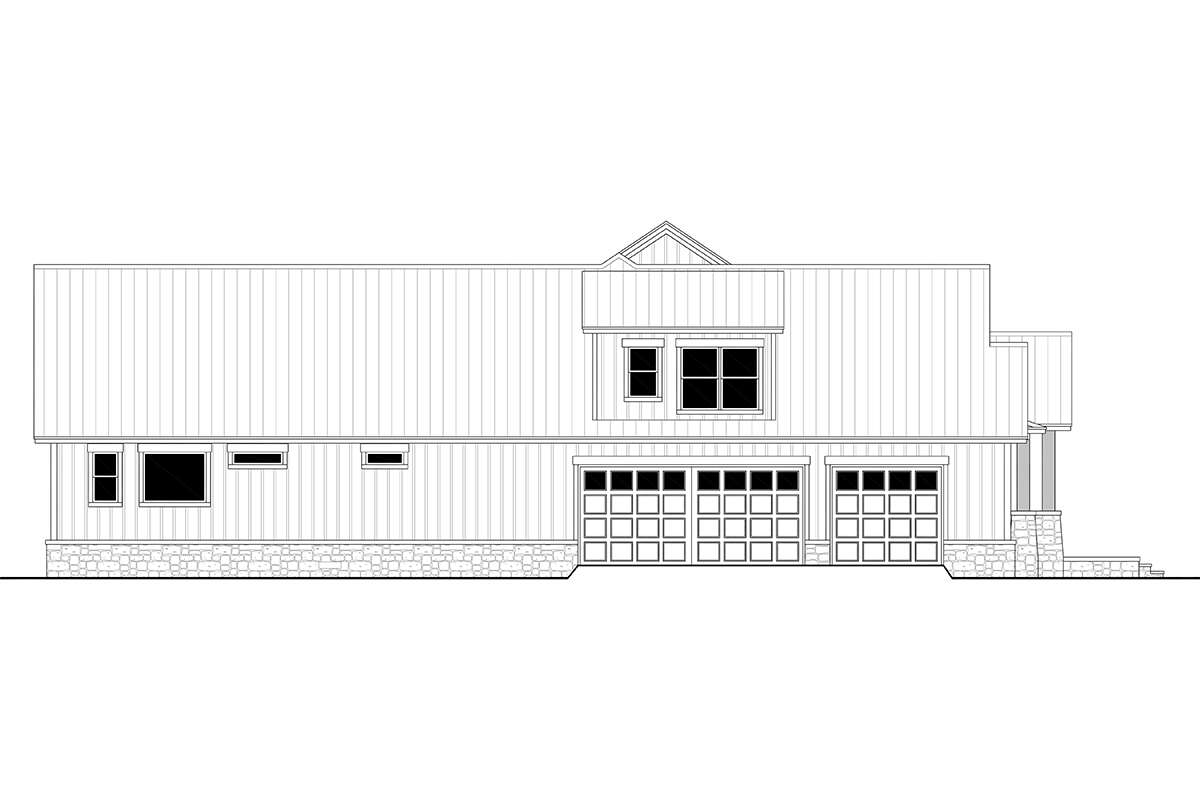

The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
Building Sections
The building sections describe to the builder how a particular home is to be constructed. Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
Roof Plan
The roof plan depicts the roof type, plate heights and roof slope of each plane.
Interior Cabinet Views
Cabinet views depict the overall design and layout of the kitchen cabinets.
Electrical Plan
The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

About This Plan

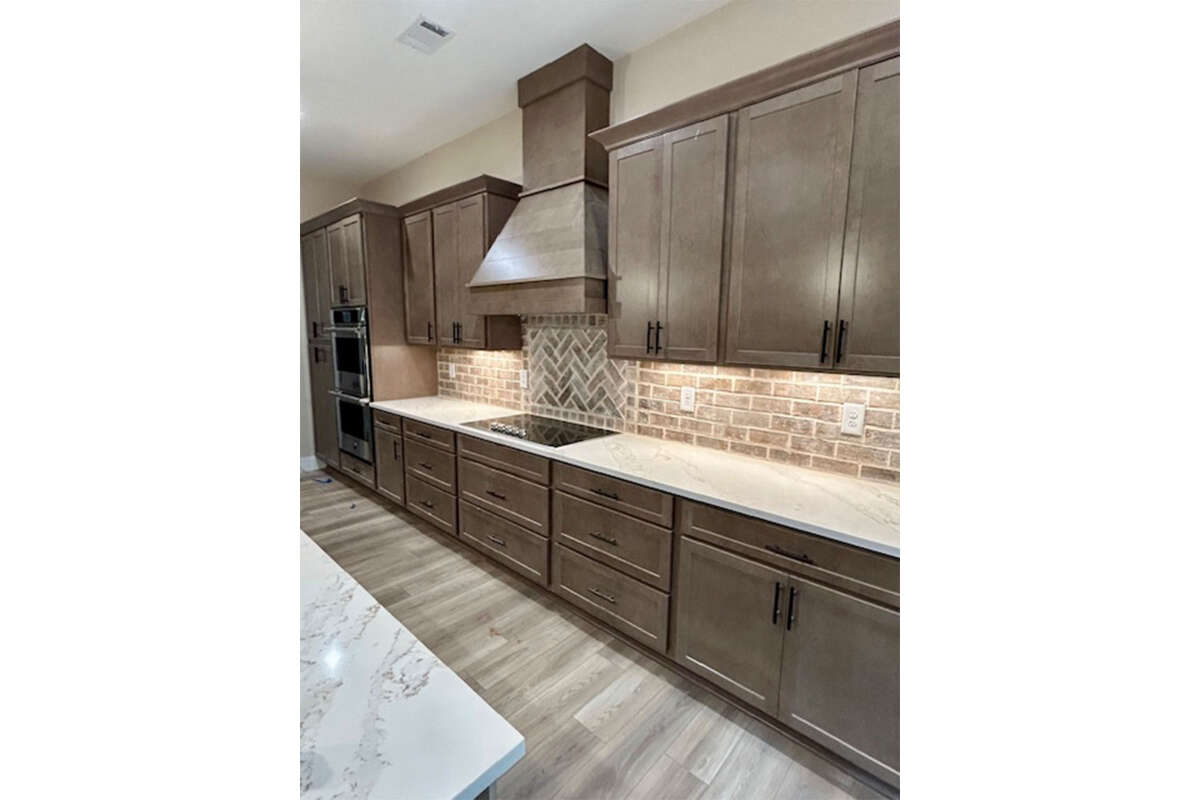

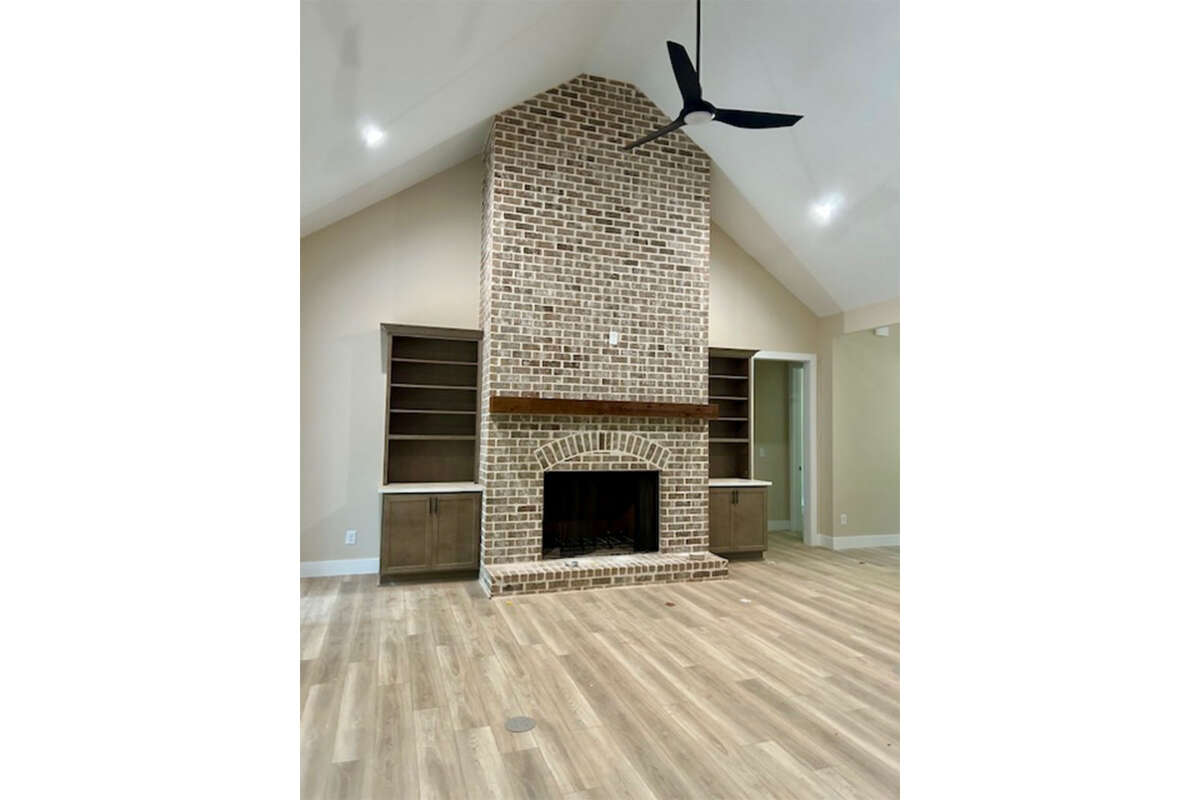

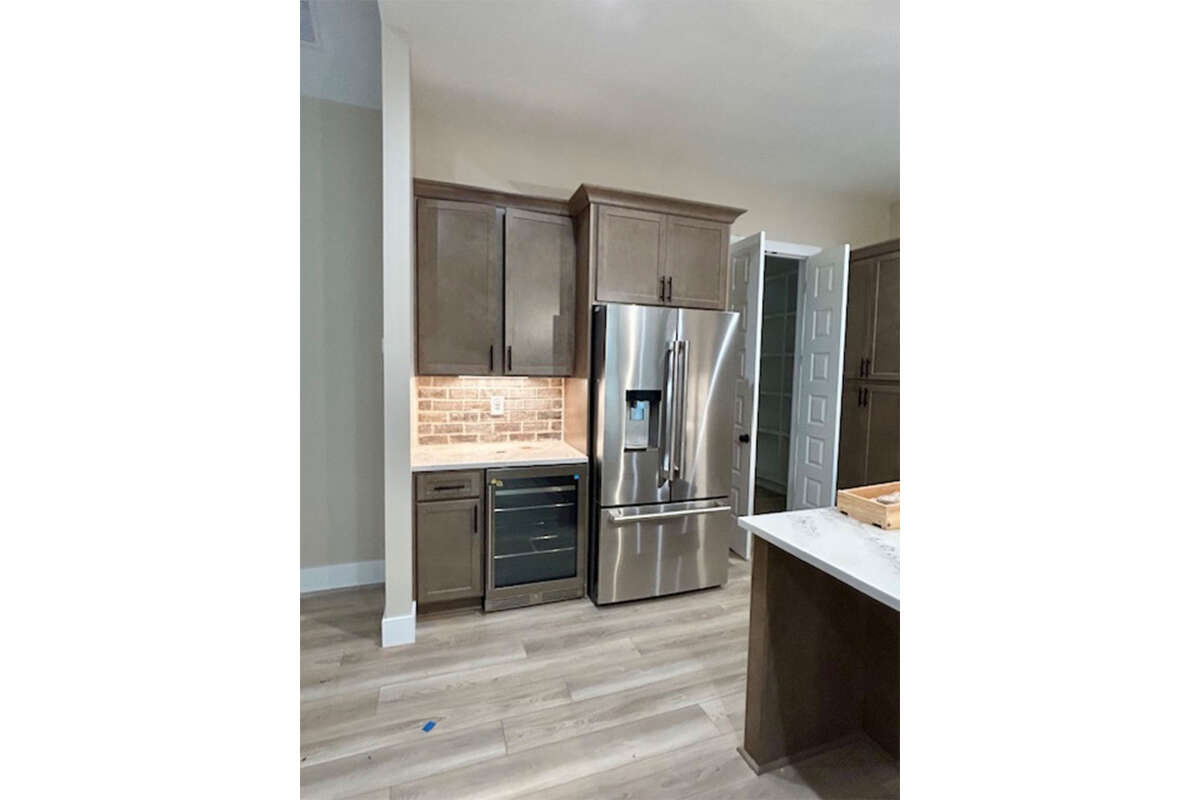

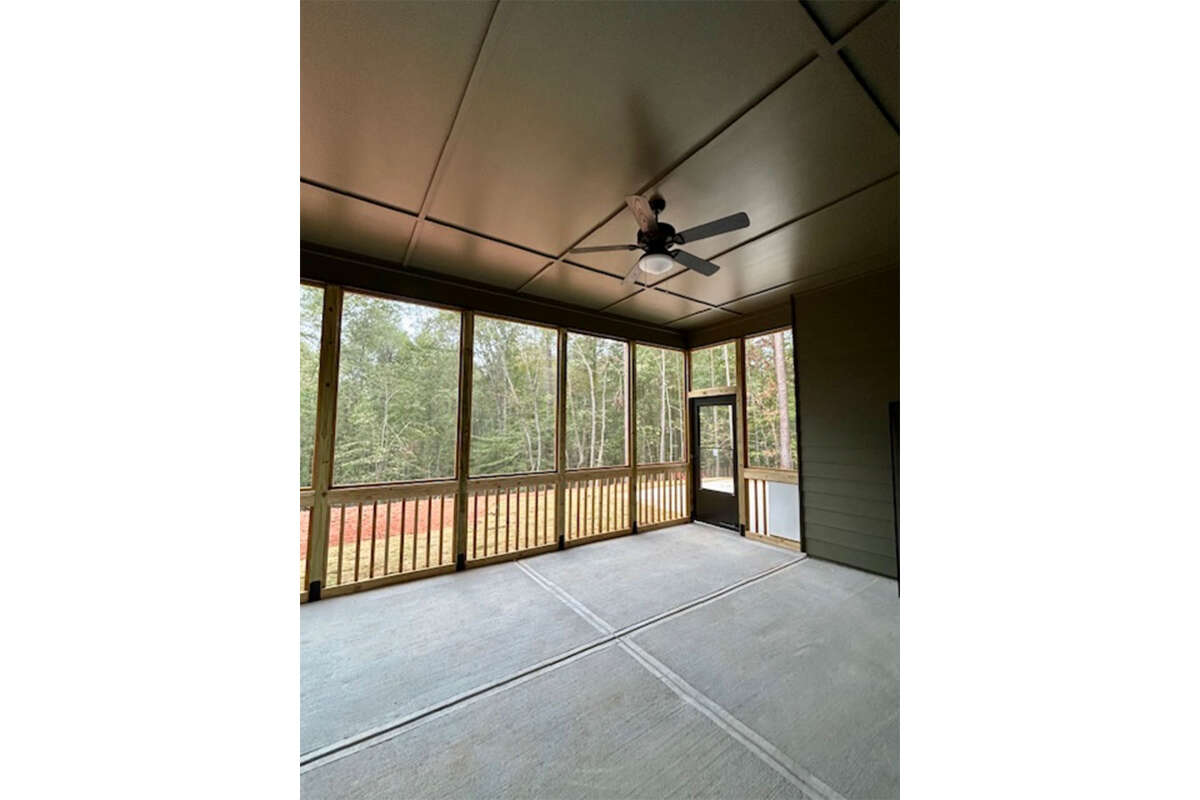

Great curb appeal is found in this Craftsman home design with a large wraparound porch, tapered stone beams and honey wood beams and overhead gable. The stonework, board and batten and dark window frames create a gorgeous and welcoming environment. There is plenty of space to relax on the porch whether waiting on family and friends to arrive or relaxing with a good book and a refreshing glass of your favorite beverage. The interior layout is equally impressive with its approximate 3,000 square feet of living space that includes loads of entertaining and private spaces for today’s modern family lifestyle. A three car garage features a side entry along with storage space before entering the home where the laundry room, powder room and mudroom are situated. The front entry features a lovely foyer that is open to the office and great room before accessing sliders onto the rear covered porch. The great room features great entertaining space, voluminous ceiling heights, built-in cabinetry, and a warming fireplace. The kitchen is an extension of entertaining with its large center island directly open to the great room. The dining room and walk-in pantry flank the kitchen making the space conveniently accessible to the open floor plan.

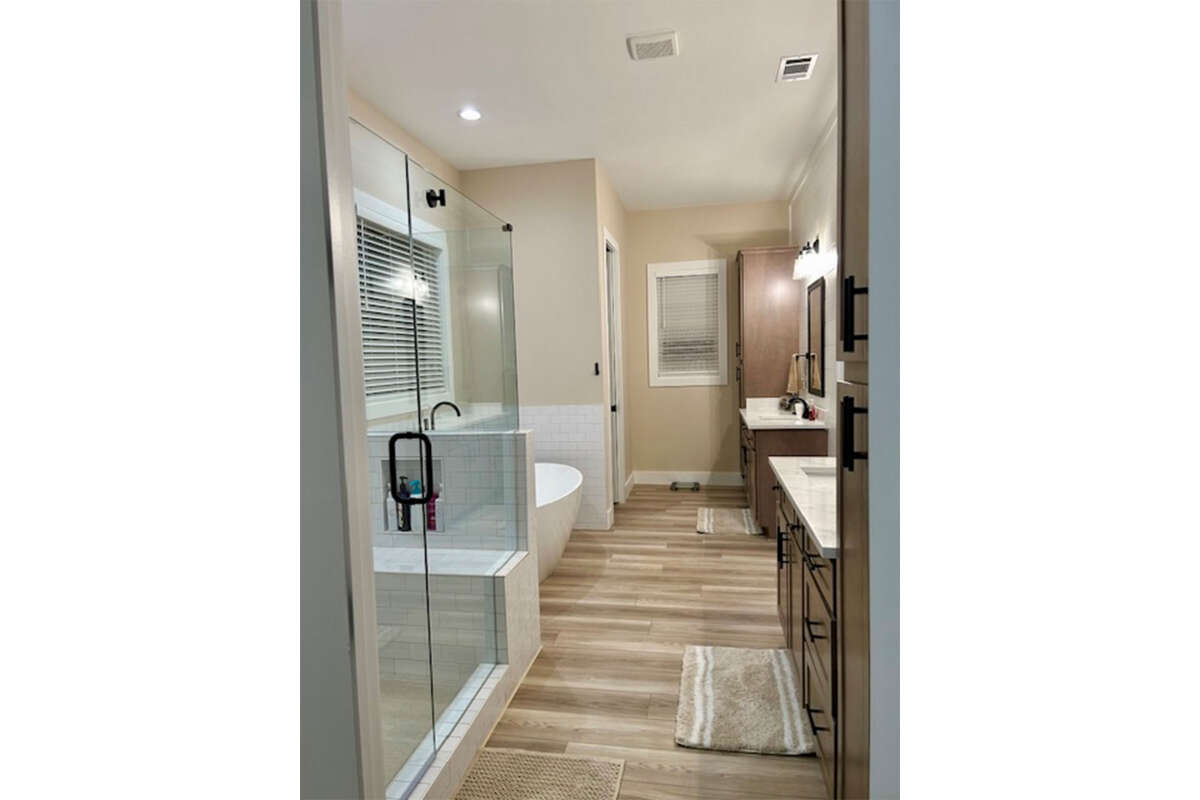

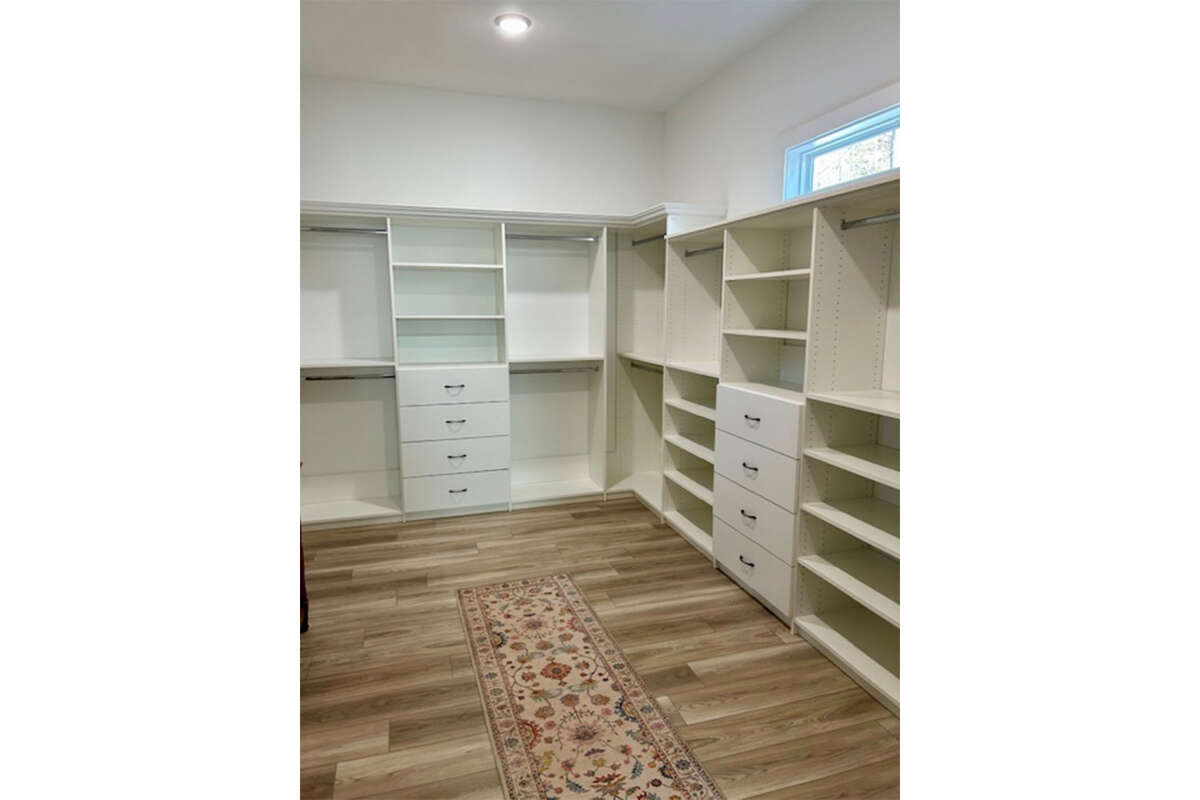

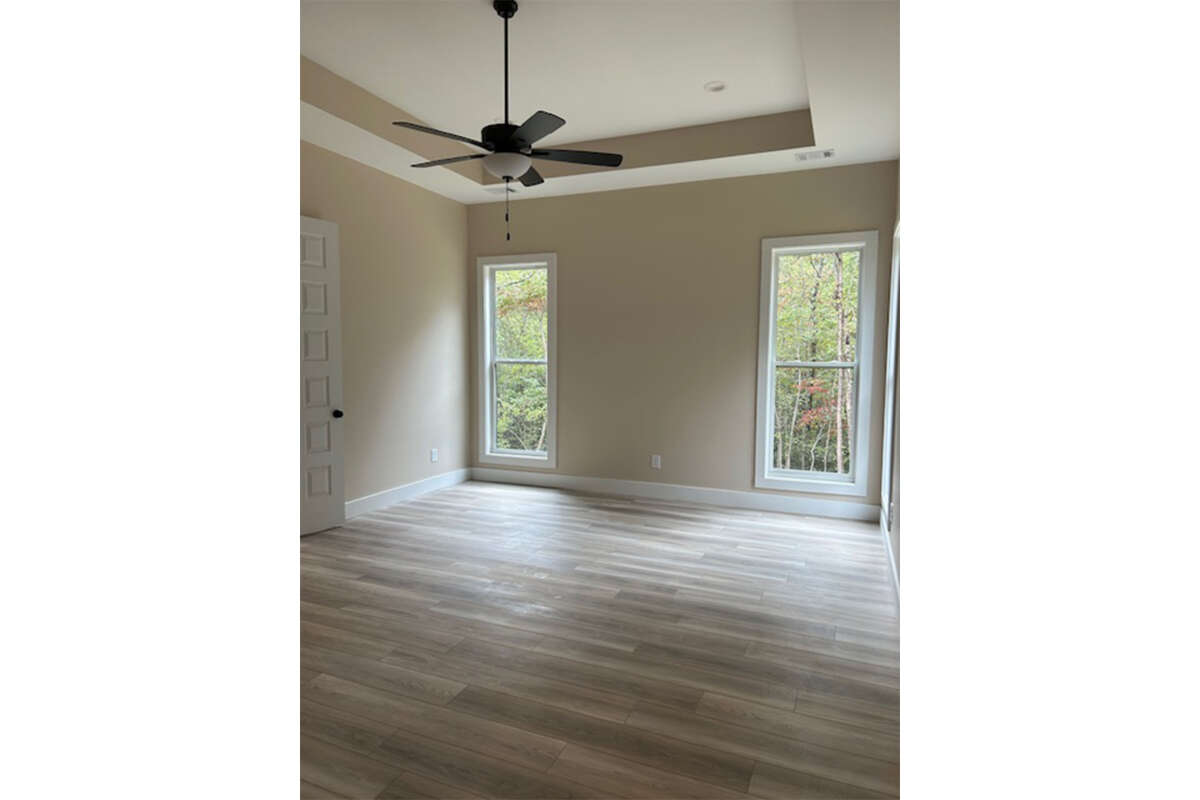

Four bedrooms and three plus baths offer privacy for the family; it’s a great layout for the homeowners with their suite located at the rear of the home. The primary suite features a large bedroom with tray ceiling accent and plenty of window views before accessing the bath and closet. The walk-in closet is huge with a dressing island and enormous space for clothing and other personal items. The en suite bath is luxuriously designed with both a tub and shower, a private toilet room, dual vanities, and linen space. The remaining bedrooms sit diagonally across the home and offer three bedrooms; all with good floor space, window views and ample closet space. Bedroom two has a private bath while the other two share a bath with double sinks. This classic Craftsman home offers a lovely exterior and an open interior floor plan.
