Cottage Plan 041-00279


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 960
Beds 2
Bath 1
1/2 Baths 0
Car 0
Stories 1
Width 30'
Depth 48'

Floorplan Drawings

Main Floor

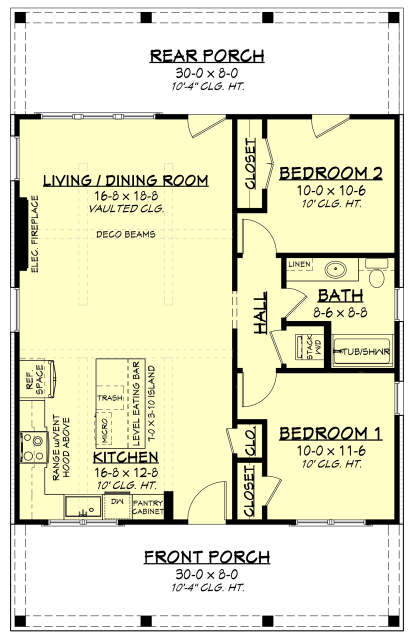

Main Floor  for House Plan #041-00279

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This precious Cottage house plan features a charming front covered porch to entice your family and friends into the home. Measuring the width of the exterior, the front porch offers beautiful aesthetic detailing with its exposed rafters, warm wooden beams, brick staircase and a symmetrical front entrance. The centrally located front door grants access into the open floor plan where there are approximately 960 square feet of living space. Moving through the space, is a large kitchen with a level eating bar/island where food prep and conversation can be enjoyed. A pantry and counter and cabinet space complete the kitchen before entering the adjoining living and dining room. There are vaulted ceiling heights, decorative beams and an electrical fireplace for warmth and character. The rear wall of the living room features a three window wall and outdoor access to the rear covered porch; this porch is identical to the front porch, measures 30’ x 8’ and offers ceiling heights of 10’4”, perfect for outdoor entertaining, dining or “hanging out” with family and friends.

There are two bedrooms and one bath along the hall corridor which is accessed from the living/dining spaces. The rear bedroom features 10’ ceiling heights and a back entrance along with ample closet space. The front bedroom features window views onto the side yard and front porch and, again, there is plentiful closet space. Along the hallway is a stackable washer and dryer and the shared bathroom. The bathroom is highlighted with a large vanity and linen space that also features a toilet area and a tub/shower combination. This is a wonderful vacation home or forever home for a couple looking to downsize.
