Log Plan 039-00064

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,485
Beds 2
Bath 2
1/2 Baths 0
Car 2
Stories 2
Width 36'
Depth 27'

Floorplan Drawings

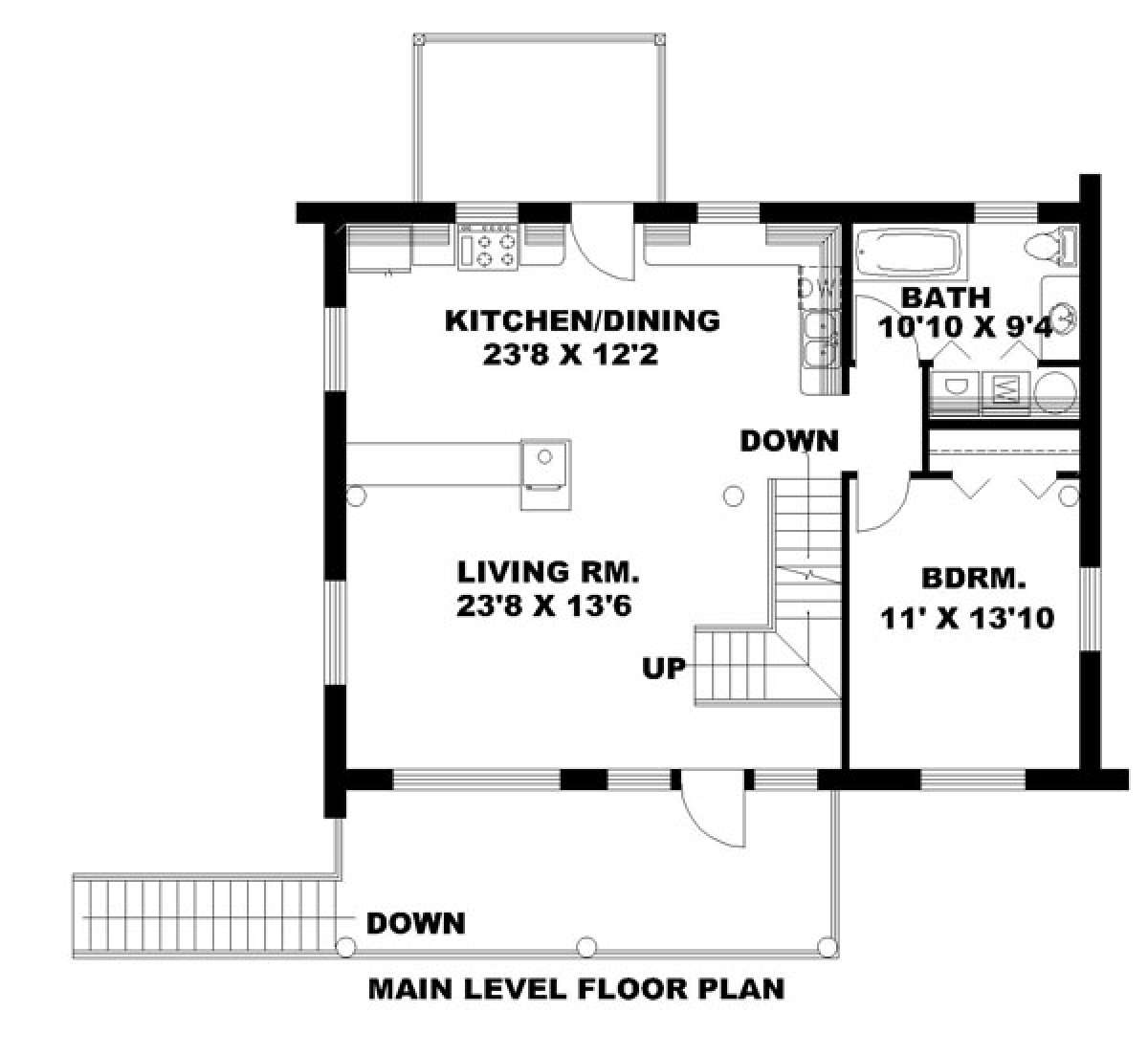

Main
Main for House Plan #039-00064

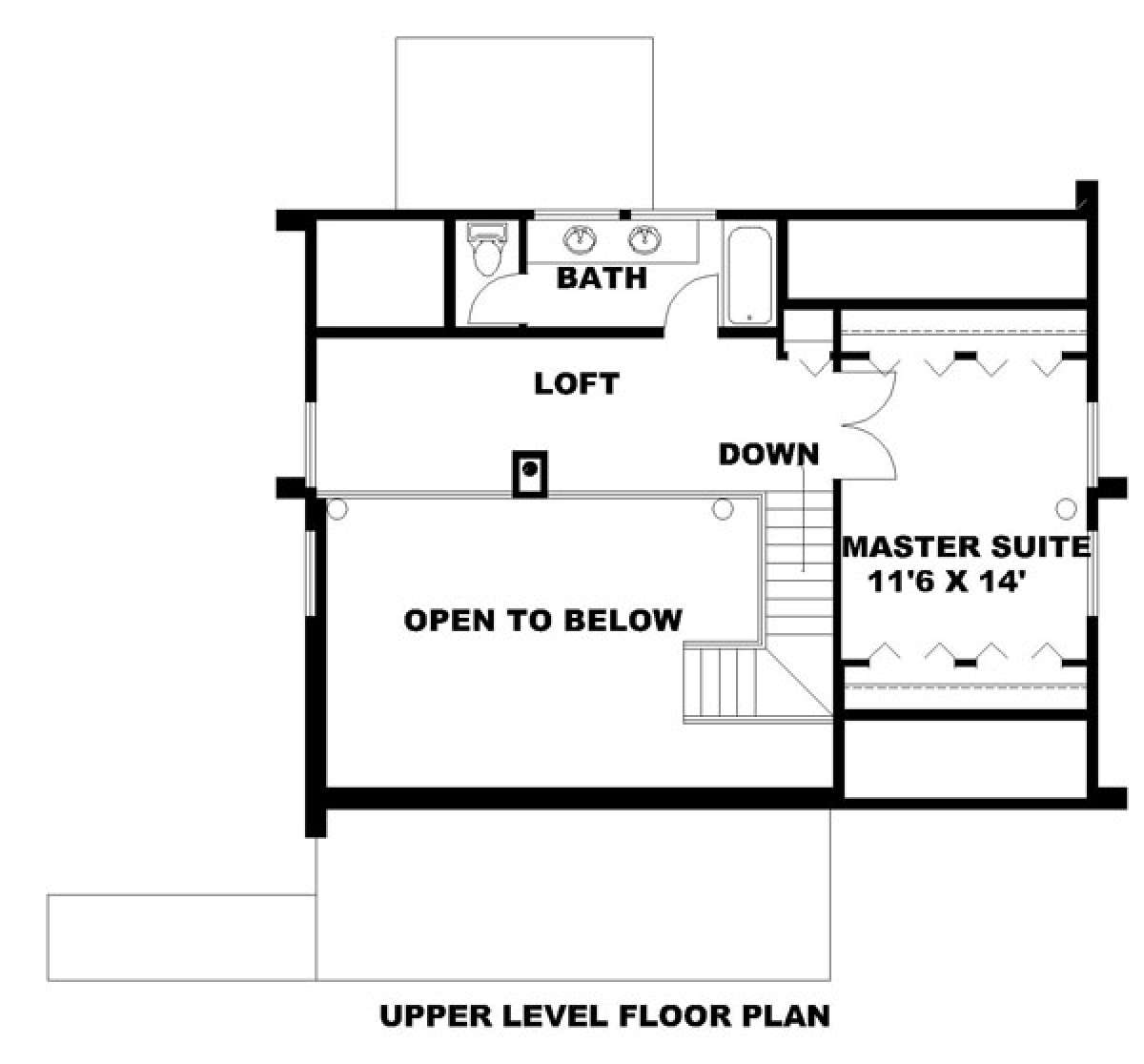

Second Floor
Second Floor for House Plan #039-00064

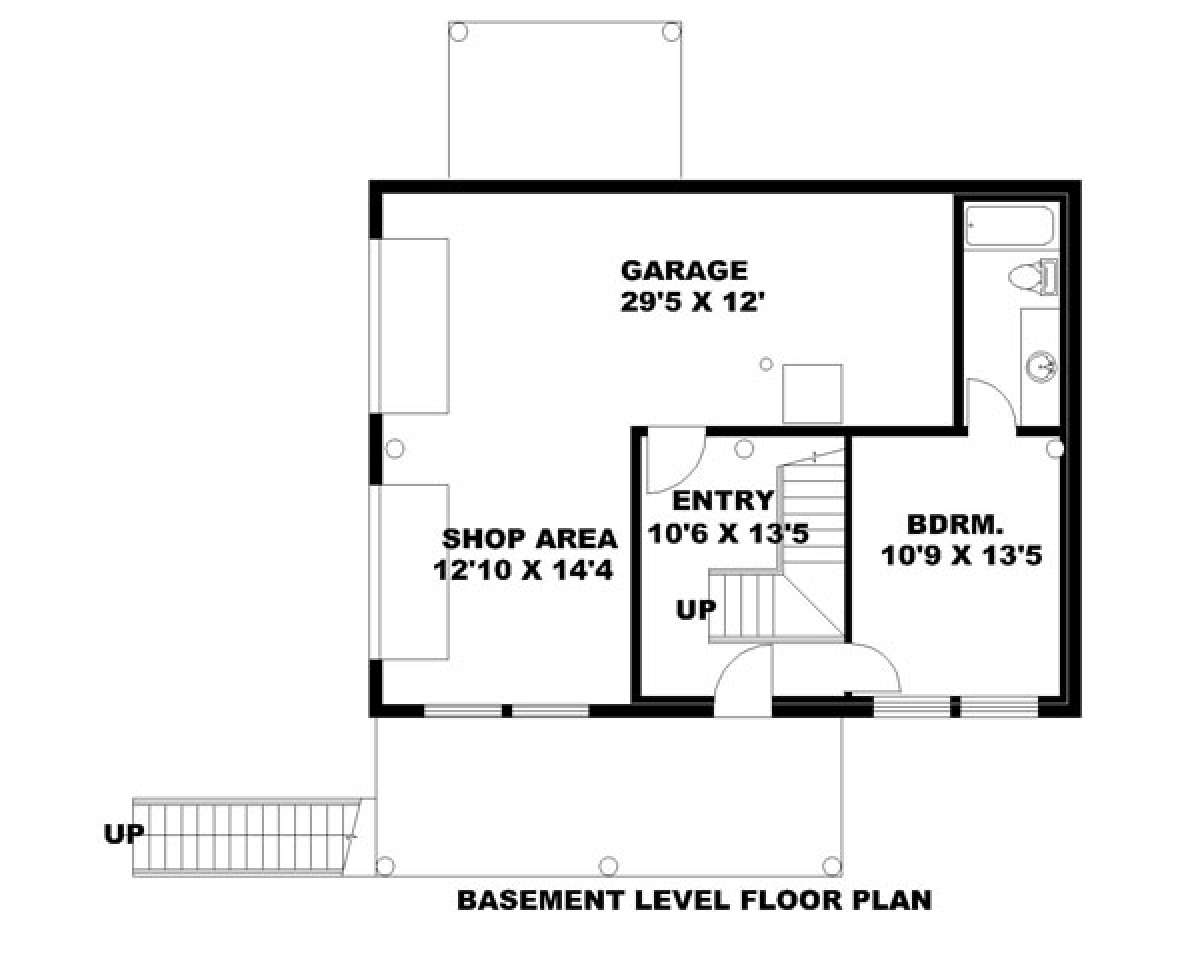

Lower Level
Lower Level for House Plan #039-00064


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A simple way of life is highlighted in this Log Cabin house plan with plenty of wide open spaces and an exterior façade brimming with natural design elements. There is stacked stone outlining the lower level of the home whereas timber logs and wood are featured on the remainder of the home creating a juxtaposition of styling elements. This beautiful blend of contrasting architectural elements gives the home visual interest and a welcoming façade. Additionally, the multitude of window inserts allow the home to be infused with light and assist in softening the home’s exterior. The interior floor plan offers approximately 1,485 square feet of living space and there is an unfinished basement foundation that almost doubles the square footage of the home. This is a comfortable home for everyday living or a vacation home and the width and depth dimensions are such that the home is well suited for a narrow or small lot. Two bedrooms and two baths are incorporated into the space and the basement foundation allows for expansion which could include a third bedroom and a complete third bath. In addition to the expandable space, there is vehicle space, a workshop area and an enclosed staircase to the main floor of the home.
The main floor of the home features an open concept living plan consisting of an expansive living room, measuring in excess of 23’x13’ that is enveloped in amazing window views. The kitchen and dining space lie beyond the living room and there is a breakfast bar for casual dining and a plethora of modern amenities that line the rear and side walls of the space along with rear access. A comfortable sized bedroom could be utilized as a guest suite or second bedroom; there are great window views here, as well, and plentiful closet space. The adjacent full bath features a tub/shower combination, a large vanity, toilet area and room for the laundry facilities. The second story staircase provides views onto the main living spaces below and opens onto a large loft space. This space is quite large and could function as a sitting room or multi-purpose room for the master suite. The master suite is private and self-contained; there is a spacious master bedroom with double closets on the end caps of the room. A linen closet sits directly outside the master bath where dual vanities, a compartmentalized toilet and a tub/shower combination are located. Inclusive of the additional loft space, this level is a complete master suite with loads of relaxing and sleeping space. This Log Cabin home features modern touches and a rustic exterior designed for the homeowner’s pleasure and comfort.
