Lake Front Plan 039-00036

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,576
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 2
Width 52'
Depth 60' 2"

Floorplan Drawings

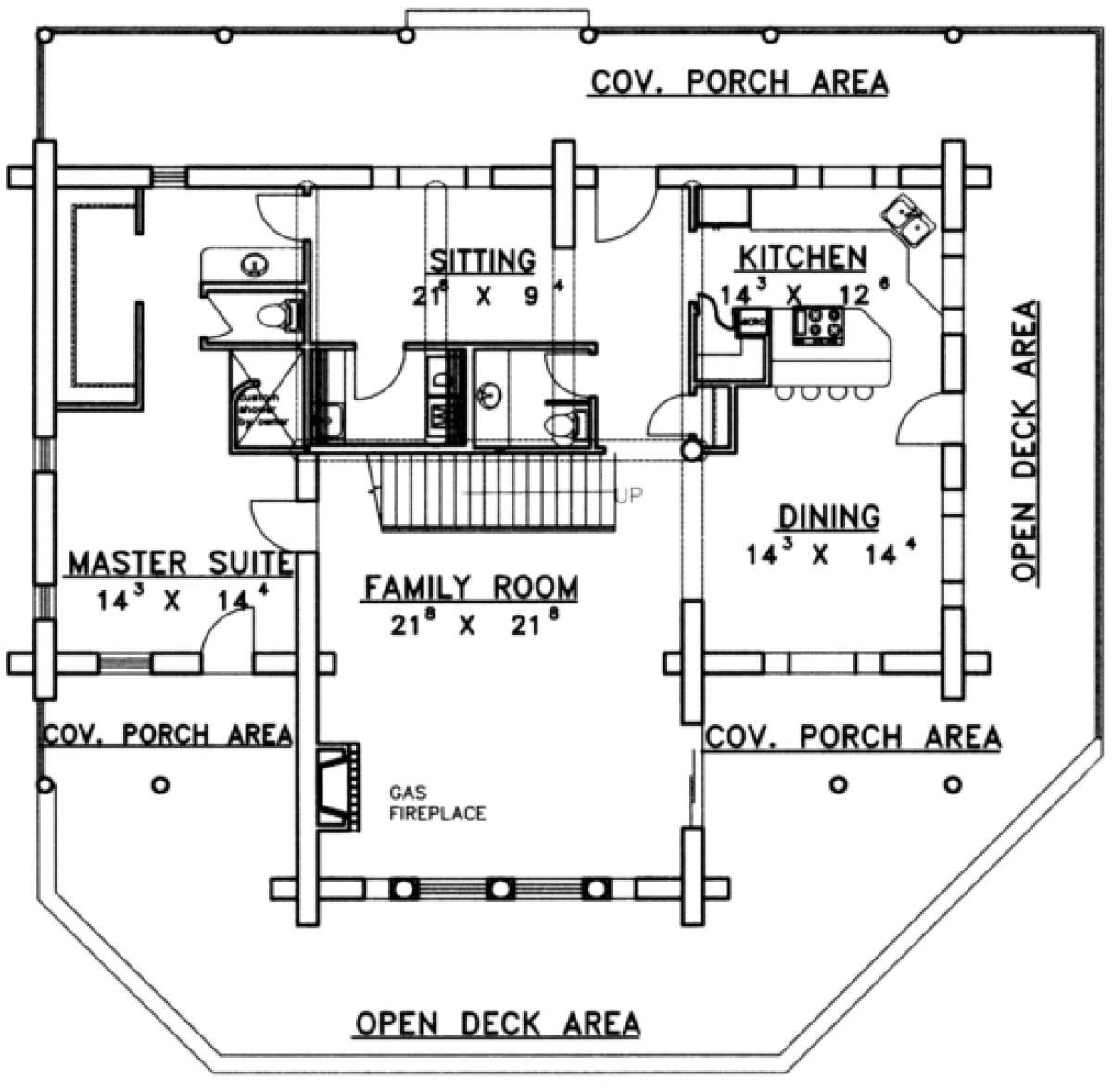

First Floor
First Floor for House Plan #039-00036

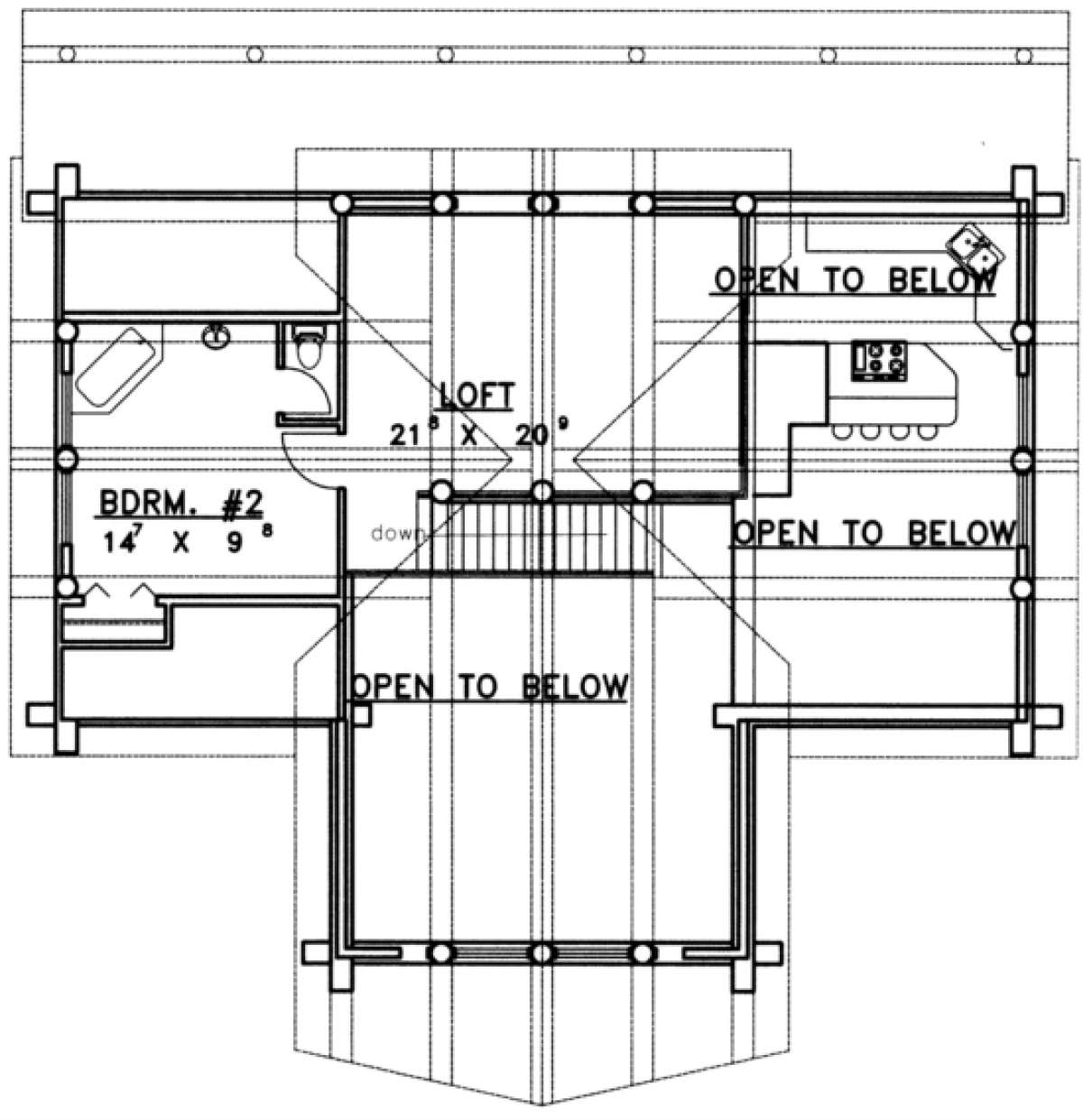

Second Floor
Second Floor for House Plan #039-00036


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

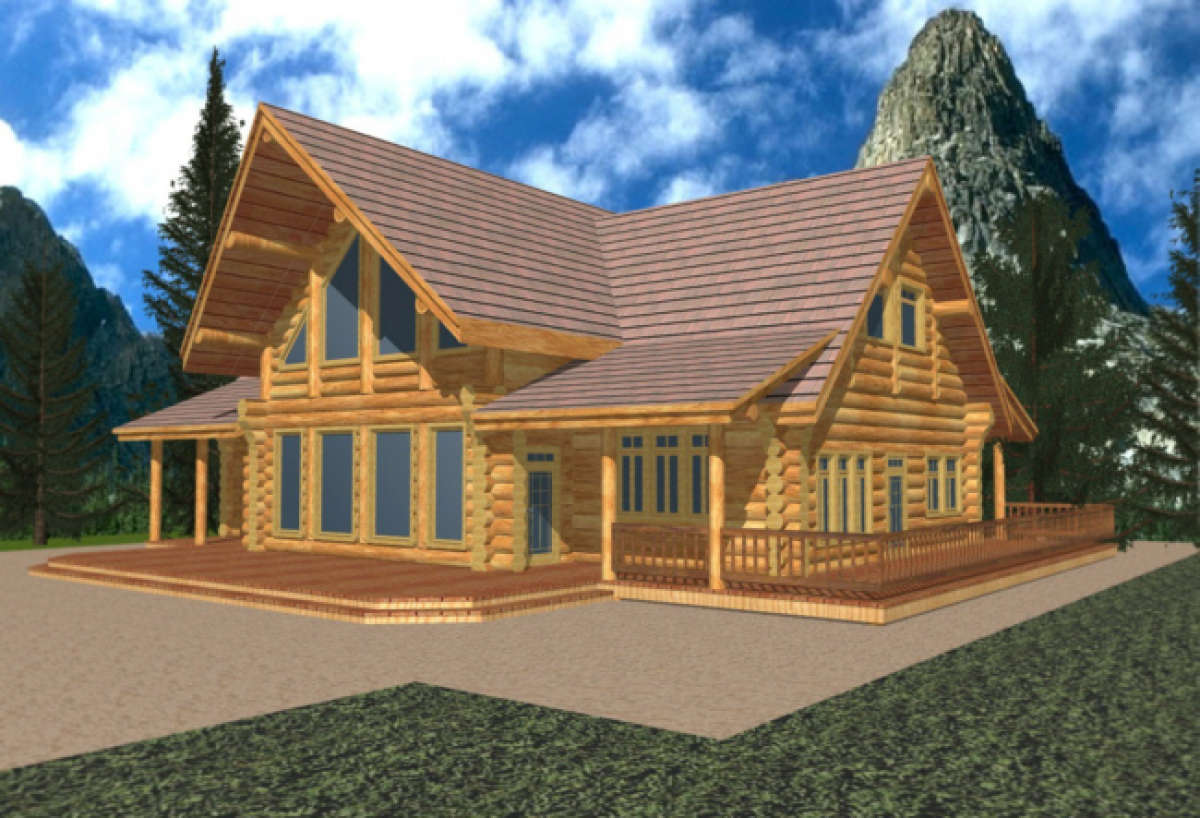

This Log Cabin plan is a perfect design for either a Mountain or Lakefront property lot with its combination of wonderful window inserts and abundant outdoor space. The views, both on the exterior and interior would be amazing for nature lovers and outdoorsmen/women; imagine coming home after a day’s adventure and relaxing in this home with its double open decks and covered porches. The interior floor plan houses a spacious 2,576 approximate square feet of living space with an open floor plan, two bedrooms, an overhead loft and two baths. The front covered porch provides access into the home’s open floor plan; there is a large family room with warming fireplace and beautiful window views. The adjacent dining room is perfect for family dinners or special occasion meals with its plentiful space, window views and open deck access. The U-shaped kitchen features additional peninsula bar seating, a separate pantry and plenty of counter and cabinet space. There is a separate entry/exit point from the kitchen hallway onto the rear covered porch for ease of transport when dining outdoors. The main level master suite is a beautiful arrangement of well-designed rooms and include a spacious master bedroom with private access onto the second, smaller front covered porch and subsequent open deck. The master bath is highlighted with a large vanity space, a compartmentalized toilet area and shower. There is a large master walk-in closet and a huge sitting room which could also be utilized as a home office. A guest powder room and laundry room complete the first floor of the home.

The second floor of the home features a second bedroom with a complete full bath, plenty of closet space and wonderful window views. A generously sized loft area, measuring in excess of 21’ x 20’ overlooks the common rooms below, has great rear window views and plenty of space for overnight guests. The room could conversely function as a secondary casual living space, an artist’s studio or as a multi-purpose family room. This Lakefront house plan is generously proportioned both on the interior and exterior, features amazing viewing opportunities, offers abundant outdoor space and a functional, versatile floor plan.
