Modern House Plan 028-00109

Sq Ft1,456
1/2 Baths0
Width56' 0"
Depth56' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

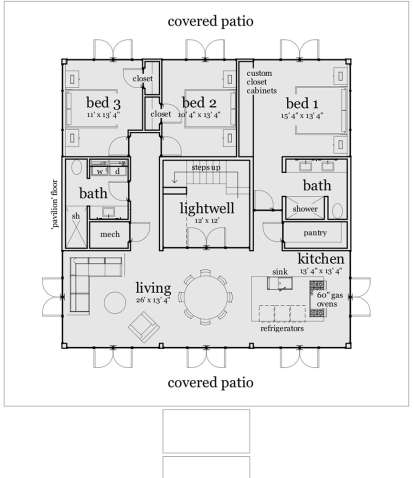

Main Floor for House Plan #028-00109
Rooftop Garden for House Plan #028-00109

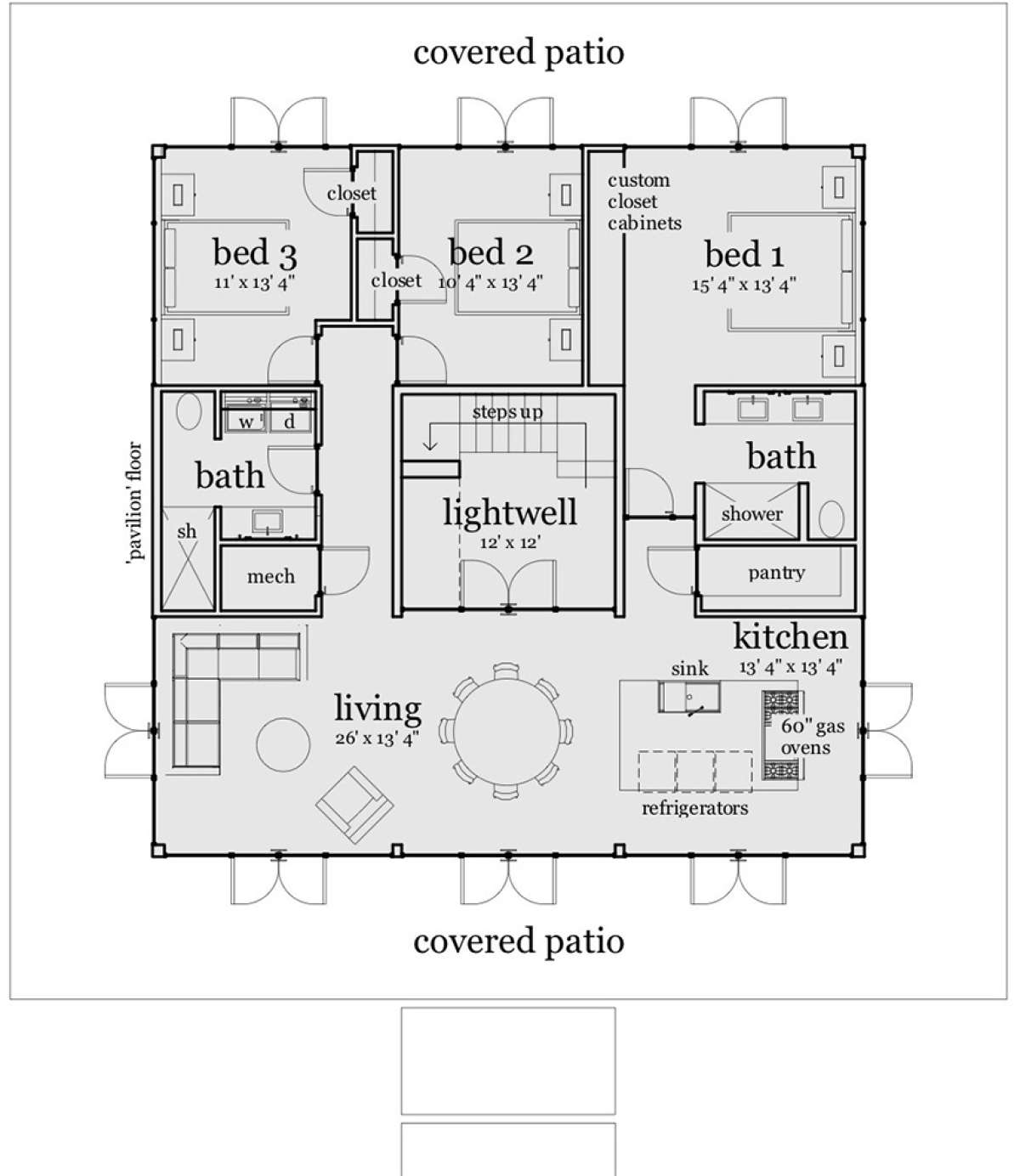

Main Floor
Main Floor for House Plan #028-00109

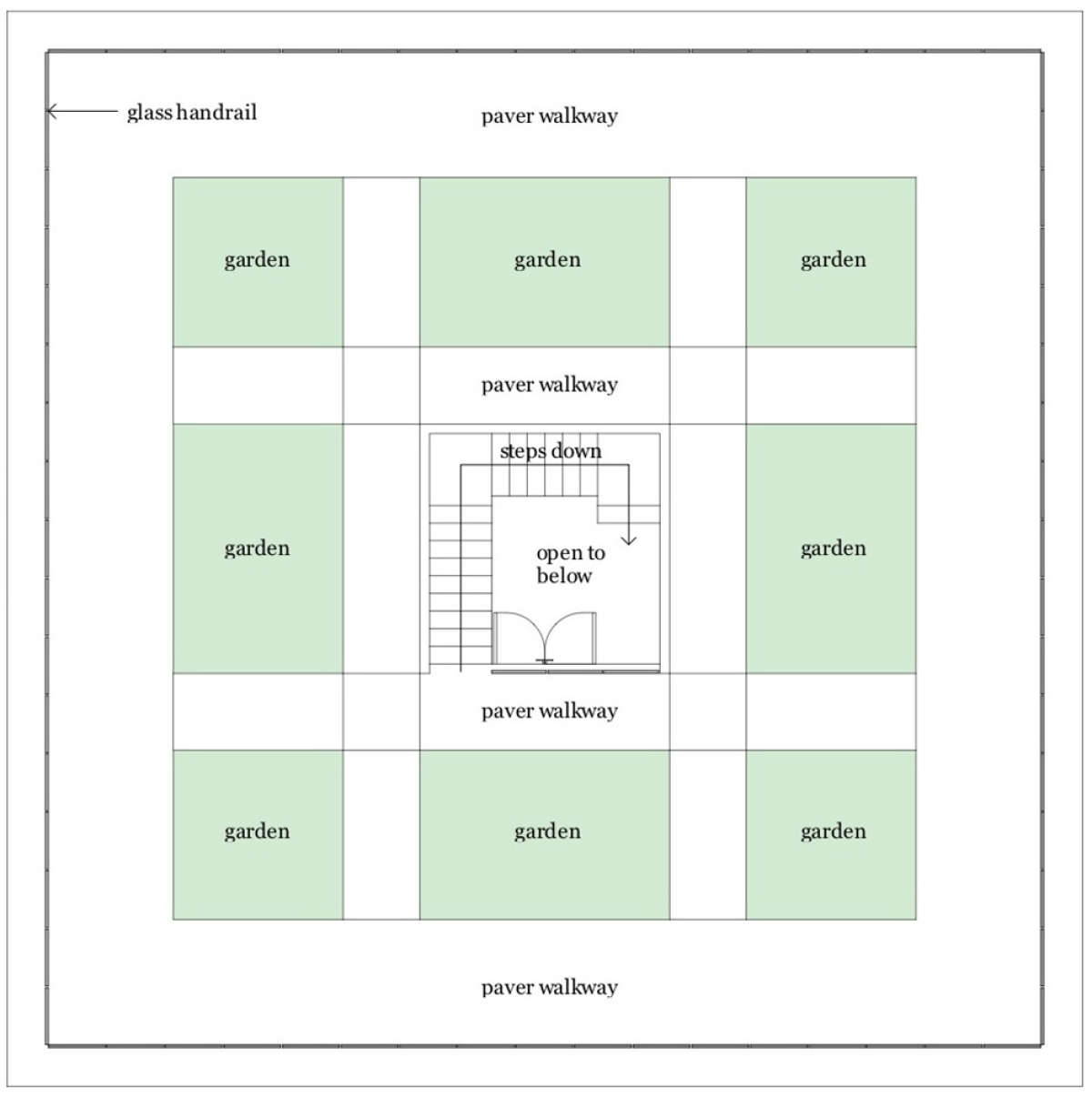

Rooftop Garden
Rooftop Garden for House Plan #028-00109

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

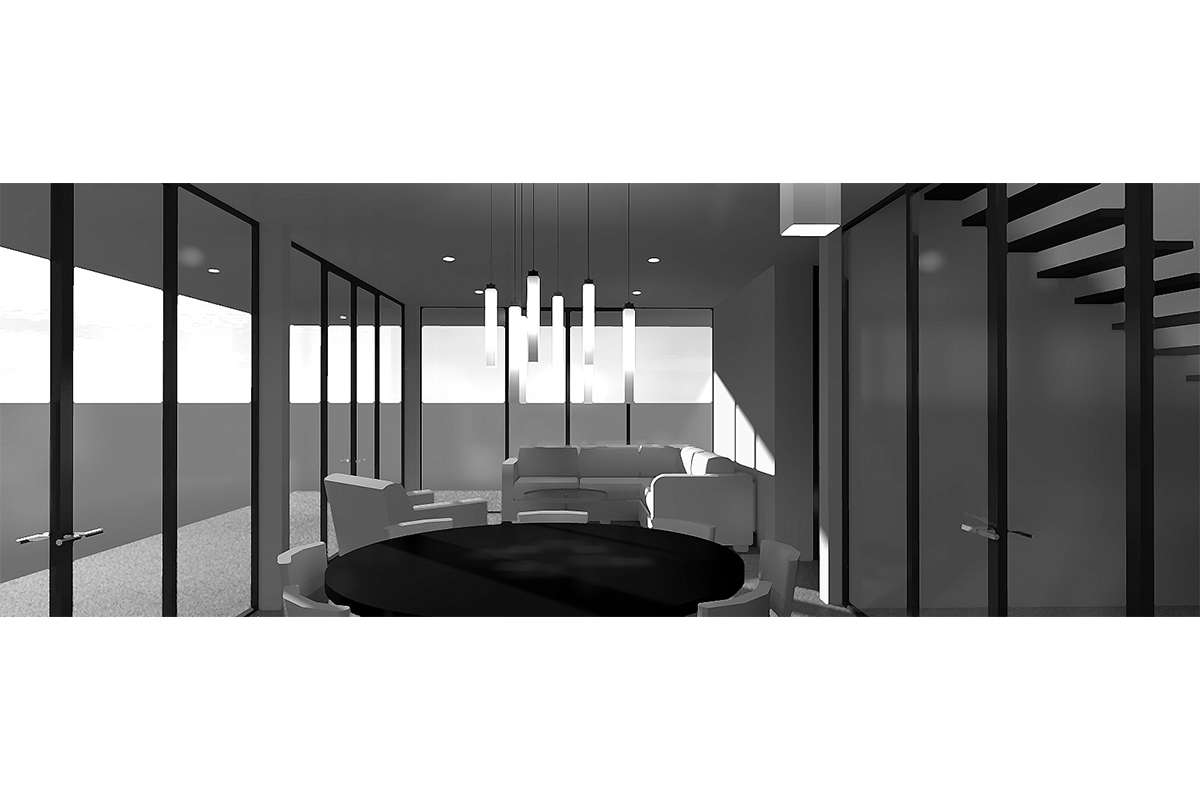

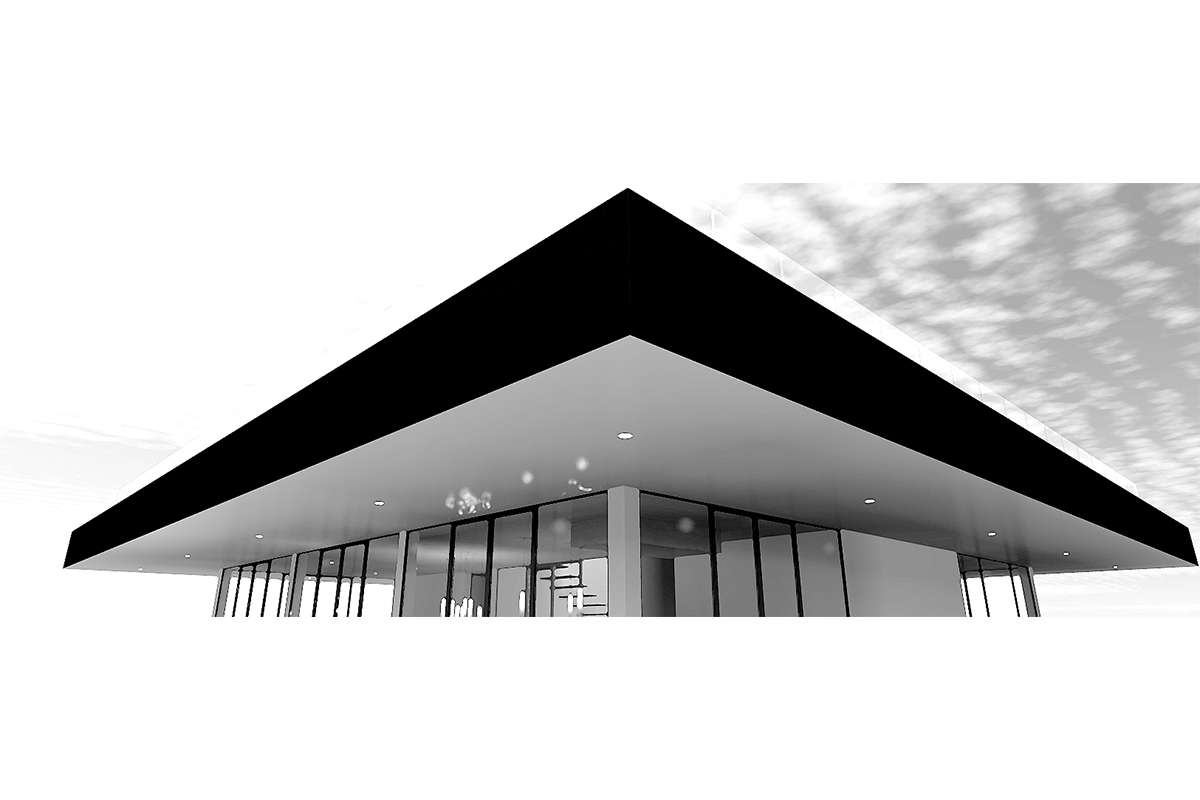

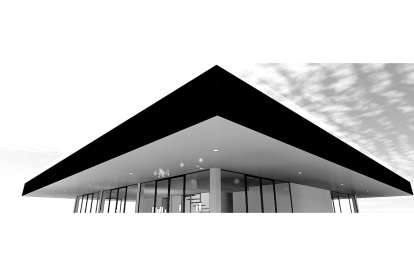

This structurally impressive modern floor plan encompasses and exceeds the standards assigned to modern living. The exterior of the home is defined by modern architecture associated with the genius of Frank Lloyd Wright with its use of a cantilevered roof top, transparent open floor plan and a strong horizontal composition of floating glass and stone. The whitewash exterior blends beautifully with an extravagant series of glass inserts to create a modern home filled with light and great views. The interior floor plan features 1,456 square feet of living space on one floor and contains three bedrooms and two baths. The outdoor patio surrounds the home on four sides and the interior floor plan offers a multitude of access points onto the patio. The living and dining spaces alone feature five outdoor access points which gives the home an abundance of light and blends the indoor/outdoor spaces beautifully. The open living and dining rooms measure in excess of 26’x13’, which allow for maximum configuration of furniture placement and entertaining options. The kitchen features a solid center island which is the work horse of the space; it houses the 60” gas oven and stove top along with multiple under counter refrigerators and a double sink. Additionally, an enormous walk-in pantry is situated on the back wall of the kitchen. The centrally located light well is accessed through French doors and provides a staircase to the translucent enclosed rooftop. This space is surrounded by an exterior paver walkway and houses multiple garden spaces within individual walkways; this innovative and superiorly designed space makes for sustainable gardening in varying climates.

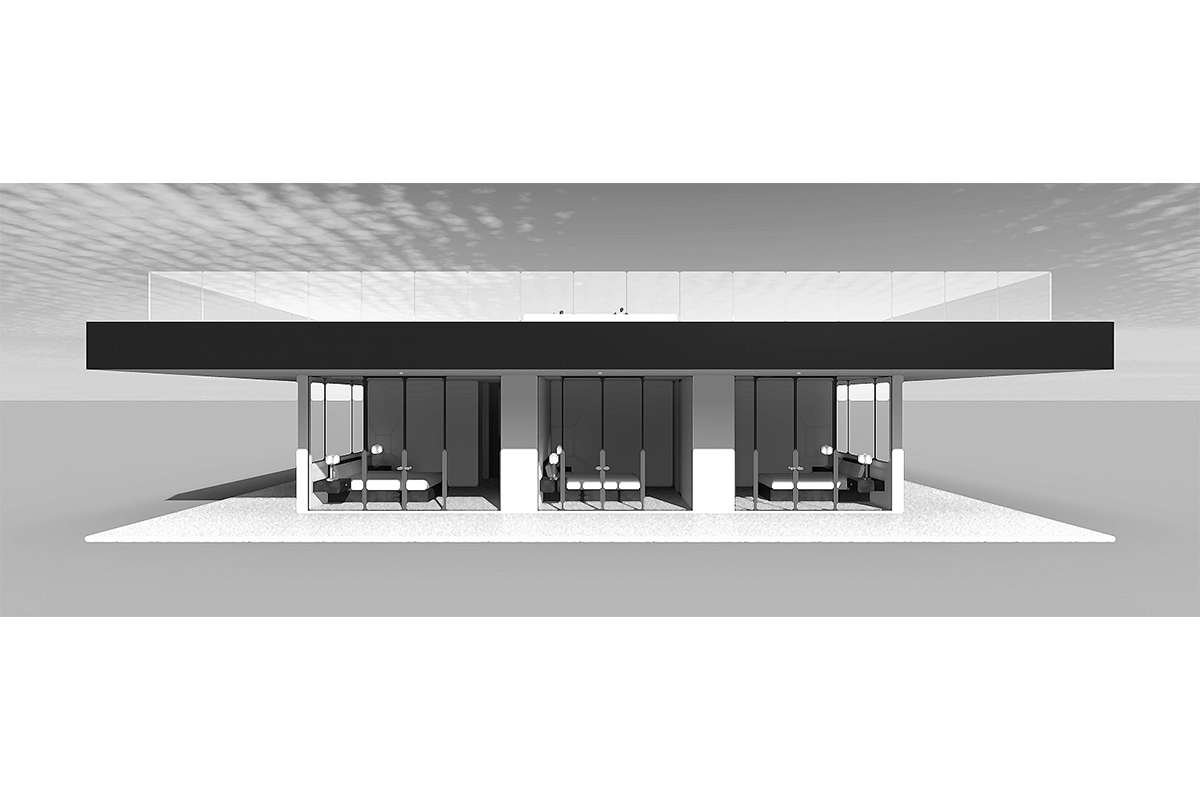

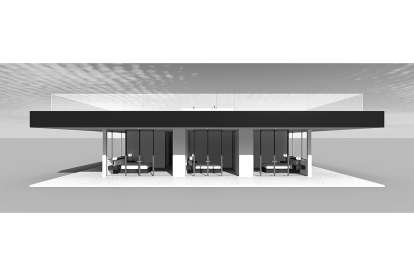

Two spacious family bedrooms occupy the rear of the home which are infused with glass inserts and provide French door access to the patio. Both bedrooms are spacious and contain ample closet space. A shared hall bath features a shower, private toilet area and houses the laundry nook. The master suite contains a spacious bedroom which features glass inserts, French door access to the patio and a built-in custom cabinet wardrobe. The elegantly designed master bath is highlighted by dual vanities, a private toilet and shower. This modern house plan exceeds comfort and versatility requirements with cutting edge design elements and an ingenious floor plan and rooftop.
