Ranch Plan 5633-00185


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,171
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 38'
Depth 46' 6"

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #5633-00185

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.

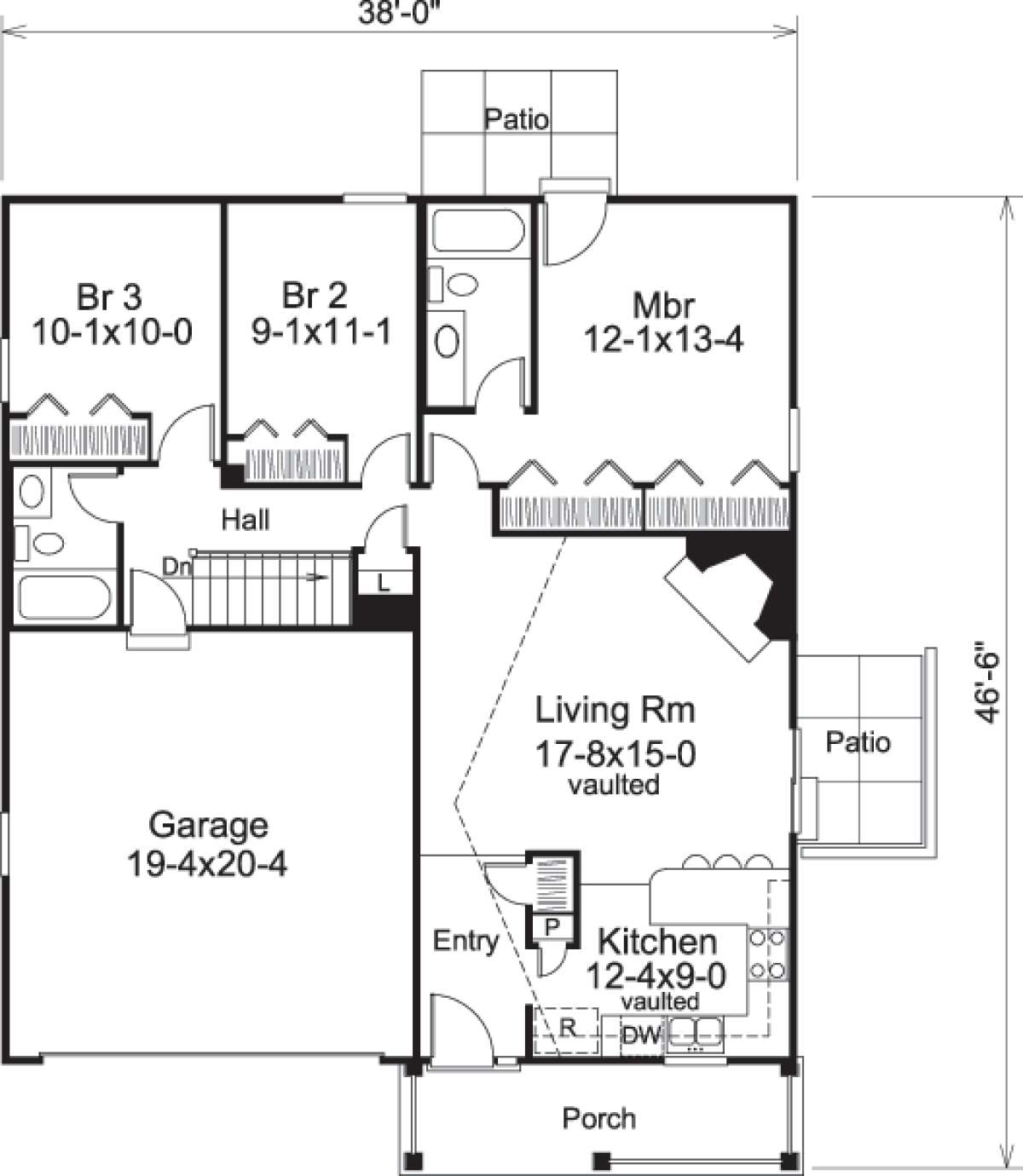

    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

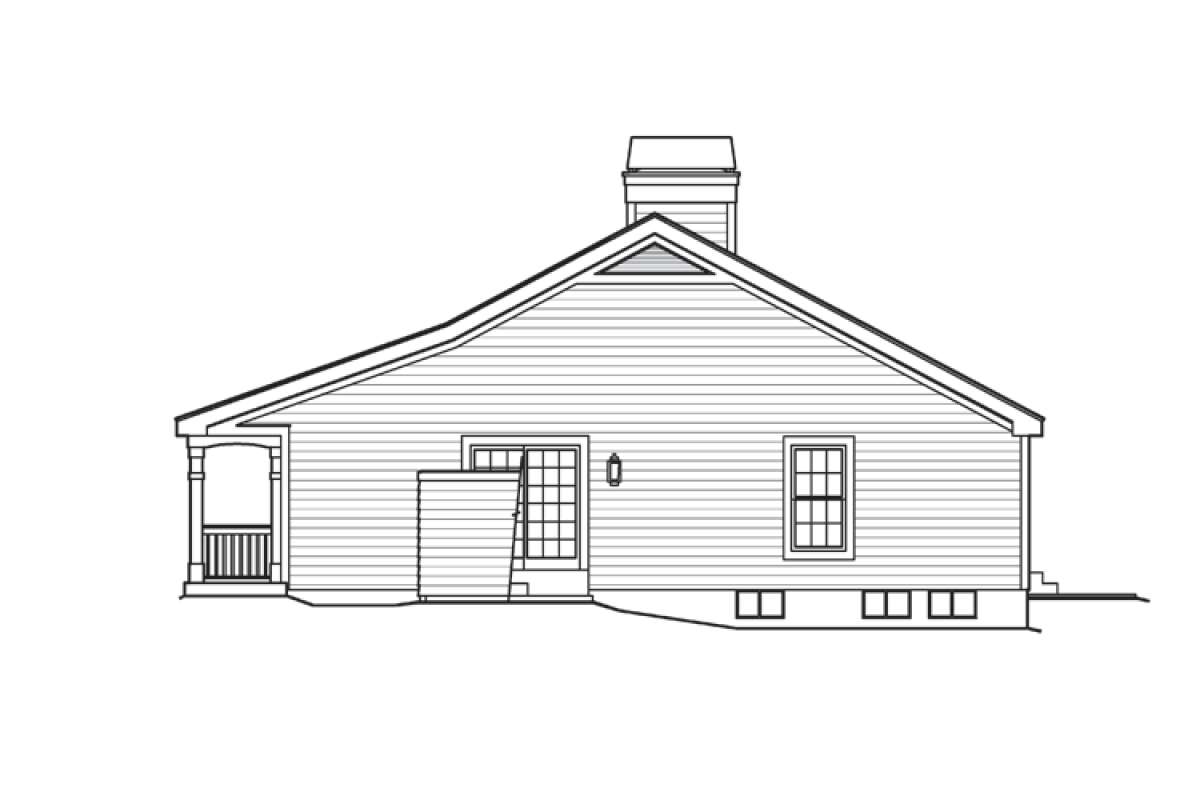

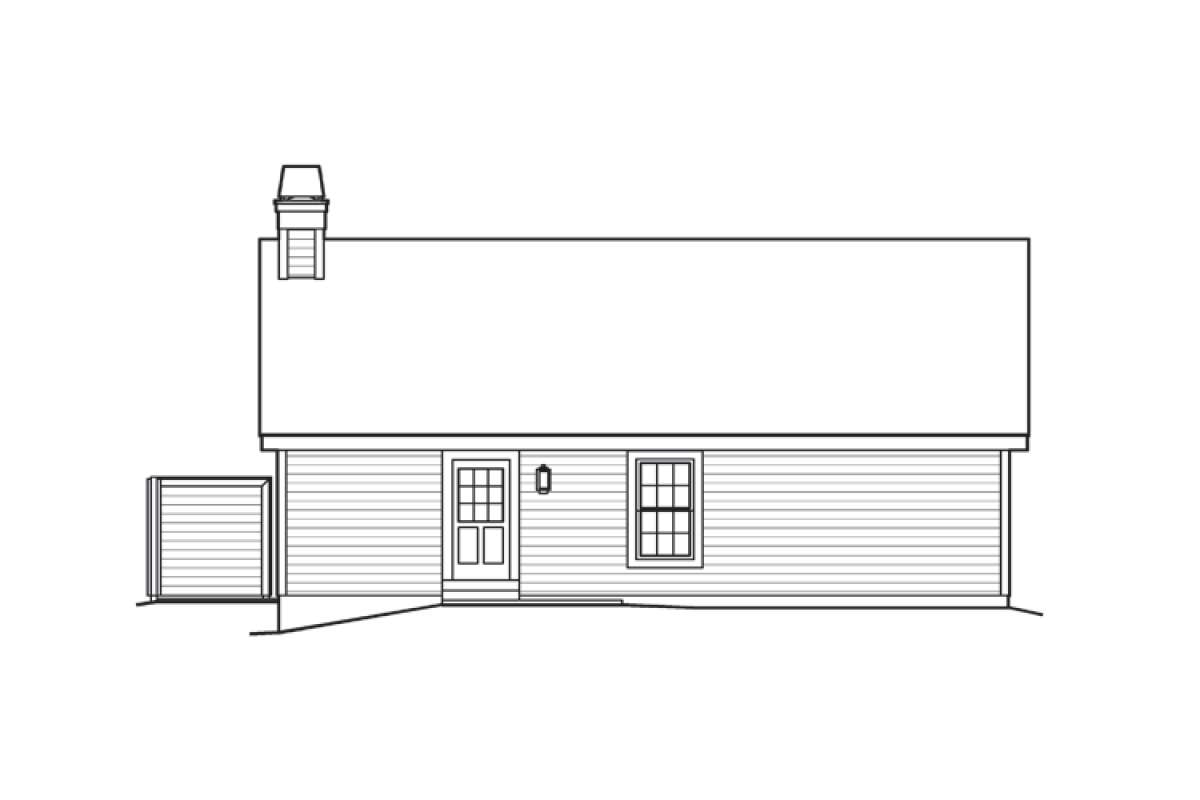

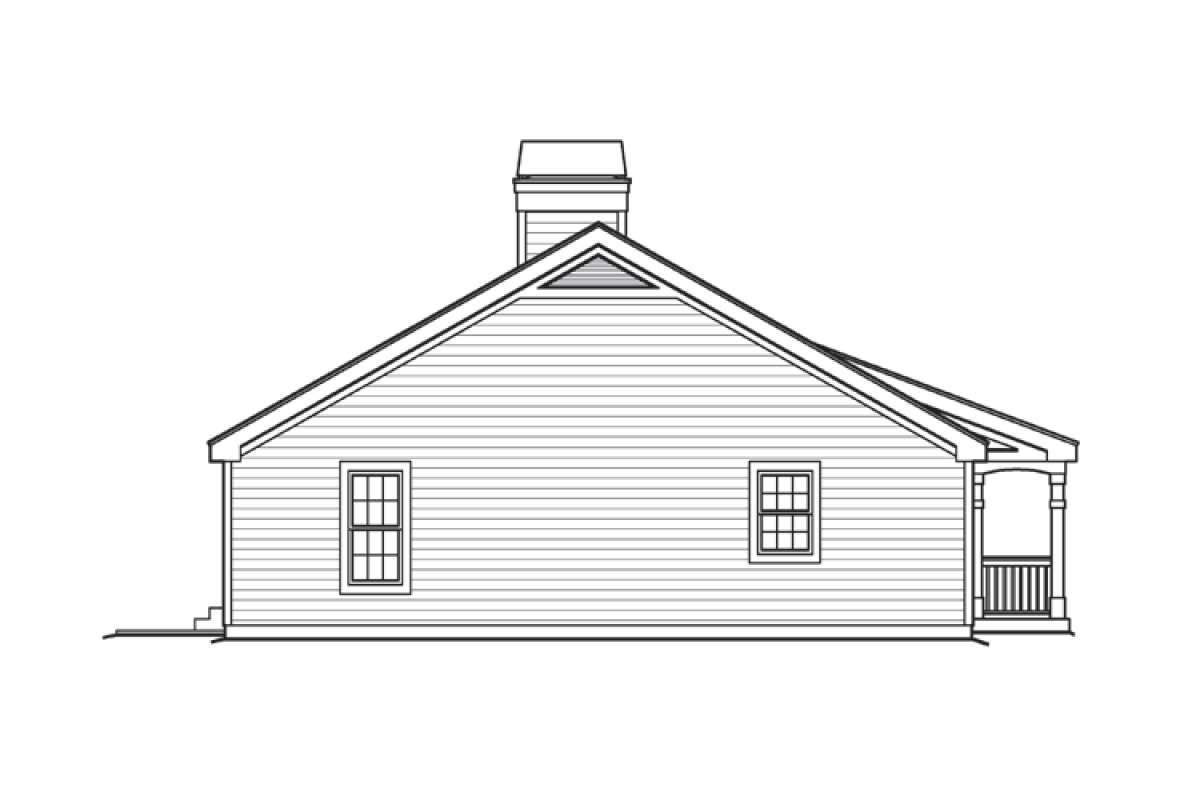

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Approximately 882 square feet of living space grace this Country house plan which contains two bedrooms and one bath. Optional floor plan foundations include a slab, crawl space or a basement foundation which would add additional square footage and value to the home. The house is ideally suited for a narrow or small lot due to its 26’ width and 40’ depth. The attractive exterior façade features a double window dormer, barrel arched front covered porch and French door access into the home. The interior floor plan features an open concept design and the bedrooms are situated at the rear of the home for privacy. The spacious foyer contains a coat closet for guests and family and fans out either down the bedroom hallway or into the main living areas. There is a vaulted living room with double window views and the adjacent dining space features a triple bay window for enhanced natural light into the home. The U-shaped kitchen is open to the dining space and features a bar area, a separate pantry and plenty of additional counter and cabinet space. The hallway houses the laundry nook and shared bath which features a large vanity, toilet area and a tub/shower combination. Bedroom two is spacious with double window views and ample closet space. Bedroom one features spacious accommodations, two closets and private rear patio access. This is a lovely home with a functional interior floor plan ideally suited for a small family, young couple or business professionals.
