Ranch Plan 035-00214

What's Included in these plans?

• Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
• Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

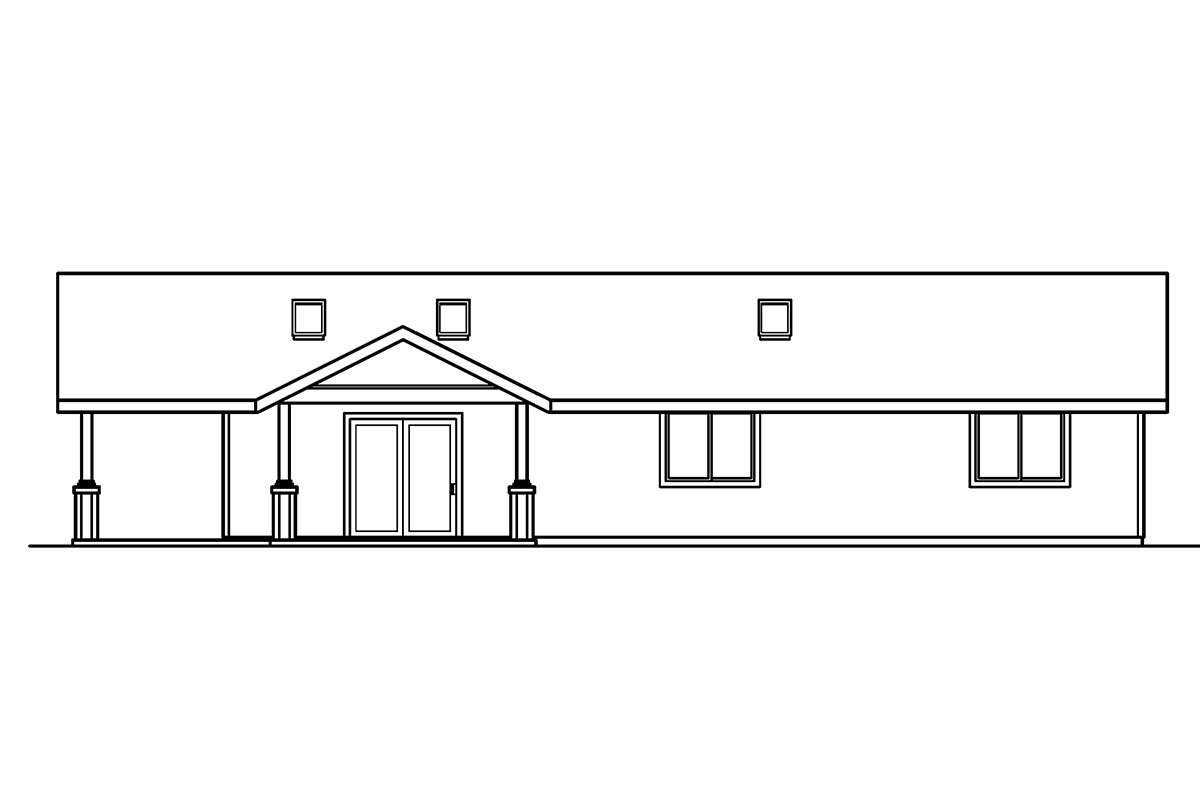

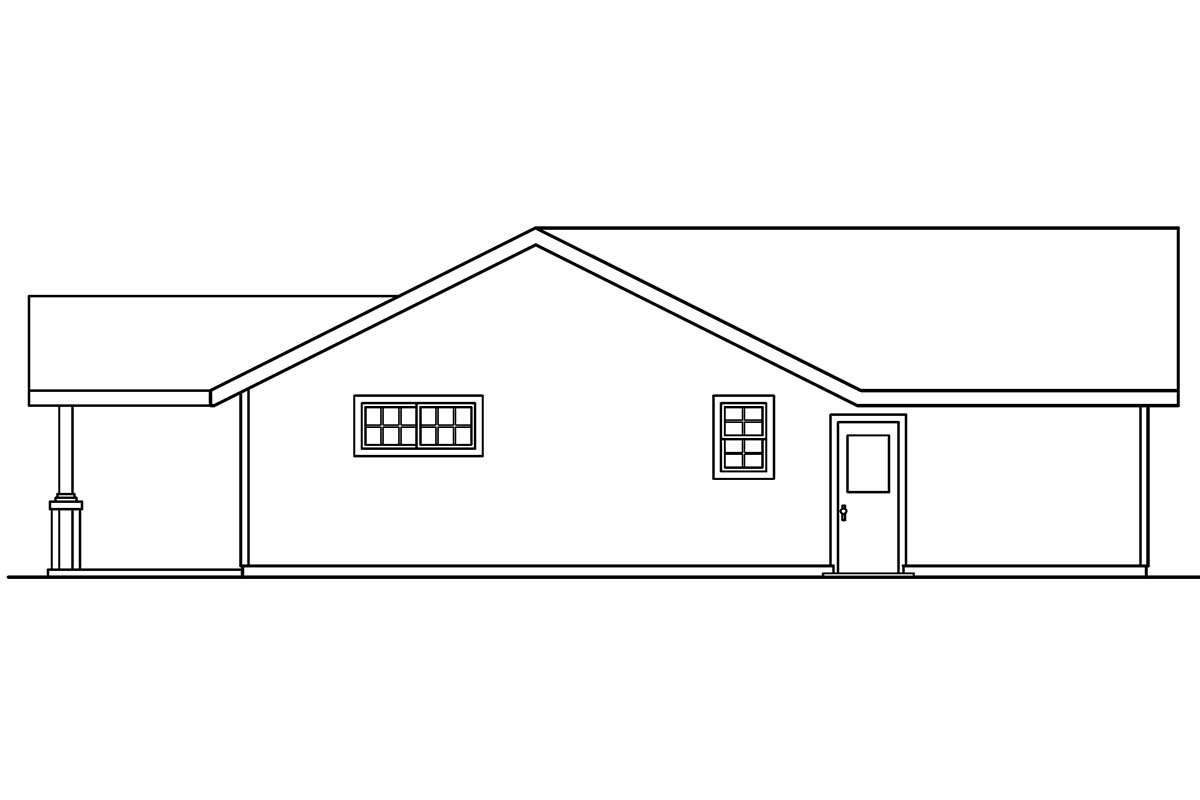

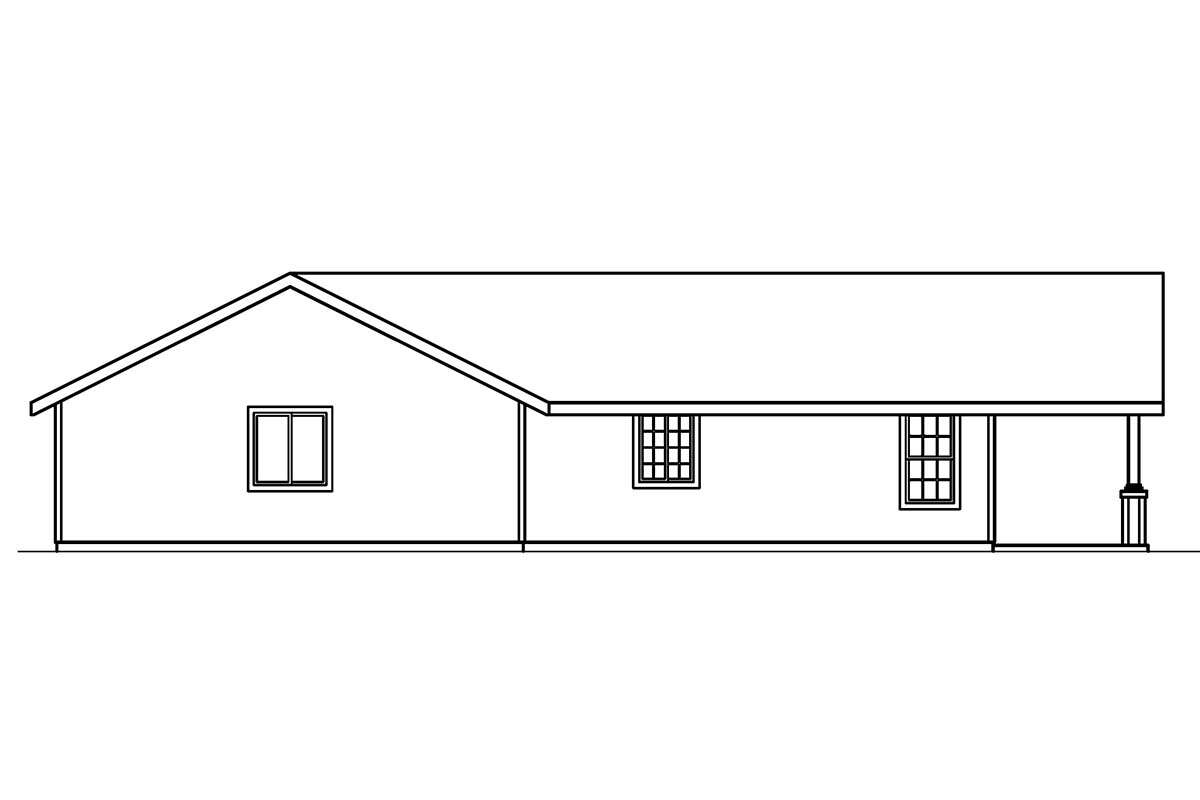

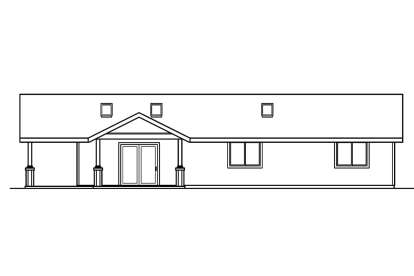

• Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

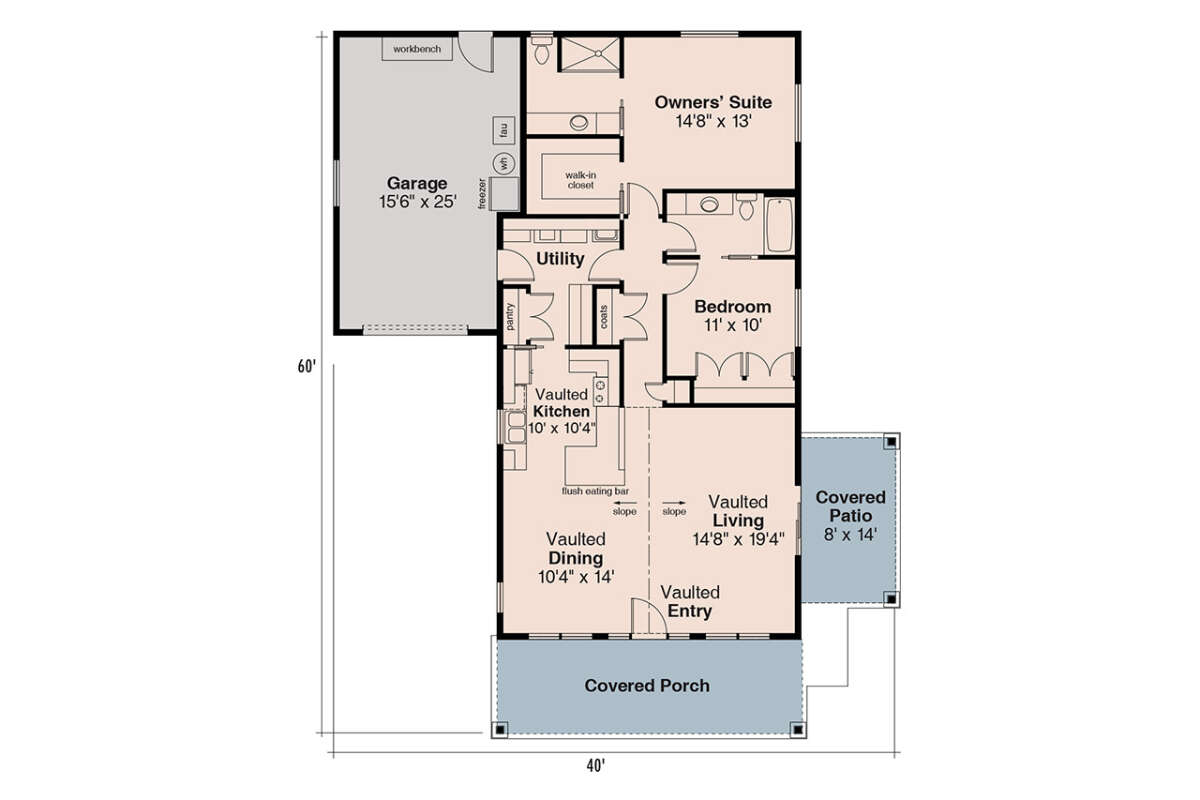

• Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
• Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

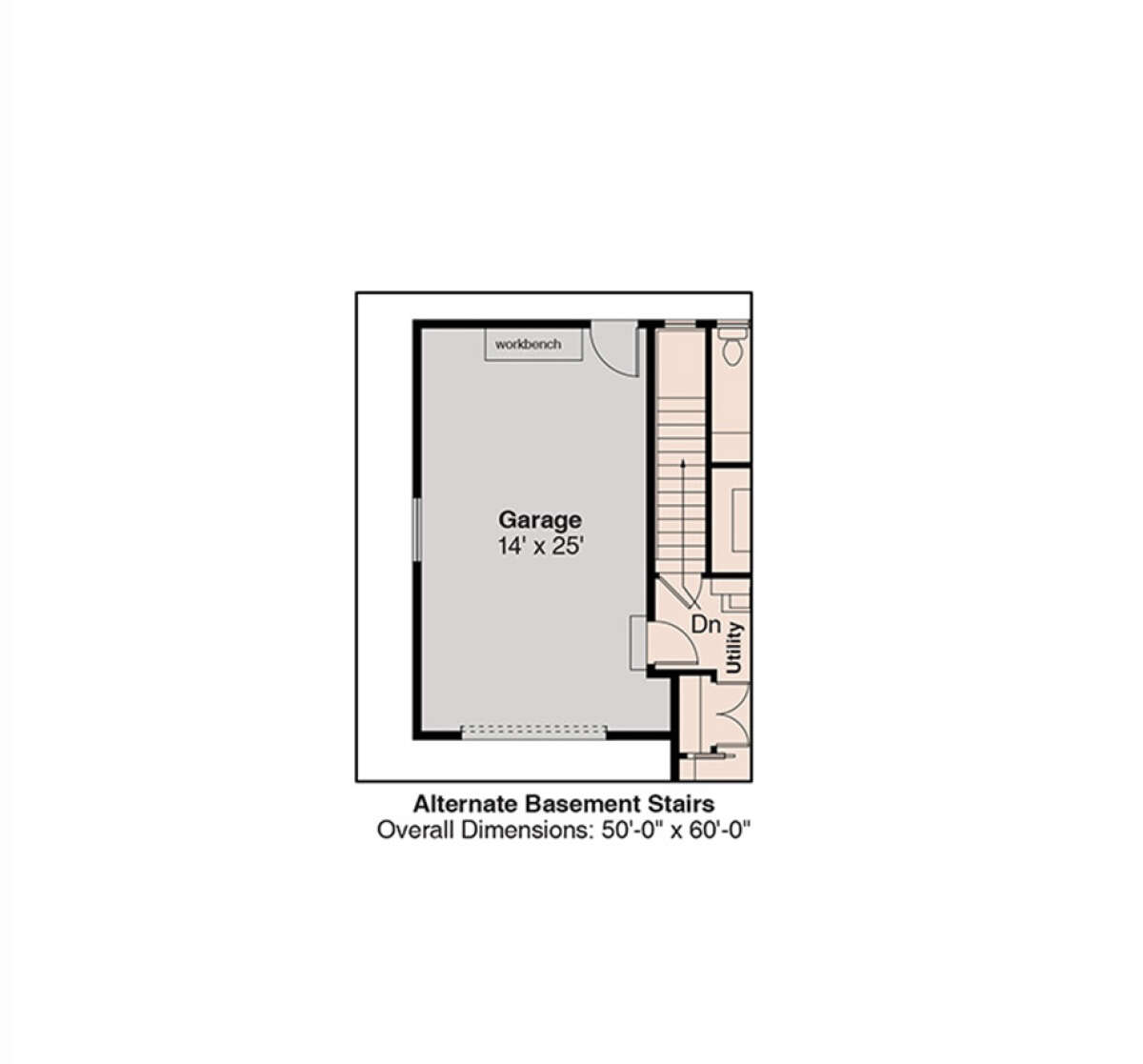

• Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
• Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
• Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
• Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
• *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
• *Single Build License is included with plan packages of 5 sets or more.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
