Ranch Plan 5633-00114

Name: House Plan 5633-00114 - Ranch Plan: 1,207 Square Feet, 2 Bedrooms, 1 Bathroom
Brand: America's Best House Plans
SKU: 5633-00114
Price: 806.65 USD

Ranch House Plan #5633-00114 Elevation Photo

Ranch House Plan #5633-00114 Additional Photo

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,207

Beds 2

Bath 1

1/2 Baths 0

Car 1

Stories 1

Width 31' 4"

Depth 38'

See What's Included

Select Package

PDF (Single Build)

$949 $806.65

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$1,849 $1,571.65

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a release for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$949 $806.65

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,049 $891.65

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

Select Foundation

Walkout Basement Foundation $0 $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50 $42.50

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Mirrored Reverse $15 $12.75

Reverses the plan, however, the text and dimensions will not read correctly.

Material List $125 $106.25

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: Please note that the material list is created with the standard foundation only and will not include any alternate foundations or additional options.

Return Policy, Building Code & Copyright Info

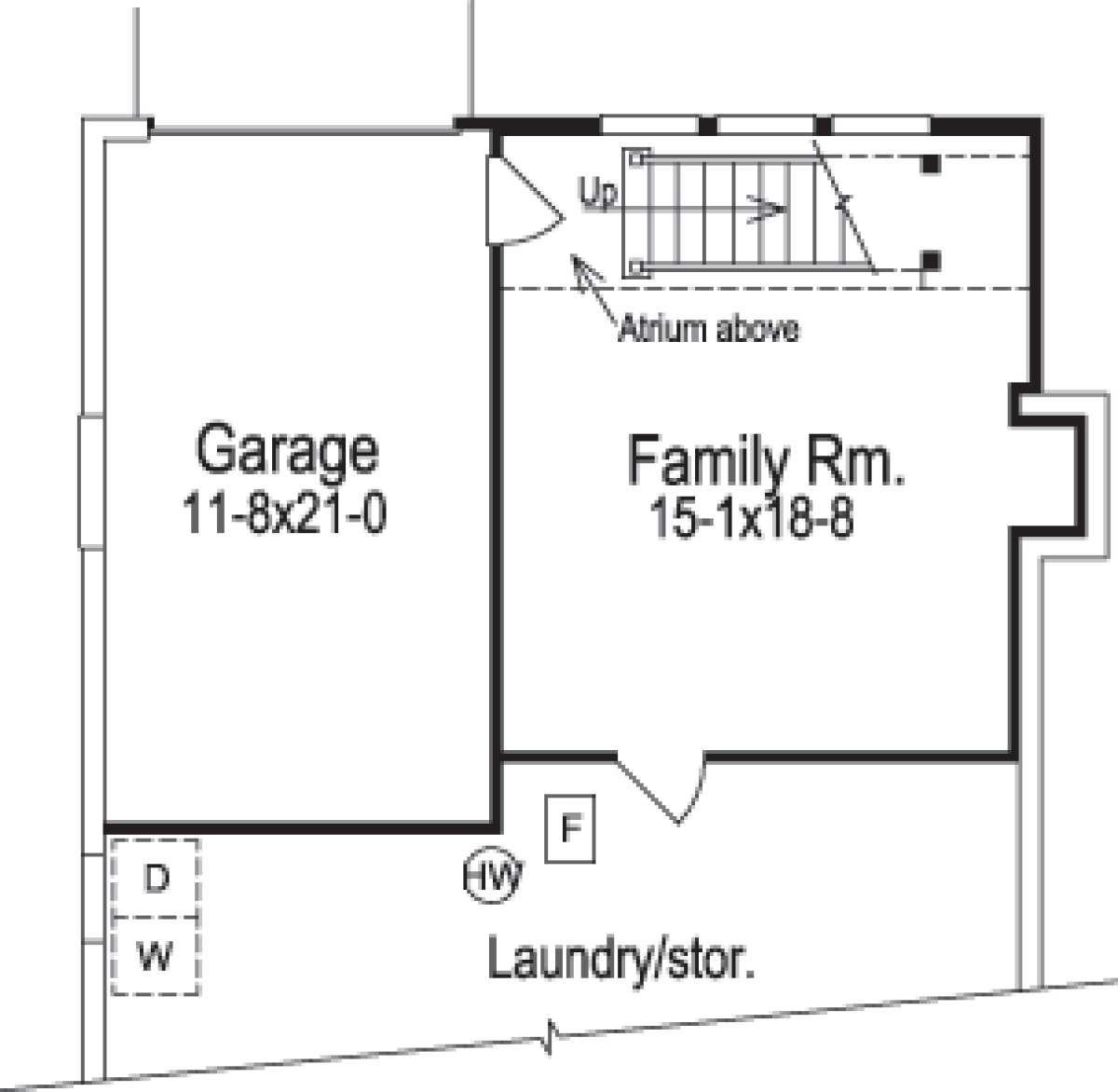

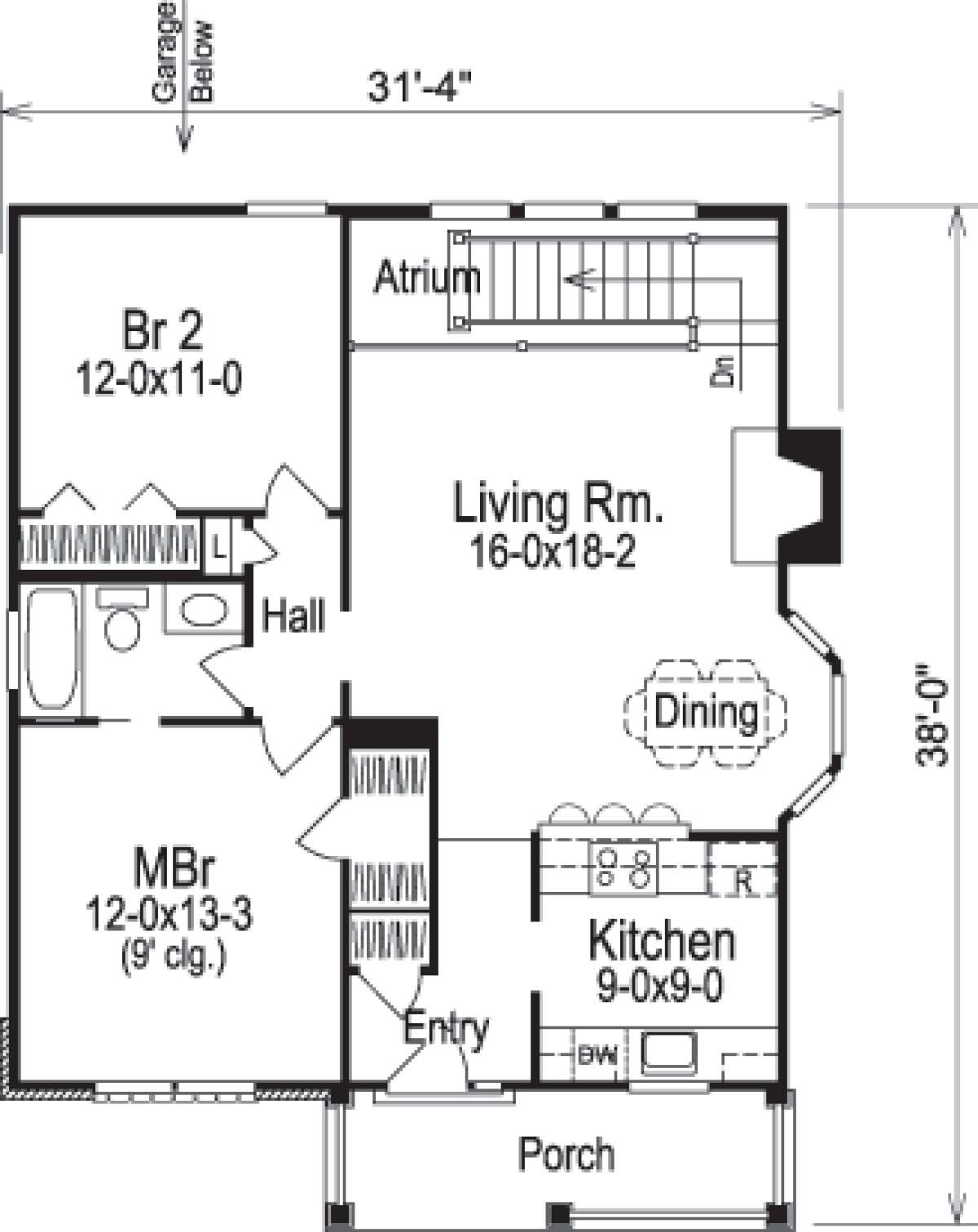

Floorplan Drawings

PRINT DOWNLOAD

Floorplan 1

Floorplan 2

Images copyrighted by the designer.

Details

HEATED Sq Ft

Total Heated Area: 1,207 sq. ft. First Floor: 969 sq. ft.

UNHEATED Sq Ft

Total Unheated Area: 483 sq. ft. Basement: 238 sq. ft. Garage: 245 sq. ft.

Bedrooms: 2

Full Baths: 1

Floors: 1

Garage Size: 1 car

Width: 31ft.-4in.

Depth: 38ft.

Height: 19ft.

Foundation:

Walkout Basement Foundation

Main Roof Pitch: 6:12

Exterior Framing:

2x4 Wood

CEILING HEIGHTS

First Floor: 8 feet

What's Included in these plans?

Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
Artist Rendering
Foundation & Floor Plans (1/4"=1')

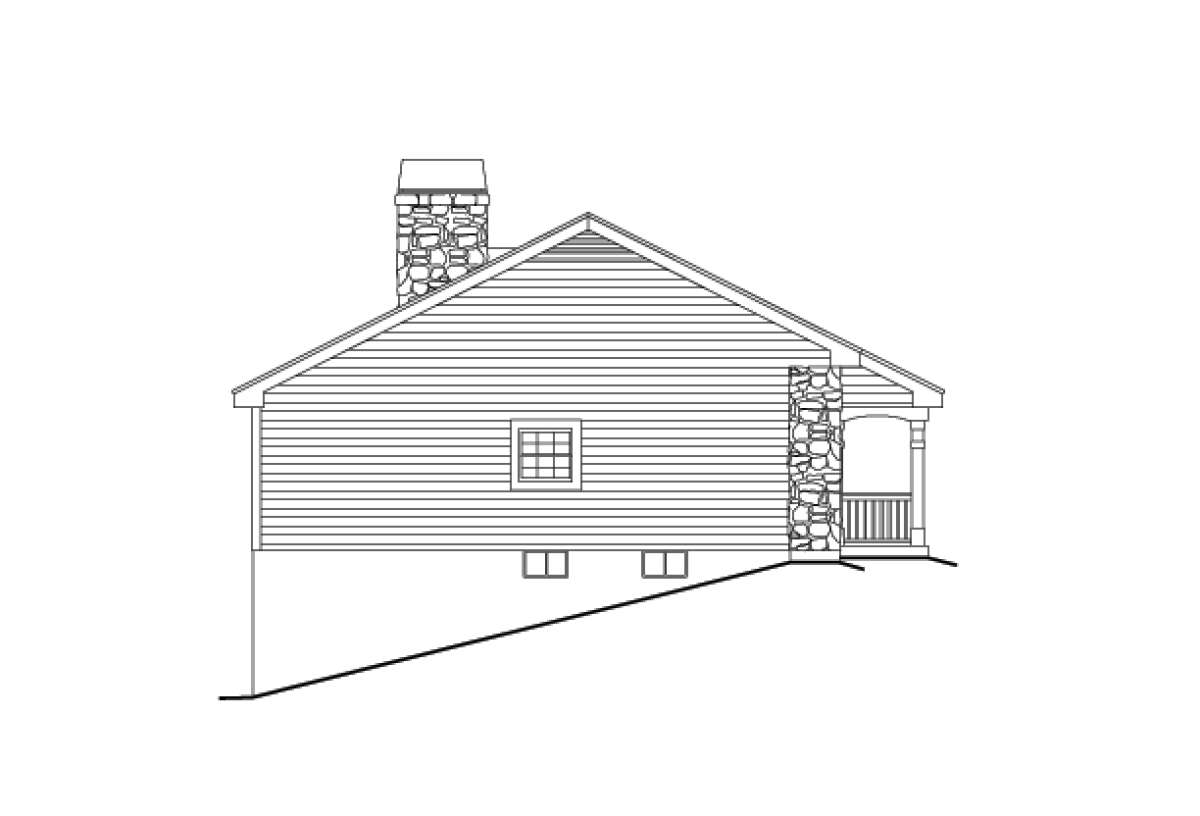

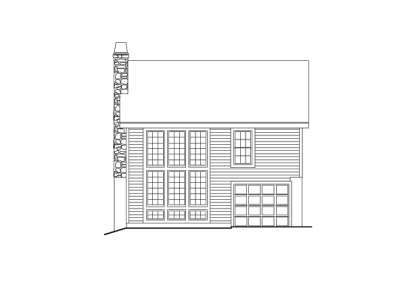

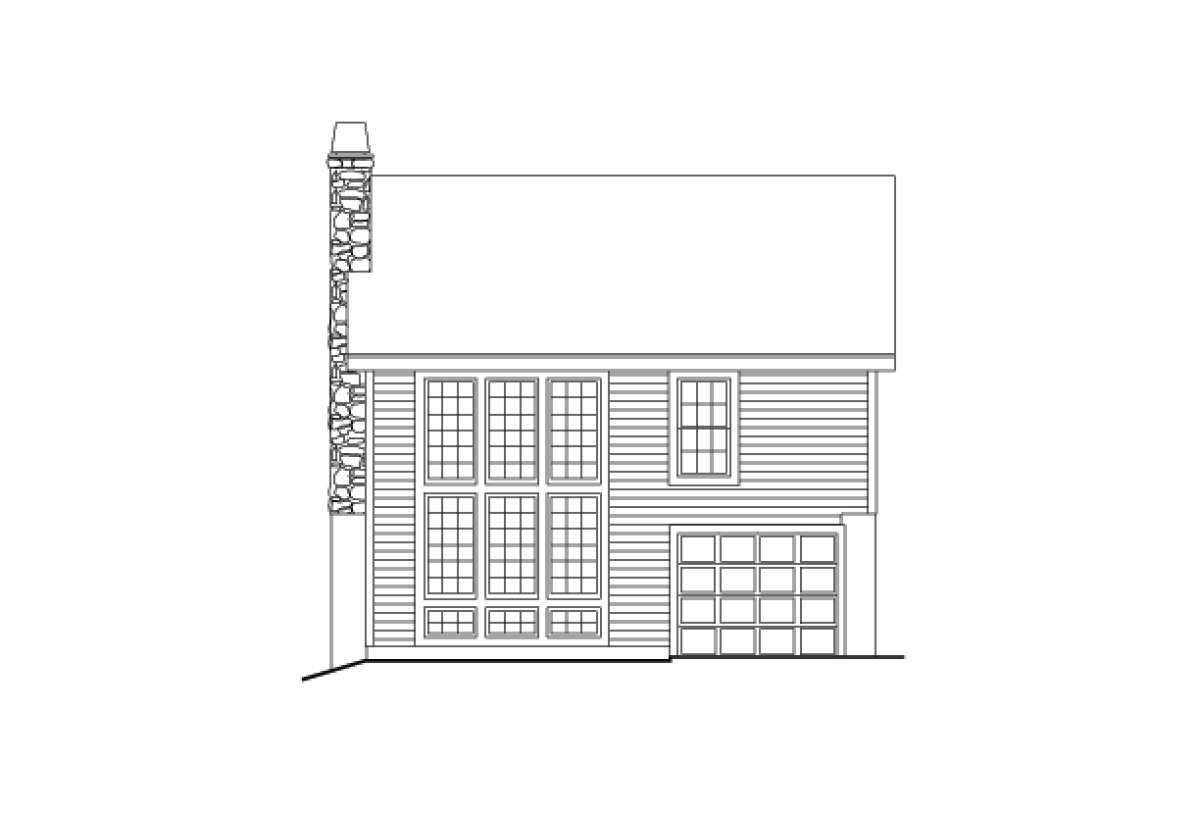

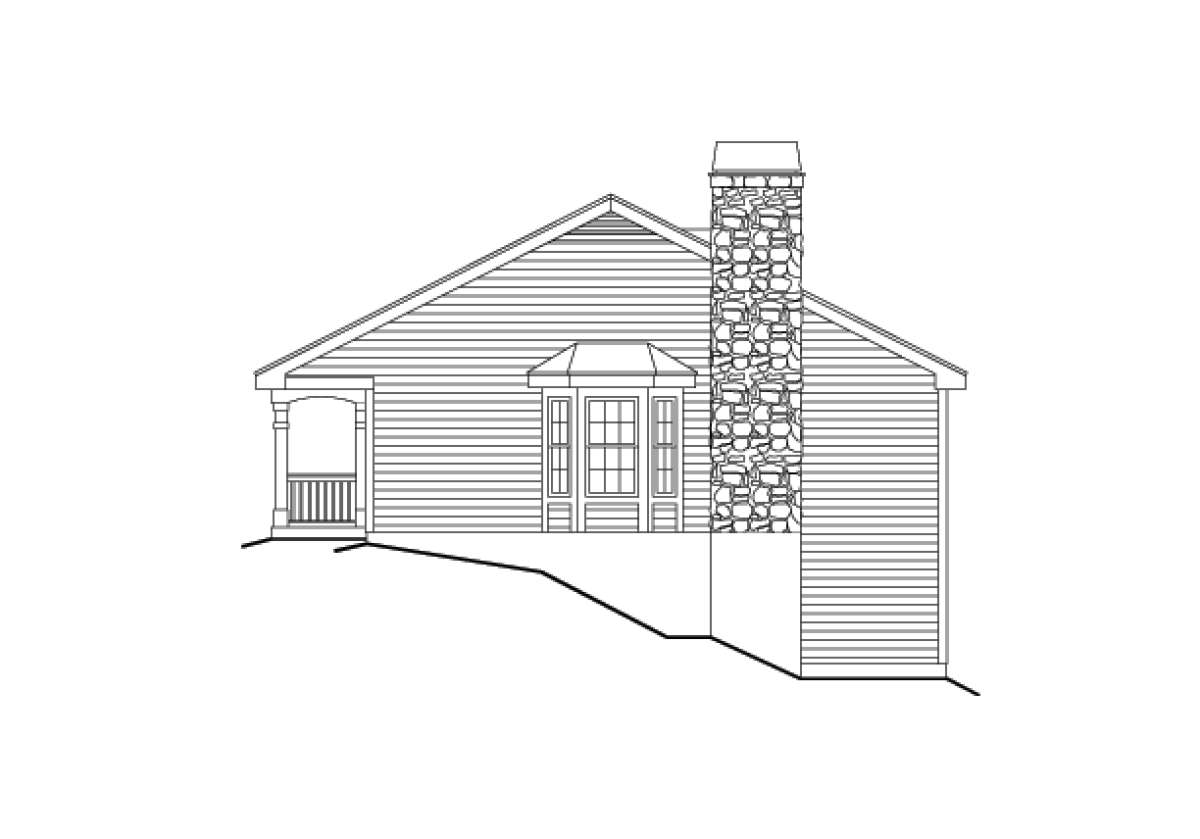

Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
Kitchen and Bath Elevations (1/4"=1') **
Miscellaneous Details (1/4" to 3/4"=1')
Stair Section (1/4" to 3/8" = 1')
Roof Overview Plan (scale varies) **
** Some plans in this series do not provide cabinet elevations or roof overview. Please call to verify.
FLOOR PLANS
This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
SET OF ELEVATIONS
This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
KITCHEN AND BATH ELEVATIONS
The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
MISCELLANEOUS DETAILS
Some details are included for interior and exterior conditions that require more specific information for their construction.
ROOF OVERVIEW PLAN
This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

This gorgeous Ranch styled home enjoys a striking exterior façade comprised of traditional architectural design features which highlight its enormous curb appeal. There is a front covered porch accentuated with broad column beams and open railing, a Palladian styled window encased in stacked stone and a stacked stone chimney. The interior floor plan features in excess of 1,200 square feet of living space which includes two bedrooms, one bath and a drive under garage with an additional 245 square feet. This home is a great option for a narrow lot with its 31’ plus width and there is a walkout basement foundation. Entrance into the home is off the front porch into the greeting foyer which houses a coat closet and spills into the open concept living spaces. The U-shaped kitchen is highlighted by a breakfast bar and loads of additional counter and cabinet space. The dining room is bright and airy with its triple bay window overlooking the side yard. The spacious living room features a handsome fireplace and atrium with two story window accents. Bedroom two is highlighted by a generous footprint and plentiful closet space. The master suite features 9’ ceiling heights in the bedroom, an oversized master walk-in closet and private access to the hall bath which offers vanity and toilet space, a tub/shower combination and there is a hall linen closet, as well.
The lower level staircase leads to the drive under garage and additional family space. There is an oversized family room, additional storage space and the family laundry room found on this level. This fabulous Cottage has enormous curb appeal and a functional and comfortable floor plan ideal for a small family, young professionals or empty nesters.

Browse Similar PlansVIEW MORE PLANS
