Ranch Plan 168-00001


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,052
Beds 2
Bath 1
1/2 Baths 0
Car 1
Stories 1
Width 42'
Depth 32'

Floorplan Drawings

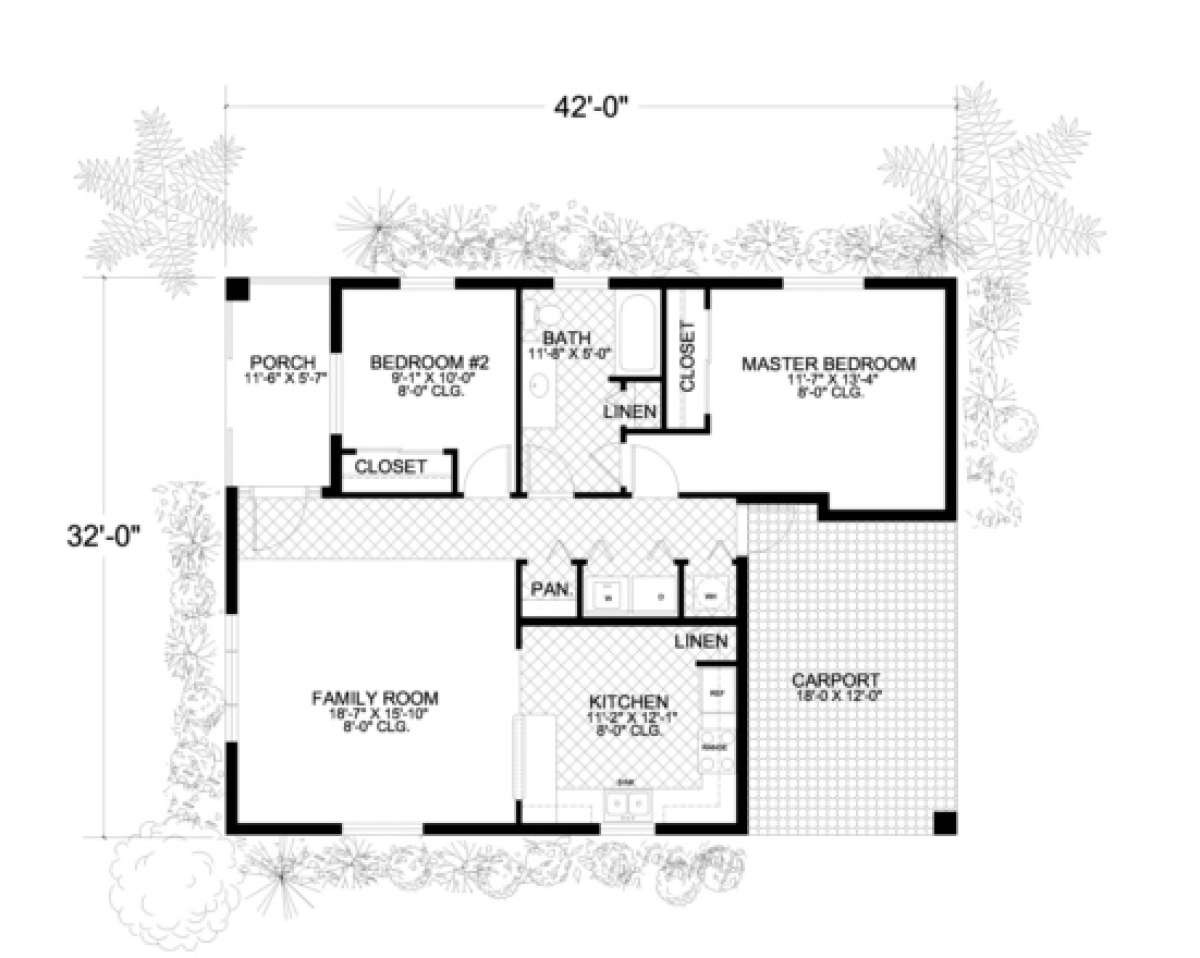

Floorplan 1
Floorplan 1 for House Plan #168-00001

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This classic Mediterranean home boasts of a charming floor plan in a compact 1,052 square feet. It features two bedrooms and one bath making the space ideal for a small family, empty nesters or a vacation home. Spanish flavor abounds in this home and is evidenced by the exterior façade and interior floor plan. As you enter the home, you are aware of the expansive great room which features triple a wall window and is open to the kitchen. The kitchen is quite large and is highlighted by a plethora of counter and cabinet space and a walk-in pantry is situated on the rear side of the kitchen. The washer and dryer are tucked into a nook and there is a linen closet as well. Bedroom two has generous closet space and access to the private side porch and makes an inviting space for guests in which to have morning coffee, read and relax or enjoy nature. The master suite enjoys a spacious bedroom with window views to the rear yard and a generous closet space. There is private access to the bathroom through the bedroom, and a shower/tub combination and linen closet are included. A large two car garage or carport is available and gives the home storage and vehicle access. This home, while compact, offers modern conveniences, a functional floor plan and intentional living spaces.
