Cabin Plan 035-00180

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,822
Beds 2
Bath 2
1/2 Baths 0
Car 1
Stories 2
Width 46'
Depth 37'

Floorplan Drawings

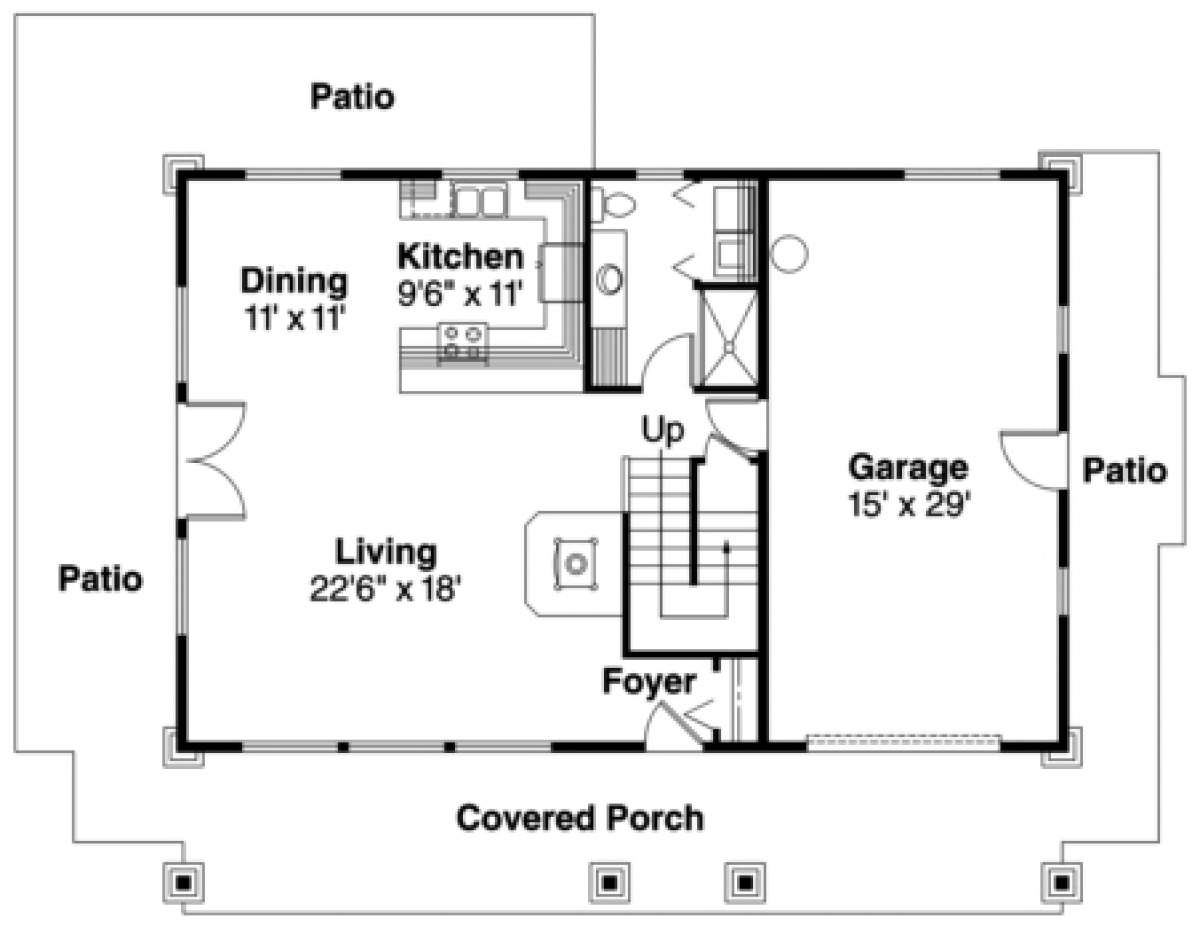

Floorplan 1
Floorplan 1 for House Plan #035-00180

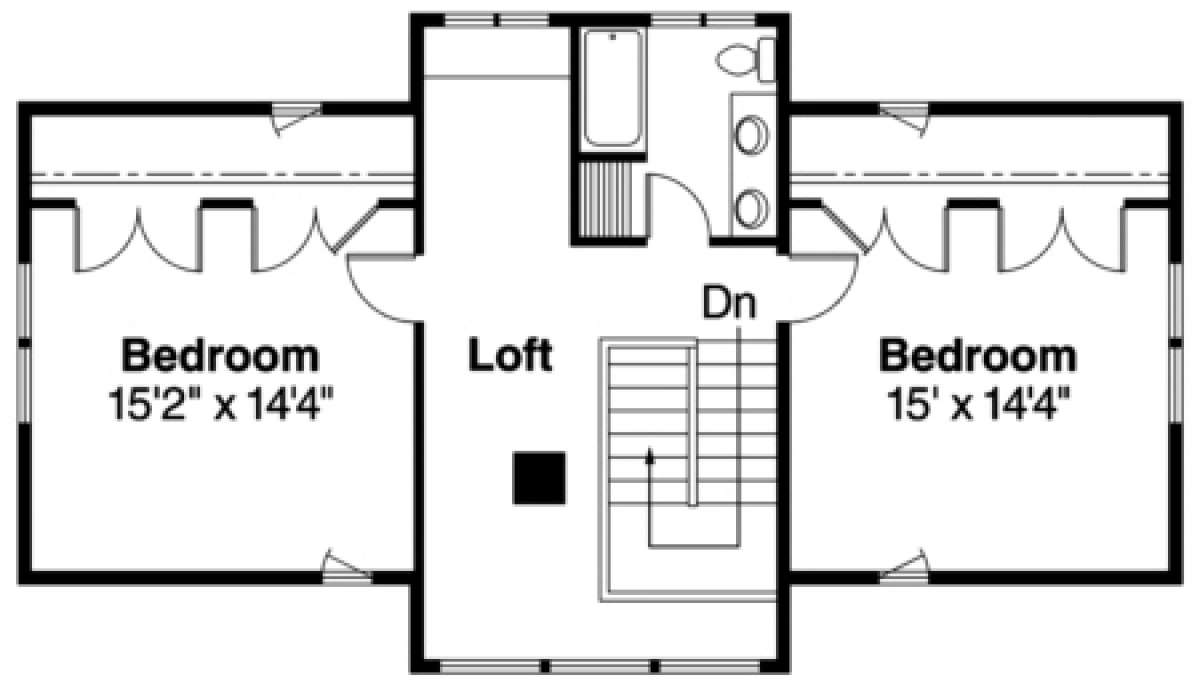

Floorplan 2
Floorplan 2 for House Plan #035-00180


What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 bedroom, 2 bathroom Cabin house plan features 1,822 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
