Craftsman Plan 009-00242

EXCLUSIVE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,391
Beds 3
Bath 4
1/2 Baths 0
Car 2
Stories 2
Width 30'
Depth 75'

Floorplan Drawings

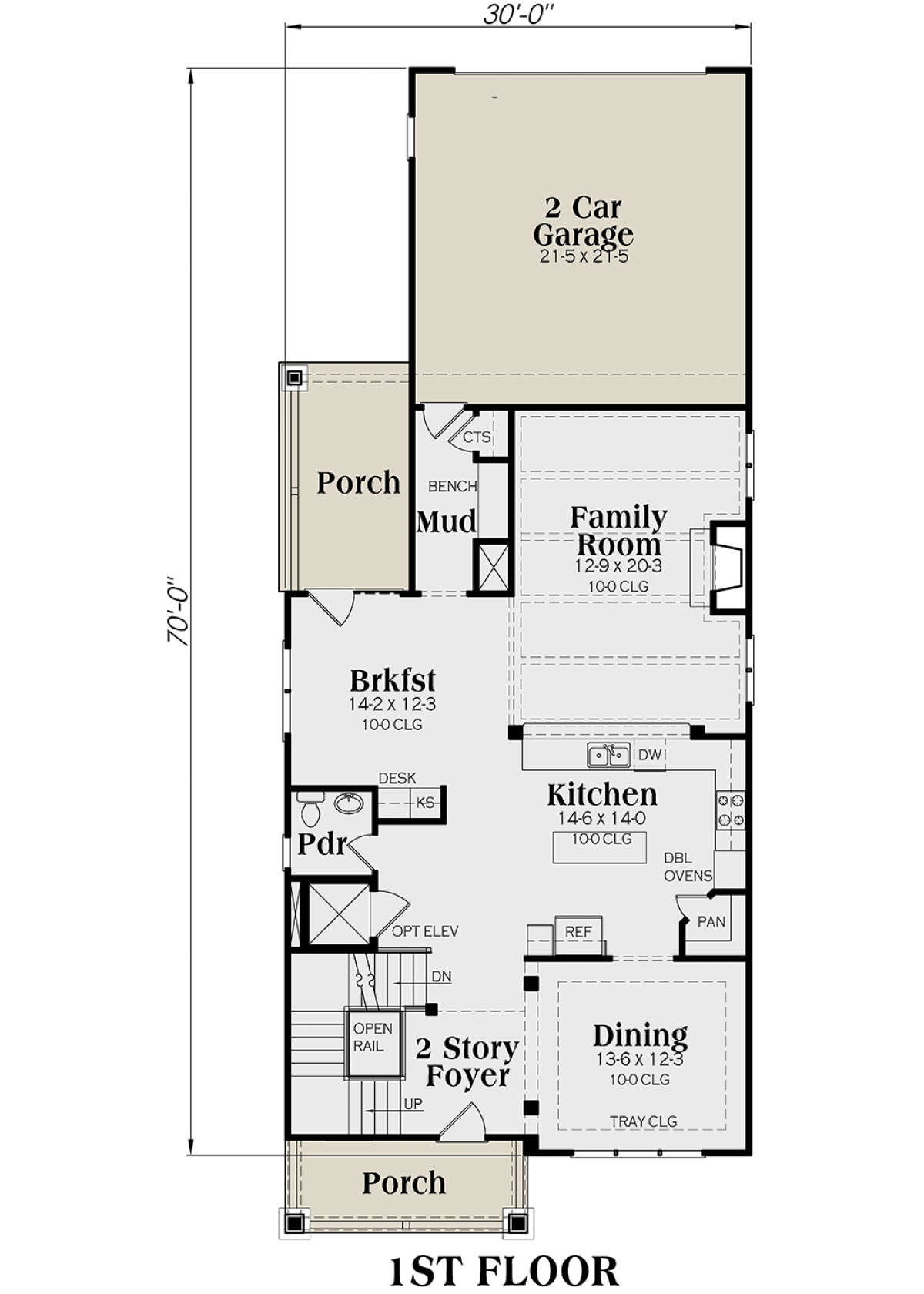

Main Floor
Main Floor for House Plan #009-00242

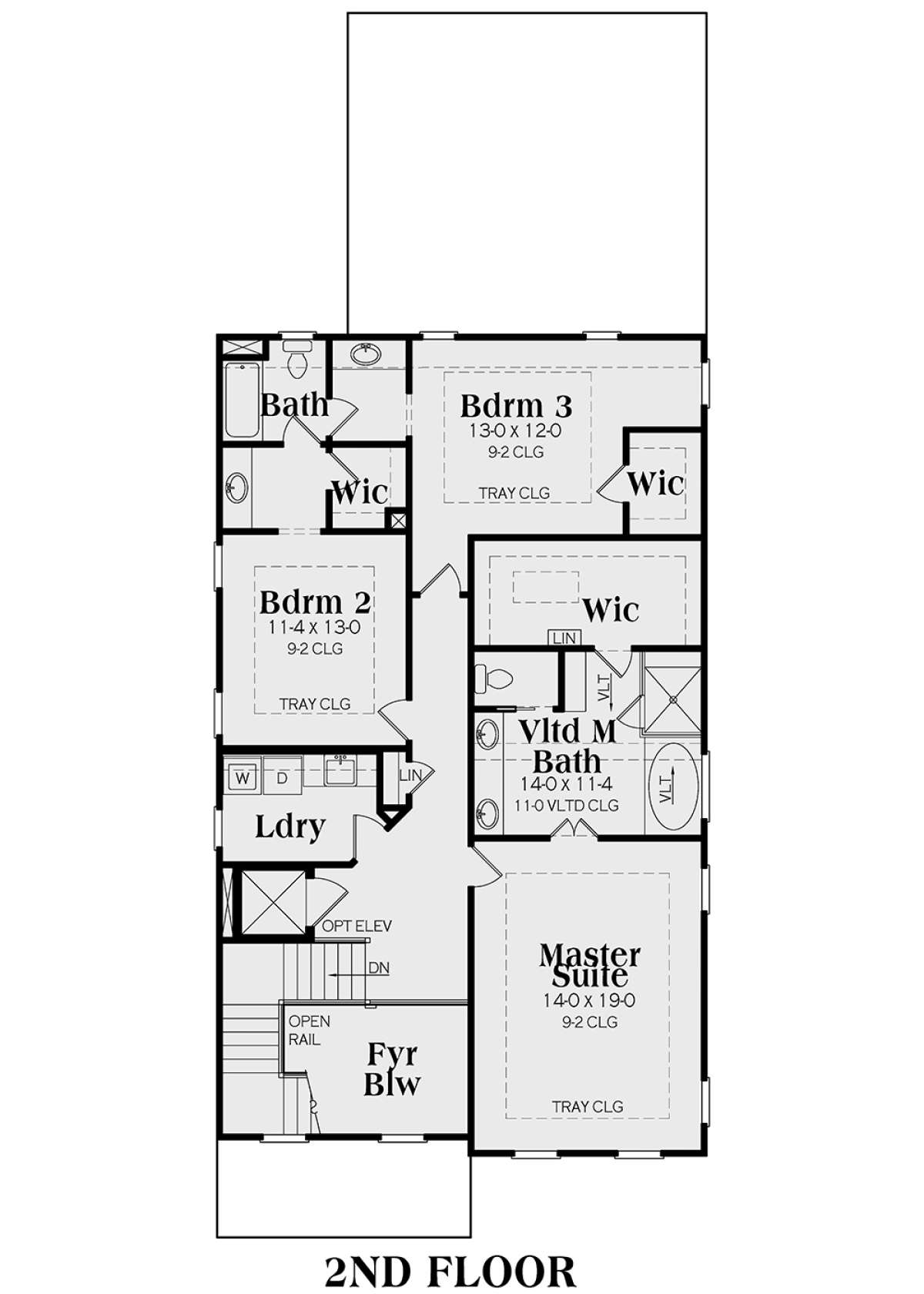

Second Floor
Second Floor for House Plan #009-00242

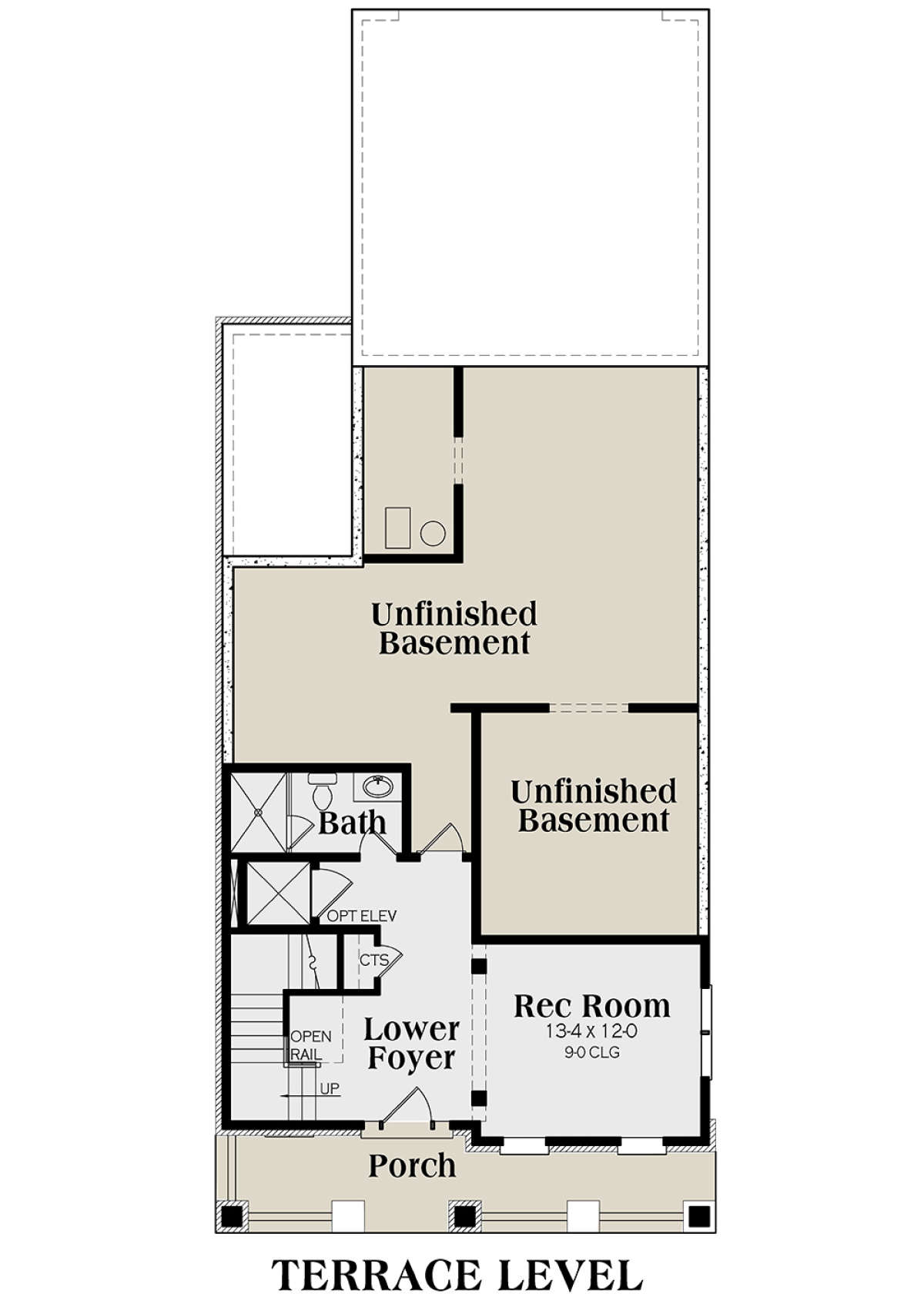

Basement
Basement for House Plan #009-00242


What's Included in these plans?

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This spacious house plan features approximately 3,391 square feet of living space and yet is perfectly designed for a narrow lot with its 30’ width dimension. The three tiered home features amazing outdoor space as well consisting of three covered porches, ideal for relaxing and entertaining. There is a spacious foyer with an open recreation space, a full bath and unfinished basement space on the lower level where the open railing staircase provides access to the main level of the home. The main living areas are found on this level; plenty of wide open spaces and two covered porches for superior living options. The dramatic two story foyer features access to the front covered porch and simultaneously opens onto the formal dining room which is highlighted with columned beams and plenty of space for memorable family meals. There is a pass-thru to the gourmet kitchen which boasts of a corner pantry, a large center island and plenty of counter/cabinet space. A large breakfast room has double window views and a rear porch for dining al fresco and the adjacent family room features beautiful ceiling work, a warming fireplace and multiple window views. There is a two car rear loading garage which directly leads into the mudroom, this is perfect for keeping the home tidy. Traveling to the third floor, the open railing continues and overlooks onto the foyer below are featured. An optional residential elevator is a practical consideration for elderly guests and as a way to deliver packages throughout the home. There are three bedrooms and two baths on this floor as well as the family laundry room which is quite spacious and features a sink area and countertop space. Bedrooms two and three enjoy a good footprint with walk-in closets and a shared jack and jill bath with private vanities. The master suite is highlighted with a master bedroom measuring 14’x19’, a trey ceiling accent and great window views. There is a vaulted master bathroom with dual vanities, a separate shower and garden tub before accessing the enormous walk-in master closet. This family home offers a floor plan that is versatile, functional and able to be expanded and a gorgeous exterior highlighted with great outdoor space.
