Craftsman House Plan 8504-00017

Sq Ft3,229
1/2 Baths1
Width84' 0"
Depth52' 0"

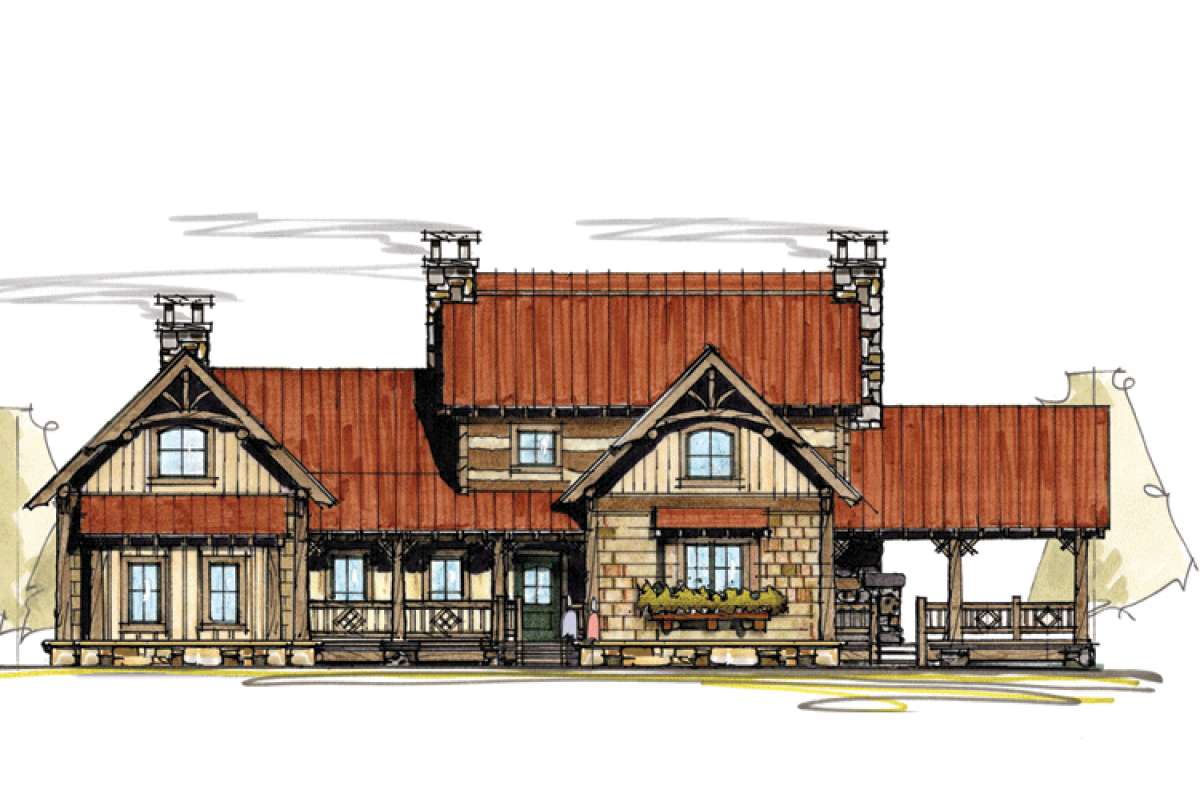

Craftsman House Plan #8504-00017 Elevation Photo

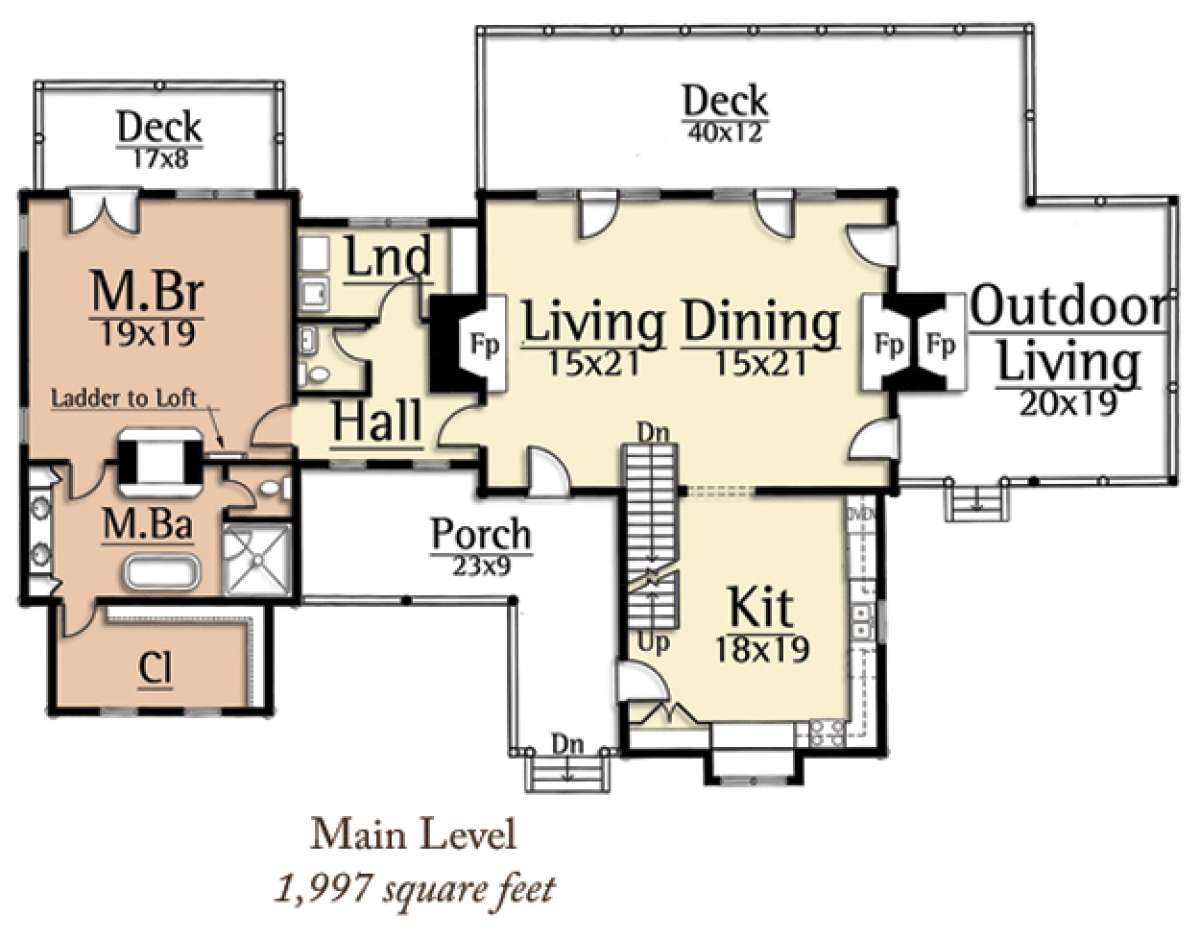

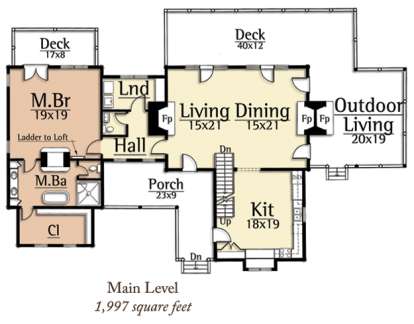

Floorplan 1
Floorplan 1 for House Plan #8504-00017

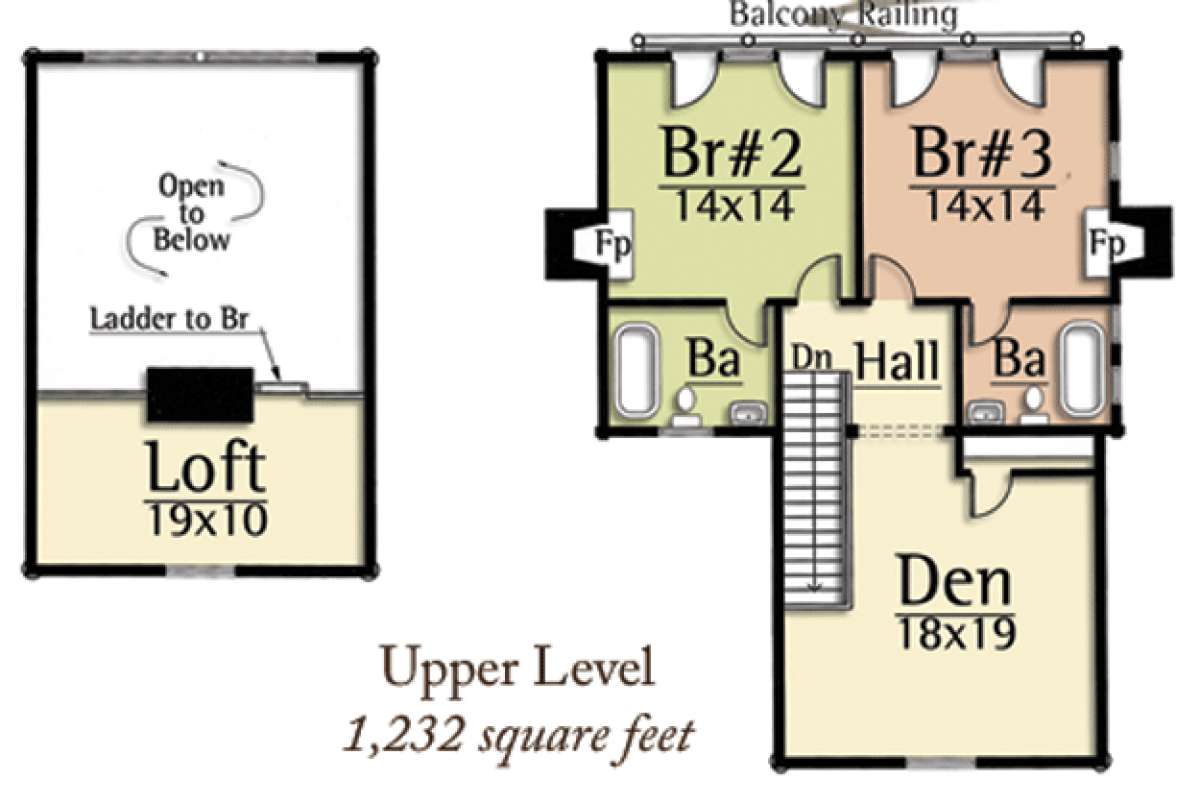

Floorplan 2
Floorplan 2 for House Plan #8504-00017

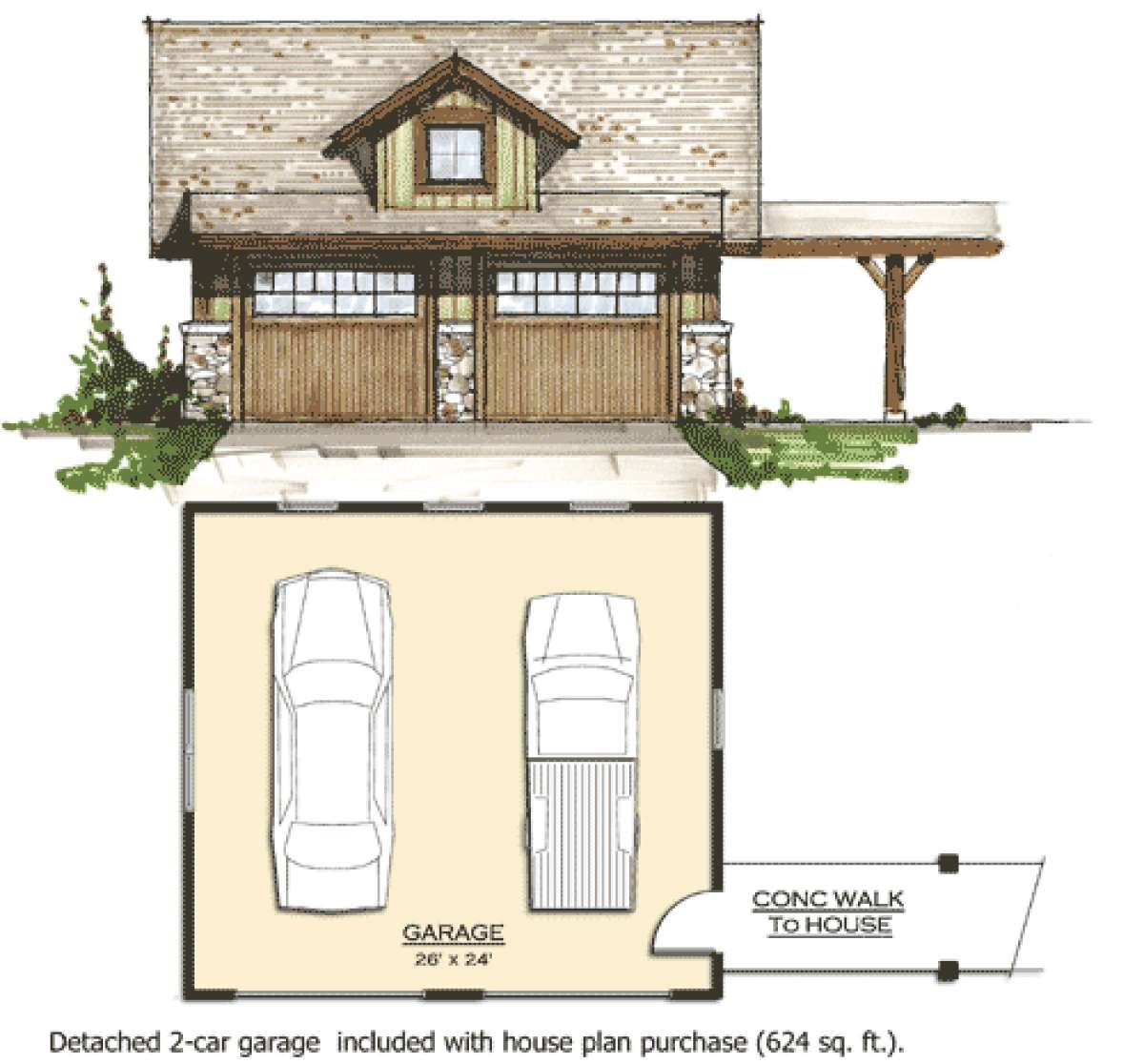

Garage for House Plan #8504-00017
Craftsman House Plan #8504-00017 Elevation Photo
Floorplan 1 for House Plan #8504-00017
Floorplan 2 for House Plan #8504-00017
Garage for House Plan #8504-00017
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00017
Floorplan 2 for House Plan #8504-00017
Garage for House Plan #8504-00017
Floorplan 1
Floorplan 1 for House Plan #8504-00017
Floorplan 2
Floorplan 2 for House Plan #8504-00017
Garage for House Plan #8504-00017

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Craftsman lodge inspired house plan features a rustic exterior design complemented with cedar shakes, decorative gables and a large outdoor entertaining area with a warming fireplace. There is an adjoining covered deck as well making entertaining enjoyable and effortless. A covered porch is featured on the front exterior which is quite large and allows for greeting family and friends in comfort. The two car garage is accessed from the breezeway and features good vehicle and storage space. The interior floor plan offers approximately 3,229 square feet of living space that includes three bedrooms and three plus baths with 9’ ceiling heights on the main floor and 8’ ceiling heights on the second floor. Entering the home from the front covered porch leads to the open layout floor plan. There is a large living and dining space which features double fireplaces on each end of the rooms for a warm, cozy space. Four entry/exit points from either the living or dining room onto the outdoor space opens and brightens the indoor/outdoor space nicely. The grand kitchen features a large space with a separate pantry and plenty of counter/cabinet space. The main level hallway offers a guest powder room and the family laundry room before accessing the master suite. The master suite is highlighted with generous floor space and French doors from the bedroom lead to the private outdoor deck. There is a double sided fireplace situated between the bedroom and master bath; the bathroom features dual vanities, a large shower, a soaking tub and a compartmentalized toilet area. The master walk-in closet lies beyond the bathroom for privacy and convenience.

The second floor of the home features a huge loft space which is ladder accessed from the master suite below. This is a nice retreat space for reading, relaxing or as a home office/study. The remainder of the second floor is separate and features a large flex space, measuring 18’ x 19’, and contains a closet; this is the ideal spot for a playroom for younger children or as a lounge/homework station for older children. Bedrooms two and three are separate suites and each contain the same generous floor space, a private full bath with a tub/shower combination as well as a toilet area and vanity. Additionally, each bedroom is highlighted with a cozy fireplace and double points of access onto the outdoor balcony. This rustic home is family friendly, features a great layout for entertaining and private family spaces and offers a large amount of outdoor entertaining space.
