Mediterranean House Plan 9940-00002

Sq Ft7,326
Beds4
Baths4
1/2 Baths2
Stories1.5
Cars3
Width93' 11"
Depth111' 4"
SALE
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Mediterranean House Plan #9940-00002 Elevation Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Floorplan 1 for House Plan #9940-00002
Floorplan 2 for House Plan #9940-00002

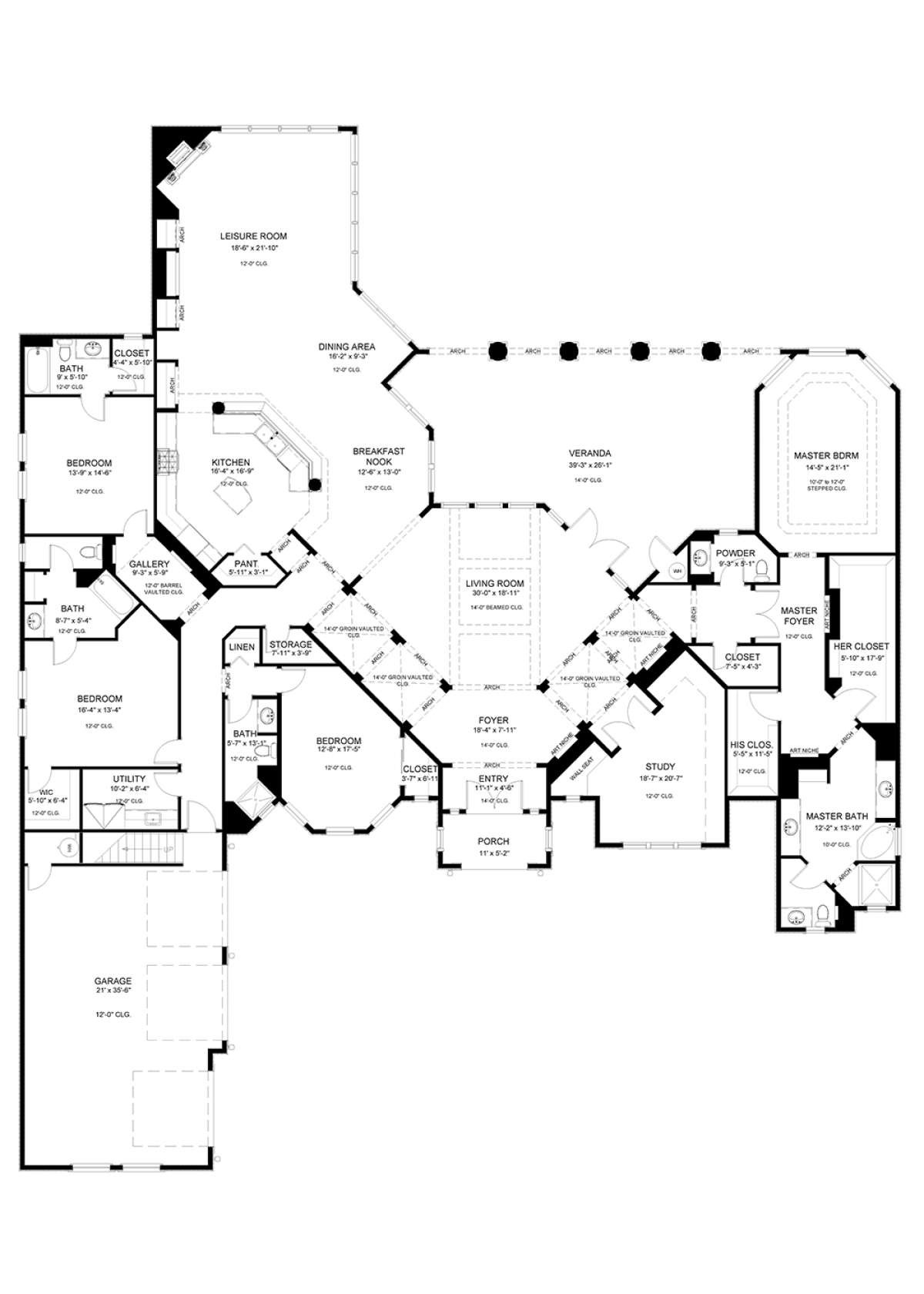

Floorplan 1
Floorplan 1 for House Plan #9940-00002

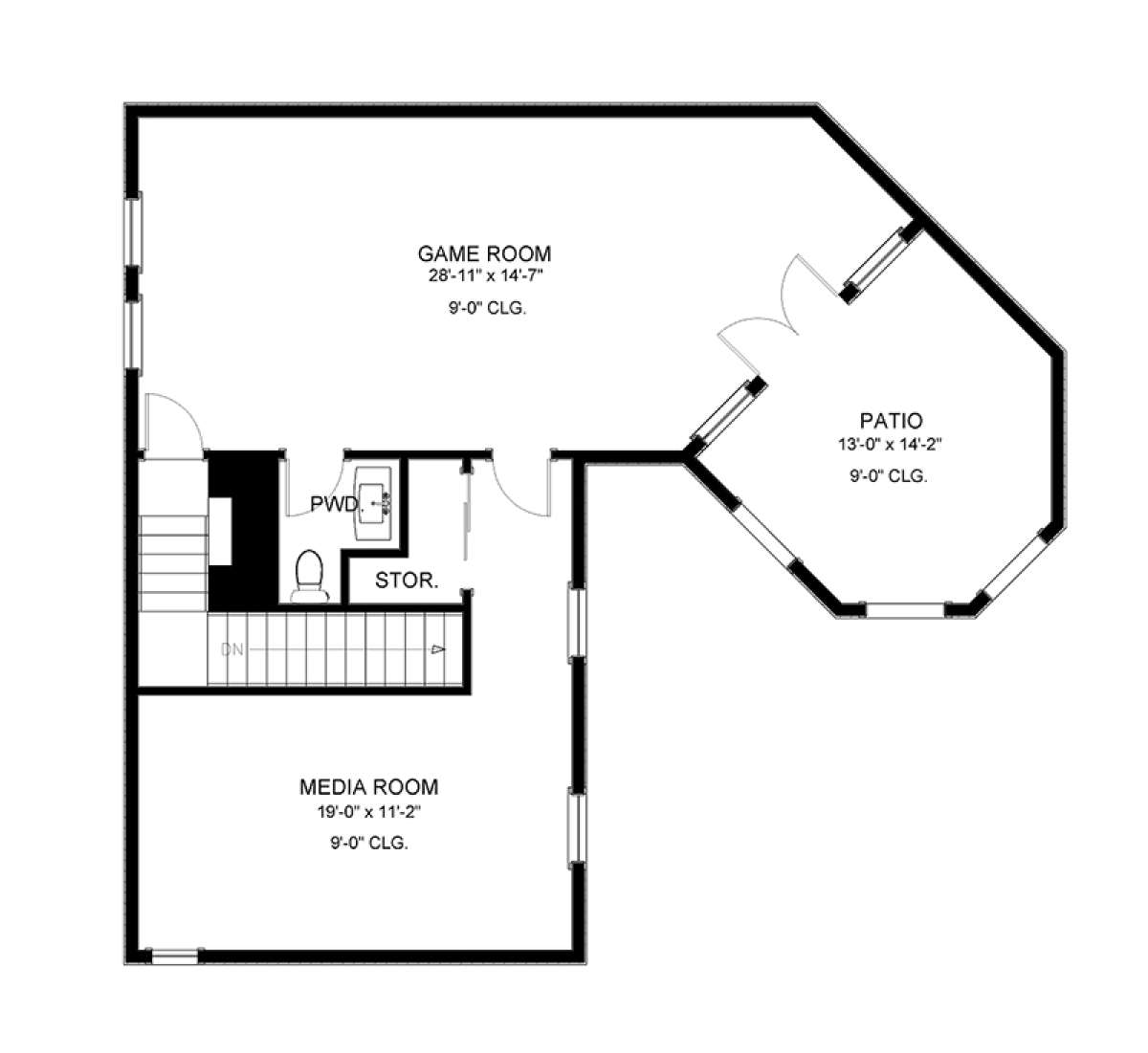

Floorplan 2
Floorplan 2 for House Plan #9940-00002


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
  • General Notes
  • Foundation Plans, drawn at 1/4" scale
  • Floor Plans, drawn at 1/4" scale
  • Roof Plan, drawn at 1/4" scale
  • Elevations, drawn at 1/4" scale
  • Electrical Plans, drawn at 1/4" scale
  • Interior Elevations
  • Section Details
  • Cross Section Details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Luxurious surroundings abound in this Mediterranean inspired home both on the sprawling exterior and grand interior. Smooth stucco exterior walls, an earthy tiled roof and soaring front entrance combine to create an outstanding front exterior while the rear exterior is highlighted with abundant columned beams, open archways and fabulous entertaining space. The interior features approximately 6,307 square feet of living space within the home while incorporating four bedrooms and five baths into the space. The 1.5 storied home features an upper level designed for comfortable entertaining and relaxing which features massive game and media rooms, a half bath and a patio area. There is a three car courtyard entry garage with loads of vehicle and storage space and direct access to the family laundry room. The dramatic front entrance features a stunning array of open archways running down either side of the hallway and the centrally located living room is situated beyond the foyer. Adjacent to the living room is a large study where entertaining business associates and intimate friends will be pleasant. The rear of the home showcases family space; there is a gourmet kitchen with a huge walk-in pantry and angled breakfast bar, a casual breakfast nook and separate dining room along with a large leisure room boasting of window walls, a handsome fireplace and built-ins.

The split bedroom plan offers three generous sized bedrooms on one side of the home. Each bedroom is oversized, features 12’ ceiling heights, a walk-in closet, a full private bath and beautiful window views. The master suite is located on the opposite side of the home and fully occupies one wing of the interior. Archways and French doors lead to the master suite foyer where an elegant master bedroom is highlighted with a double step trey ceiling and excellent floor space. There are his and her master walk-in closets; both are quite large providing excellent clothing and storage room. The master en suite bath is highlighted with three vanities, a garden tub and separate shower. This amazingly spacious home features extravagant interior space and an exterior designed for luxury and entertaining.
