Coastal Plan 963-00374

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,947
Beds 5
Bath 4
1/2 Baths 0
Car 0
Stories 2
Width 53'
Depth 68'

Floorplan Drawings

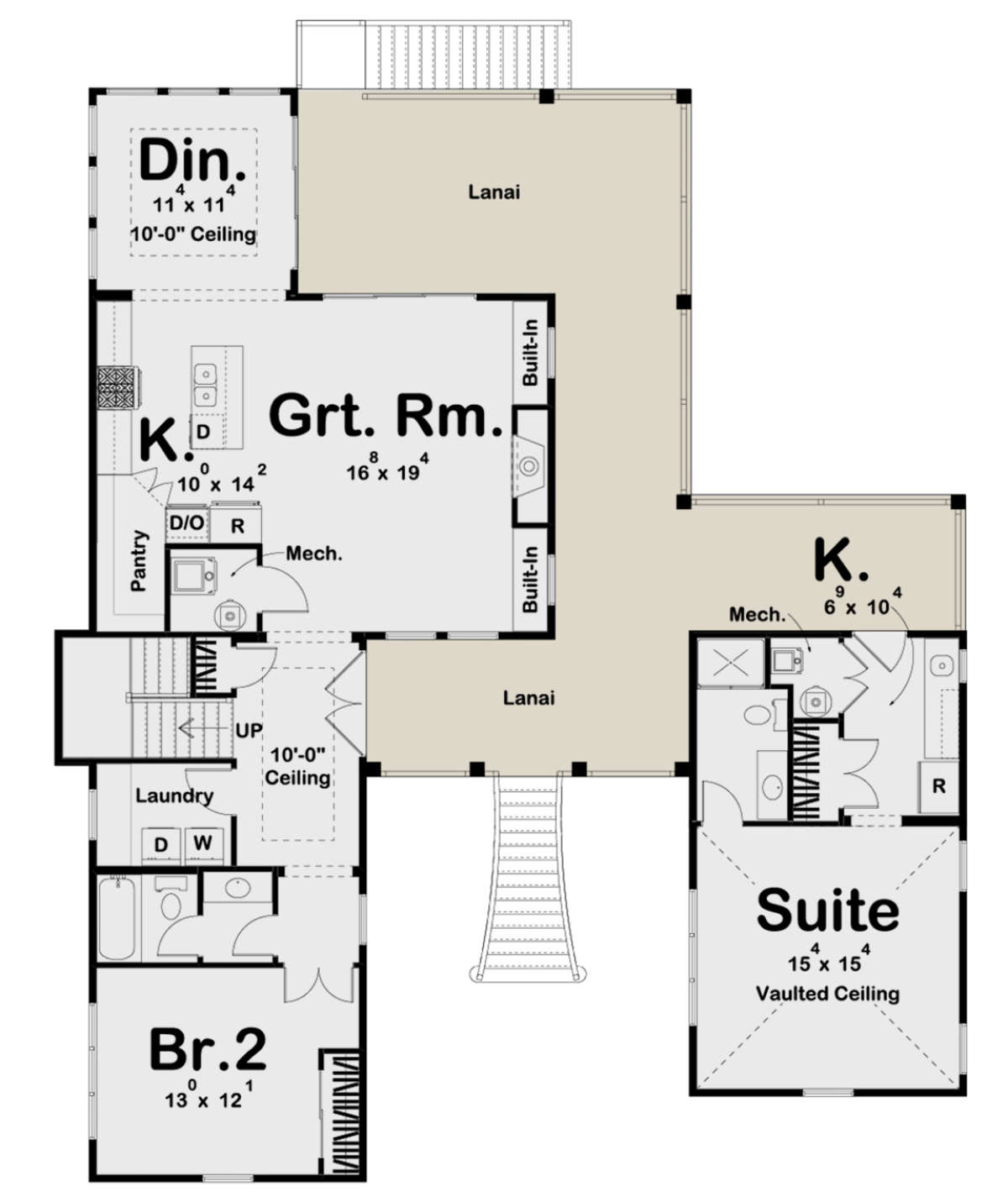

Main Floor
Main Floor for House Plan #963-00374

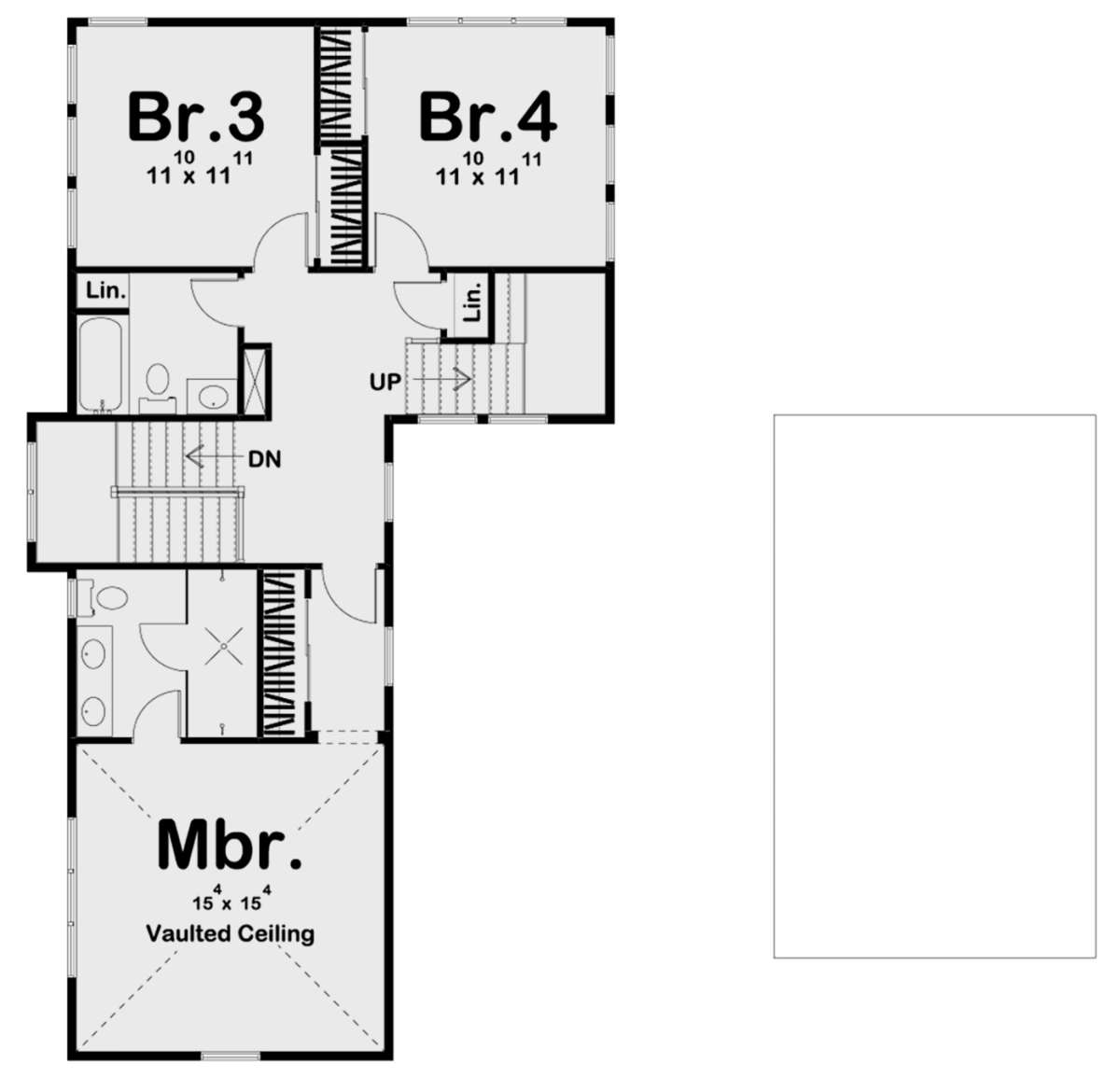

Second Floor
Second Floor for House Plan #963-00374

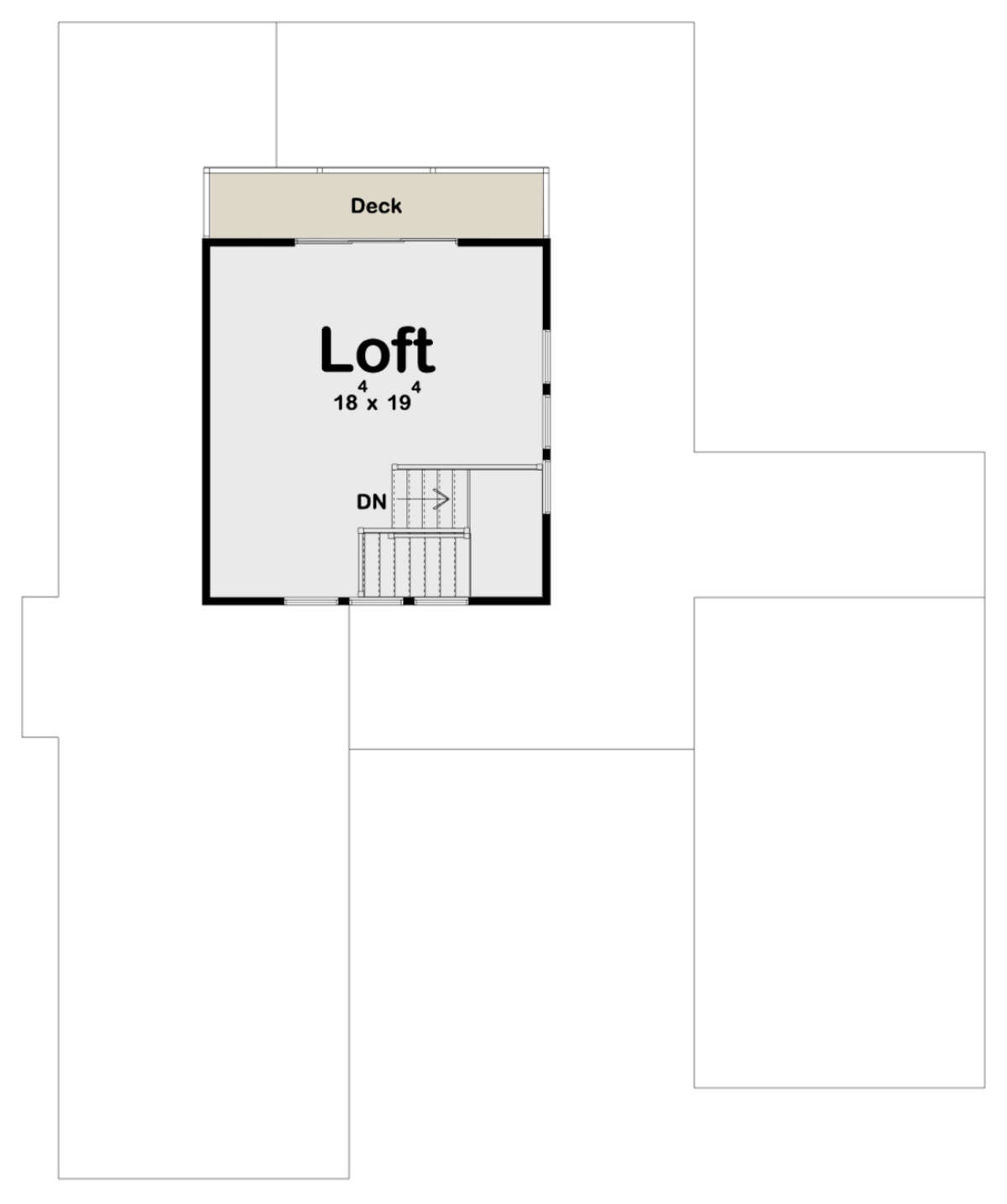

Loft
Loft for House Plan #963-00374


What's Included in these plans?

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan.
  • The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

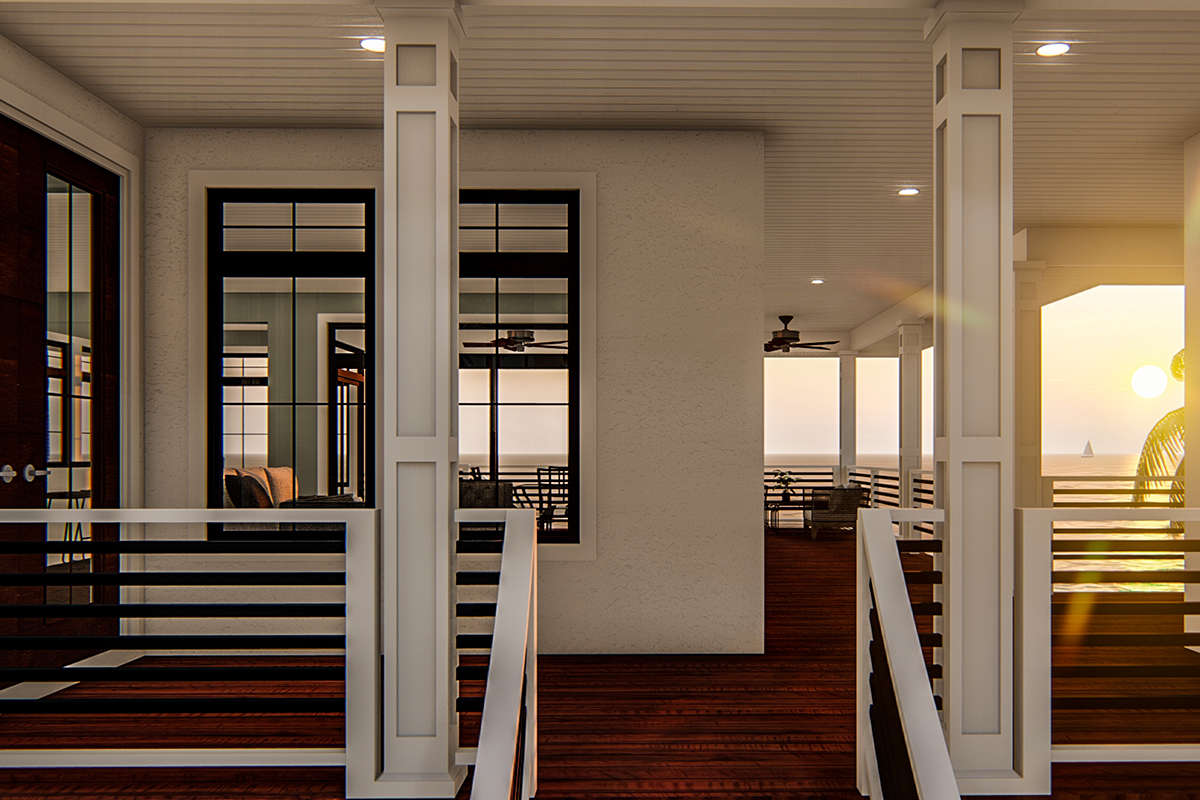

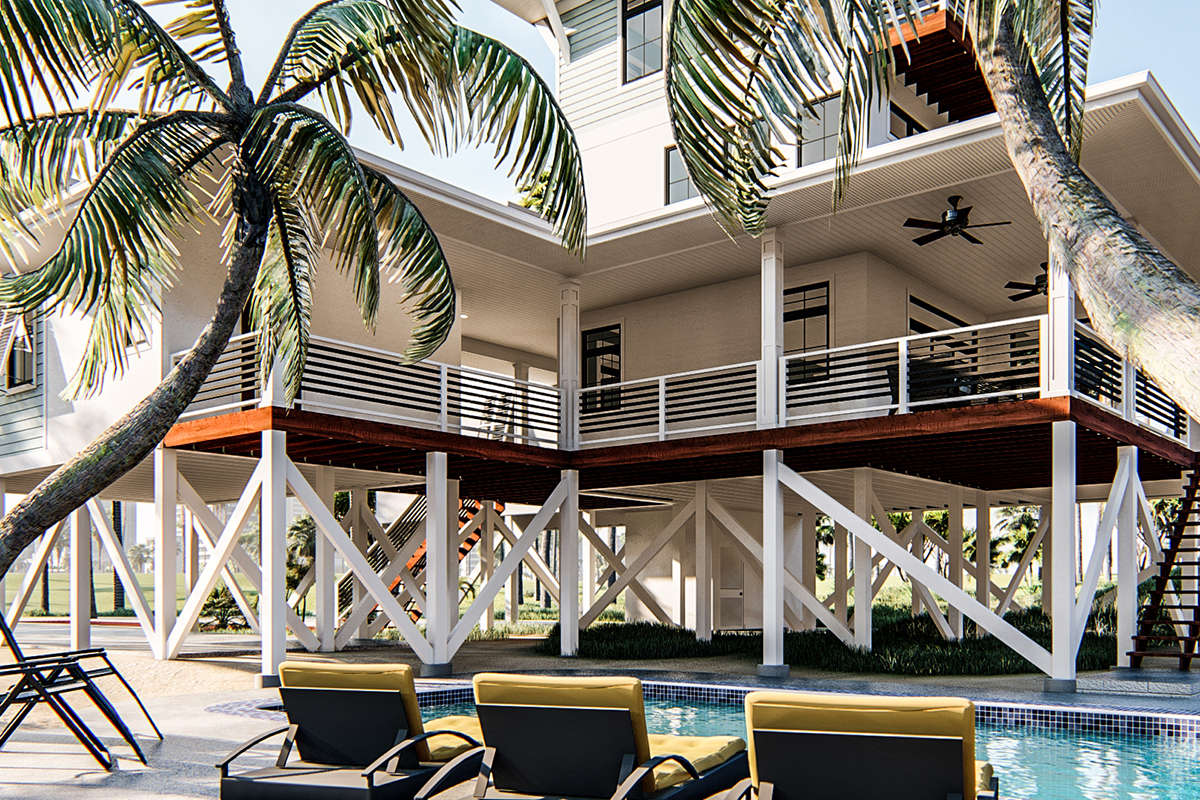

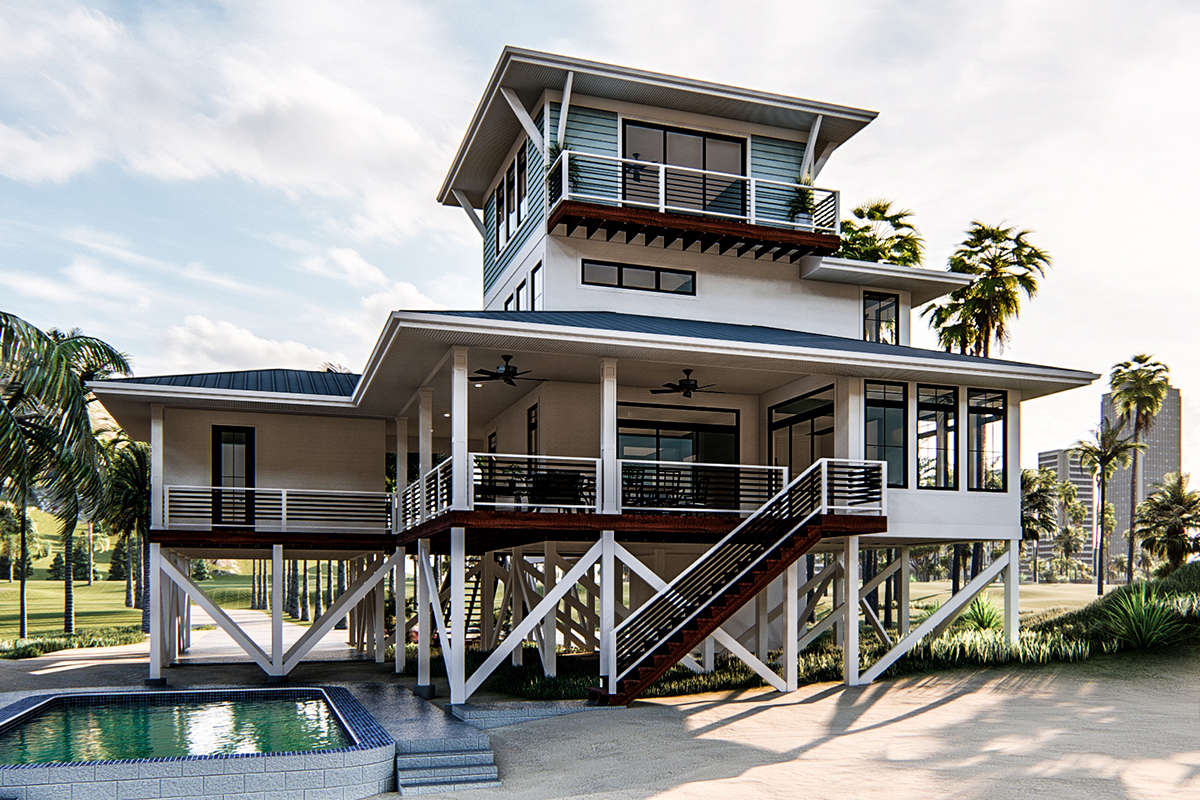

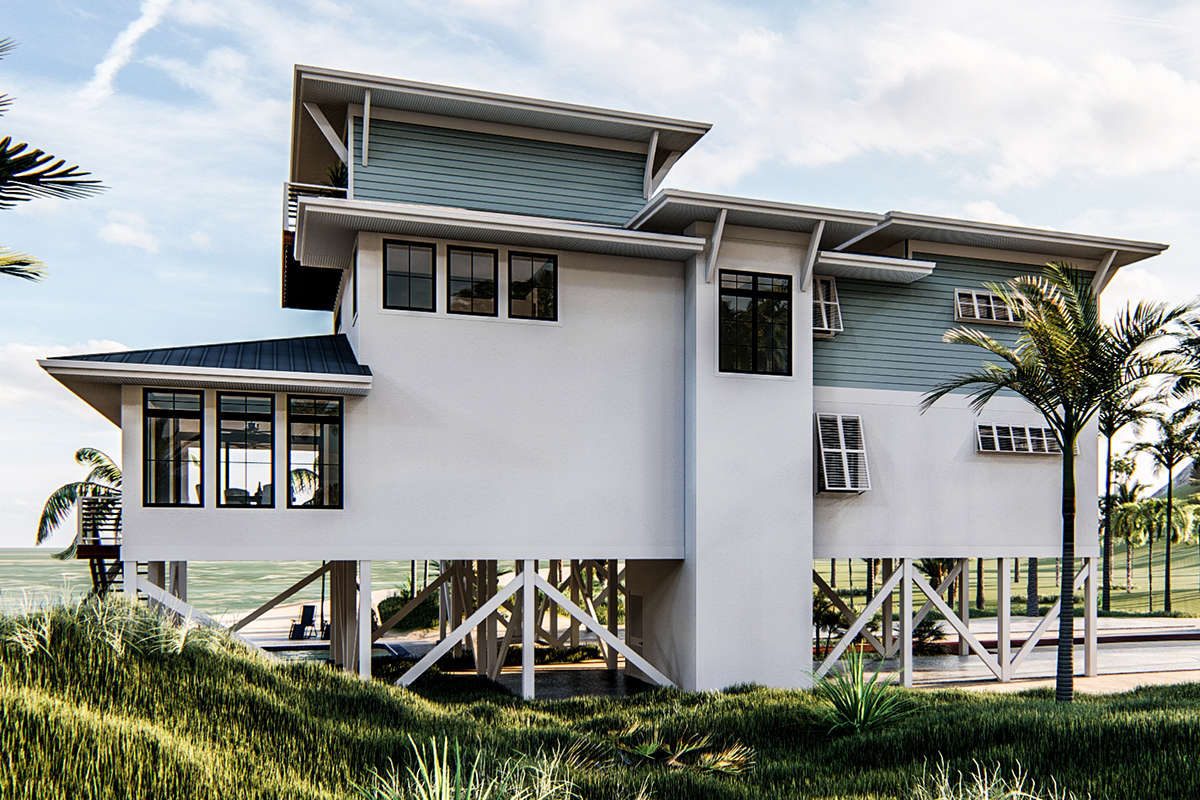

Make the most out of your beach living lifestyle with this Coastal house plan. Built on a post and pier foundation, this plan is designed for you to get as close to the beach as possible. The home’s exterior fancies both functional and aesthetic appeal as the hurricane shutters provide protection against the elements while the push-out windows draw in the ocean breeze to cool down the home. The covered lanai hosts a great wrap-around space to overlook the ocean waves, watch the sunrise and fall, or entertain guests with ocean-side grilling. The interior layout measures approximately 2,947 square feet with five bedrooms and four bathrooms in a two-story home.

On the main floor, you'll find a well thought out floor plan with an open concept and a secondary bedroom suite. The great room features a fireplace with built-in shelving and lies open to the kitchen that includes a walk-in pantry, a large center island, and a corner sunlit dining room. Separated by the covered lanai, there is an in-law suite that includes its own bathroom, vaulted ceiling, and kitchen.

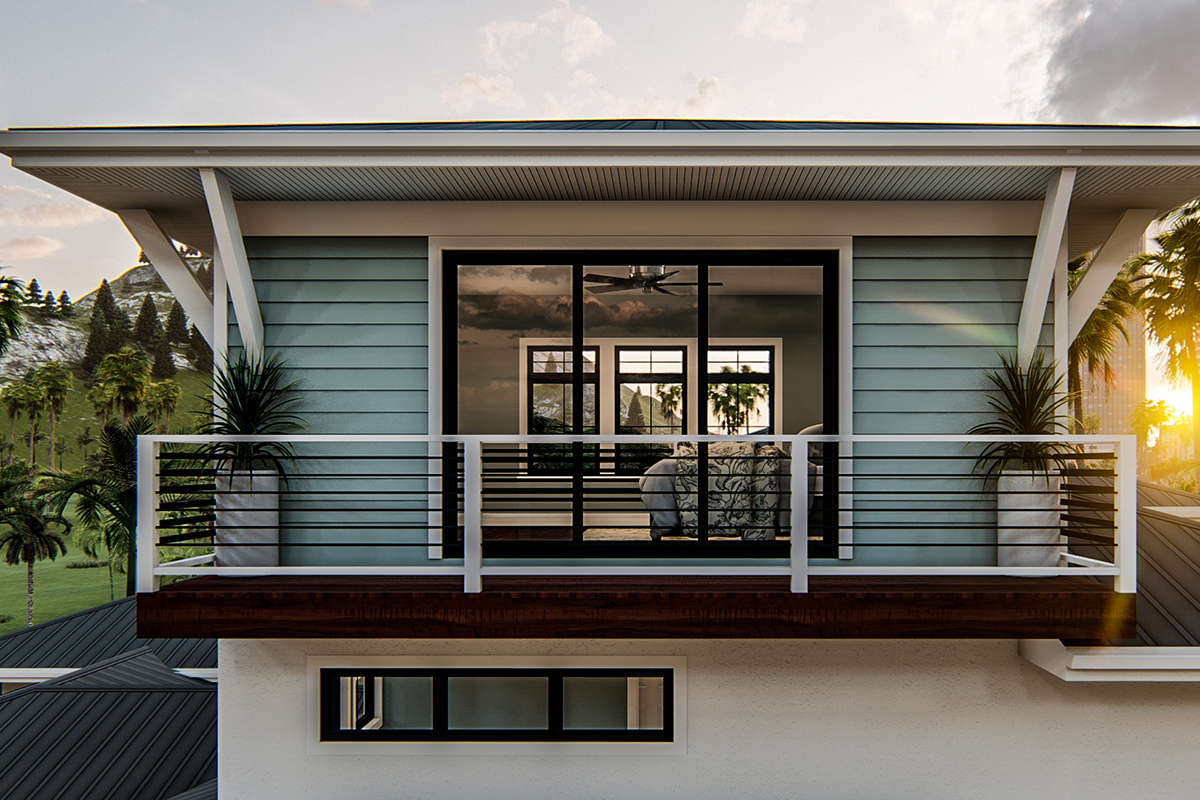

Journey to the second level where you’ll find three additional bedrooms including the master bedroom that has access to its own bathroom. The master bathroom includes dual vanities and a large shower with double showerheads. Bedrooms #3 and #4 are equally sized and share a conveniently located hall bathroom. The third level features a loft with its own private deck.
