Coastal Plan 1637-00169

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,413
Beds 5
Bath 5
1/2 Baths 1
Car 2
Stories 3
Width 27'
Depth 48'

Floorplan Drawings

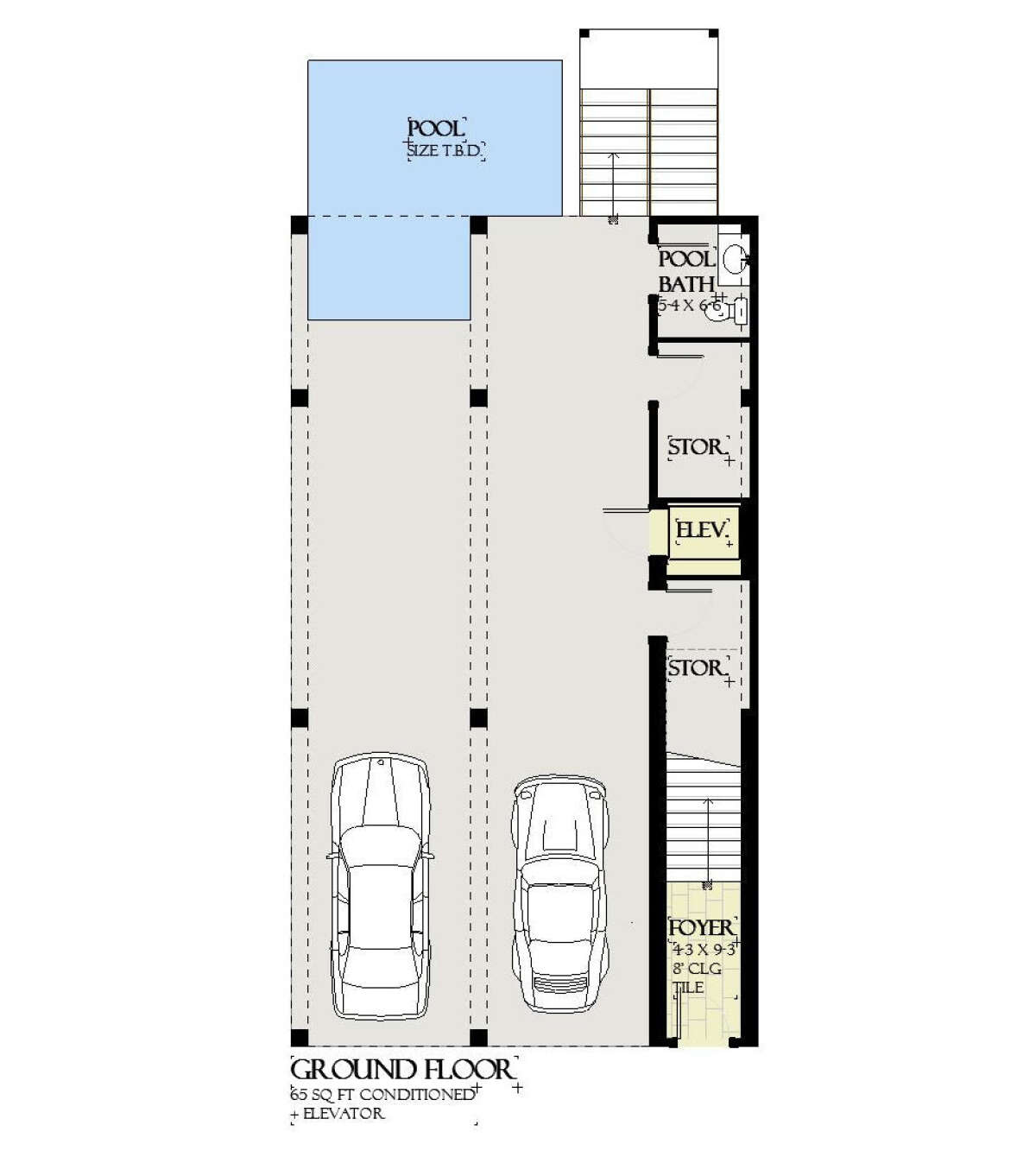

Lower Floor
Lower Floor for House Plan #1637-00169

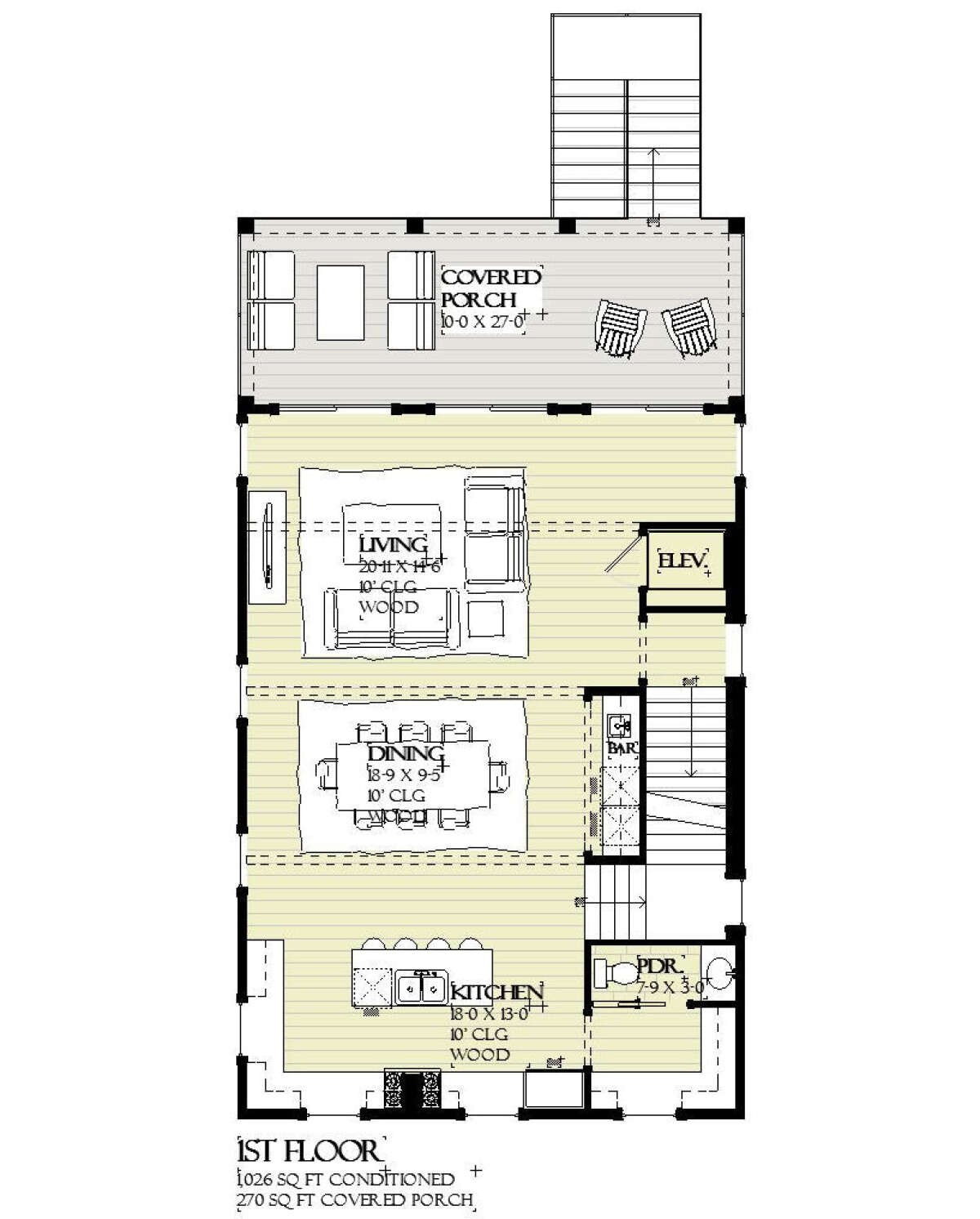

Main Floor
Main Floor for House Plan #1637-00169

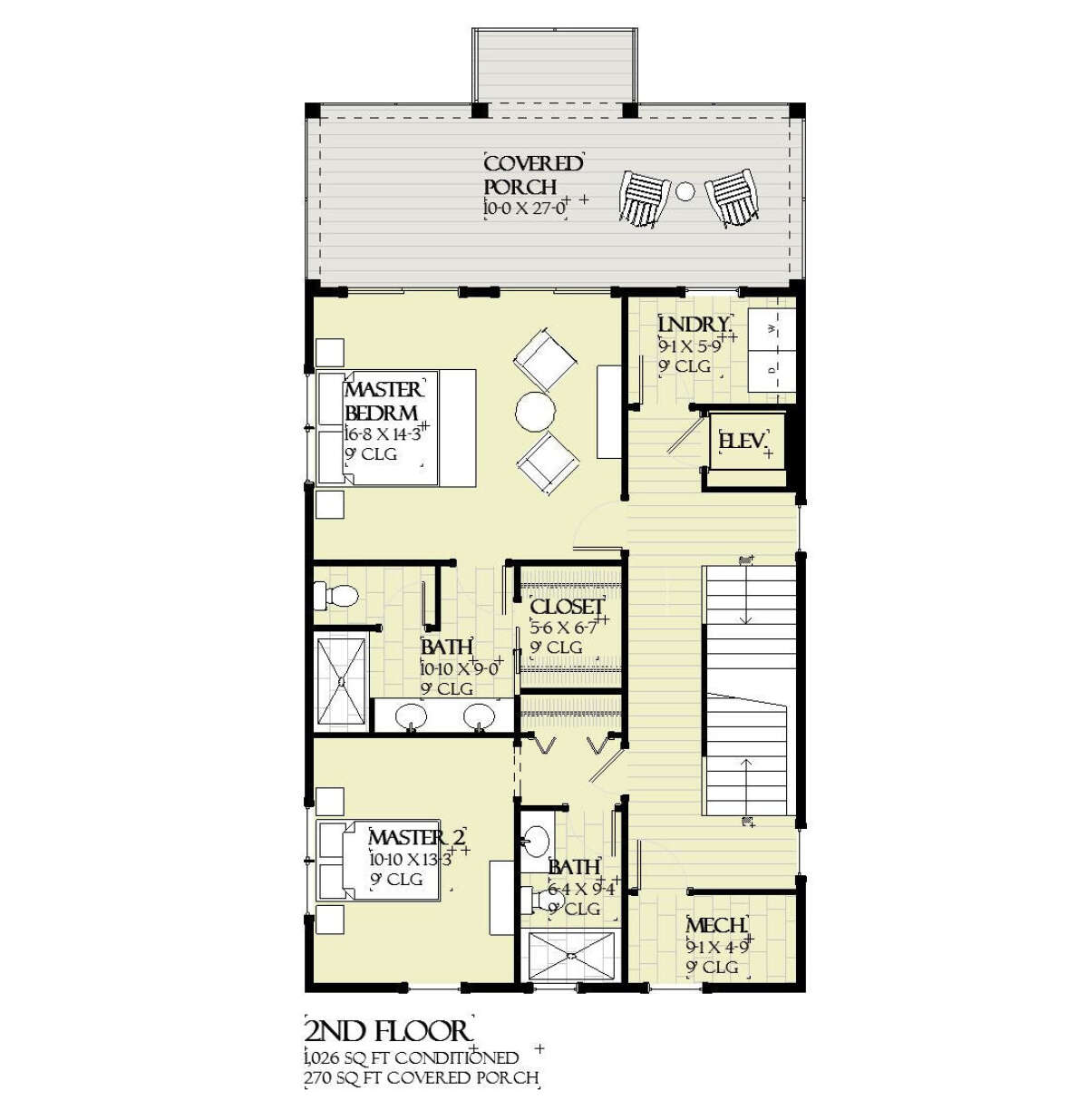

Second Floor
Second Floor for House Plan #1637-00169

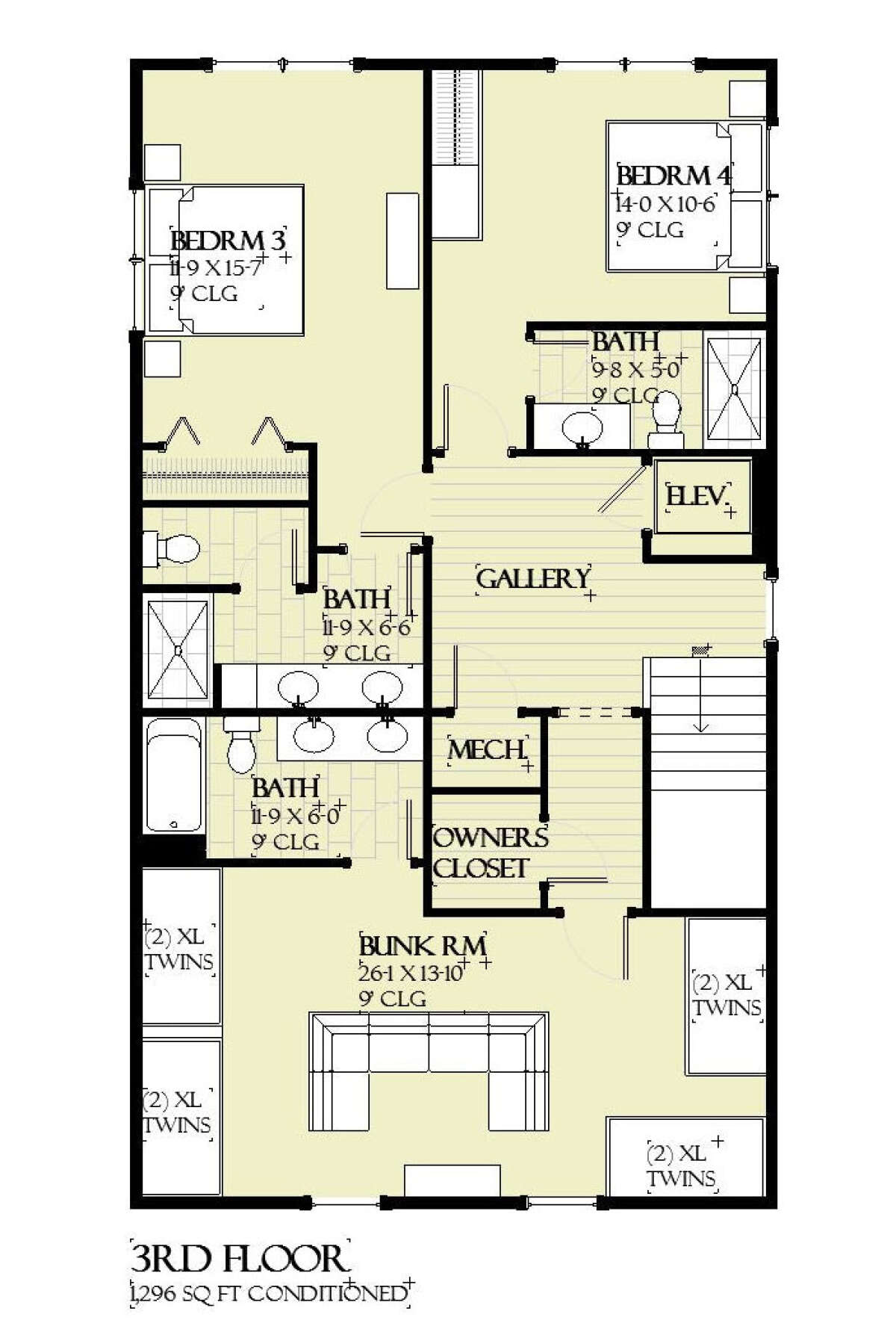

Third Floor
Third Floor for House Plan #1637-00169


What's Included in these plans?

  • Construction Ready Main Level Floor Plan (1/4"=1-0')
  • Construction Ready Upper Floor Plan (if applicable) (1/4"=1'-0")
  • Lower Level Floor Plans/Foundation (1/4"=1'-0")
  • Construction Ready Elevations (all four) with Materials, Wall Heights, Details, etc noted (1/4"=1')
  • Building Sections/Wall Sections/Eave Details
  • Exterior Details of Railings, Columns, Shutters, Flowerboxes etc.
  • Roof Overview Plan

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 5 bedroom, 5 bathroom Coastal house plan features 3,413 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
