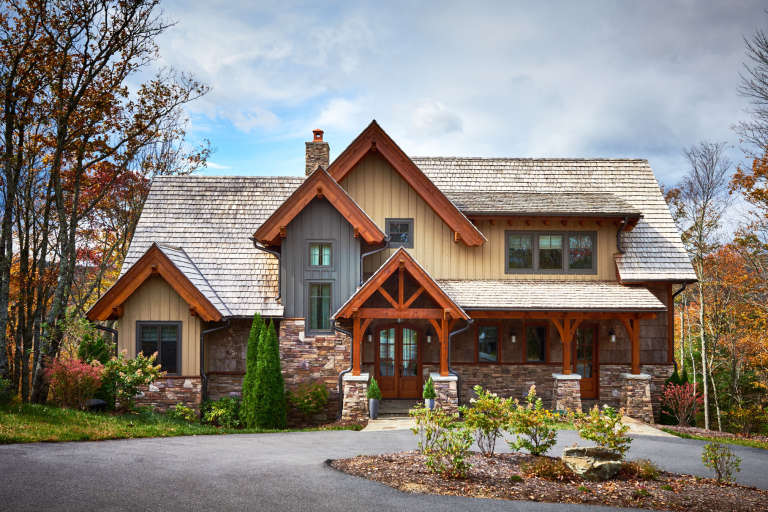

Mountain Rustic House Plan #957-00057 Elevation Photo

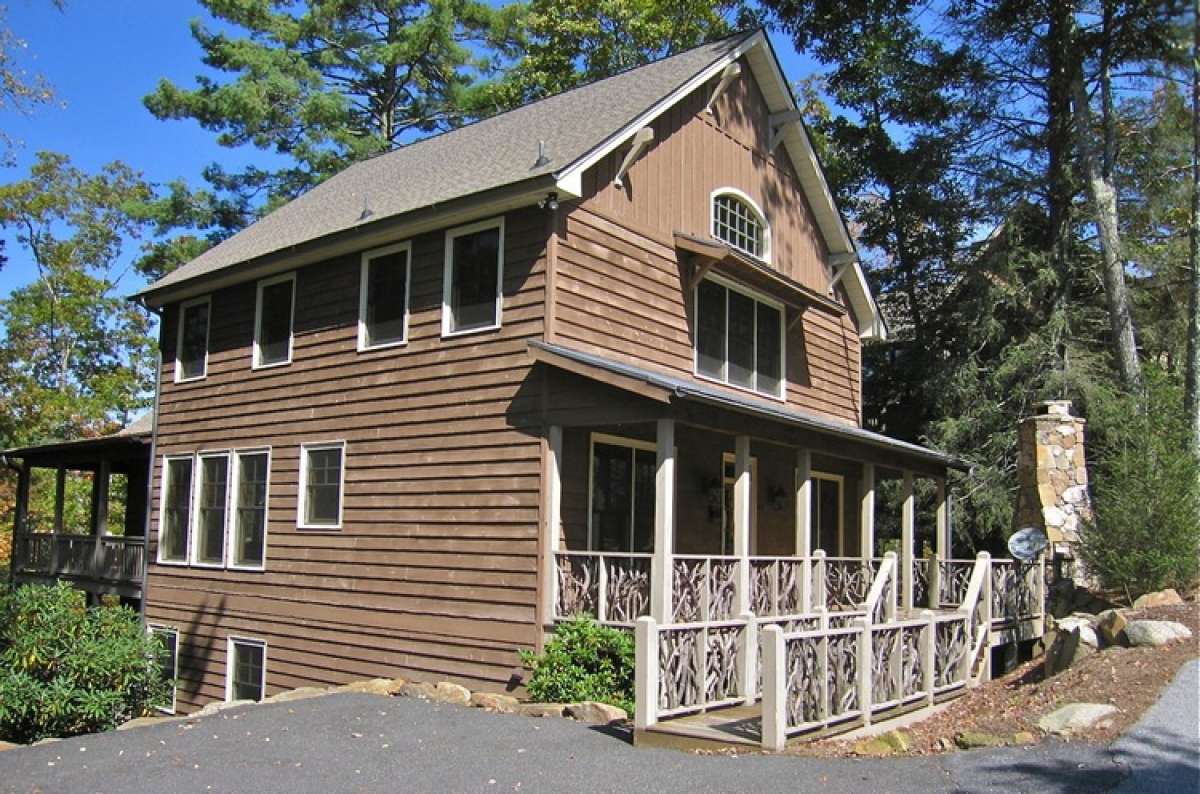

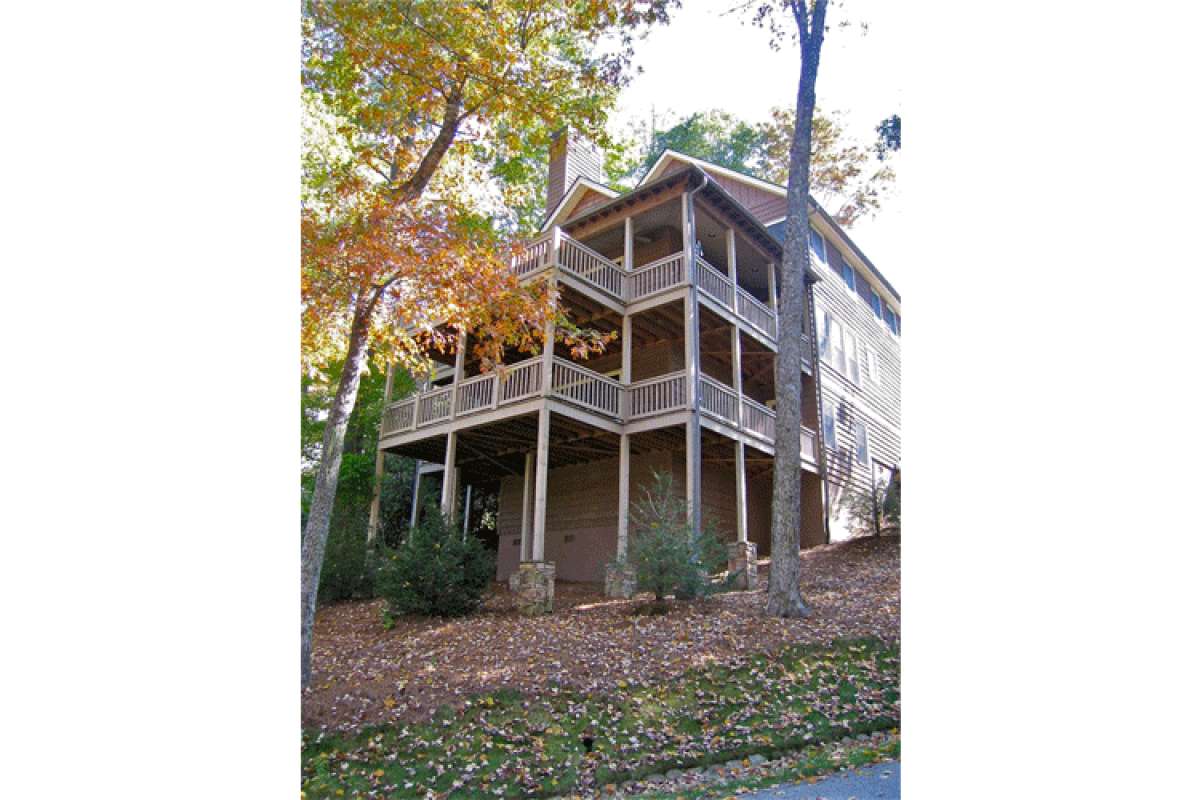

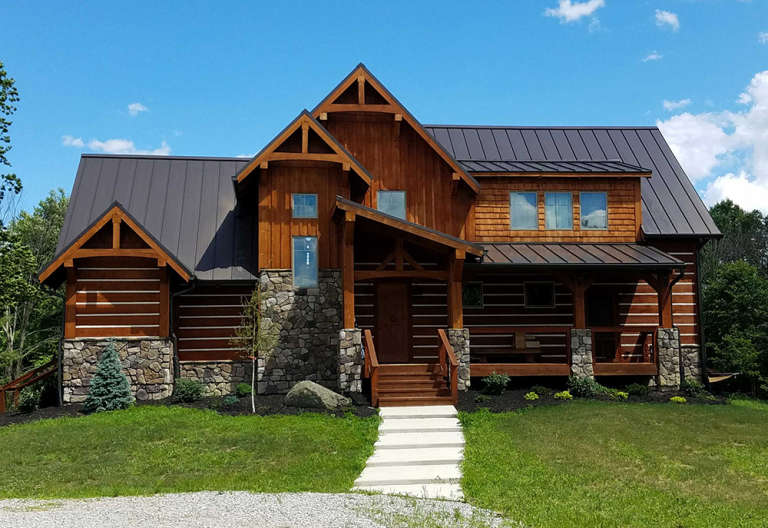

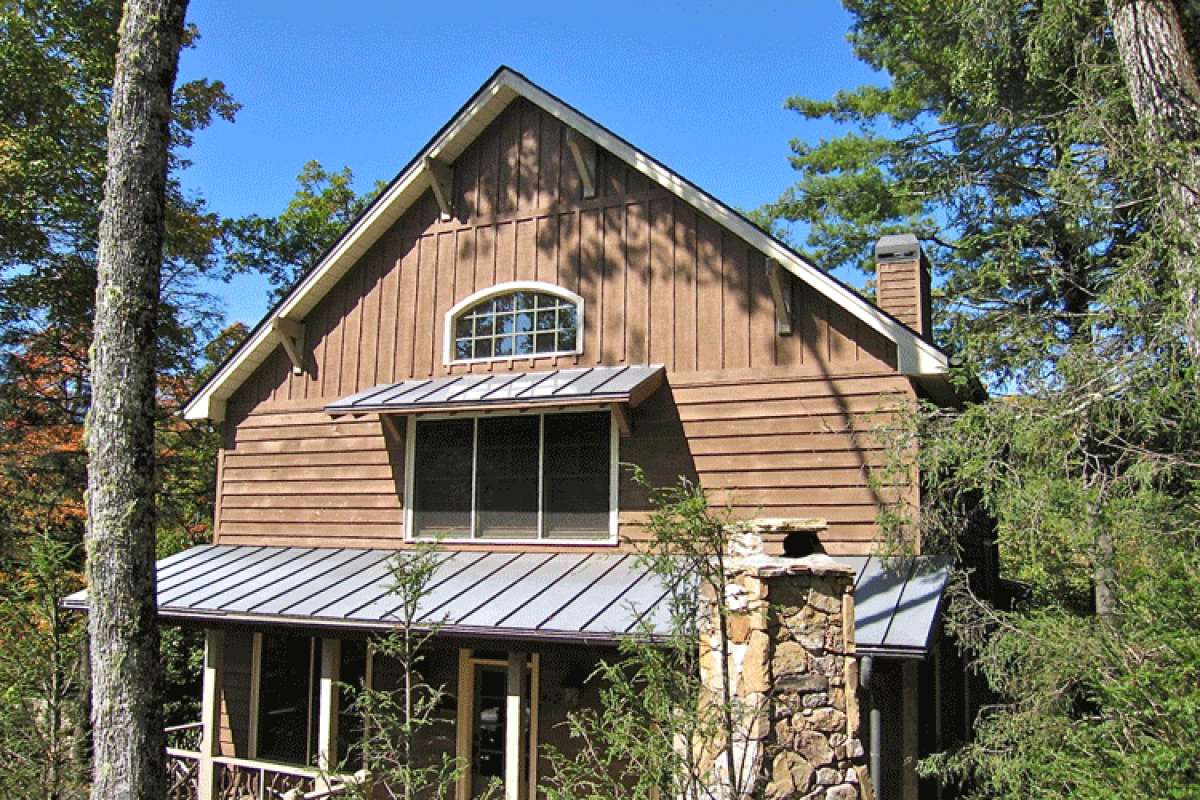

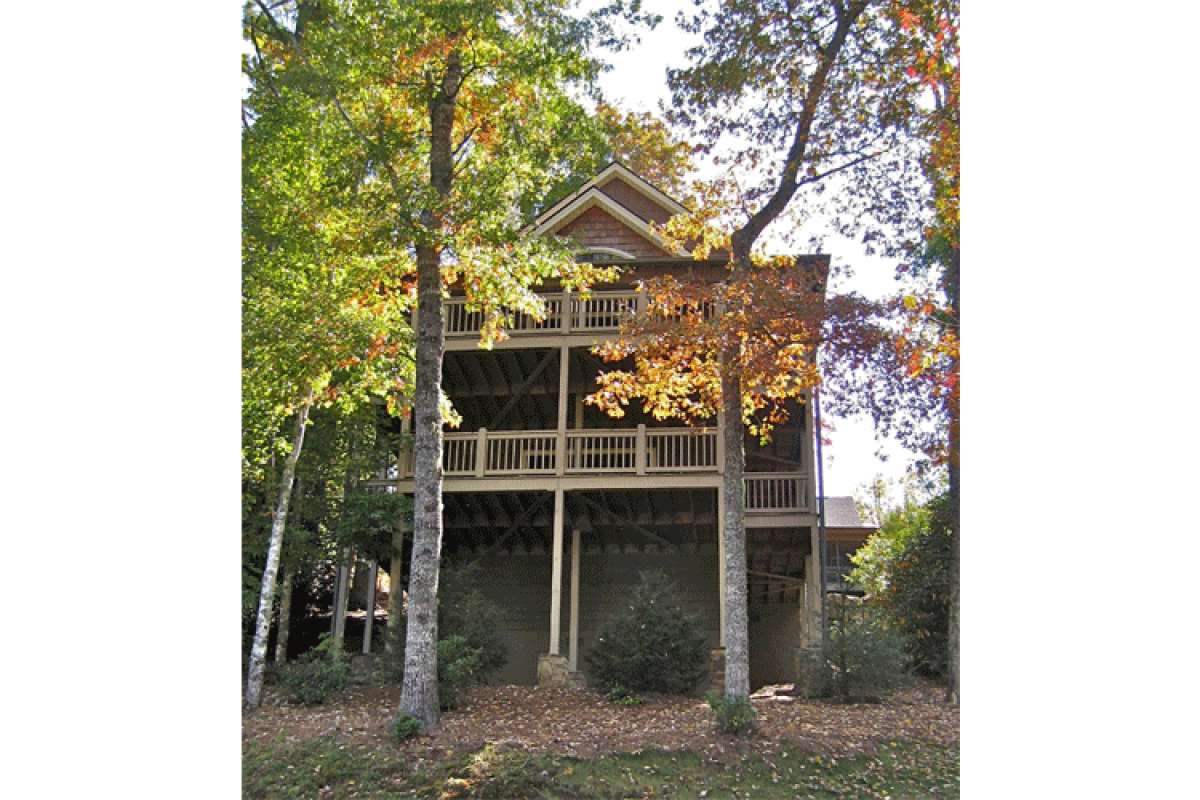

Mountain Rustic House Plan #957-00057 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 2,249

Beds 3

Bath 3

1/2 Baths 1

Car 2

Stories 2

Width 48'

Depth 32' 4"

See What's Included

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

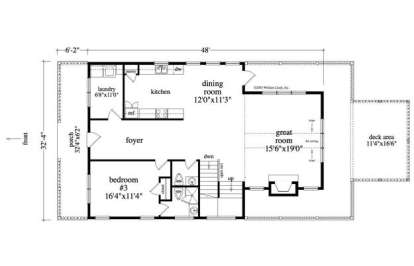

Floorplan 1

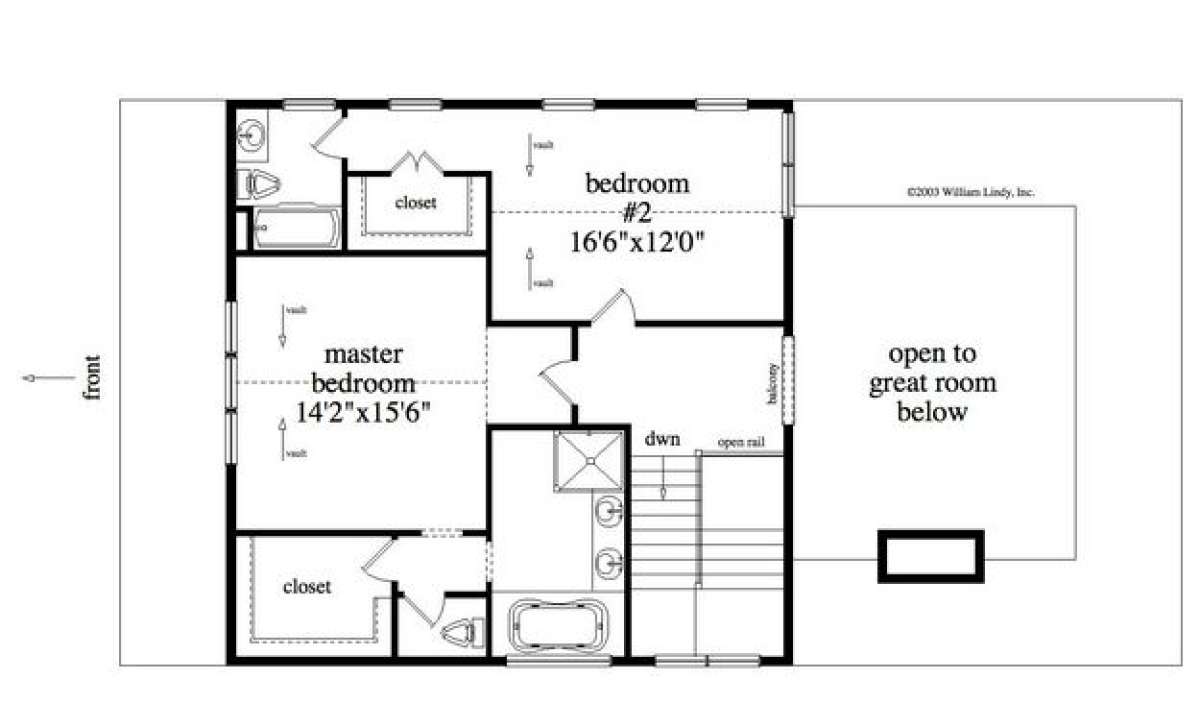

Floorplan 2

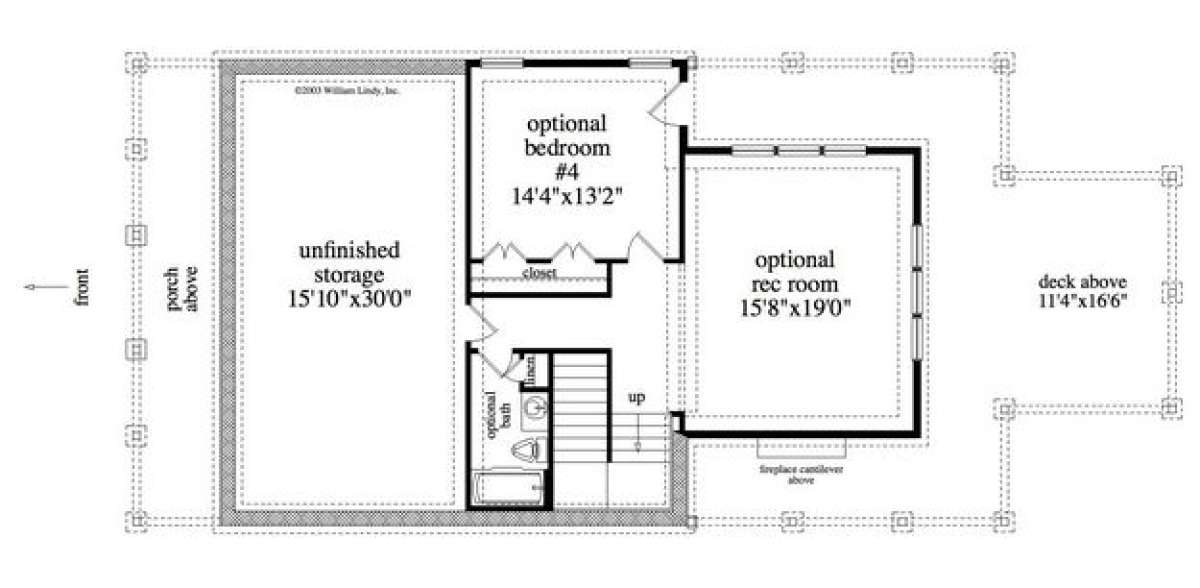

Basement

Images copyrighted by the designer.

What's Included in these plans?

Cover Sheet:
Includes a drawing index, square footage chart, and usually the front and rear elevations.
Exterior Elevations:
All elevations are detailed and shown at ¼" scale, usually over two sheets.
Floor Plans and Square Footage:
This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
Foundations:
-Basement:
They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
-Slab:
Usually an optional upgrade, we show a typical turned down slab.
-Crawl Space:
Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
Roof:
This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
Typical Details:
Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
Plans DO NOT include any electrical plan

Ask Us A Question

About This Plan

This rustic two story home features outstanding architectural elements, amazing outdoor space and a versatile interior floor plan. Outdoor space and gorgeous window views are magnificently highlighted in this house plan as it is ideally suited for a Mountain View or lakefront lot. There are approximately 2,200 square feet of living space on two floors and the basement level expansion would include an additional 774 square feet increasing this home’s value and versatility. There are three bedrooms, three plus bathrooms and a two car garage included with the house plan. An expansive front covered porch highlights the exterior of the home and is the perfect space to relax, unwind and greet family and neighbors. As you enter the home, the equally expansive foyer extends and offers wonderful views into the great room. The great room features a handsome fireplace and is surrounded on three sides by a multitude of windows as well as it being enveloped by an enormous rear covered porch. The dining room is an open space and provides access to the rear porch and deck area. The family friendly kitchen has plenty of counter and cabinet space along with a separate pantry. There is an enormous laundry room on the main floor along with a powder room for guests. The third bedroom is situated on this level, as well, and features a spacious footprint, great window views, ample closet space and a private full bath. Upstairs, you will find an oversized second bedroom that is highlighted by a large walk-in closet and a private full bath. The master suite is elegantly designed and includes a spacious bedroom which is vaulted and boasts of gorgeous views. The master bath features dual vanities, a whirlpool tub, separate shower and a compartmentalized toilet. An oversized walk-in closet sits off the bedroom for privacy. The optional finished terrace level includes a fourth bedroom with great closet space, a full hall bath and an enormous family recreation room along with additional storage space. This beautiful home is highlighted by outstanding window views and outdoor spaces to completely take advantage of nature’s offerings.
