Lake Front Plan 957-00029


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,488
Beds 3
Bath 3
1/2 Baths 2
Car 0
Stories 2
Width 43' 6"
Depth 51' 6"

Floorplan Drawings

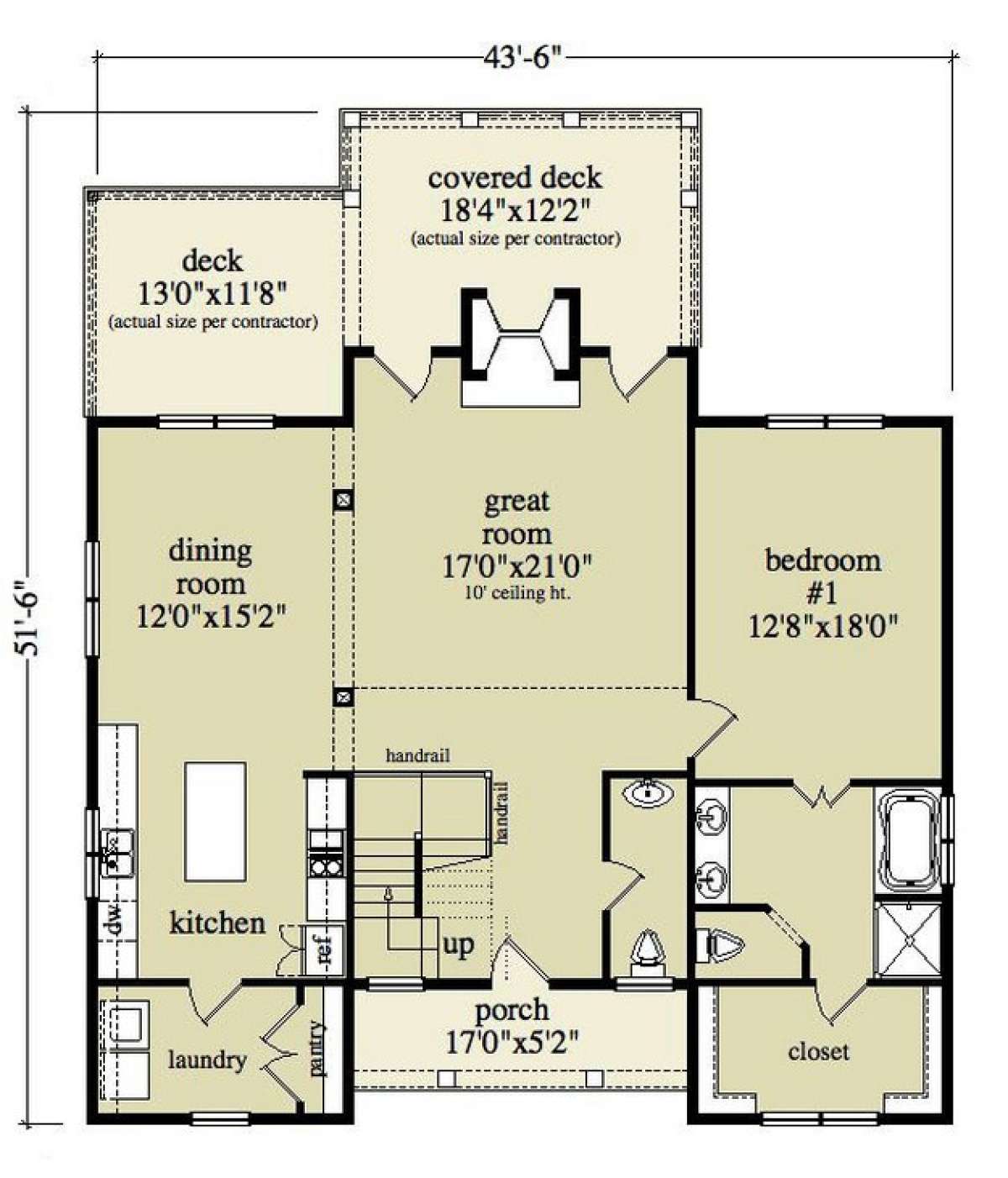

Floorplan 1
Floorplan 1 for House Plan #957-00029

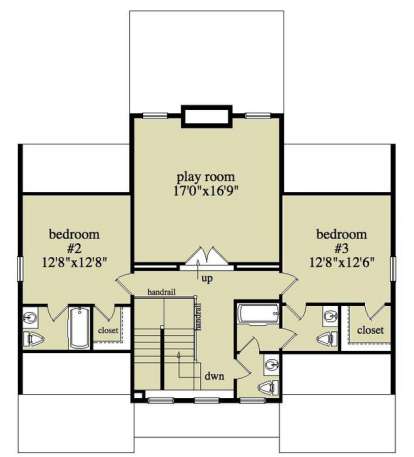

Floorplan 2
Floorplan 2 for House Plan #957-00029

What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.

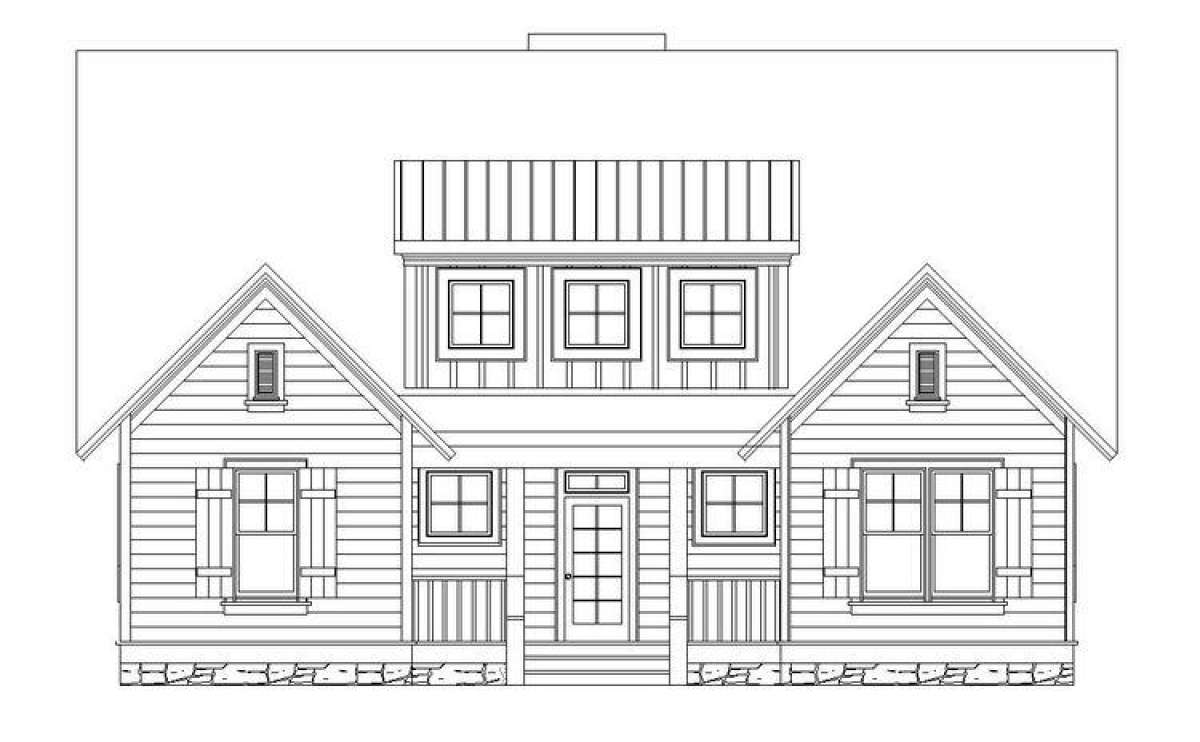

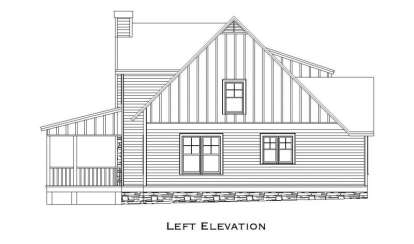

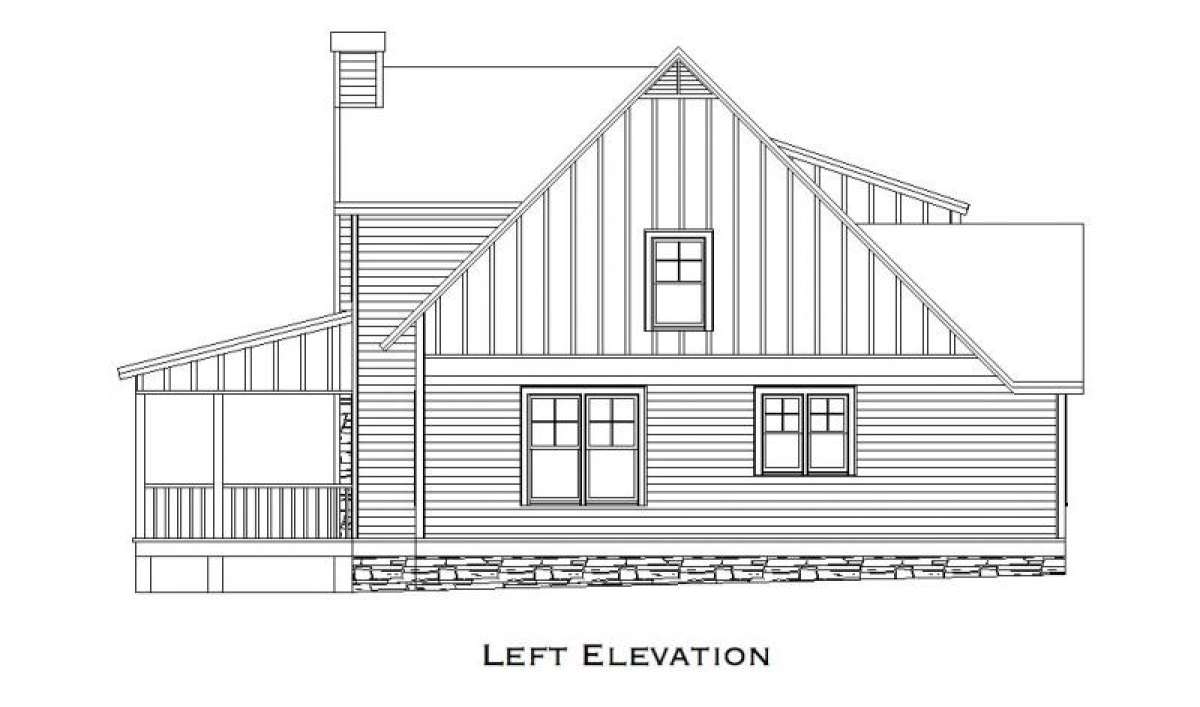

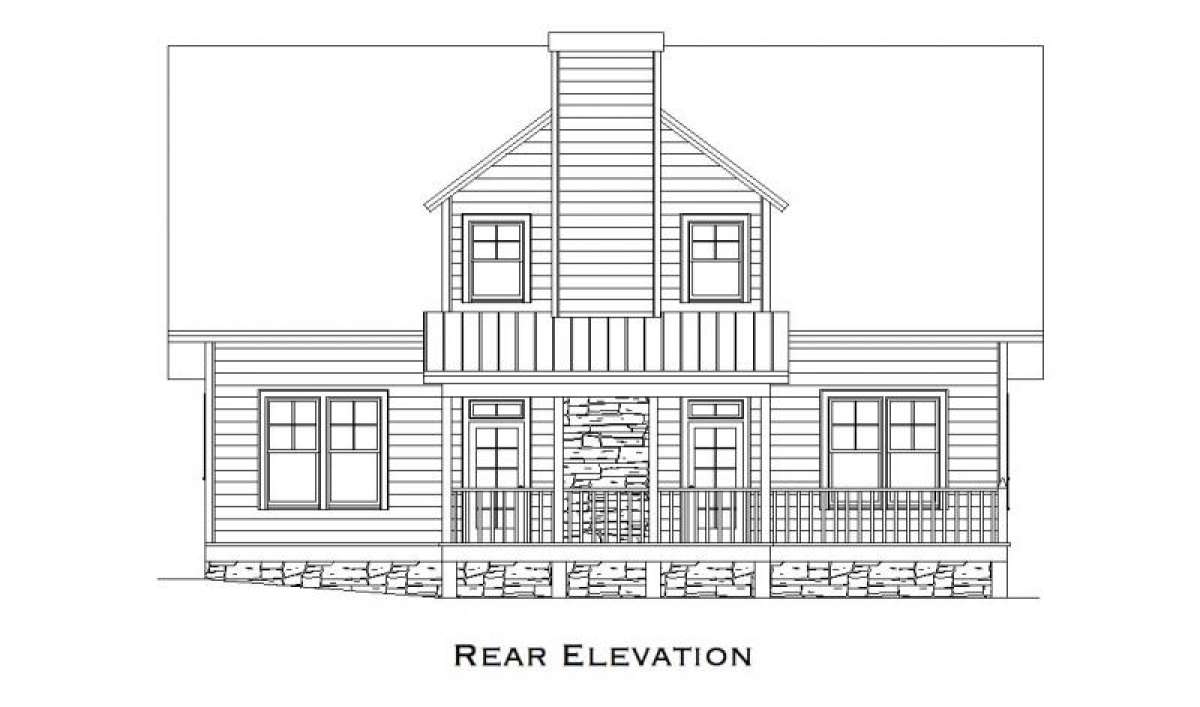

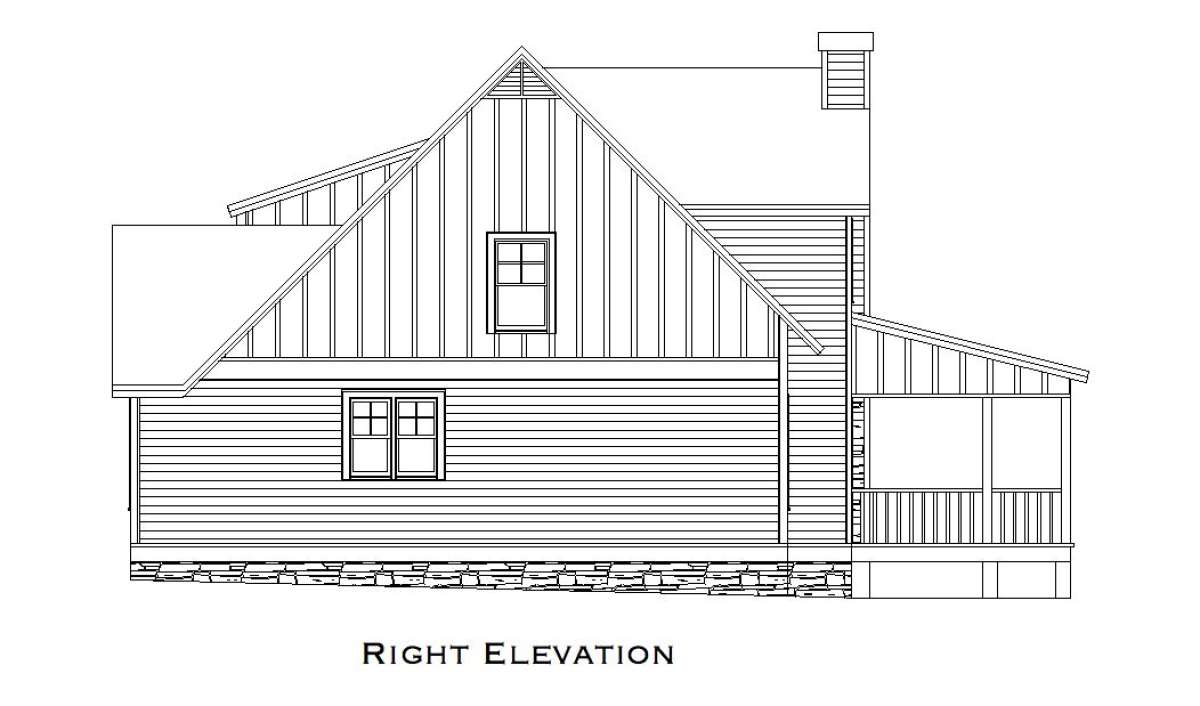

  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
  • Plans DO NOT include any electrical plan

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

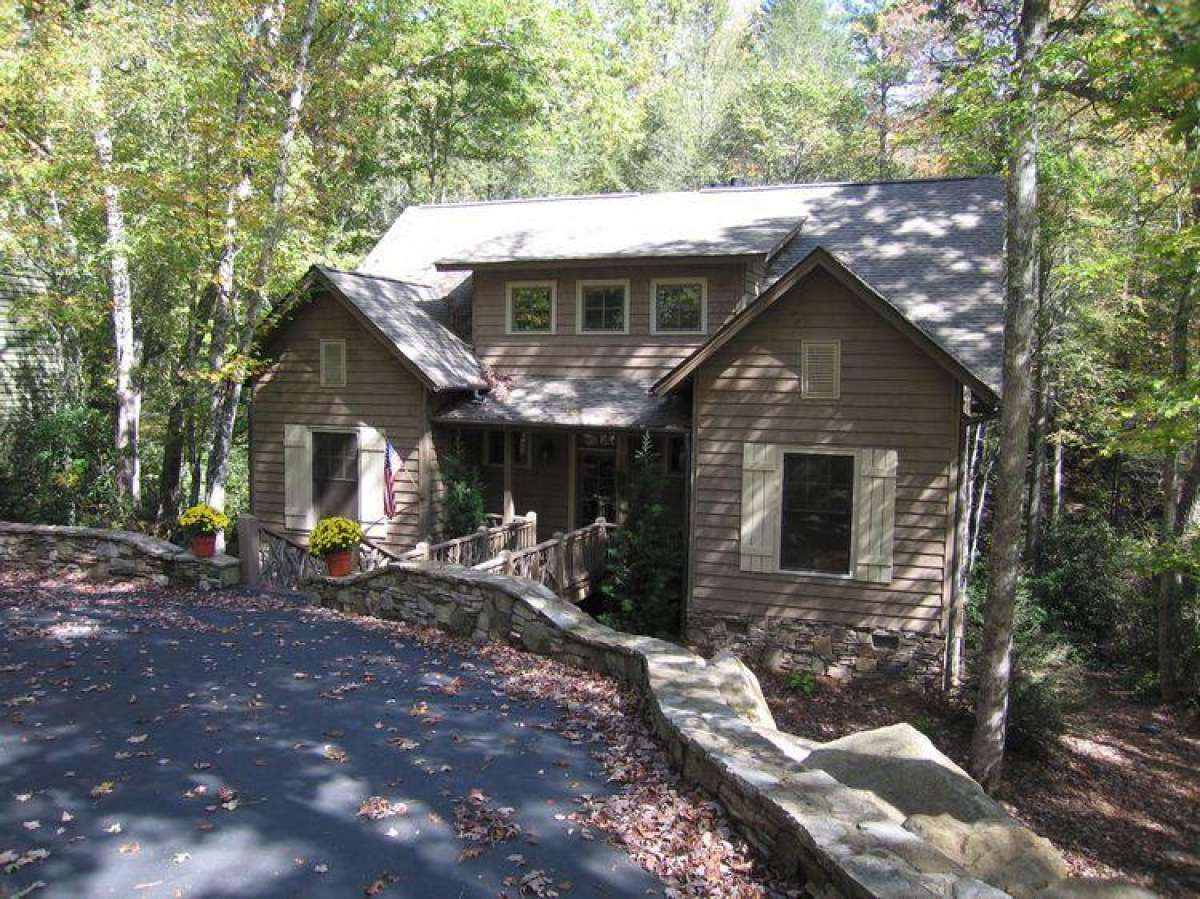

This cozy and attractive home would be perfectly suited for a mountain or lakefront property. The exterior of the home is warm and inviting and includes visually pleasing architectural elements which blend beautifully with an outdoor setting. The two storied home features three bedrooms and three plus bathrooms in approximately 2,500 square feet. The covered front porch spills into the spacious foyer which extends into the open concept design. The enormous great room boasts of soaring ceiling heights and a double sided, rear wall fireplace. The fireplace is flanked on both sides with door access to the rear outdoor space which is comprised of a large covered deck and an adjacent open deck. These expansive, wide open spaces; both on the interior and exterior create a lovely atmosphere in which to entertain large gatherings of family and friends. The dining room is open to the great room, has wonderful window views of the rear deck and side yard and, provides ample space to incorporate a farmhouse table. The family friendly kitchen houses a large center island, plenty of additional counter and cabinet space and there is a separate walk-in pantry and laundry room situated off the kitchen. The main level bedroom is extremely spacious with French door access into the bathroom which features dual vanities, a separate shower, a whirlpool tub and a compartmentalized toilet. An enormous walk-in closet sits at the rear of the bath for privacy and convenience. Upstairs, you will find great family space, two bedrooms and two baths. The top of the second story landing holds a large loft area accessible through French doors. This space would be ideal as a playroom, home office/study or a multi-purpose family and the double door addition is perfect for closing off the room. Bedroom two is spacious with a walk-in closet and private bath. The third bedroom features an equally spacious bedroom, a walk-in closet and separate toilet and vanity area that are shared with the jack and jill bathroom leading to the loft area. This home has a fully functional and comfortable interior floor plan and a beautifully crafted exterior façade with wonderful outdoor space.
