Craftsman House Plan 9401-00090

Sq Ft2,397
1/2 Baths1
Width87' 6"
Depth75' 3"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

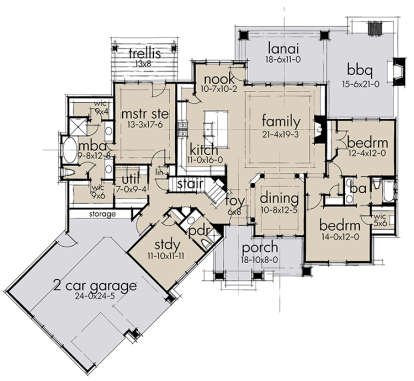

Main for House Plan #9401-00090

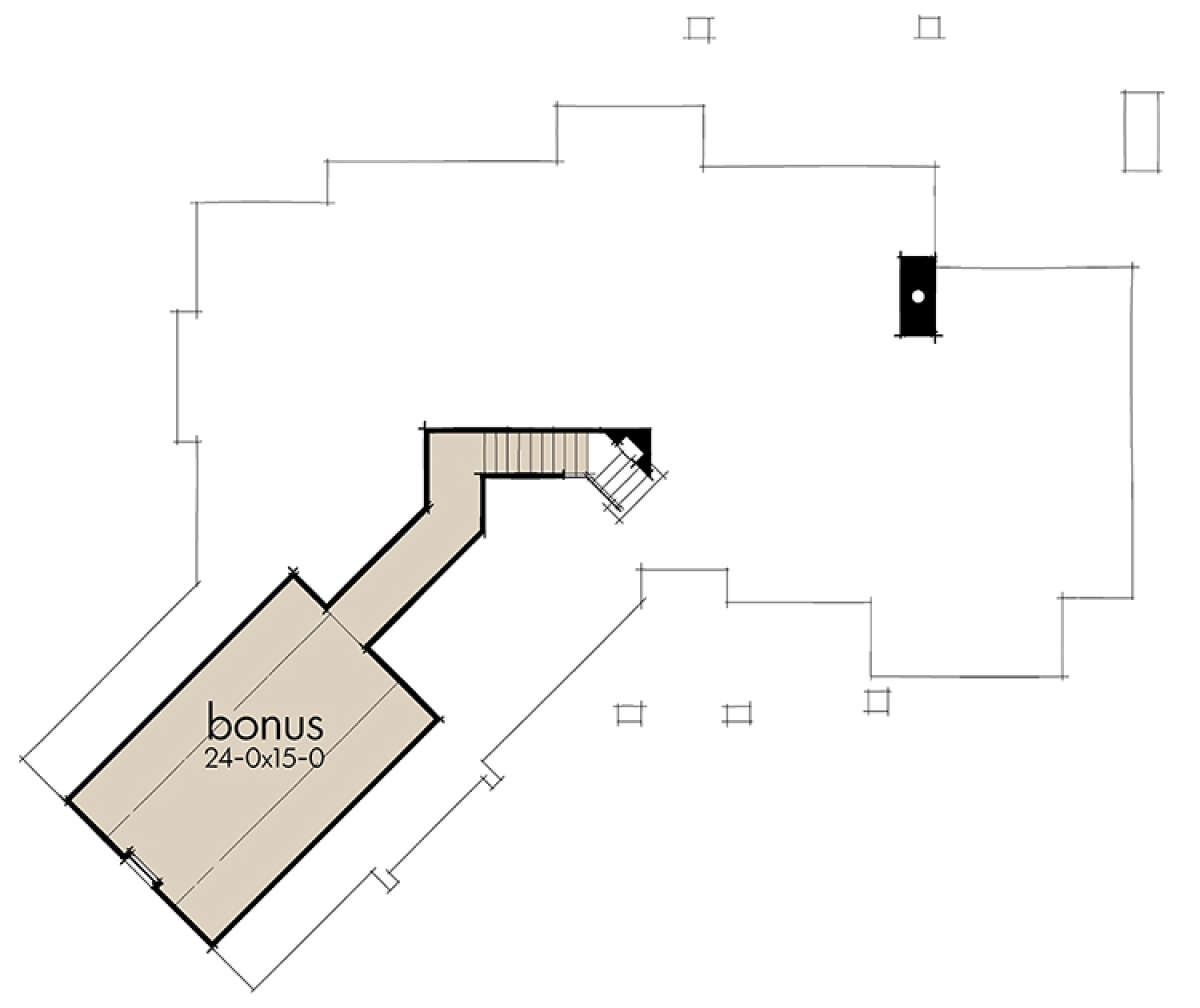

Bonus for House Plan #9401-00090
Main for House Plan #9401-00090
Bonus for House Plan #9401-00090

Frequently Asked Questions


What's Included in these plans?

  • 1/4" Scale Floor Plan(s)
  • 1/4" Scale Exterior Elevations
  • 1/4" Scale Building Section
  • 3/8" Cabinet Elevations
  • 1/4" 1st Floor Ceiling Framing
  • 1/4" 2nd Floor Ceiling Framing
  • 1/4" Roof Framing
  • 1/4" Electrical Schematic
  • Depending on Foundation Available for Plan:
  • 1/4" Slab Plan, 1/4" Crawlspace Plan with framing plan, 1/4" Basement Plan with framing plan

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

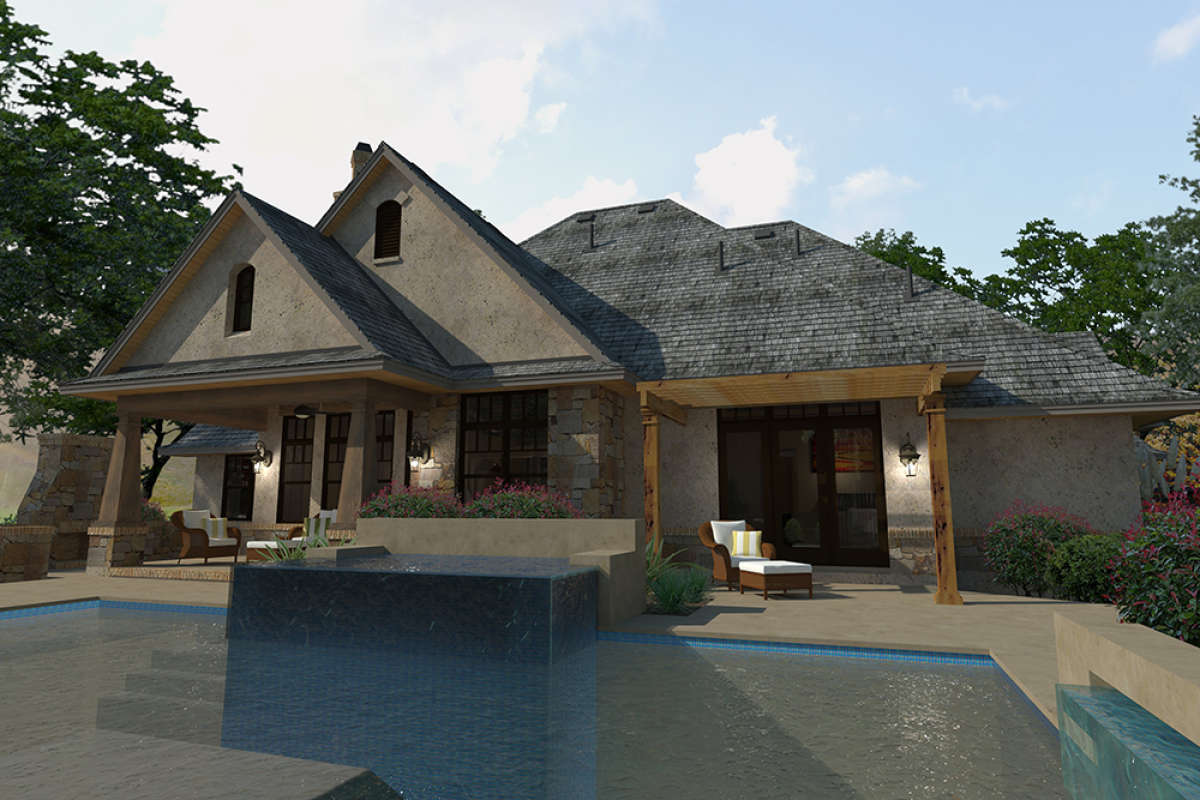

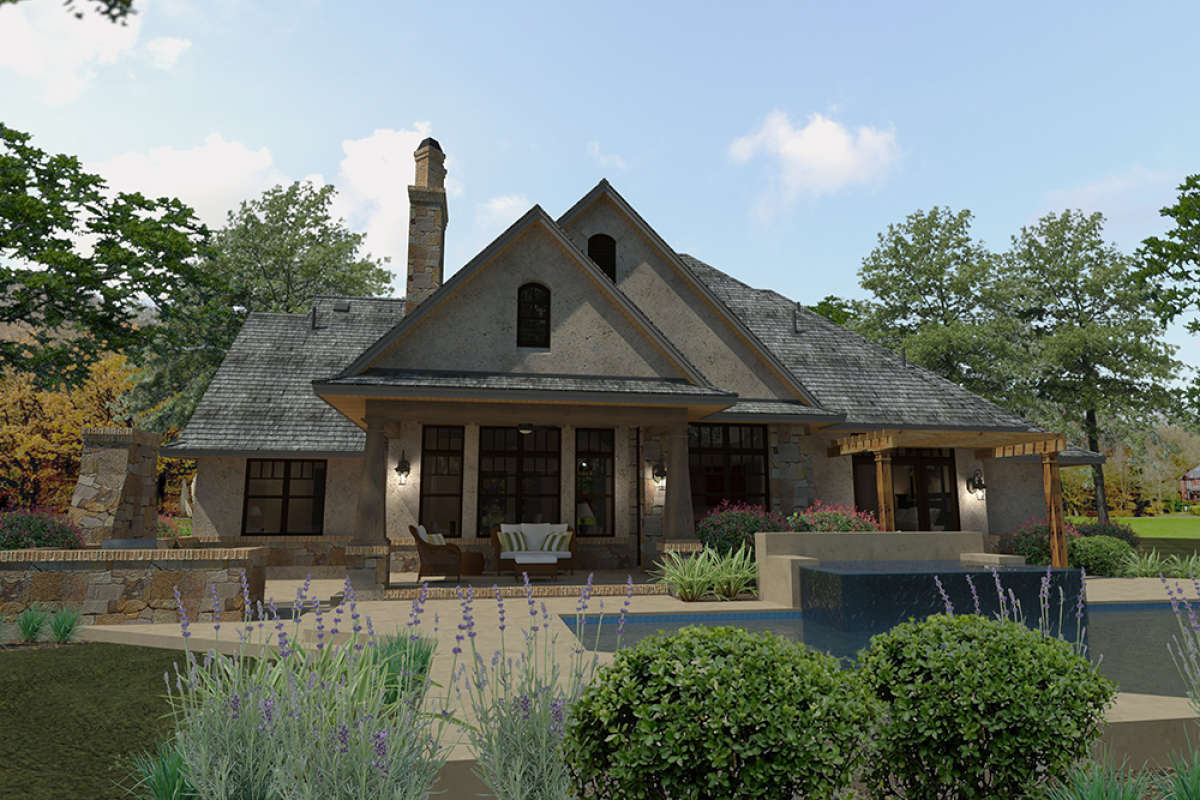

Loaded with unique Craftsman details, this house plan brags of a storybookesque exterior highlighted by a rear elevation designed for great entertaining and relaxing. Upon front entry, the foyer is bordered by an open dining room, a staircase to the bonus room, a guest powder room, and entrance to the family room. The angular shape of the home grants privacy to the owner's suite, which is complete with his and her closets on either side of the en suite bathroom, a separate shower and tub, and private access to the trellis. On the opposite side of the home, the secondary bedrooms share a Jack and Jill bathroom and window views. The open floor plan in the common rooms creates a wide, inviting space where no one is left out. Highlighted features include a center island in the kitchen, a food pantry, access to the lanai through the breakfast nook, and a warming fireplace to gather around in the family room. This unique Craftsman home design optimizes outdoor entertaining and an open interior.
