Ranch House Plan 9035-00099

Sq Ft2,683
1/2 Baths1
Width70' 0"
Depth70' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

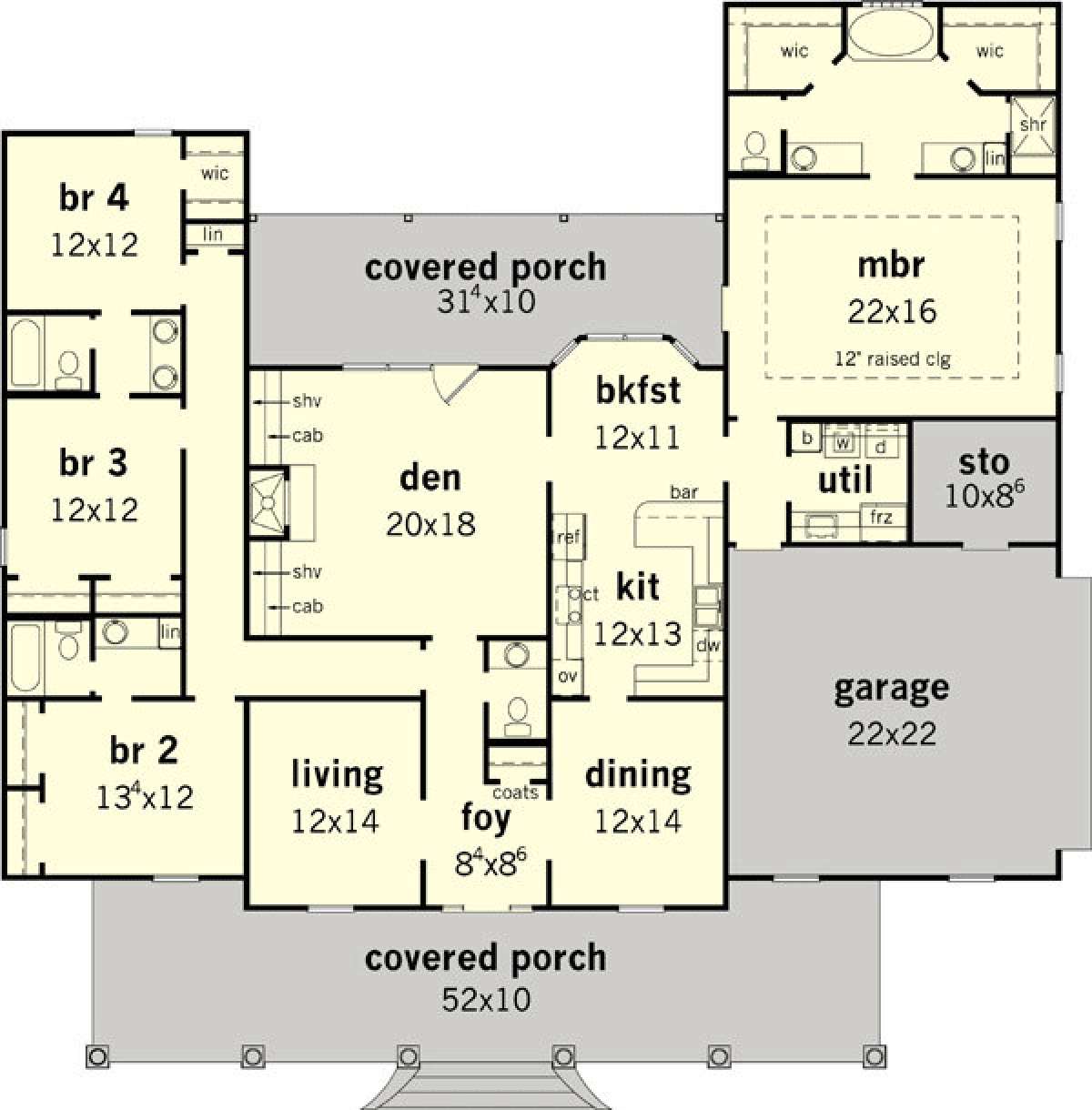

Floorplan 1 for House Plan #9035-00099
Floorplan 1
Floorplan 1 for House Plan #9035-00099

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet with rendering & floor plan
  • Foundation Plan (slab or crawl space)
  • ¼" Scale floor plan w/ electrical layout
  • ¼" scale front elevation with 1/8" rear and side elevations
  • At least one and most times two building sections
  • 1/8" scale roof plan
  • Detail Sheet with
    various details including footing and foundation details
  • VA specification sheet.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely single level Ranch house design features a charming exterior that is welcoming and trimmed with abundant curb appeal. There is a large front covered porch which measures 52’ x 10’ that is supported with attractive columned beams, open railing and brick pillars making it the perfect spot for greeting family and friends. There are a triple set of overhead dormer windows, horizontal siding and plentiful window views enhancing the exterior of the home. Approximately 2,683 square feet of living space is found in the interior floor plan which incorporates four bedrooms and three plus baths into the home’s layout. The choice of a slab or crawl space foundation is available and nine foot ceiling heights add a spacious quality to the interior. A brick walk-up staircase leads to the centrally located front door and subsequent foyer which contains a coat closet and is flanked by the living and dining rooms. Both rooms are equivalent sized, 12’ x 14’, and have window views overlooking the front covered porch. The dining room has a pass-thru to the kitchen which is highlighted with excellent cabinet and counter space that includes a peninsula bar. There is an adjoining breakfast room that is situated in a bay window view that is brightly lit. The den or family room is quite large with built-in cabinetry, a warming fireplace and provides access onto the rear covered porch. This is a large covered area perfect for entertaining, hosting a family cook-out or spending time with large groups of family and friends. There is a two car side loading garage that offers a large rear positioned storage room and access into the family utility space. Freezer space, a sink area, broom closet and room for the washer and dryer are included in this space.

The split bedroom plan is highlighted with four bedrooms, three of which are located on one side of the home. Bedroom two is the largest of the three, features front window views, plentiful closet space and a private full bath with an extended vanity, an enclosed linen closet and a tub/shower combination. The third and fourth bedrooms are equal in size, have window views and one features a walk-in closet while the other has generous closet space. There is a jack and jill shared bath with double sinks, a toilet area and a tub/shower combination for the two bedrooms. The master suite is located on the opposite side of the home for privacy and features a large master bedroom with trey ceiling accent, 12’ raised ceiling heights, wonderful window views and private access onto the rear covered porch. The enormous en suite bath is highlighted with dual split vanities, a garden tub with views, a separate shower and a private toilet area. His and hers walk-in closets lie on either side of the bath and provide large amounts of space for clothing and other accessories. This Ranch house plan features an efficient and functional floor plan and a beautiful exterior with charming detailing.
