Ranch House Plan 041-00117

Sq Ft2,639
Beds4
Baths3
1/2 Baths0
Stories1
Cars2
Width77' 0"
Depth60' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

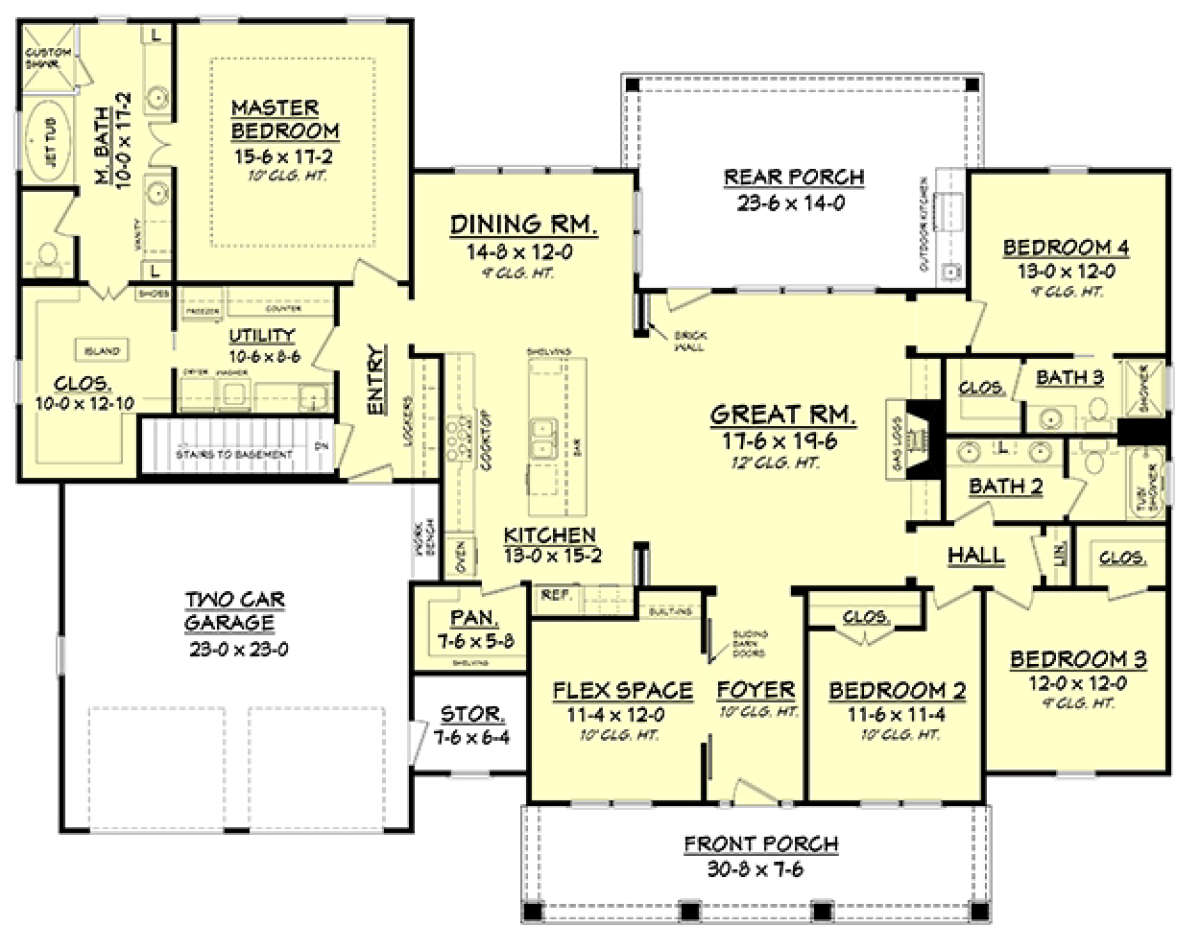

Main Floor for House Plan #041-00117
Slab Foundation Option for House Plan #041-00117
Main Floor
Main Floor for House Plan #041-00117

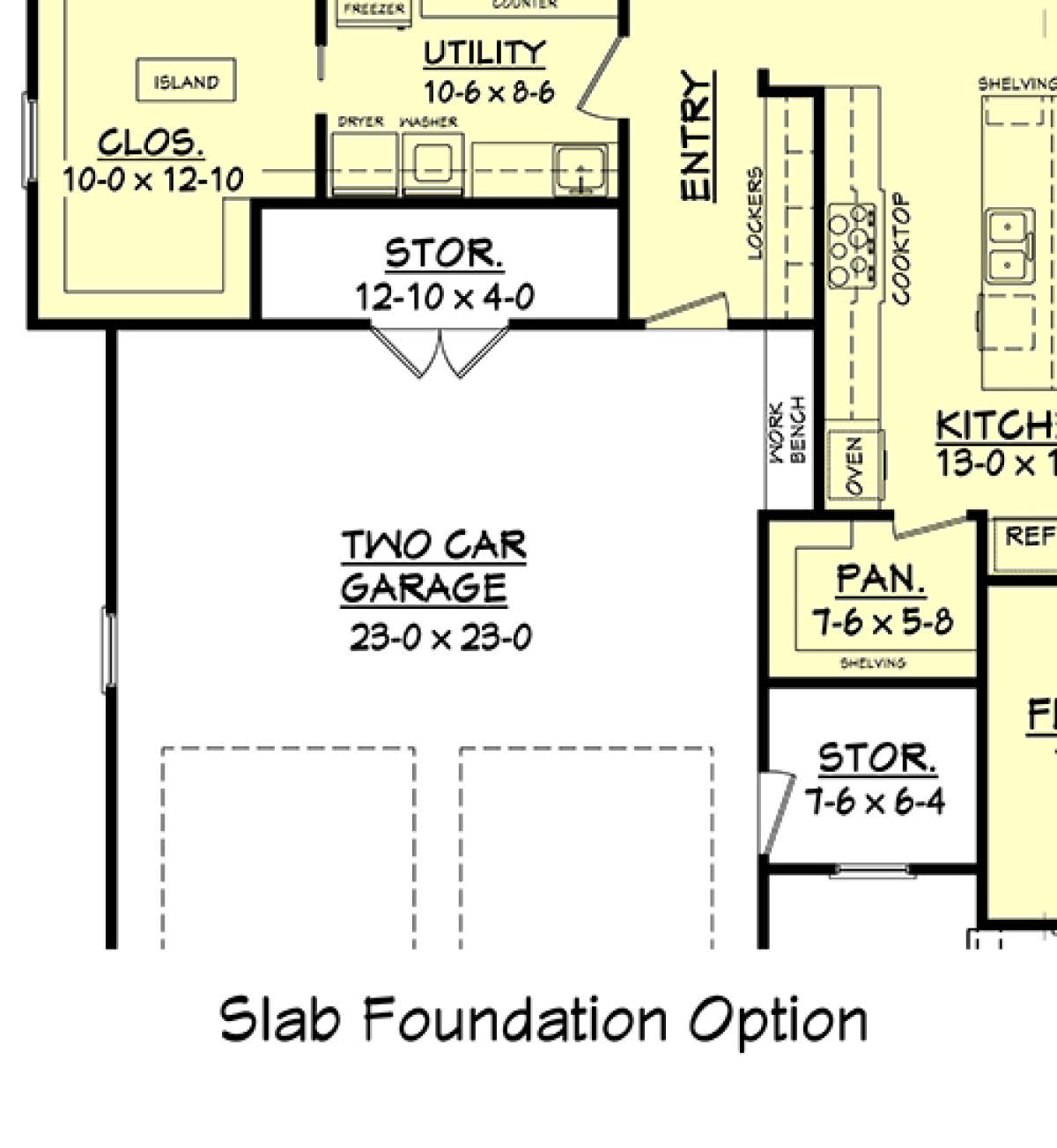

Slab Foundation Option
Slab Foundation Option for House Plan #041-00117


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet
    Cover sheet typically includes a front view of the plan (may be in color), index of pages included, and other miscellaneous notes and details.
  • Foundation Plan & Details
    Foundation plans describe to the builder, the type of foundation requested by the home owner or the type of foundation required by a certain geographic area. In most cases, the foundation plan will include footing sizes and locations, footing details and other important information needed to properly construct the home. In some specific areas, a structural engineer may be required to review and certify the house plans purchased. These reasons include, but are not limited to the following: seismic (earthquake) considerations, high wind (coastal , mountainous areas, etc.), snow loads, etc.
  • Floor Plans
    The floor plans locate all walls, interior and exterior, of the entire building, denote ceiling heights and treatments, locate all plumbing fixtures, cabinets, door and window locations and sizes, gives square footage measurements, locate water heaters and hvac systems.
  • Exterior Elevations
    The exterior elevations are used to depict the exterior finishes (brick, siding, stucco, etc.), roof styles (hip or gable) and slopes, ridge heights, and window styles, and overhang lengths. The exterior elevations include a front, right, rear, and left elevation.
  • Building Sections
    The building sections describe to the builder how a particular home is to be constructed.  Building sections typically show stud heights, the roof construction, whether stick built or pre engineered, direction of the ceiling joist members, overhang finishes, wall and ceiling finishes, and interior roof support members.
  • Roof Plan
    The roof plan depicts the roof type, plate heights and roof slope of each plane.
  • Interior Cabinet Views
    Cabinet views depict the overall design and layout of the kitchen cabinets.
  • Electrical Plan
    The electrical plan depicts the general location of all interior and exterior electrical devices. This generally includes light switches, electrical outlets, ceiling fixtures, and smoke detectors. The electrical plan will also generally locate the breaker box and power entry.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan


This striking Ranch house plan features Craftsman inspired exterior design elements which produce an attractive presence and enormous curb appeal. Double oversized gables feature exposed rafters, wide eaves and window elements while the expansive front covered porch is highlighted with tapered beams atop brick pillars. The interior floor plan is an expanded version of wide open spaces, multiple bedrooms and baths all within approximately 2,639 square feet of living space. Optional foundations are featured in this house plan; whether a crawl space, slab or basement foundation, this home is highlighted with excellent choices and additional garage space is available in the slab foundation option. The front foyer features 10’ ceiling heights and is open to the adjacent flex space which could be utilized as a home office, study or playroom for the children. A large great room with 12’ ceilings also features a handsome fireplace, built-in cabinetry, a triple wall of windows and access to the rear covered porch. This outdoor space is a continuation of large rooms and would be perfect for entertaining or relaxing. The grand kitchen and dining space is open to the great room for an open feel to the home’s interior. The kitchen features an amazing center island with casual seating and plenty of work/prep space, a huge walk-in food storage pantry and the dining room is surrounded with window views. The front loading garage features storage space and access into the home’s huge laundry room; convenient and practical, this space is highlighted with a sink area, plenty of counter space and room for a freezer.

The split bedroom plan is well loved by today’s homeowner’s and this plan features three bedrooms and two baths on one side of the home. Bedrooms two and three enjoy good floor space, window views and generous closet space along with a shared hall bath with double lavatories and a hall linen closet. The fourth bedroom is slightly larger with a walk-in closet and an en suite full bath. The master suite is a large space with an attractive master bedroom trey ceiling and French door access into the master bath where there are dual vanities, a separate shower and a jetted tub. The large walk-in closet is an enviable sized space which includes shoe storage options and a center dressing island. This family home boasts of an appealing exterior façade, a spacious and versatile interior floor plan and excellent outdoor space.
