Mountain House Plan 8504-00098

Sq Ft3,200
Beds3
Baths3
1/2 Baths1
Stories2
Cars2
Width109' 0"
Depth52' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00098
Floorplan 2 for House Plan #8504-00098

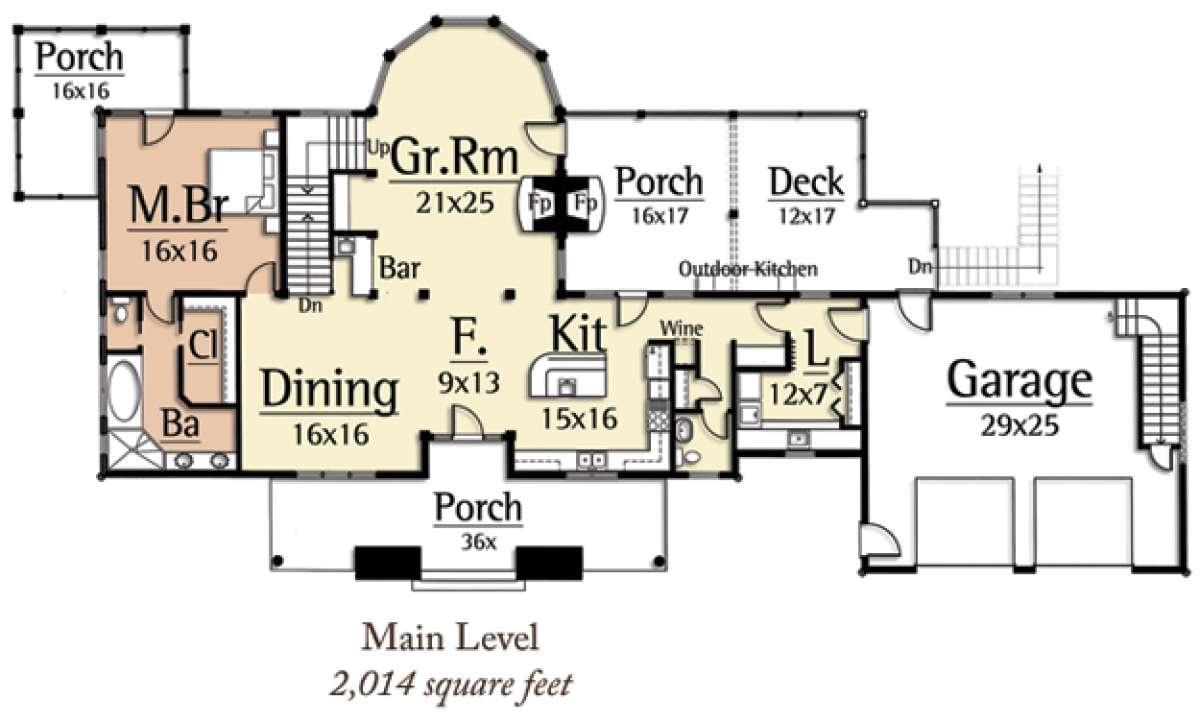

Floorplan 1
Floorplan 1 for House Plan #8504-00098

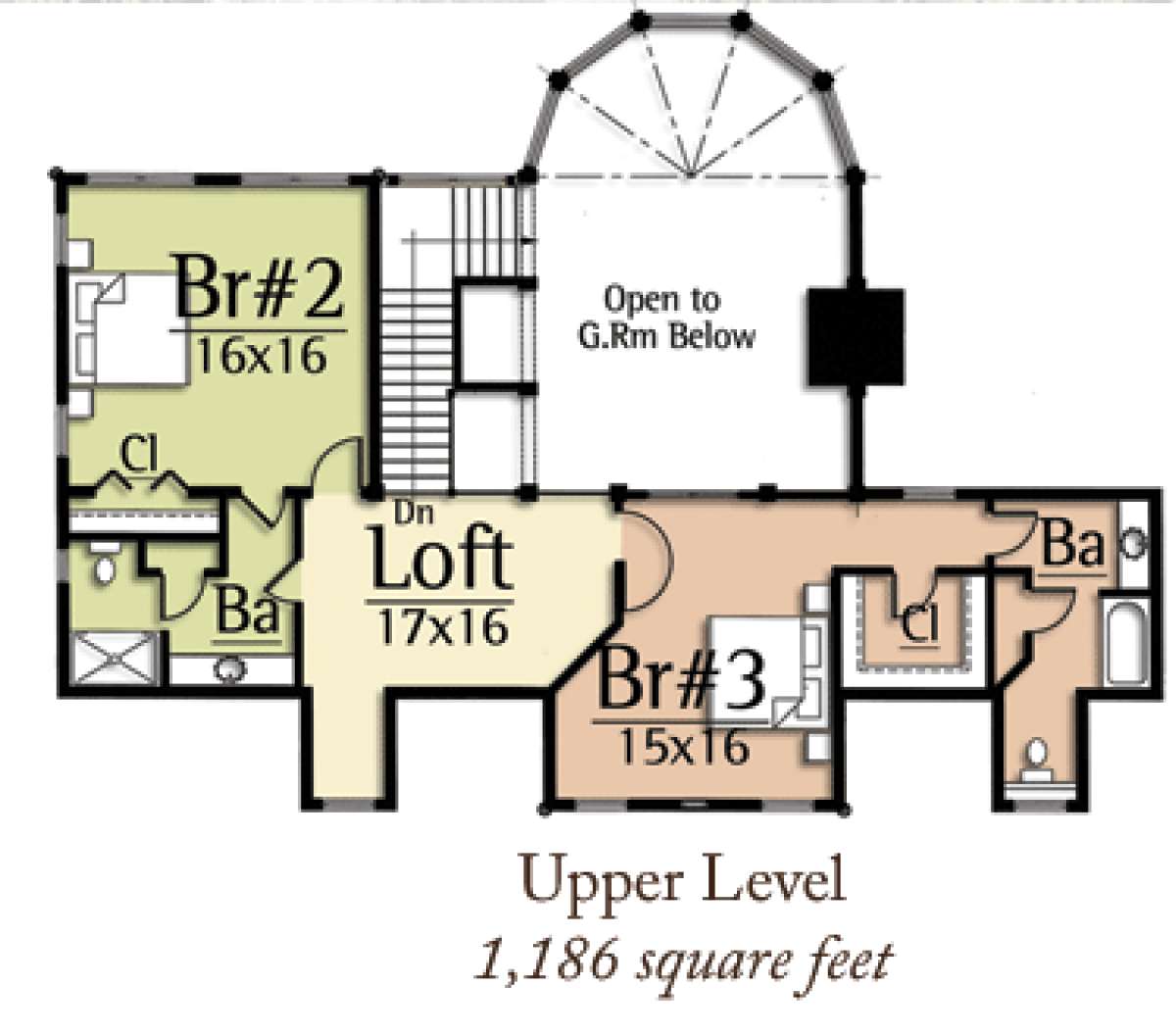

Floorplan 2
Floorplan 2 for House Plan #8504-00098


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans

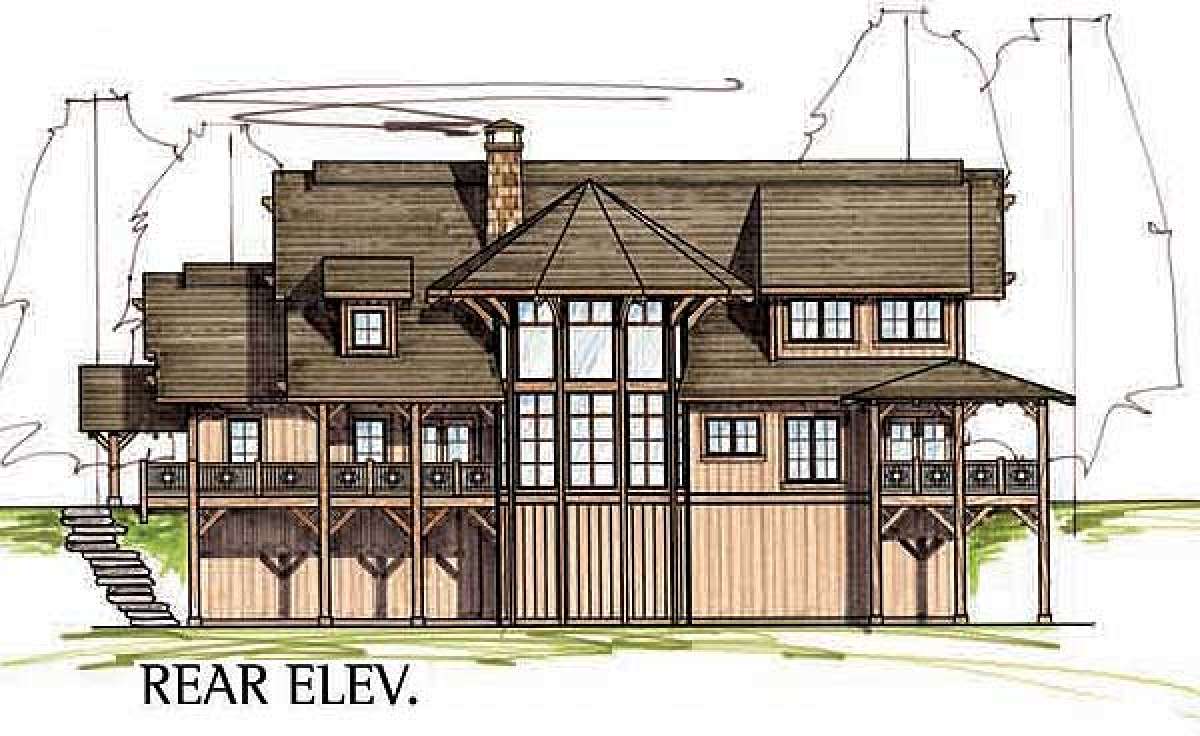

  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

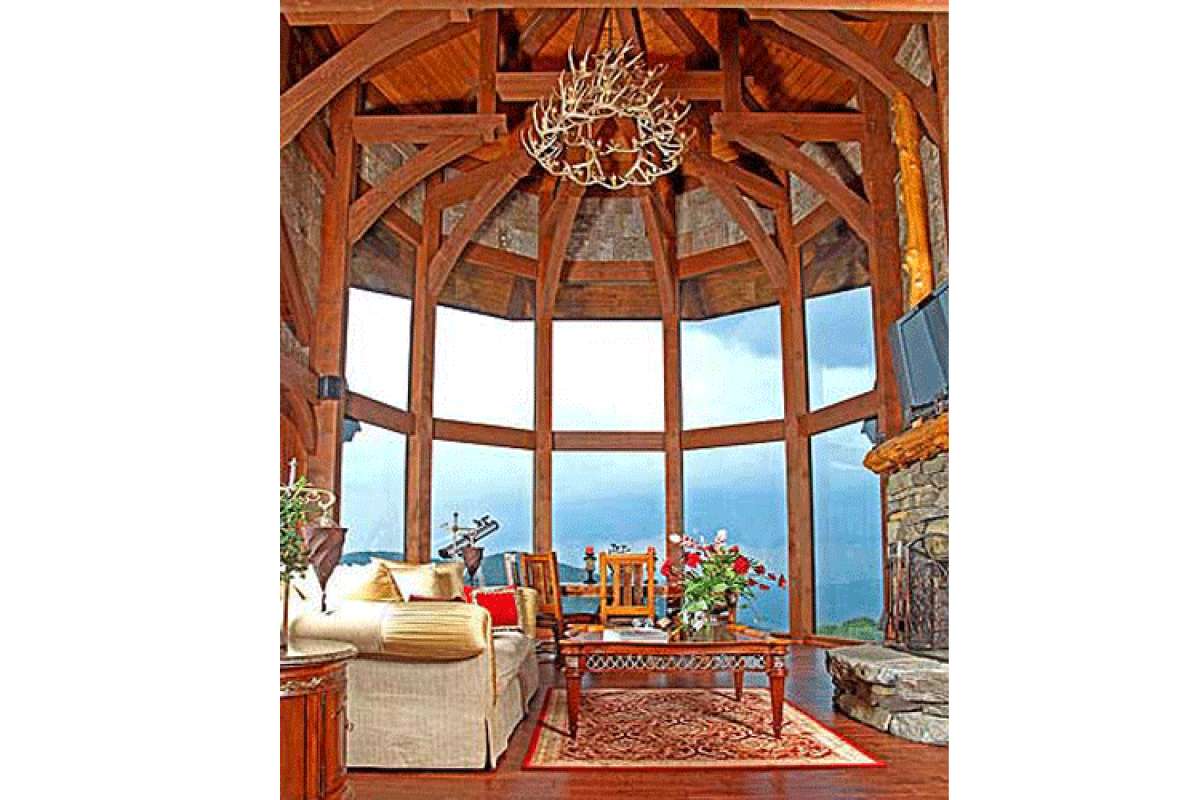

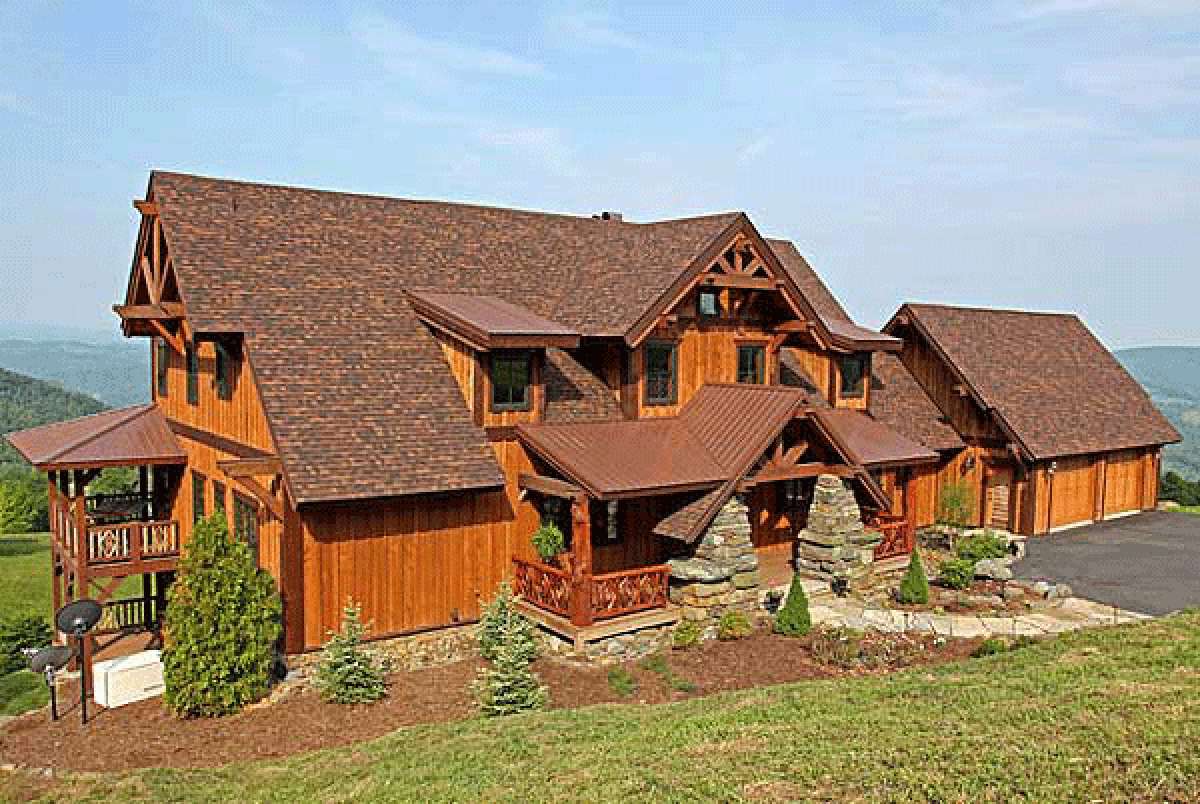

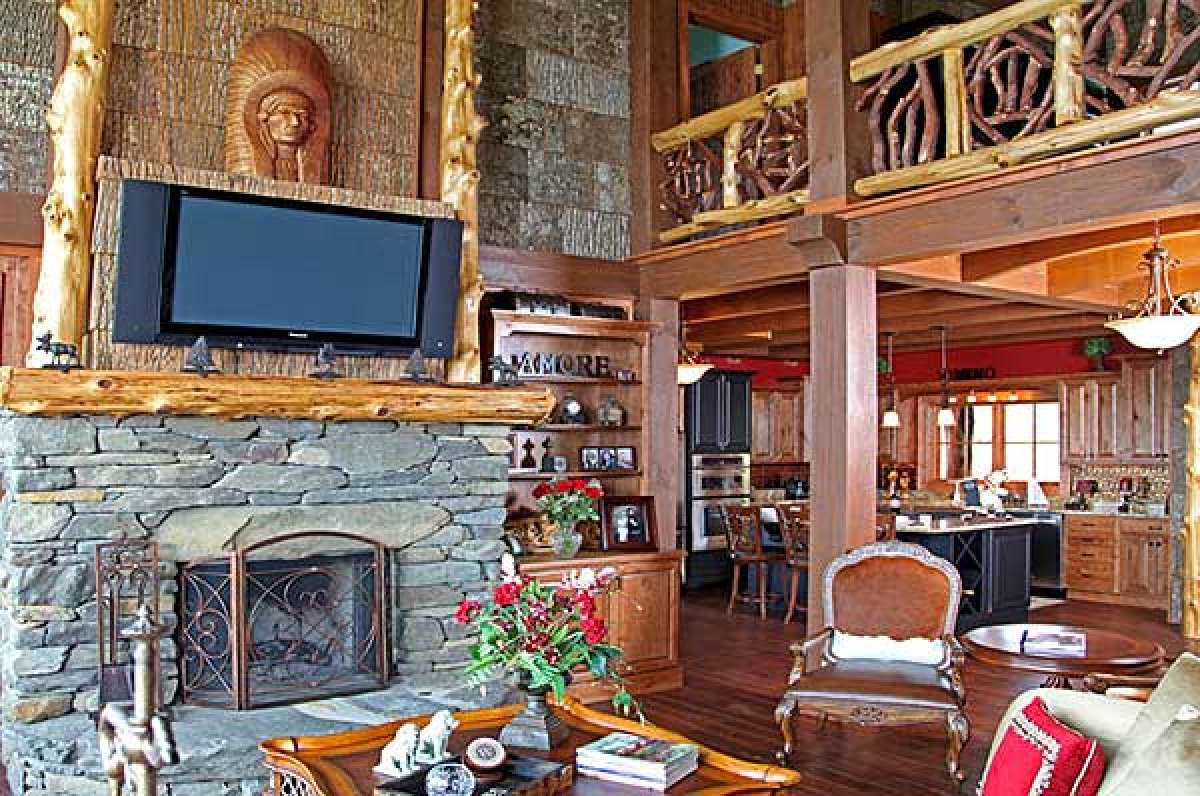

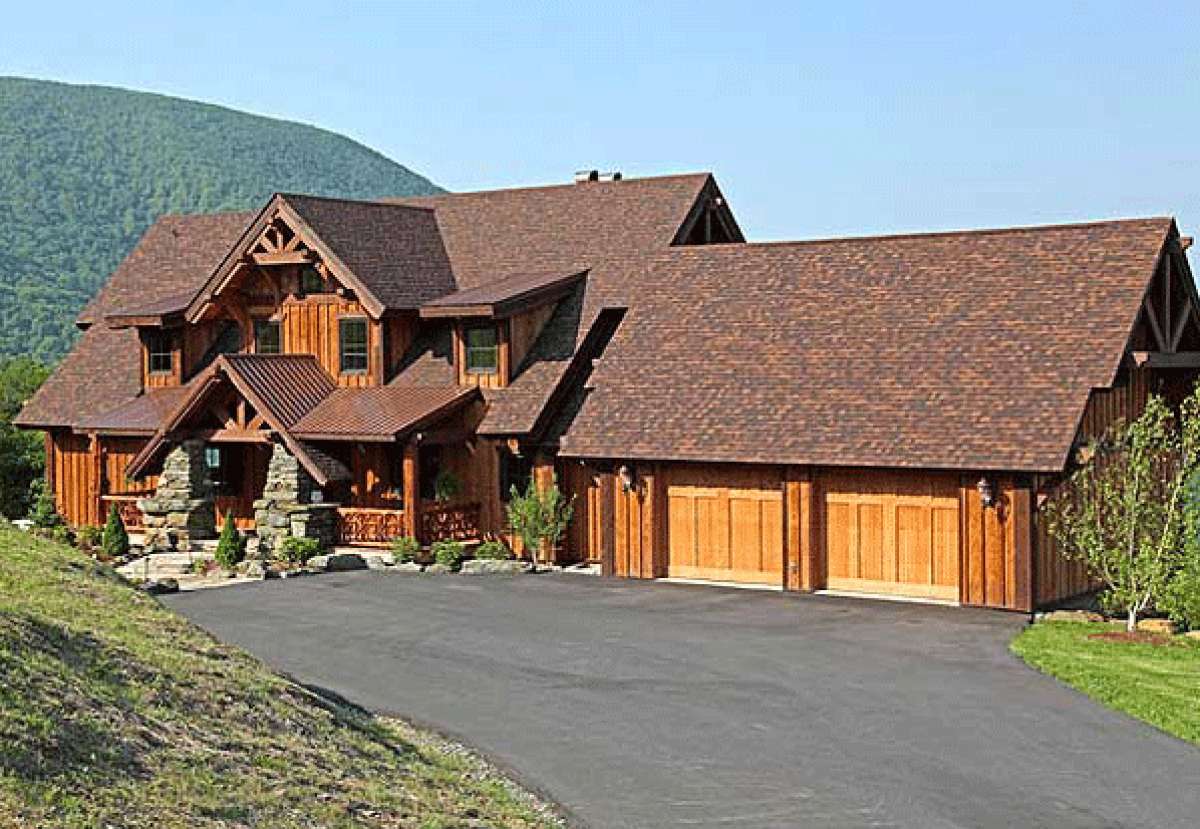

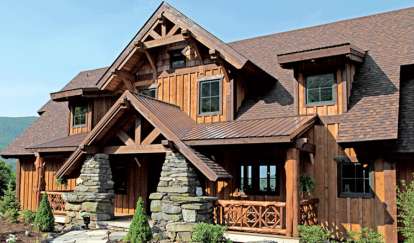

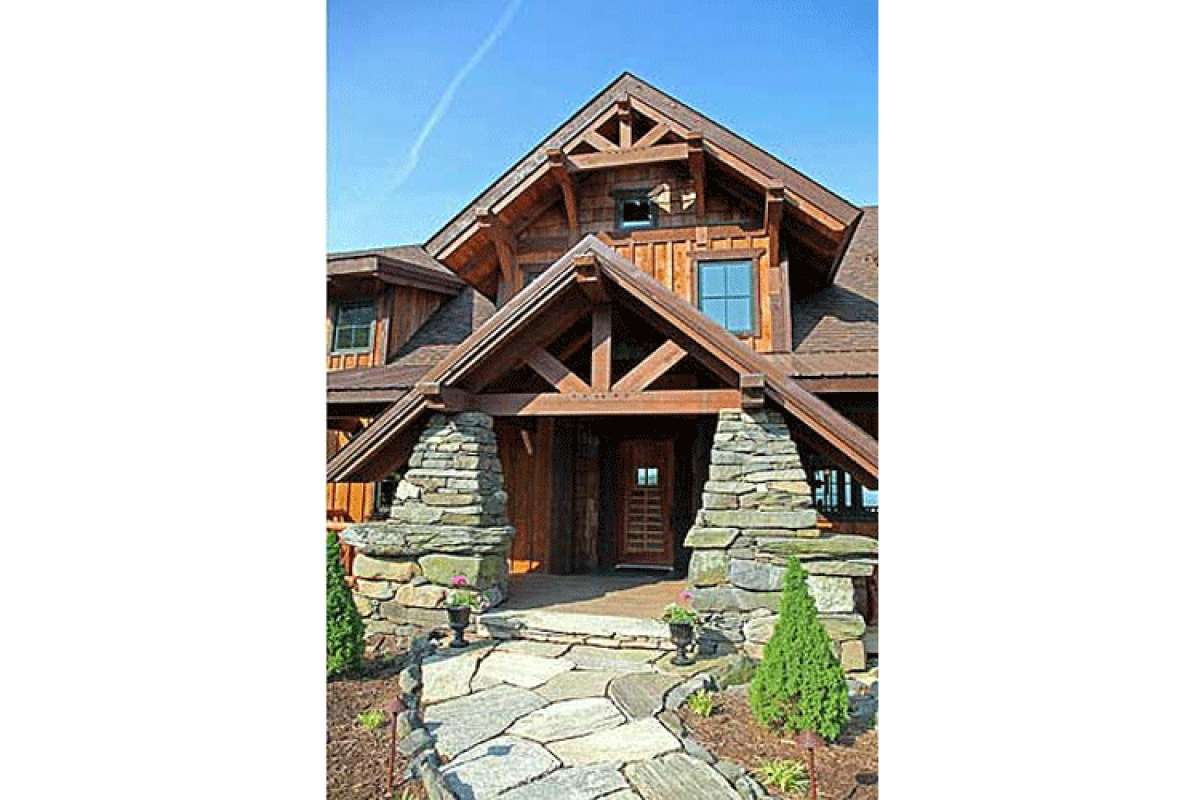

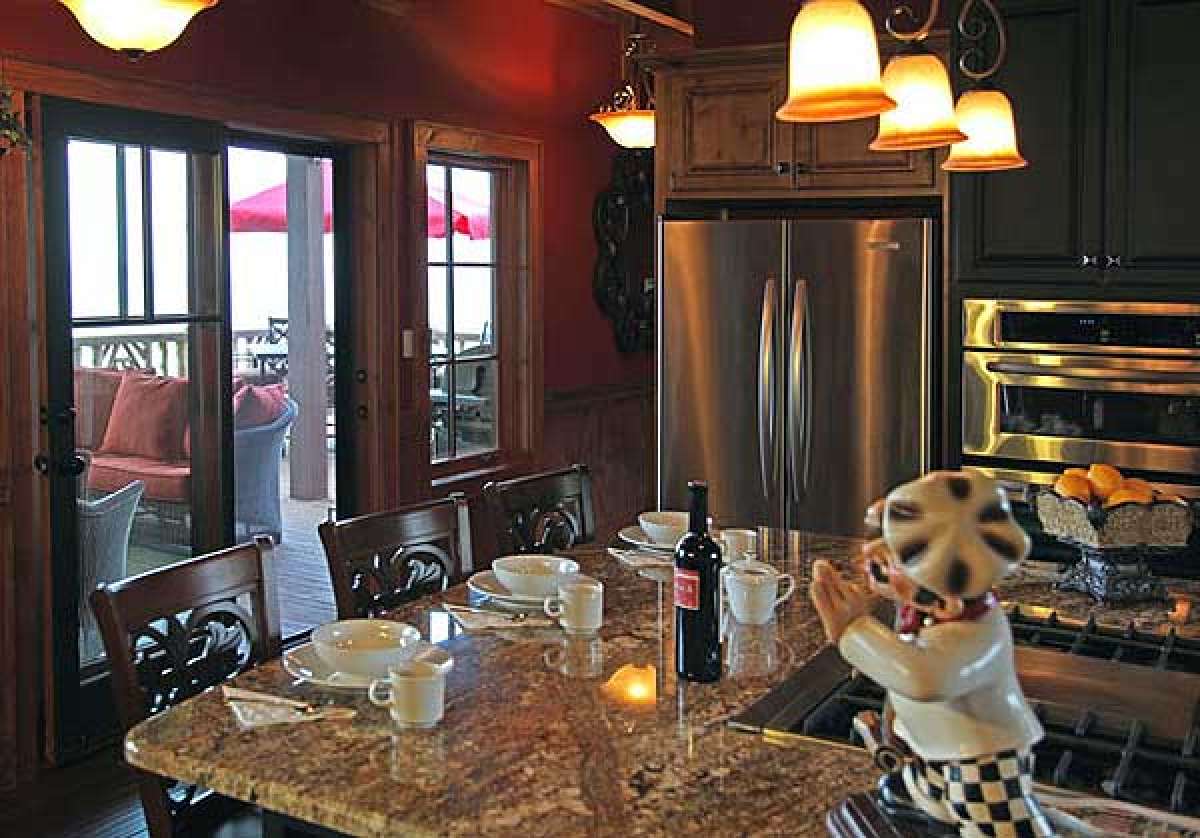

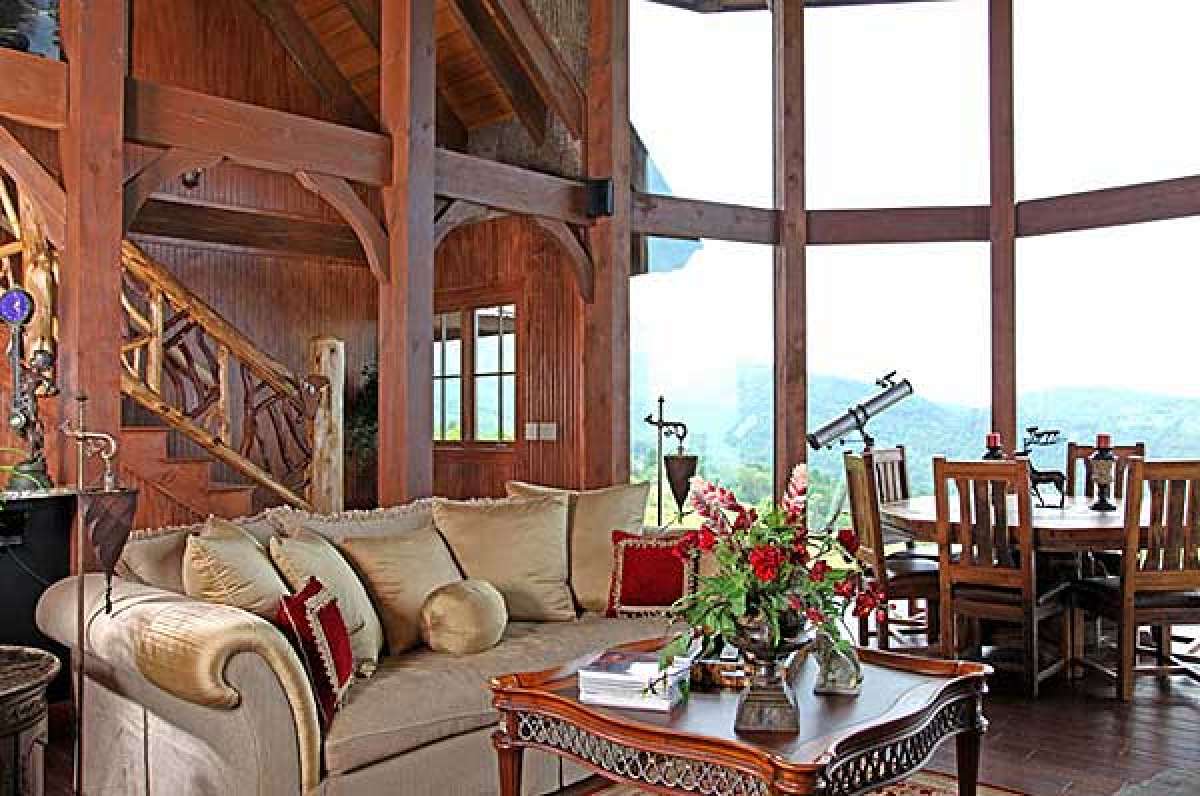

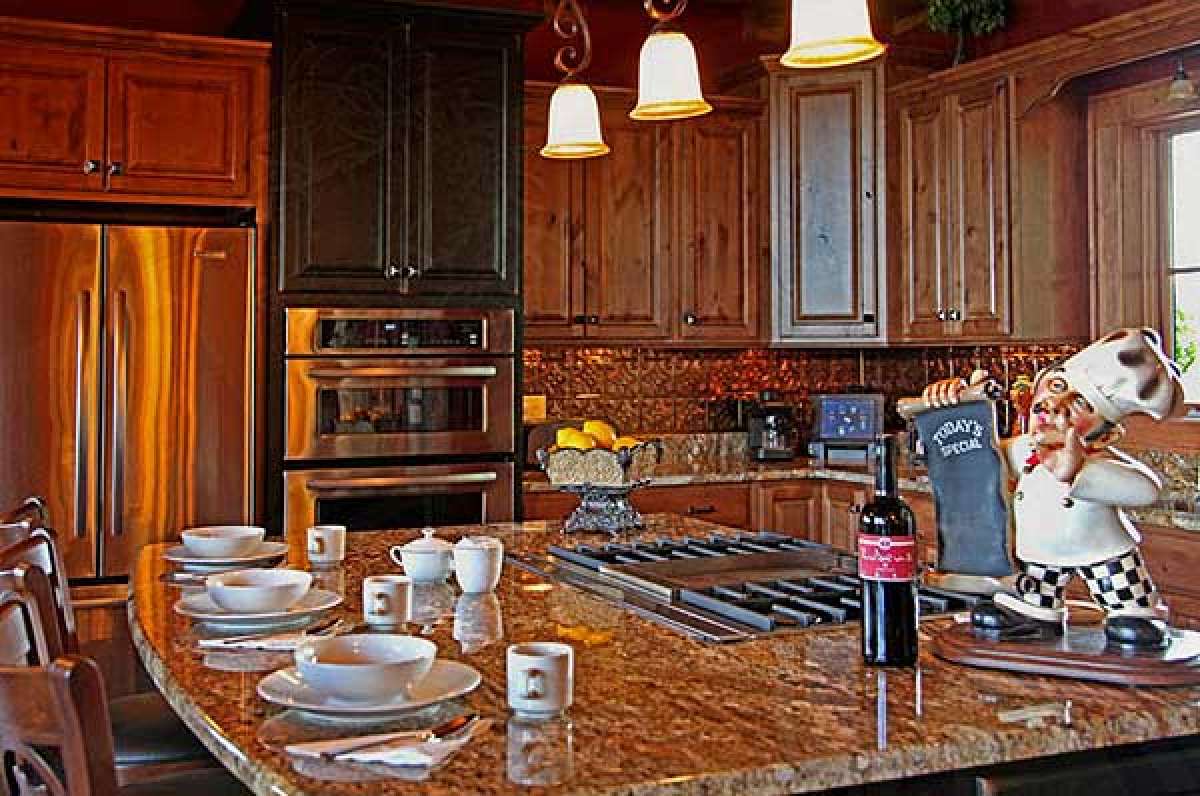

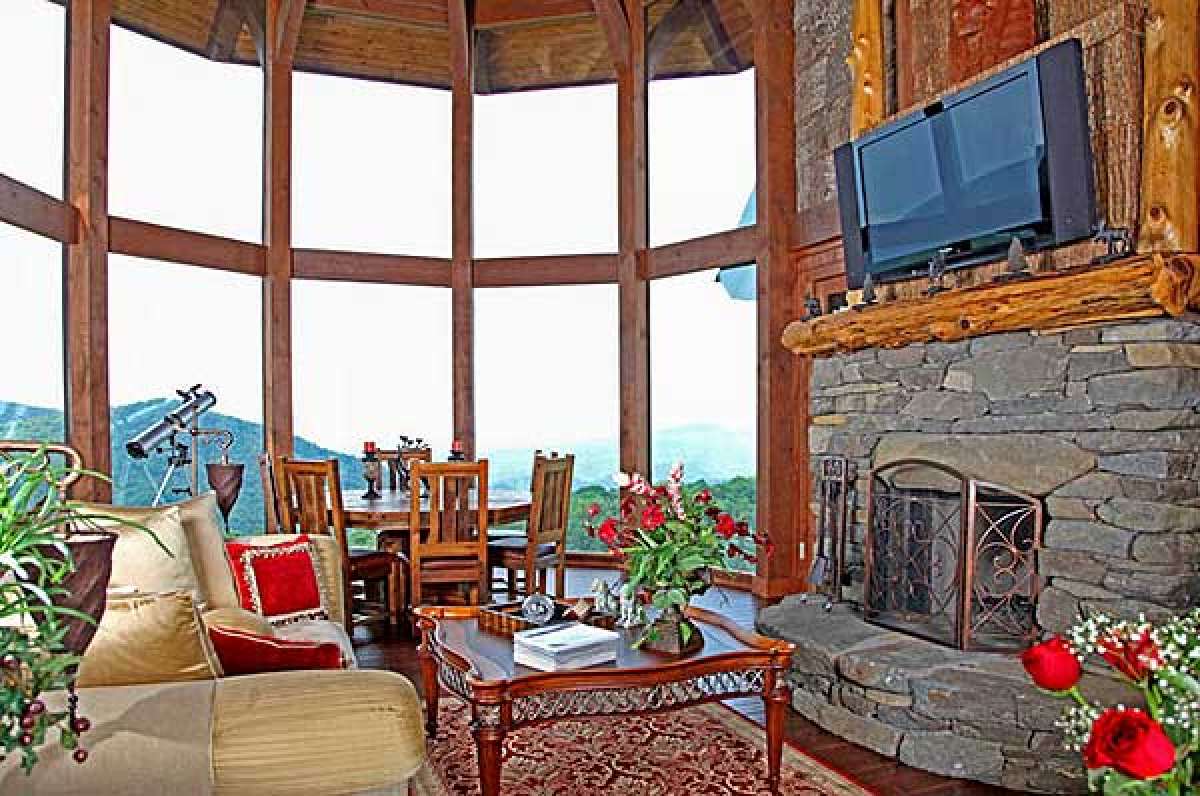

This rustic Mountain home defies the typical response when describing cabin house plans; an exterior that is boldly designed and an interior encompassing a large amount of space is highlighted in this house plan. The gorgeous exterior presents a bold and exciting design chocked full of strong architectural design features which include stacked stone, double window dormers and extensive wood work tucked into the gables, highlighted along the exterior walls, and employed along the expansive front covered porch. The two storied home offers approximately 3,200 square feet of living space which contains three bedrooms and three plus baths. Entering the home, you are greeted with a spacious foyer flanked by an oversized dining room that is perfect for hosting special family occasions and a grand kitchen. The kitchen boasts of a center island prep/work station with a raised bar for casual dining and rear and side walls lined with modern amenities including wine storage. The rear great room features a wet bar, a double sided fireplace and floor to ceiling window views which offer panoramic vista views of the outdoors. Access to the outdoor space is off the great room where an enormous covered porch with a fireplace and open deck are highlighted. This combination space of great room and outdoor space is highly coveted entertaining space which would easily offer solutions to entertaining large gatherings of family and friends. The two car garage conveniently leads to the rear deck and simultaneously to the interior laundry room which is large and features a sink area, a storage closet and loads of counter space. There is an adjacent powder room for guests as well as a linen closet. The main level master is a relaxing oasis and features a spacious master bedroom with access to the L-shaped private porch. The master bath boasts of dual vanities, a separate shower, garden tub, a compartmentalized tub and an oversized master walk-in closets is situated off the master bath.

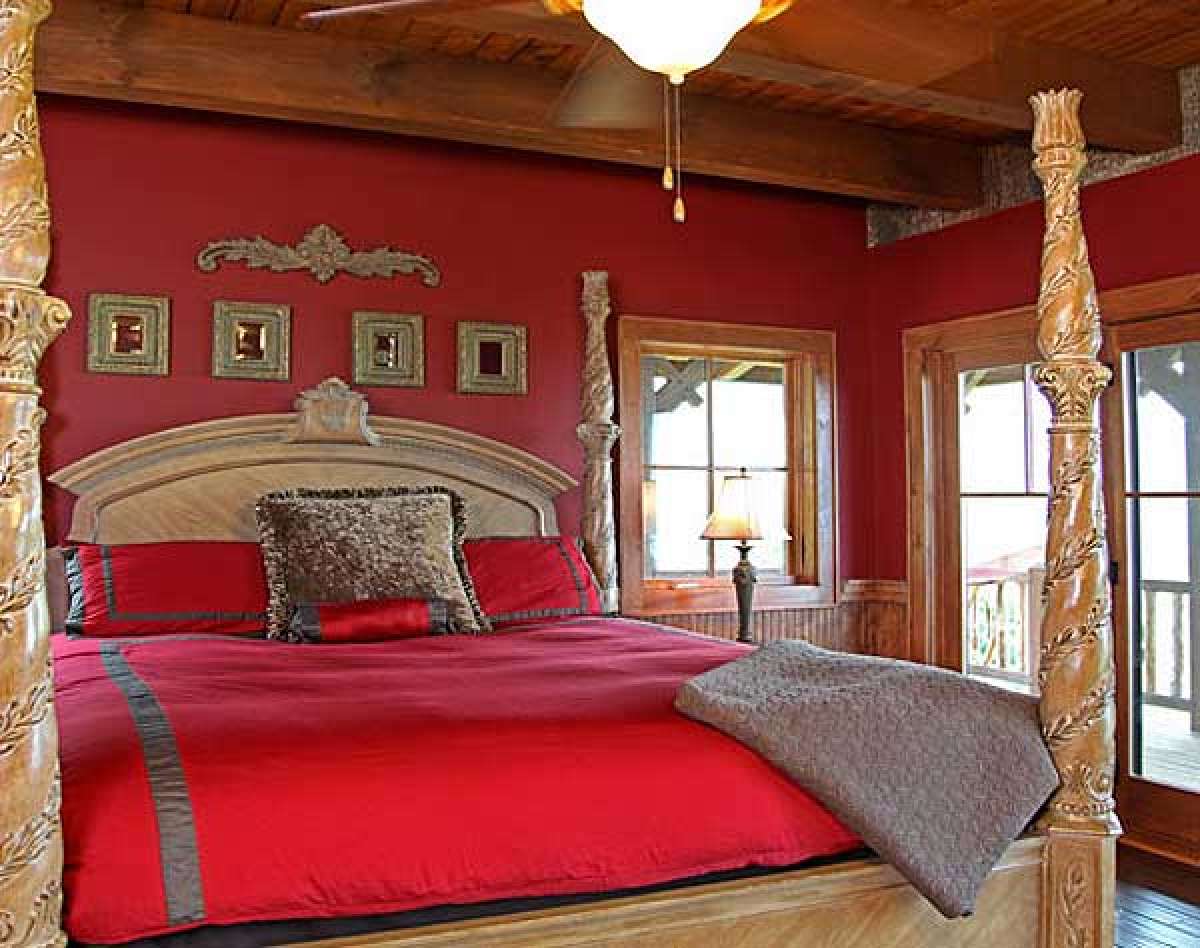

The second story staircase offers views onto the great room below and subsequently opens onto the loft space. This is a large space, measuring 17’x16’, and could function as a playroom or homework station for the children or as a teen-age lounge for older children. Two bedroom suites also occupy the second story of the home; bedroom two is oversized with ample closet space and features private access to the full bath. The third bedroom is an almost identical match in size and includes a large walk-in closet and private full bath. This is a family friendly home whether a vacation or “forever” home that features a one-of-a-kind exterior façade and interior and outdoor space which exceeds industry standards in house design.
